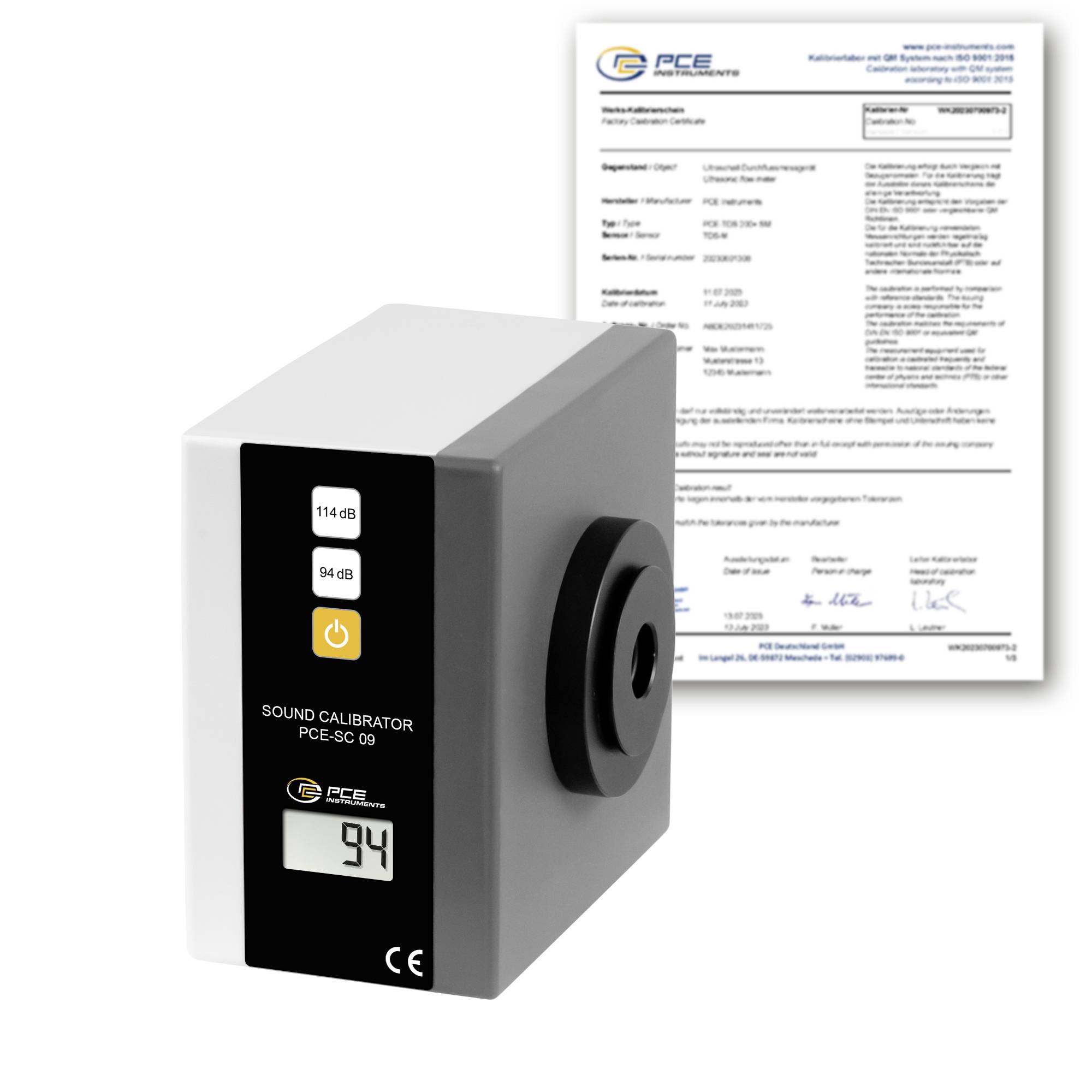

PCE sound calibrator device showing 94 dB, with a calibration certificate in the background.<br>

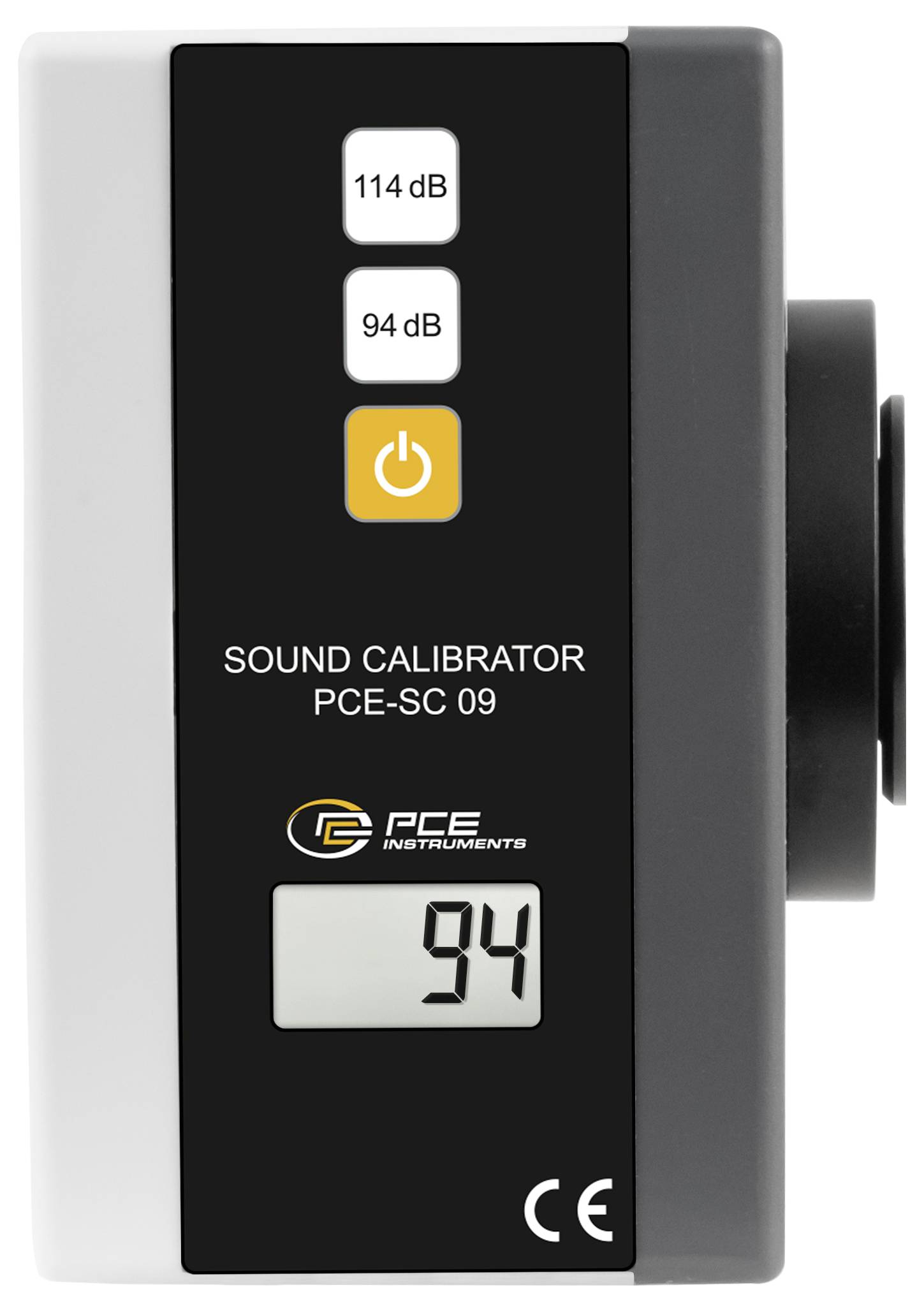

Sound calibrator device showing '94' dB on its display, with 114 dB and 94 dB buttons and 'SOUND CALIBRATOR PCE-SC 09' branding.<br>

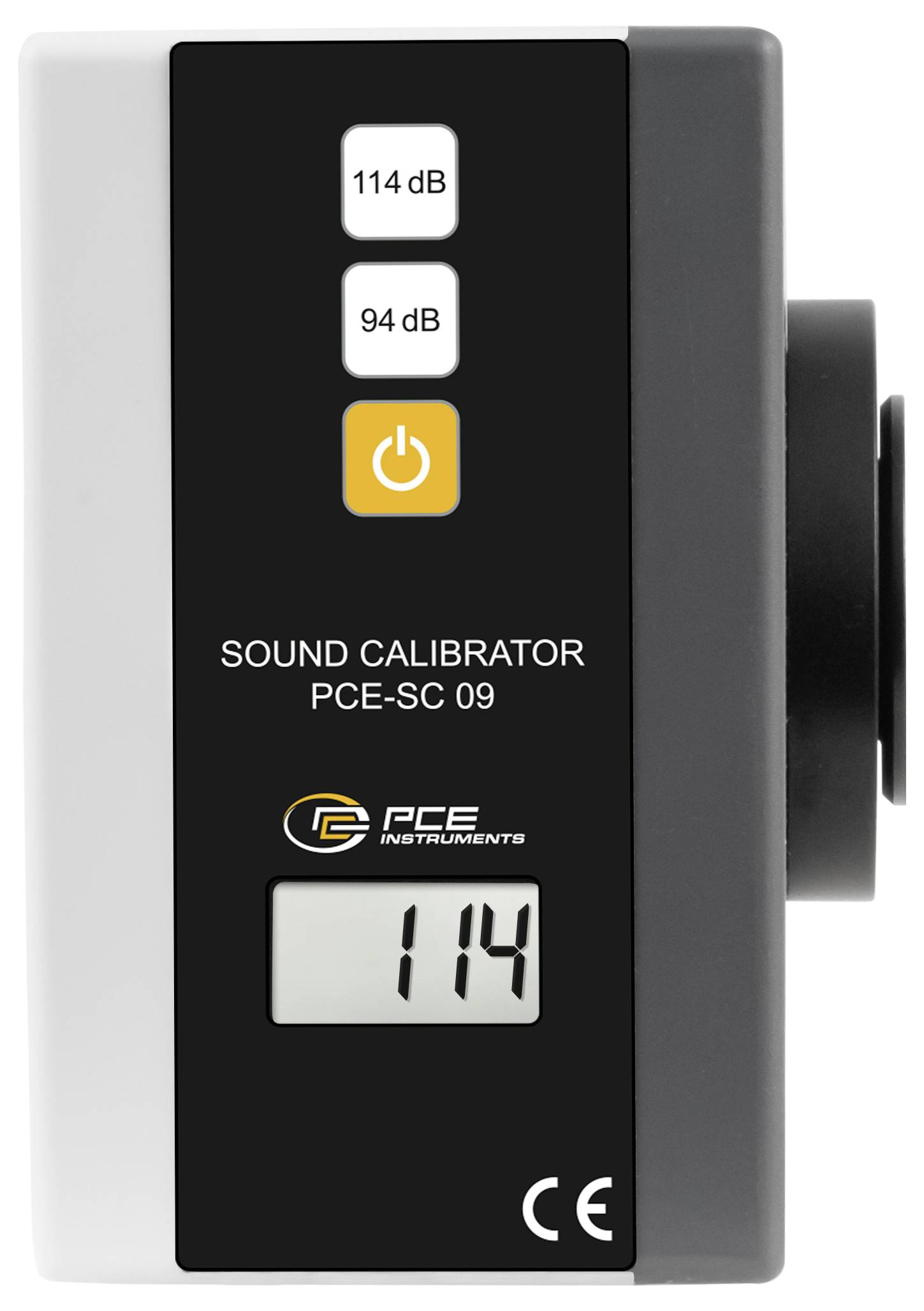

Sound calibrator device showing 114 dB on its digital display, with 94 dB and power buttons above.

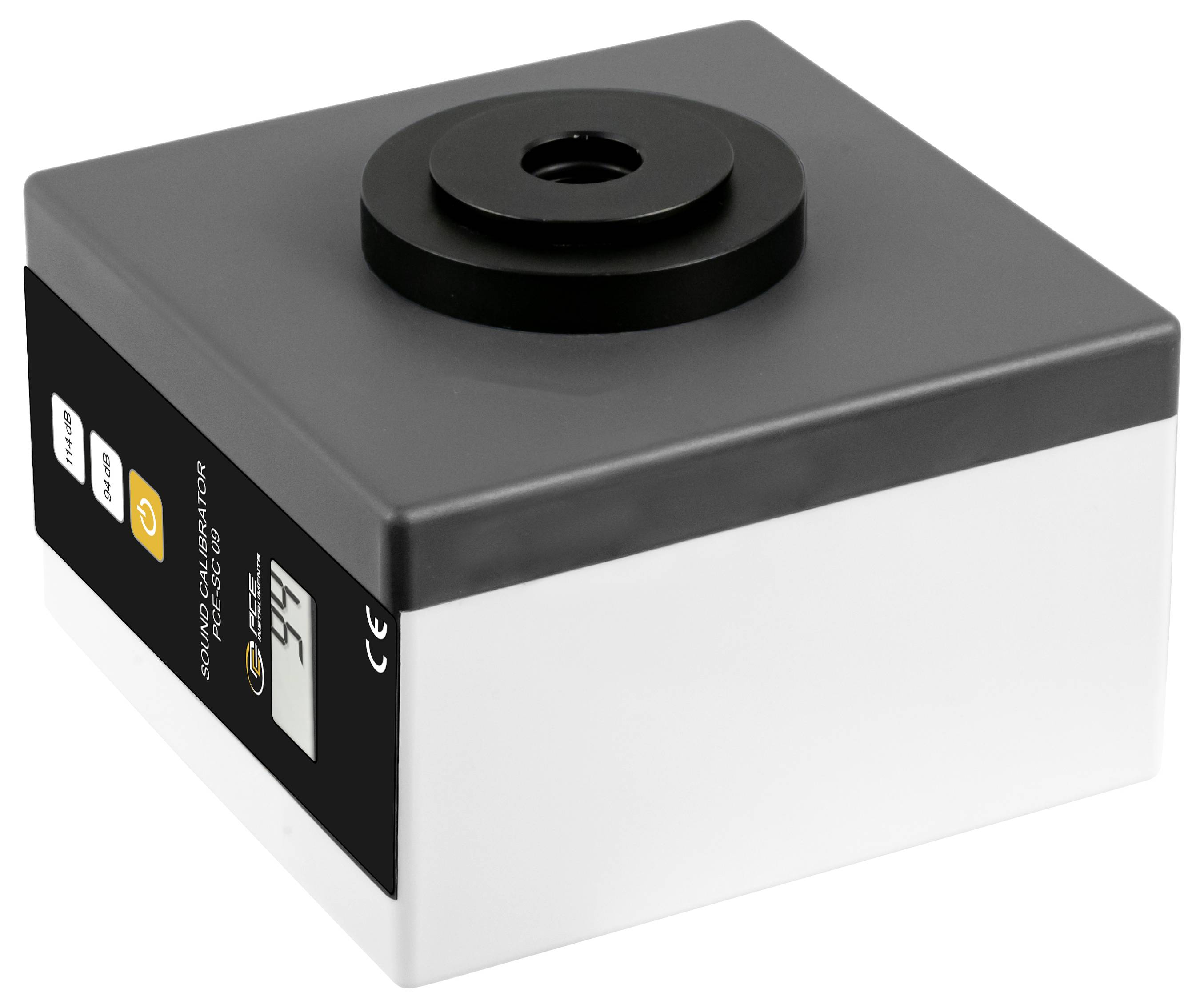

Black-and-silver industrial sensor or camera module with a circular lens opening on top, shown in angled product view.

Black flanged cylindrical insert or grommet with a wide circular top and hollow center, shown on a white background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-SC 09-ICA

Sound pressure level 94 and 114 dB
For assessment filter A,B,C,D
ready to use immediately
Accuracy class 1, IEC 942
simple operation

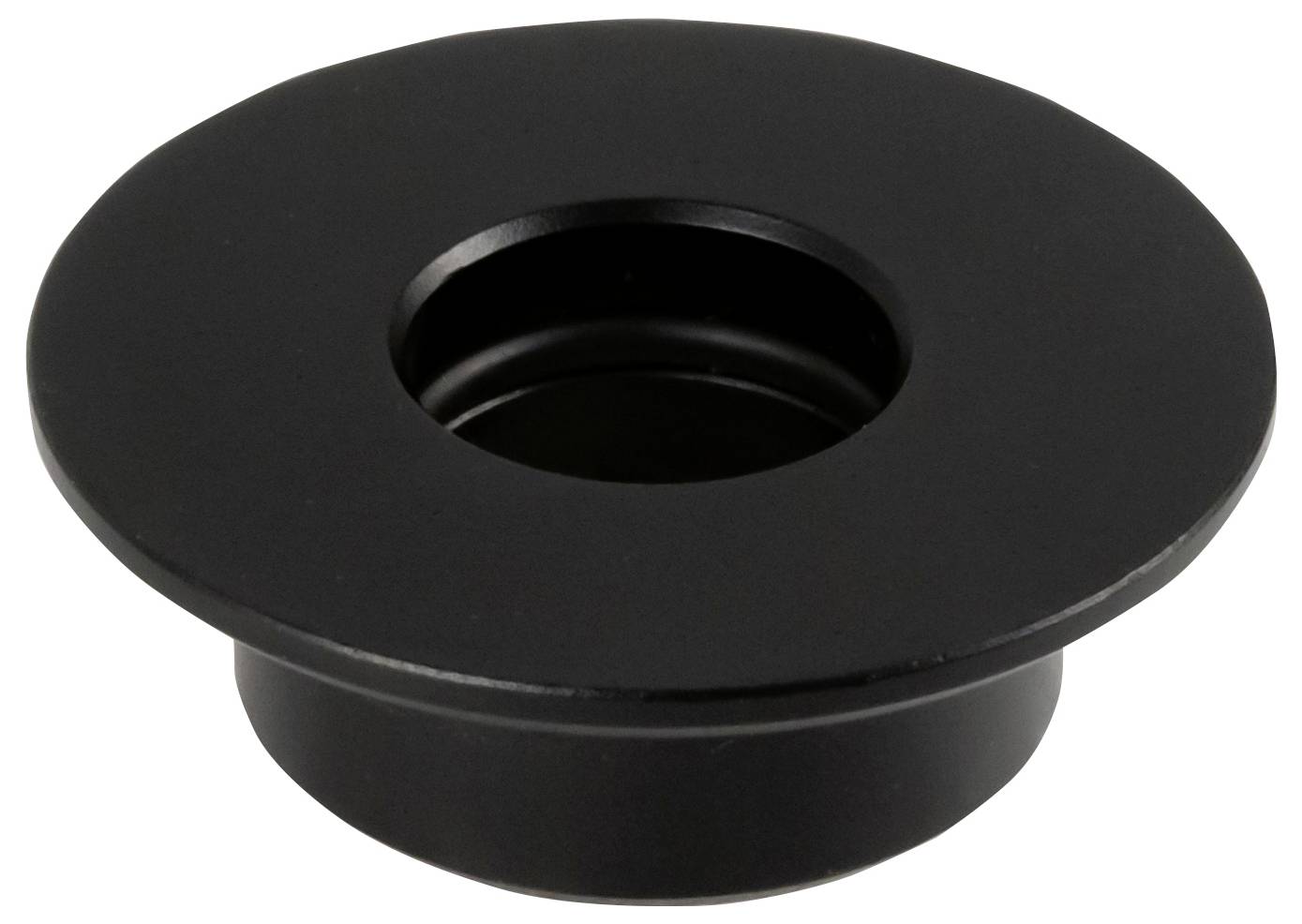

Adapter for different microphones
ISO calibration certificate

Technical specifications

Sound pressure level 94 dB, 114 dB
Accuracy class IEC 942, class 1
Accuracy Sound level ±0.3 dB (20 °C, 760 mm Hg)
Frequency 1000 Hz for A, B, C and D frequency evaluation
Accuracy frequency ±0.01 %
Microphone size 1 inch, with adapter: 1/2 inch, 1/4 inch
Digital display
Height dependence 0.1 dB per 610 m height difference from the zero level
Temperature coefficient 0 ... 0.01 dB/°C.
Battery status Graphical display of battery status
Power supply 2 x 1.5 V AA batteries
Operating conditions
-10 - +50 °C
20 ... 90 % RH, non-condensing
Storage conditions
-40 - +65 °C
20 ... 90 % RH, non-condensing (without battery)
Dimensions 100 mm x 100 mm x 75 mm (L x W x H)
Weight 250 g

: ISO standards

Product type: Calibrator

Unit of measurement: SPL

Dim: (L x W x H) 100 x 100 x 75 mm

Weight: 250 g

Operating voltage: 1.5 V

Width: 100 mm

Height: 75 mm

Length: 100 mm

Documents & Downloads

Datasheet

Datasheet 3812890 PCE Instruments PCE-SC 09-ICA Calibrator Calibrated to (ISO standards) SPL

User & Safety Instructions

User & Safety Instructions 3812890 PCE Instruments PCE-SC 09-ICA Calibrator Calibrated to (ISO standards) SPL

Description

The sound calibrator is a battery-operated sound source. With the sound calibrator, direct and quick calibrations of sound level meters and other systems for noise measurement can be carried out. With the adapter attachments, sound level sensors of 1, ½ and ¼ inches can be connected to the sound calibrator and controlled.

The calibration frequency for the sound calibrator is 1000 Hz. This is the reference frequency for the internationally standardized evaluation curves. This allows you to calibrate sound level meters with the evaluation filters A, B, C, or D. The calibration pressure for this sound calibrator is 94 ±0.3 dB (1 Pa) and 114 ±0.3 dB (10 Pa). Thus the sound calibrator is used, for example, in quality assurance, to test sound level meters or also in calibration laboratories.
