Buy PCE Instruments PCE-SCI-D PCE-SCI-D Isolation transformer 1 pc(s)

A compact black-and-white signal converter module with orange and green terminal blocks, shown on a white background.<br>

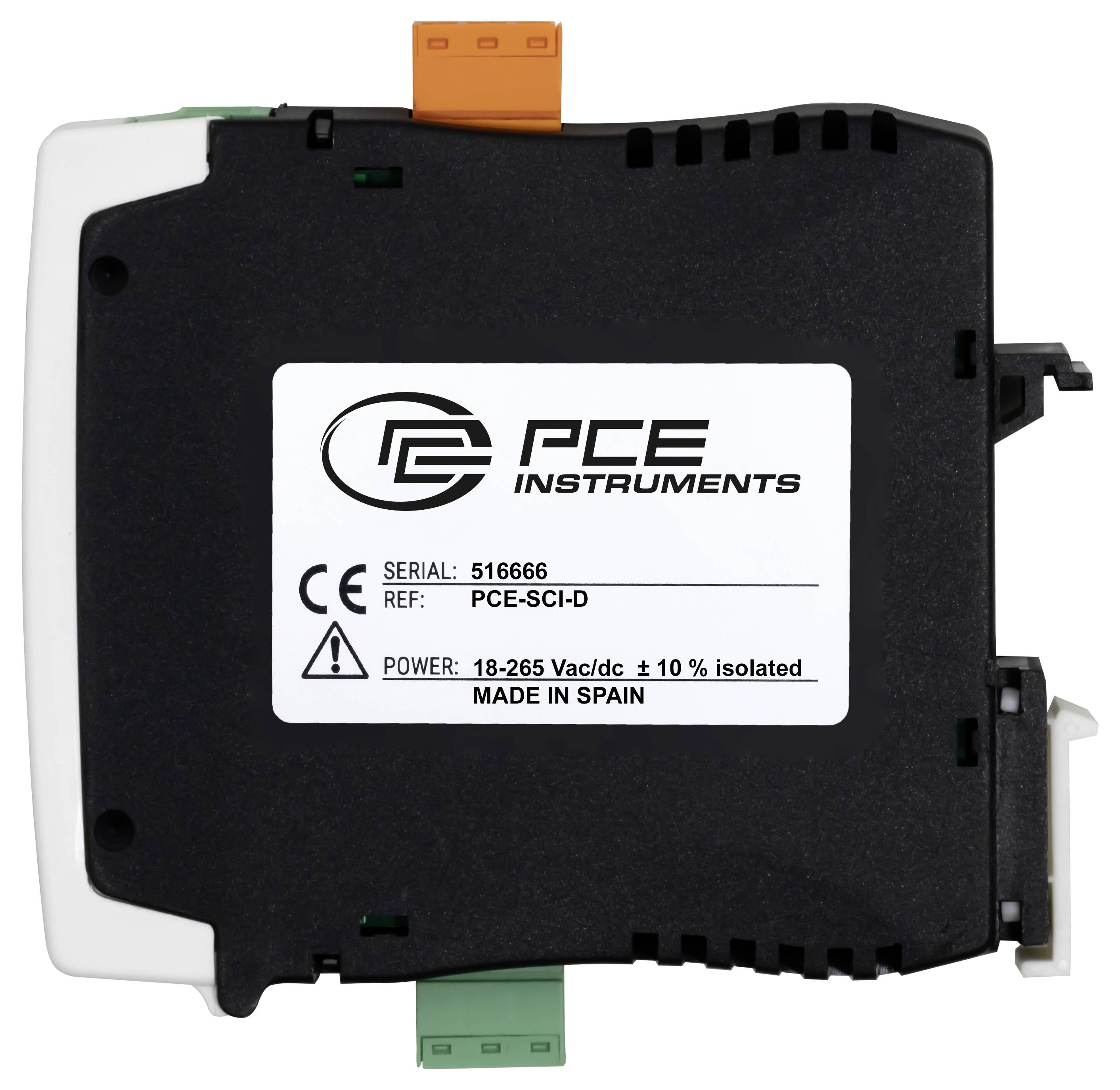

Black PCE Instruments device module with labeled serial and power information, showing orange top and green bottom connectors.<br>

PCE Instruments PCE-SCI signal converter module with green screw terminals on both ends and label showing CE marking.

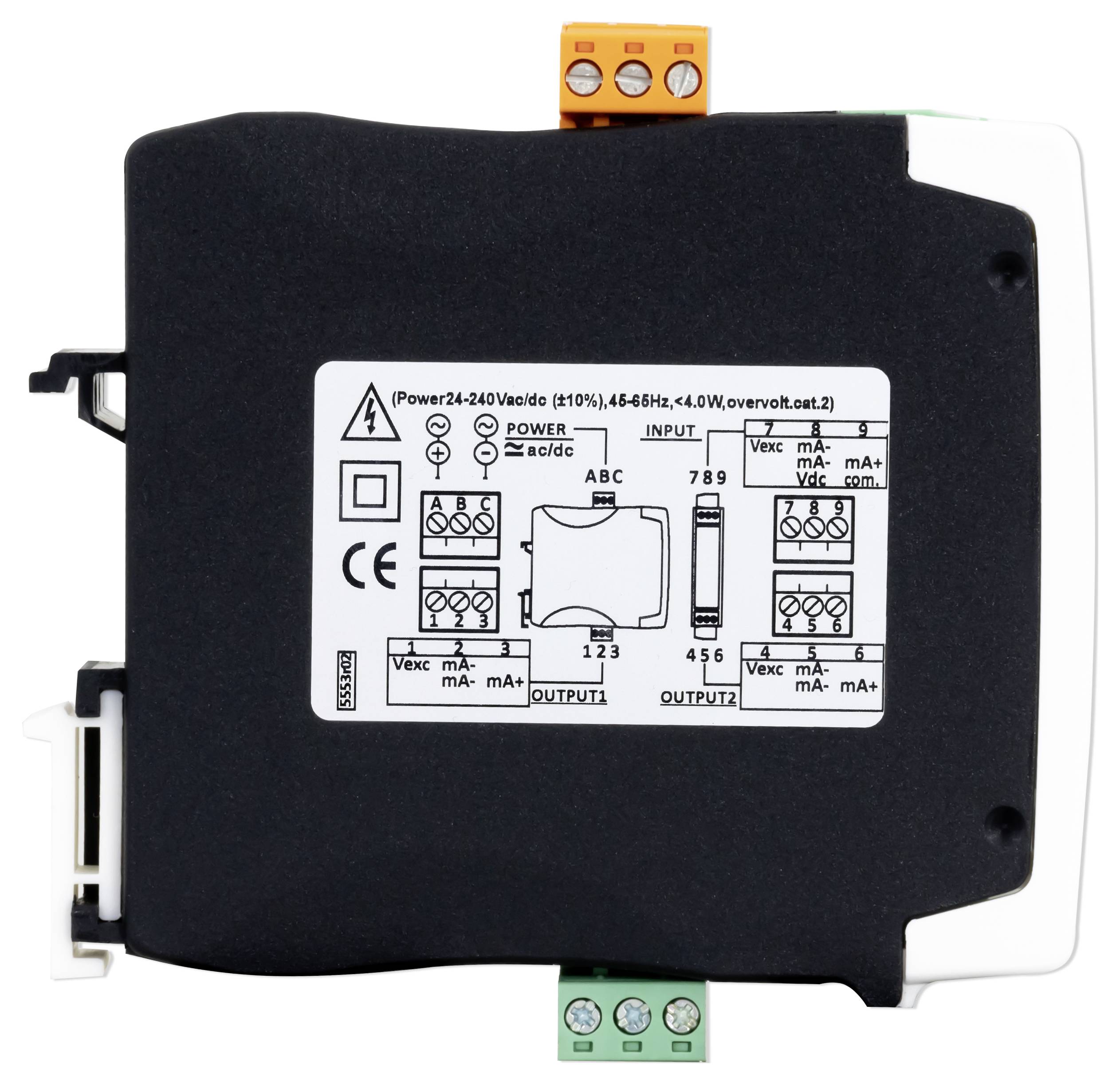

Black industrial DIN-rail control module with terminal blocks and wiring diagram label for power, input, and output connections.

Electrical control panel with mounted DIN-rail components, including a central module and circuit breakers on the right.

1/5

Product type

Isolation transformer

Input signal (current) (max.)

20 mA

Input signal (voltage) (max.)

15 V

Type

PCE-SCI-D

Dim

(L x W x H) 106 x 108 x 22.5 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCIE-SCI-D

Configurable measuring transducer for electrical signals
Configurable via 2 buttons and 7-segment display
Password function
Duplicates analog signals
- 4 ... 20 mA and 0 ... 10V
Fast configuration with 2 buttons

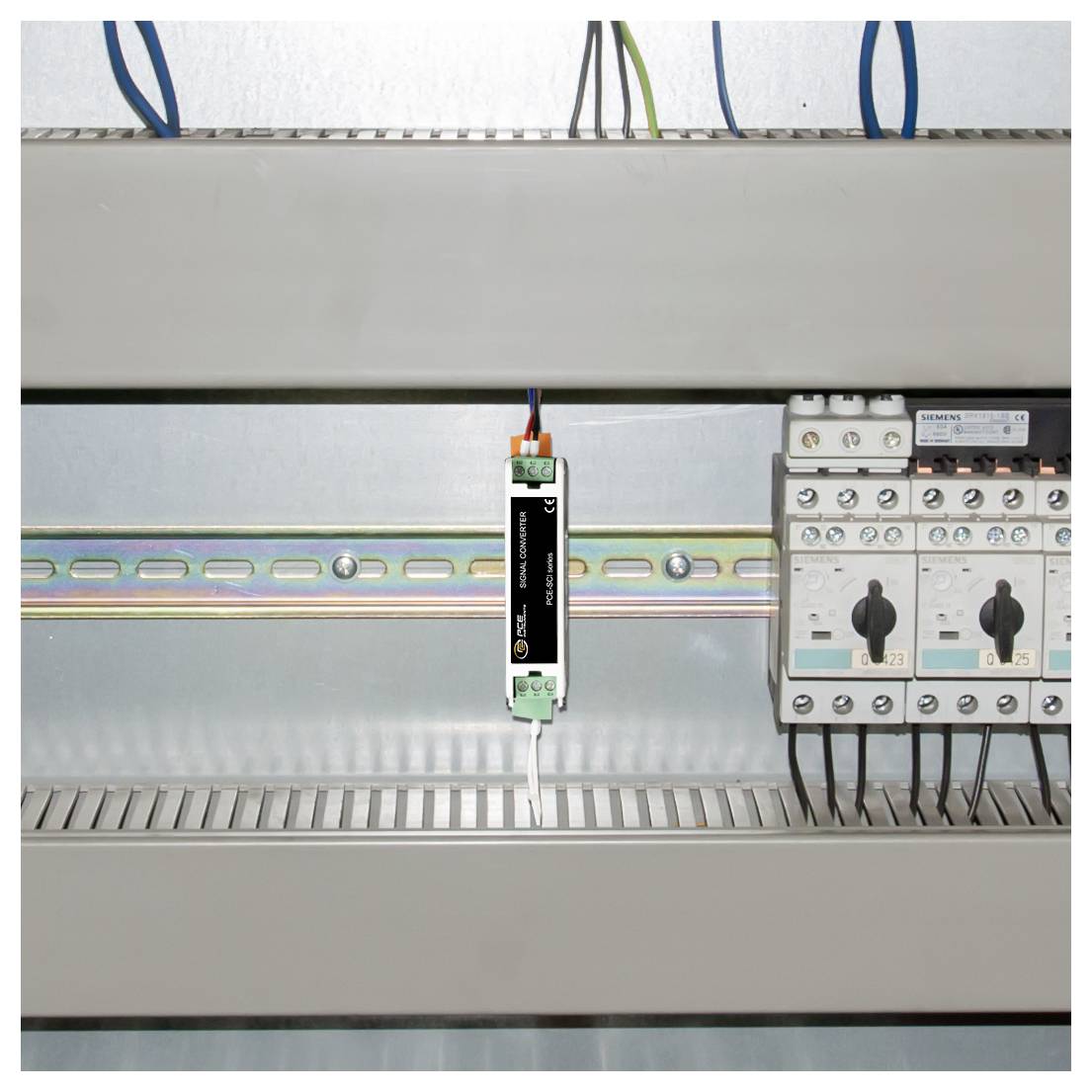

Top hat DIN rail mounting
Power supply 24 ... 250 V (AC/DC)

Technical specifications

Process current
Measurement range max. +4 mA 20 mA
Accuracy 0.3% from MB.
Overload 25mA
Signal type active, passive
Impedance <2 Vdc Voltage drop at the terminals
Step response <300 ms (0 ... 99 % signal)
Process voltage
Measuring range 0 V DC ... 10 V DC
Accuracy 0.3% from MB.
Overload 25 V DC
Signal type active, passive
Impedance greater than 1 MΩ
Step response <300 ms (0 ... 99 % signal)
General Technical Data
Display type 7 segment, 2 digits
Safety standard CAT II / 300V
Protection class (device) IP30
Power supply 24 ... 240 V DC ±10%, 45 ... 65 Hz, insulated
Weight 126 g.
Dimensions (L x W x H) 110 x 22 x 118 mm
Operating conditions 0 ... 50 °C , 0 ... 95 % r.F.
Storage conditions -20 ... 70 °C , 0 ... 95 % r.F.

Type: PCE-SCI-D

Product type: Isolation transformer

Input signal (current) (max.): 20 mA

Input signal (voltage) (max.): 15 V

Dim: (L x W x H) 106 x 108 x 22.5 mm

Connection: Punchdown block
Screw terminal
Clamp
Connector

Output (voltage): 0-10

Operating voltage: 18 - 265 V

Max. operating voltage: 265 V

Min. operating voltage: 18 V DC/AC

Load: 10

Input signal (voltage): 10

Content: 1 pc(s)

Configuration: Potentiometer

Width: 108 mm

Height: 22.5 mm

Length: 106 mm

RoHS-compliant: Yes

Type: PT100
PT500
PT1000

Current consumption: 3 W

Max. ambient temperature: 70 °C

Min. ambient temperature: -20 °C

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 2.5 mm²

Cross section (flexible) (min.): 0.25 mm²

Cross section (inflexible) (min.): 1 mm²

Documents & Downloads

Datasheet

Datasheet 3192941 PCE Instruments PCE-SCI-D PCE-SCI-D Isolation transformer 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3192941 PCE Instruments PCE-SCI-D PCE-SCI-D Isolation transformer 1 pc(s)

Description

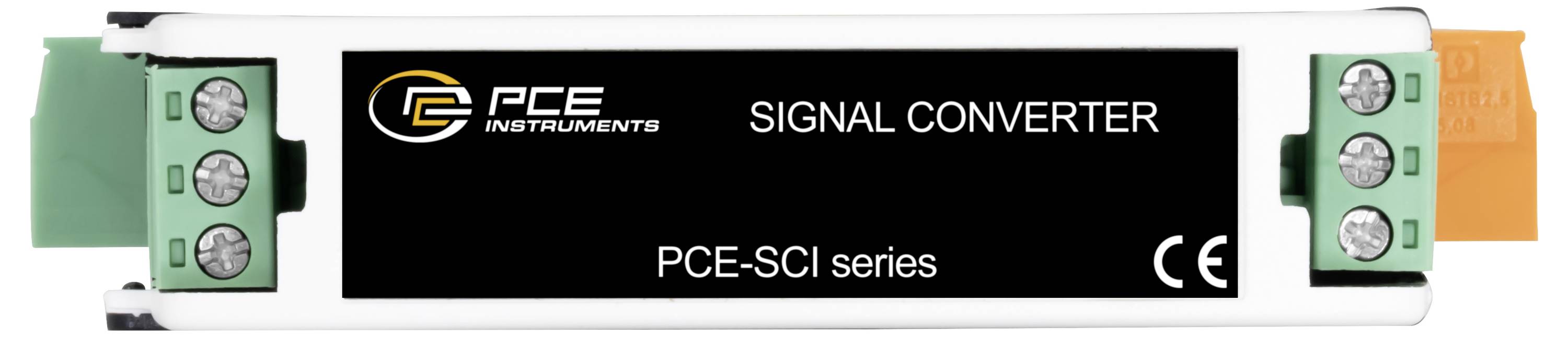

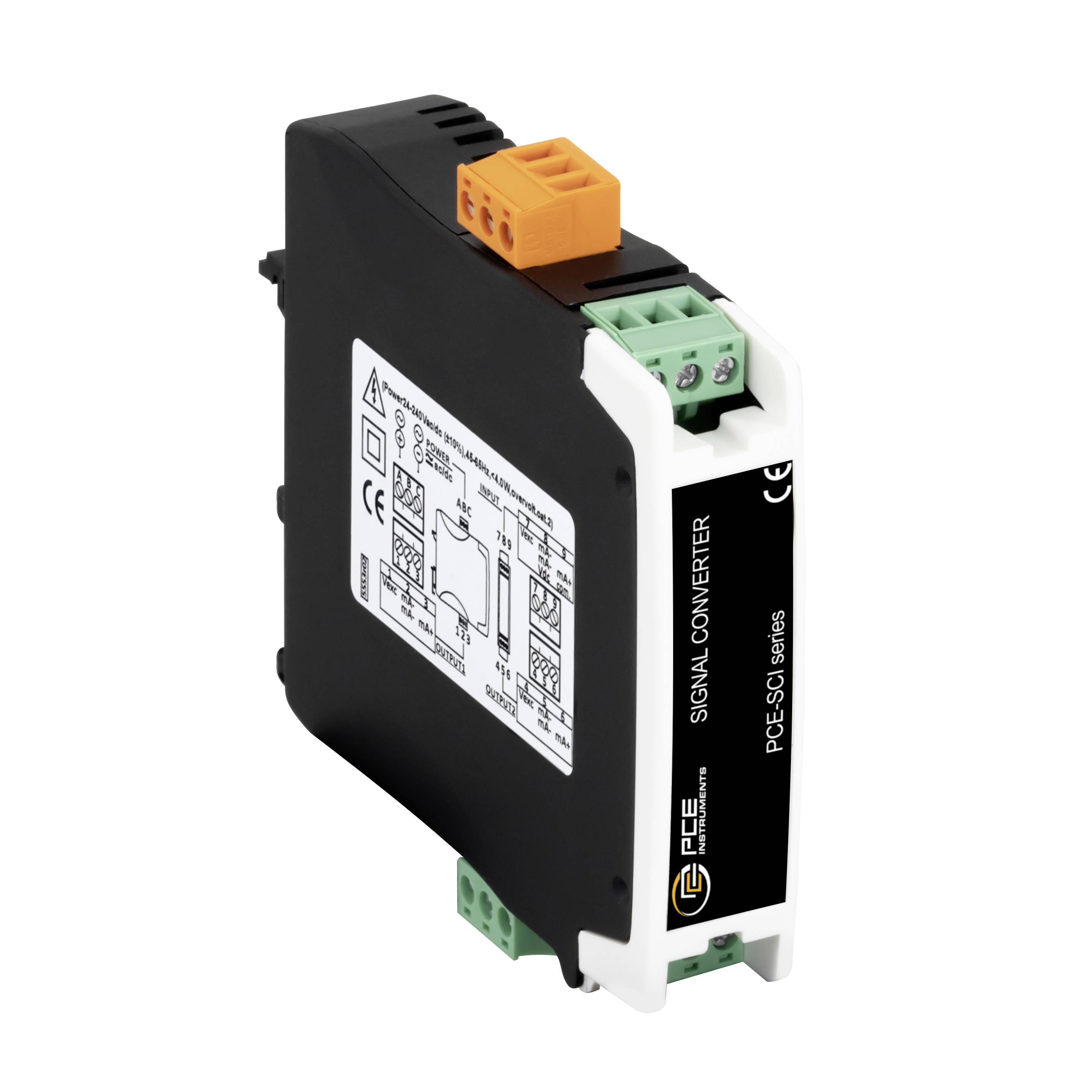

The configurable transmitter for electrical signals is a signal duplicator and signal converter for process signals. There can be a 4 ... 20 mA and 0 ... 10 V DC - signal can be applied at the input. The configurable transmitter for electrical signals provides excitation voltage, if necessary. It has 2 outputs, with output 1 fixed to 4 ... 20 mA and output 2 to 4 ... 20 mA or 0 ... 10 V DC can be set. It also has four times the insulation between power supply, input signal, output 1 and output 2.

The insulation of the circuit prevents ground loops and the spread of voltage peaks, protection of devices and signal integrity. Configuration systems (digits and keypad) are accessible behind the front cover and provide an easy and quick configuration. The signal duplicator has a "password" function in order to block access to the configuration. The configurable transmitter for electrical signals is designed for industrial use, with the possibility of integration in a variety of applications, reduced costs, excellent quality and optional adaptation of the device for individual use.

This text is machine translated.
