Name: PCE Instruments PCE-SCS 60-ICA Platform scales PCE-SCS 60-ICA Calibrated to (ISO standards) Weight range 60 kg Readabili
Brand: PCE Instruments
SKU: 3812722

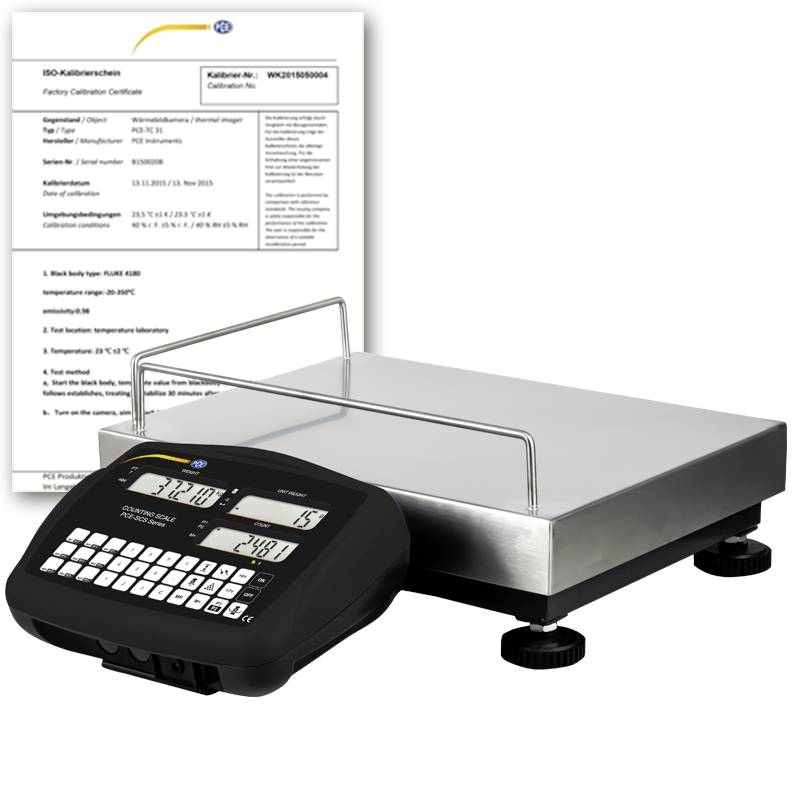

Digital weighing scale with control keypad and display, shown with a calibration certificate in the background, indicating factory calibration or verification.<br>

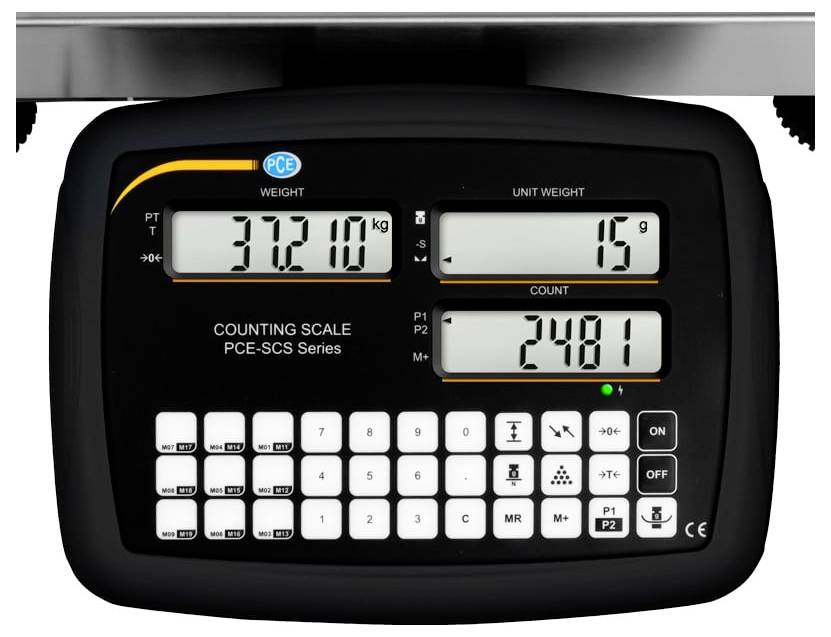

Digital counting scale display showing weight 37.210 kg, unit weight 15 g, and count 2481 on a PCE-SCS series scale.

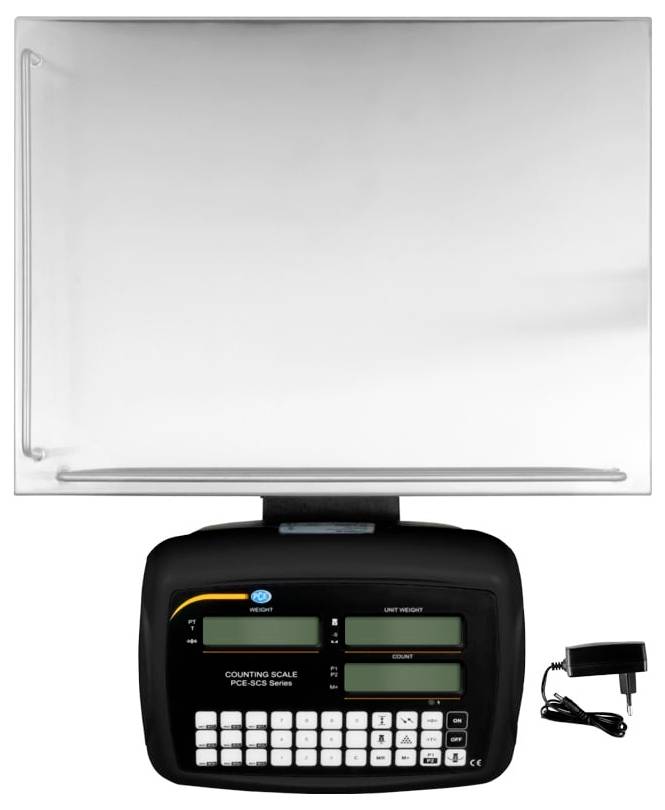

Digital counting scale with a large stainless steel platform, control panel display and keypad, plus a power adapter beside it.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments platform scales PCE-SCS 60-ICA

Platform size 300 x 400 mm
Shock-resistant plastic housing
LCD-display 20 mm big
Operation via accumulators
Automatic power-saving mode
Tare function
Weighing units kg and lb
Flat and light design
Incl. ISO calibration certificate

Technical specifications

Weighing range
Measuring range [Max] 60 kg
Resolution [d] 5 g
Accuracy 15 g
General Technical Data
Inputs 0.6 mV/V, 3 mV/V
Unit(s) kg, lb
Display type LCD with lighting
Digit size [WXH] height: 20 mm
Measurement rate 30 x per second
Memory capacity: 18 values
Interface RS232
Operating time 130 h
Plastic case
Targeting area Over the full range
Weighing plate dimensions 300 x 400 mm
Material weighing plate stainless steel
Calibration External calibrating weight (optional)
Adjustable setting time
Linearity 0.01 % FS
Menu language English (US), English (GB)
Protection class (device) IP20
Battery power supply: 6 V, 4 Ah, 100 ... 240 V 50 / 60 Hz
Connector type for device Euro plug
Battery/Battery 1 x 6 V internal , Lead-gel rechargeable battery
Capacity 4000 mAh
Operating conditions -10 ... 40 °C , 0 ... 80 (non-condensing)% r.H.
Storage conditions -10 ... 40 °C , 0 ... 80 (non-condensing)% r.H.
Dimensions ( L x W x H ) 560 x 150 x 480 mm
Weighs 8000 g.

Weight range: 60 kg

Product type: Platform scales

Readability: 5 g

Display: Digital

Power supply (LOV): rechargeable
mains-powered

: ISO standards

Power supply (details): 100 - 240 V

Dim: (L x W x H) 560 x 150 x 480 mm

Weight: 8000 g

Weight resolution: 5 mg

Type: Scales from the industrial weighing technology up to 60 kg, readability 5 g, mains and battery operation,
Large 20 mm LC display, removable stainless steel platform, zero and tare function

Calibration service: Incl. ISO calibration certificate

Width: 150 mm

Height: 480 mm

Length: 560 mm

Reproducibility: 5 g

Type: PCE-SCS 60-ICA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812722 PCE Instruments PCE-SCS 60-ICA Platform scales PCE-SCS 60-ICA Calibrated to (ISO standards) Weight range 60 kg Readabili

User & Safety Instructions

User & Safety Instructions 3812722 PCE Instruments PCE-SCS 60-ICA Platform scales PCE-SCS 60-ICA Calibrated to (ISO standards) Weight range 60 kg Readabili

Description

The platform scale has a 300 x 400 mm large stainless steel platform, which can be removed for cleaning. A flexible use of the mobile platform scales makes possible not only the light weight and the compact dimensions, but also the independent power supply, which is possible with a 6 V 4 Ah rechargeable battery.

If the 4 load cells on the platform scale with a weighing capacity of 60 kg and a resolution of only 5 g require an adjustment, this is possible easily and quickly by means of external weights (optional) in the calibration function of the platform scale. With the key operation, the fast response time of the platform scales and the well readable 20 mm large LCD display, this platform scale is particularly suitable for the mobile and fast weighing application.

This text is machine translated.
