Name: PCE Instruments PCE-SCS 60 Platform scales PCE-SCS 60 Weight range 150 kg Readability 5 g rechargeable, rechargeable
Brand: PCE Instruments
SKU: 2452827

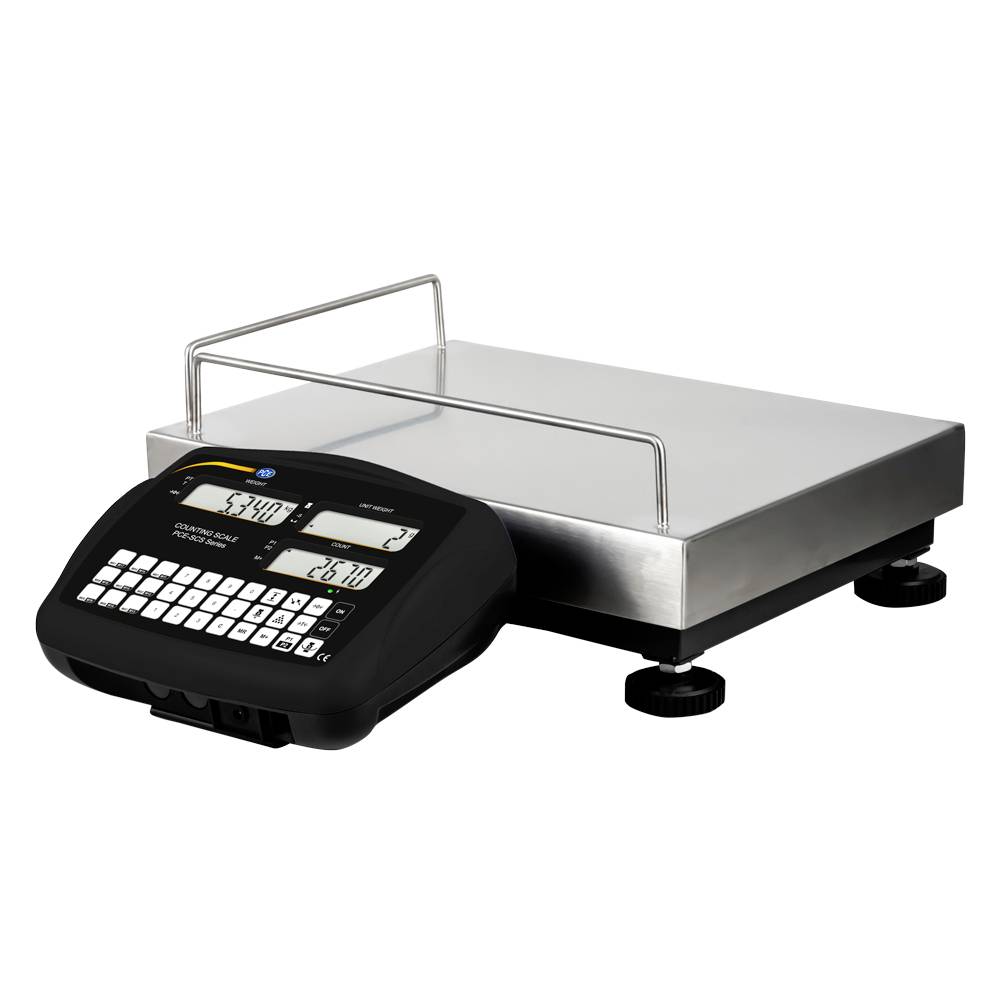

Digital bench scale with stainless steel platform and attached black control display showing weight readouts.

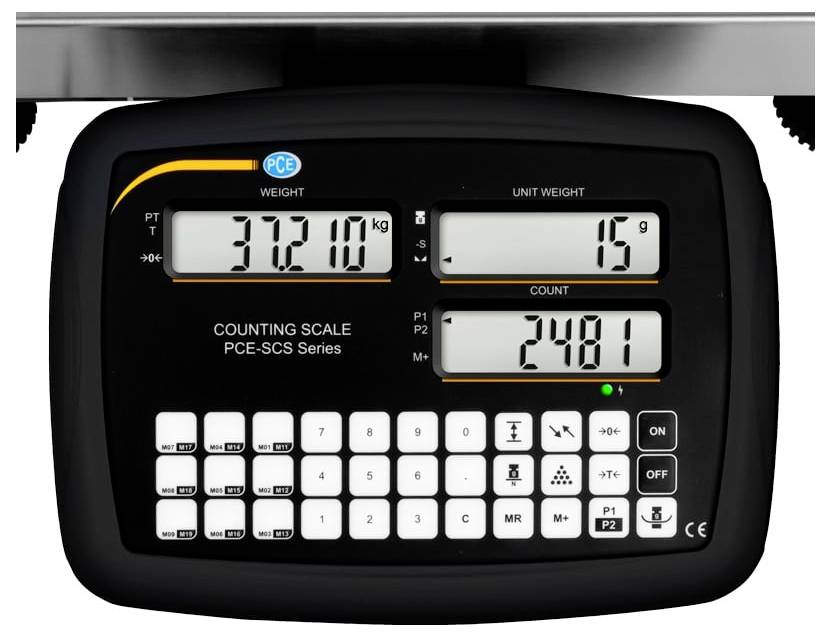

Digital counting scale display showing weight 37.210 kg, unit weight 15 g, and count 2481, with keypad controls below.

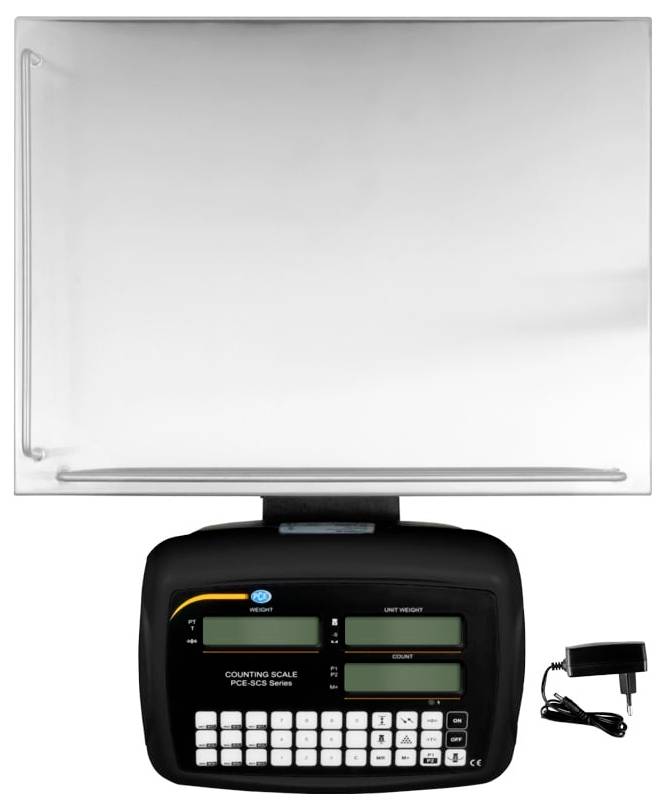

Counting scale with a large empty weighing pan, digital display and keypad, plus a power adapter on the right.

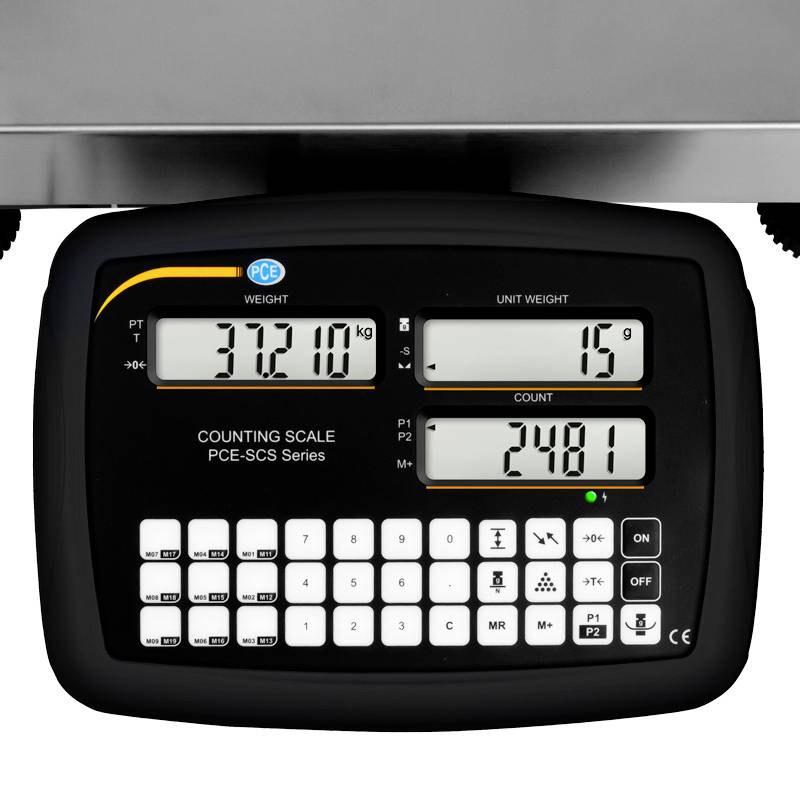

Display of a digital scale shows a total weight of 372 kg, unit weight of 15 g, and a count of 2,481 units.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Weighing range 6 0 kg Readability 5 g The full range of the taring area Adjustable settling time Weighing units kg / lb Display 20 mm LCD backlit Platform size 300 x 400 mm (stainless steel) Calibration by external calibration weight (optional) Operating temperature -10 °C ... 40 °C). Memory 18 values Voltage supply 100-240V 50 / 60Hz - 12V adapter Rechargeable battery: 6V4Ah Battery life 130 hours Input signal analogueue 10.6 mV / V - 3 mV / V linearity ≤ 0.01% F.S. Dimensions 480 x 560 x 150 mm Weight 8 kg.

Weight range: 150 kg

Product type: Platform scales

Readability: 5 g

Display: Digital

Power supply (LOV): rechargeable
rechargeable

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 560 x 150 x 480 mm

Weight: 8000 g

Weight resolution: 5 g

Weighing plate: Stainless steel

Width: 150 mm

Height: 480 mm

Length: 560 mm

Type: PCE-SCS 60

Features: Counting
Calibratable

Top plate (width): 150 mm

Top plate (length): 560 mm

Documents & Downloads

Datasheet

Datasheet 2452827 PCE Instruments PCE-SCS 60 Platform scales PCE-SCS 60 Weight range 150 kg Readability 5 g rechargeable, rechargeable

User & Safety Instructions

User & Safety Instructions 2452827 PCE Instruments PCE-SCS 60 Platform scales PCE-SCS 60 Weight range 150 kg Readability 5 g rechargeable, rechargeable

Description

Economical platform scales up to 60 kg, readability 5 g, mains and battery operation, large 20 mm LC display, removable stainless steel platform, zero and tare function The platform scale has a 300 x 400 mm stainless steel platform, which can be removed for cleaning. Flexible use of the mobile platform scales not only enables the light weight and the compact dimensions, but also the independant power supply, which is possible with a 6V4Ah battery. If the 4 load cells of the platform scale with a weighing capacity of 60 kg and a resolution of only 5 g require adjustment, this can be done quickly and easily using external weights (optional) in the calibration function of the platform scale. Thanks to the key operation, the fast response time of the platform scale and the easy-to-read 20 mm LCD display, this platform scale is particularly suitable for mobile and fast weighing applications.

This text is machine translated.
