PCE Instruments PCE-SD 1500 Drive-through scales PCE-SD 1500 Weight range 1500 kg Readability 500 g mains-powered Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Passage balance PCE-SD 1500
- Piece-counting function Percent % comparison weight Filter (reaction time) adjustable Animal weighing function A tare value can be stored Tolerance determination weight min / ok / maxSeveral weights Average weight determination Recipe mixing weighing Adjustable bidirectional RS-232 interface Printer languages line mode and EPL2 Adjustable automatic shutdown Gross / Net button on the display Menu can be set freely Maintenance-free components Optional USB, LAN or 4-20 mA
Technical specifications
- Technical data of the passage scales Model PCE-SD 1500Weighing range 1,500 kgResolution 0.5 kgMin * 10 kgWeight 250 kg.Usable area 1250 x 1500 mm *The minimum load is the load from which the calibration authority checks the accuracy. The calibrated drive-through scale also shows smaller weights, but these must not be used in traffic that is subject to calibration. Calibration according to class M III (calibrated) Tare area over the full weighing range Start-up time <4 s. Display LED with 20 mm digit height Interface RS-232 bidirectional Optional USB/LAN/4-20 mA/0-10 V/OC External calibration (not with calibrated drive-through scales) Operating temperature -10°C ÷ +40°C. Power supply ~230V 50Hz 8VA (safety plug) Protection class of display IP 54 / cells IP 67
- Weight range
1500 kg
- Product type
Drive-through scales
- Readability
500 g
- Display
Digital
- Power supply (LOV)
mains-powered
Manufacturer's standards (no certificate)
- Factory colour
Black
- Dim

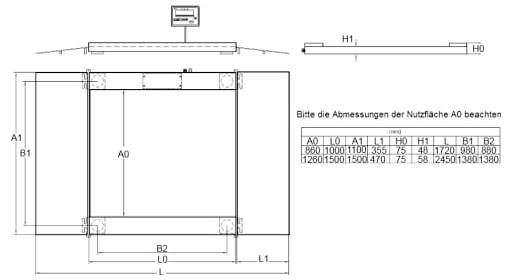

(L x W) 1500 mm x 1250 mm
- Weight
250000 g
- Weight resolution
0.5 kg
- Calibratable
Yes
- Width
1250 mm
- Length
1500 mm
- Type
PCE-SD 1500
- Features
Calibrated
Counting
- Top plate (width)
1250 mm
- Top plate (length)
1500 mm
Documents & Downloads
Datasheet
Datasheet 2813628 PCE Instruments PCE-SD 1500 Drive-through scales PCE-SD 1500 Weight range 1500 kg Readability 500 g mains-powered Black
User & Safety Instructions
User & Safety Instructions 2813628 PCE Instruments PCE-SD 1500 Drive-through scales PCE-SD 1500 Weight range 1500 kg Readability 500 g mains-powered Black
Description

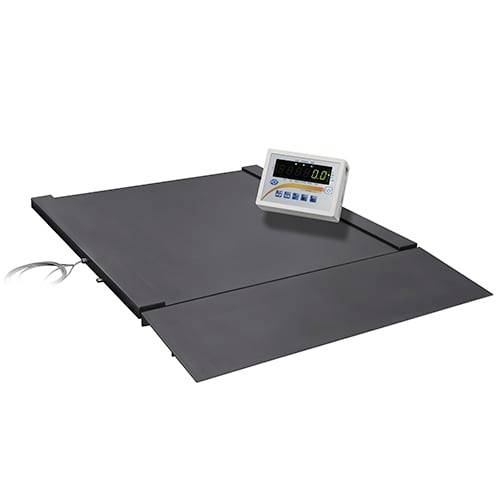

The calibrated drive-through scale is Ideal if you do not wish to bring a scale into the ground. Simply set up the drive balance in the hall, fix the drive balance and the drive ramp with the fixing plates included in the delivery, connect the operating terminal to the socket and you can start weighing. We carry out an initial inspection of the transit scale before dispatch, so that even in goods that are subject to a charge for calibration, the drive-through scale can be used immediately. The drive through balance has a low height of only about 5 cm and enables an easy drive even with heavy goods. A ramp is included in the delivery of the drive balance, the second ramp can be ordered as an option. The display of the drive balance has a holder that allows mounting on the wall or on the table, optionally a tripod for the drive balance is also available. The functions of the drive-through scale are: Piece counting function, a max. min. Weighing, formula weighing, percent weighing, average weight determination, summing function, Tara weight storage and adjustable RS-232 interface.
This text is machine translated.
This text is machine translated.
Features
- Calibrated passage scales up to 1,500kg Resolution 0.5 kglow-height;Incl. a rampBidirectional RS-232 interfaceSum functionPiece-counting functionTolerance weighingOptional 4-20 mA, 0-10 V or OC switching outputs
Scope of delivery
- Delivery scope of the drive-through scale 1 x pass through scales1 x display1 x ramp4 x base fixing plates1x user manual
