PCE Instruments PCE-SD 1500E SST Platform scales PCE-SD 1500E SST Weight range 1500 kg Readability 500 g via PSU, mains-
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
FLOOR SCALES PCE-SD 1500E SST
- Calibrated to class MIII Completely made of high quality stainless steel Protection class: IP68IP65 Tolerance determination weight min / ok / max Average weight determination Several weights sum up Percent % comparison weight Filter (reaction time) adjustable Animal weighing functionPiece-counting function A tare value can be stored Recipe mixing weighing Adjustable automatic shutdown Gross / Net button on the display Menu can be set freely Optional USB, LAN, 4-20 mA, 0-10 V, OC
Technical specifications
- MODEL PCE-SD 1500 E SSTWeighing range 1,500 kgResolution 0.5 kg Min.* 10 kgDimensions 1250 x 1250 x 85 mmWeight 170 kg. * The minimum load, is the load from which the calibration authority checks the accuracy. The stainless steel floor scales also show smaller weights, but they must not be used in the course of the calibration procedure. Calibration according to class M III (calibrated) Tare range via the full measurement range Start-up time <4 s. Display LED with 20 mm digit height (on the 3 m cable) Weighing units kg / pc / lb Interface Optional bidirectional RS-232 USB, LAN as well as 4-20 mA, 0-10V, OC For optional ramp, see accessories Operating temperature -10 °C ... +40 °C). Power supply ~230V 50Hz 8VA (safety plug) Protection class IP 68 cells / display IP65
- Weight range
1500 kg
- Product type
Platform scales
- Readability
500 g
- Display
Digital
- Power supply (LOV)
via PSU
mains-powered
Manufacturer's standards (no certificate)
- Factory colour
Silver/stainless steel
- Dim
(L x W x H) 1250 x 1250 x 85 mm (Casing)
- Weight
170000 g
- Weight resolution
0.5 kg
- Calibratable
Yes
- Weighing plate
Stainless steel
- Dim. (add. text)
Casing
- Width
1250 mm
- Height
85 mm
- Length
1250 mm
- Type
PCE-SD 1500E SST
- Features
Calibrated
Counting
- Top plate (width)
1250 mm
- Top plate (length)
1250 mm
- Weighing plate dimensions
1250
Documents & Downloads
Datasheet
Datasheet 2813632 PCE Instruments PCE-SD 1500E SST Platform scales PCE-SD 1500E SST Weight range 1500 kg Readability 500 g via PSU, mains-
User & Safety Instructions
User & Safety Instructions 2813632 PCE Instruments PCE-SD 1500E SST Platform scales PCE-SD 1500E SST Weight range 1500 kg Readability 500 g via PSU, mains-
Description

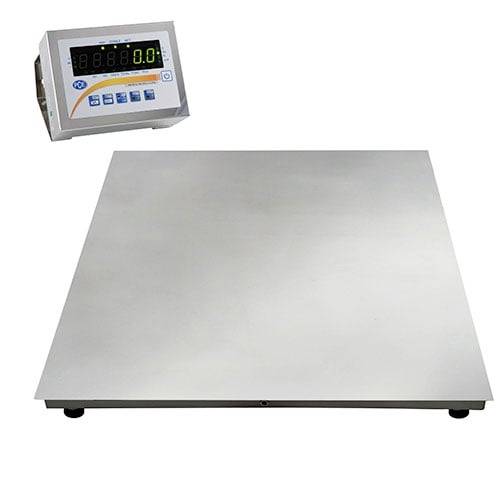

The stainless steel floor scales are completely made of high-quality, acid-resistant stainless steel. The weighing cells built into the stainless steel floor scales have a protection class of IP68. The weighing surface of the stainless steel scale is smooth and does not have any screw connections or recesses so that the cleaning of the stainless steel floor scales can be carried out quickly and reliably. The platform size of the stainless steel scale is available in different dimensions depending on the measuring range. The functions of the stainless steel - floor scales are summing function, counter, statistics function, animal weighing function, percentage weighing function, Recipe weighing function, multiple tare, stored tare value, gross - net weighing as well as adjustable weight limits MIN / MAX / OK. Furthermore, the stainless steel scale can be provided with interfaces, allowing for the monitoring and control tasks. For this purpose, we offer bidirectional RS-232, USB, LAN, analog interface 4-20 mA, analog interface 0-10 V and passive 3 potential-free contacts / OC. In industry, special sizes or functions of the stainless steel floor scales can be required. We also offer individual solutions for such applications, such as, for example Level controls with SMS notification.
This text is machine translated.
This text is machine translated.
Features
- Certifiable stainless steel - scale to 6 tonsRelease from 0.1 kgSum functionTare weight can be storedPiece-counting functionLimit value weighingOptional: Analog output 4-20 mA, 0-10 V, OC switch contacts, RS-232, USB, LAN
Scope of delivery
- 1 x stainless steel - ground scale (calibrated) 1 x display with wall/table bracket 1x user manual
