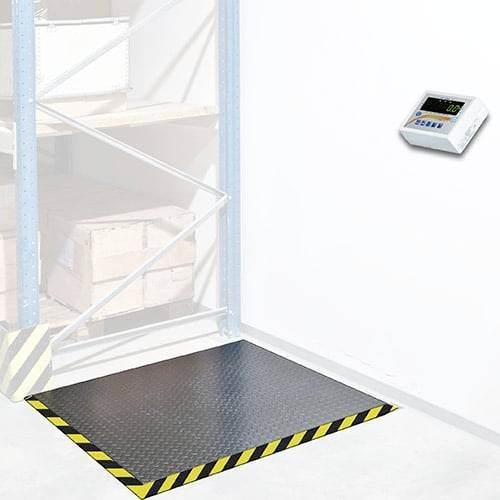

Warehouse pallet scale platform with yellow-black safety edges and digital wall display beside storage racks and boxes.

Close-up of a gray textured tile or panel resting on stacked metal frame pieces on a floor.<br>

Person crouching on a floor handling a white cable beside scattered tools and equipment, working on an installation or repair task.

Hand using an Allen wrench to tighten a bolt on a diamond-plate metal surface.

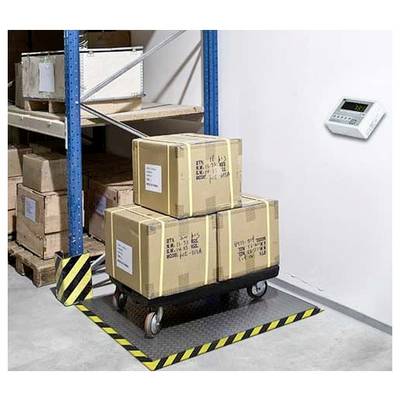

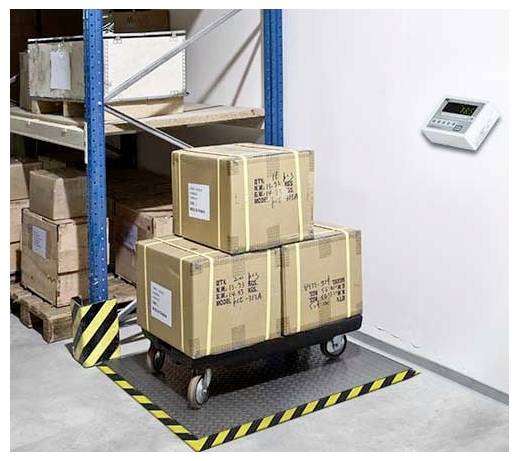

Warehouse storage area with stacked shipping boxes on a wheeled cart inside a black-and-yellow marked weighing zone beside shelving and a wall keypad.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

FLOOR SCALES PCE-SD 1500F

Piece-counting function
Percent % Comparison Weighing
Adjustable filter (response time)
Animal weighing function
A tara value can be stored
Tolerance determination weight min / ok / max.
Sum multiple weighing operations
Average weight determination

Technical specifications

Weighing range 1500 kg Resolution 0.5 kg Minimum load* 10 kg Dimensions 1500 x 1500 mm Weight 210 kg. Calibration can be calibrated according to class M III. Taring range Multi-factara over the full weighing range Settling time < 4 s. Display LED with 20 mm digit height Cable length of the plug-in connector 5 m. Weighing units kg/pcs. / lbs. Interface bidirectional RS-232 Optional USB, LAN, 4-20 mA, 0-10V, OC Weighing plate, fluted painted steel (can be removed) Operating temperature -10 °C ... +40 °C). Power supply ~230V 50Hz 8VA (earthed plug) Protection class cells IP 67 / Display IP54 *The minimum load is the load from which the calibration authority checks the accuracy. The calibrated floor-mounted scale also shows smaller weights, however these may not be used in the traffic requiring calibration.

Weight range: 1500 kg

Product type: Platform scales

Readability: 500 g

Display: Digital

Power supply (LOV): via PSU
mains-powered

: Manufacturer's standards (no certificate)

Factory colour: Silver/stainless steel

Dim: (L x W x H) 1500 x 1500 x 65 mm (Display unit)

Weight: 239900 g

Weight resolution: 0.5 kg

Calibratable: Yes

Weighing plate: Stainless steel

Dim. (add. text): Display unit

Width: 1500 mm

Height: 65 mm

Length: 1500 mm

Type: PCE-SD 1500F

Features: Calibrated
Counting

Top plate (width): 1500 mm

Top plate (length): 1500 mm

Documents & Downloads

Datasheet

Datasheet 2452625 PCE Instruments PCE-SD 1500F Platform scales PCE-SD 1500F Weight range 1500 kg Readability 500 g via PSU, mains-powered

User & Safety Instructions

User & Safety Instructions 2452625 PCE Instruments PCE-SD 1500F Platform scales PCE-SD 1500F Weight range 1500 kg Readability 500 g via PSU, mains-powered

Description

Calibrated floor scales up to 1,500 kg / resolution 0.5 kg / weighing cells IP67 / piece counting function / summing function / RS-232 interface / scale made of painted steel / weighing plate removable / mounting frame optional The calibratable floor scales are designed for level installation and are optionally supplied with an installation frame. The floor-to-ceiling scale is calibrated in accordance with calibration class III and is approved for two years for the trade in goods subject to registration. The display cable of the installation floor scales is 5 m long and provided with a plug connection, was a problem-free laying in the cable channel, without the need for a readjustment of the installation floor scales. With the removable weighing plate a comfortable installation of the floor scales is possible. The floor scales display is IP 54 protected and has a bracket for a table or wall mounting. Optionally, you can also obtain a tripod suitable for the floor scales. Different dimensions of the floor scales are available for you to choose from and the functions of the floor scales make them a multi-talent. The serial bi-directional RS-232 interface of the floor scales is also a multi-talent. Thus, a programr can easily implement the floor scales in the existing IT system. The floor scales are also available as stainless steel versions. For special industrial applications, analogueue interfaces 4-20 mA or 0-10 V as well as 3 potential-free switching contacts can be offered for the calibrated floor - mounting scale.
