PCE Instruments PCE-SD 1500F SST Platform scales PCE-SD 1500F SST Weight range 1500 kg mains-powered
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MOUNTING SCALES PCE-SD 1500F SST
- Piece-counting function
- Percent % Comparison Weighing
- Adjustable filter (response time)
- Animal weighing function
- A tara value can be stored
- Tolerance determination weight min / ok / max.
- Sum multiple weighing operations
- Recipe mix weighing
- Statistics function
Technical specifications
- Technical data Model Weighing range Resolution Min* Dimensions Weight PCE SD 1500F SST 1,500 kg 0.5 kg 10 kg 1500 x 1500 mm 210 kg * The minimum load is the load from which the calibration authority checks the accuracy. The stainless steel built-in scales also show small weight, however these may not be used in the traffic to be calibrated. Calibration can be calibrated according to class M III (supplied calibrated) Taring range Multi-factara over the full weighing range Settling time < 4 s display LED with 20 mm digit height Cable length of the plug-in connector 5 m. Weighing units kg/pcs. / lbs. Interface Optional bidirectional RS-232, USB, LAN Interface description As well as 4-20 mA, 0-10V, OC switch contacts Weighing plate stainless steel smooth (can be removed) Operating temperature -10 °C ... +40 °C). Power supply ~230V 50Hz 8VA (earthed plug) Protection class cells IP 68 / Display IP65 For the installation of the stainless steel - installation scales you need the dimensions of the foundations as well as of the frame, these are located behind the buttons sketch
- Weight range
1500 kg
- Product type
Platform scales
- Display
Digital
- Power supply (LOV)
mains-powered
Manufacturer's standards (no certificate)
- Power supply (details)
230 V AC
- Dim
(L x W) 1500 mm x 1500 mm
- Weight
210 kg
- Weight resolution
0.5 kg
- Calibratable
Yes
- Cable length
5 m
- Weighing plate
Stainless steel
- Width
1500 mm
- Length
1500 mm
- Type
PCE-SD 1500F SST
- Features
Counting
- Top plate (width)
1500 mm
- Top plate (length)
1500 mm
Documents & Downloads
Datasheet
Datasheet 2452626 PCE Instruments PCE-SD 1500F SST Platform scales PCE-SD 1500F SST Weight range 1500 kg mains-powered
User & Safety Instructions
User & Safety Instructions 2452626 PCE Instruments PCE-SD 1500F SST Platform scales PCE-SD 1500F SST Weight range 1500 kg mains-powered
Description

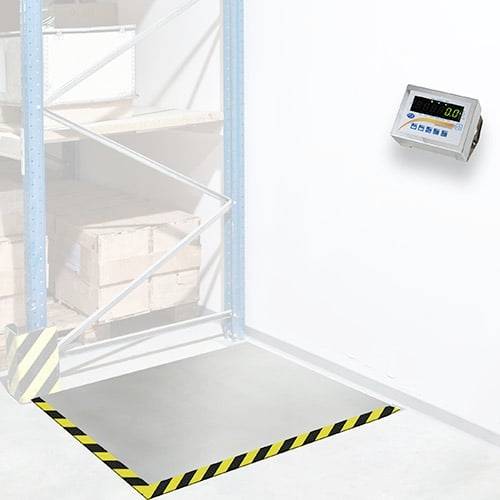

Calibrated stainless steel - built-in scales up to 1.5 t / resolution 0.5 kg / IP68 - IP65 / piece counting function / summing function / RS-232 interface / weighing plate detachable the stainless steel - built-in scales are installed in the ground in order to maintain a level surface. This means that the stainless steel installation scale can be loaded with all possible means of transport without any problem. The stainless steel - built-in scales have a weighing surface screwed to the frame, which can be removed if necessary, such as installation work or cleaning work. Optionally, the stainless steel - built-in scales can be fitted with a damper, which makes it easier to lift the weighing surface. The cells of the stainless steel installation scale are IP68 protected and the display IP65. Due to the high protection class, the stainless steel built-in scales have no interfaces. These interfaces such as RS-232, RS-485, USB, LAN, 4-20 mA, 0-10 V or potential-free contacts can be installed in our factory. Subsequent installation is not possible. This allows the stainless steel assembly scales to monitor or control manufacturing processes.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x stainless steel - built-in scales
- 1 x display
- 4 x base fixing plates
- 1x user manual
