Name: PCE Instruments PCE-SD 150C Platform scales PCE-SD 150C Weight range 150 kg Readability 50 g via USB, via PSU
Brand: PCE Instruments
SKU: 2452627

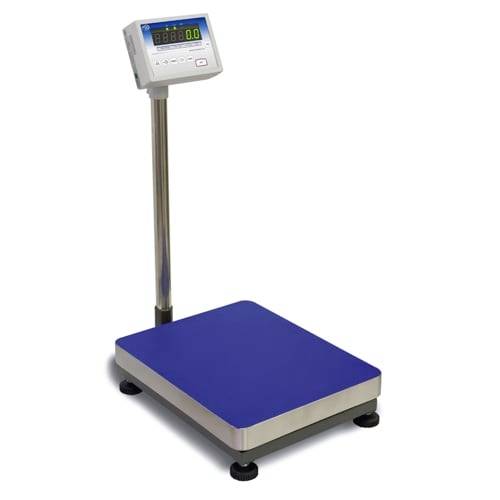

Industrial platform scale with a blue weighing platform, vertical pole, and digital display for measuring weight

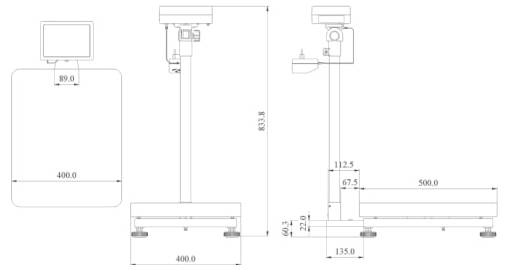

Technical dimension drawing of a weighing scale with display, showing front, side, and top views and labeled measurements.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

INDUSTRIAL SCALES PCE-SD 150C

Piece counting function, with reference unit numbers of e.g. 5 or 50 pieces
Automatic zero setting function
Tara over the full area
4 adjustable foot screws
Spirit level for exact alignment
Fast settling time

Technical specifications

Weighing range 150 kg Readability 50 g Minimum load* 1 kg Calibration value 50 g. Platform size 400 x 500 mm Weight approx. 12 kg Calibration can be calibrated according to class M III. Taring range Multi-factara over the full weighing range Piece counting function by reference piece counting Display LED with 20 mm digit height Interface Bidirectional RS-232 LAN and USB optional see Accessories Weighing plate, fluted painted steel (can be removed) Operating temperature - 10 °C ... 40 °C Power supply 12 V / 1.4 A power supply including protection class IP54 Overall dimensions 400 x 620 x 850 - 870 mm *The minimum load is the load from which the calibration authority checks the accuracy. The calibrated floor-mounted scale also shows smaller weights, however these may not be used in the traffic requiring calibration.

Weight range: 150 kg

Product type: Platform scales

Readability: 50 g

Display: Digital

Power supply (LOV): via USB
via PSU

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 400 x 650 x 870 mm (Display unit)

Weight: 12000 g

Weight resolution: 50 g

Calibratable: Yes

Dim. (add. text): Display unit

Width: 650 mm

Height: 870 mm

Length: 400 mm

Type: PCE-SD 150C

Features: Counting
Calibrated

Top plate (width): 650 mm

Top plate (length): 400 mm

Documents & Downloads

Datasheet

Datasheet 2452627 PCE Instruments PCE-SD 150C Platform scales PCE-SD 150C Weight range 150 kg Readability 50 g via USB, via PSU

User & Safety Instructions

User & Safety Instructions 2452627 PCE Instruments PCE-SD 150C Platform scales PCE-SD 150C Weight range 150 kg Readability 50 g via USB, via PSU

Description

PCE-PM...C Series Weichable, Cheap, Large Platform, Rugged, RS-232 Interface, Can be used directly in combination with shipping software from GLS The PCE-PM…C series is a low-cost, robust, easy-to-use platform scale. The calibration of the industrial scale is carried out in the calibration office according to the commercial class M III. The stable substructure of the calibrated industrial scale consists of painted steel and a plastic coated steel platform. The calibrated industrial scale has height-adjustable, wide feet that ensure excellent stability, even in uneven surfaces and heavy loads. The operating display of the calibrated industrial scale is located on a stand which is attached at a comfortable working height and is firmly mounted on the inductor's scales. In order to ensure optimum readability of the display, it can be adjusted in the angle of inclination. Functions of the calibrated industrial scale are auto-cartara, for the correct initial weight. Piece counting function, for fast and safe recording of even-heavy objects, e.g. during the inventory. An RS-232 interface, for connecting to a printer or a PC to archive the weighing data. Software available as an option. (Connection to a GLS shipping software is possible). Sets the parameters for the interface to ensure good cooperation with the PC or printer. As well as saving the tare weight to perform net weighing. Further strengths of this calibrable industrial scale are the multitude of options such as analogueue output 4-20 mA, time / date, option of continuous load, limit value weighing, percentage weighing, etc. You will find these below. The CE-CE-tested, calibrated industrial scale meets all the necessary metrological requirements and can of course also be used as non-calibrated industrial scales in companies. For example, we offer an ISO certificate as an accessory for the calibrated industrial scale. This calibration certificate certifies that the measured values can be traceable to national standards and thus serves to comply with your ISO.
