Name: PCE Instruments PCE-SD 150CR Parcel scales PCE-SD 150CR Weight range 150 kg Readability 50000 g via USB, mains-powered
Brand: PCE Instruments
SKU: 2452628

Stainless steel conveyor scale with roller platform and separate digital control display showing 0.00.<br>

A rectangular industrial weighing scale with a metal platform on top and four adjustable feet below.

Metallic rectangular machine base with a front panel and four adjustable feet on a white background.

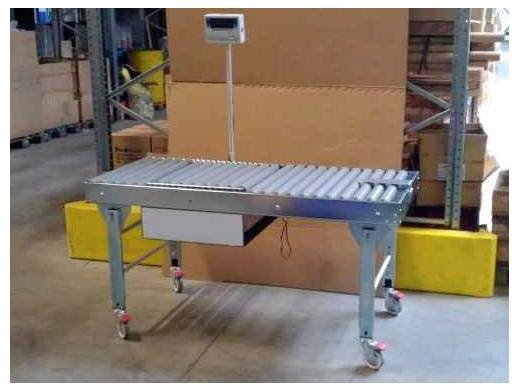

A mobile roller conveyor with a mounted scale display sits in a warehouse, used for weighing or moving packages.

Metal roller conveyor belt shown in a close-up, viewed from above, with cylindrical rollers inside a brown frame.<br>

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

FLOW BAND SCALES PCE-SD 150CR

Calibratable including initial calibration
Display cable to platform 1.5 m.
Roller track scales up to 150 kg
Roller track dimensions 500 x 580 mm
Smooth-running plastic rollers
Bidirectional RS-232 interface
Piece-counting function
Tolerance determination weight min / ok / max.

Technical specifications

Weighing range 150 kg Resolution 50 g Calibration value 50 g. Minimum load* 1000 g. Roller track dimensions 500 x 580 x 110 mm Roll length 500 mm Plastic roller material Roller track frame galvanized Scale dimensions 520 x 620 x 150 mm Weighing platform stainless steel with plastic protective film Display LCD display on a 1.5 m cable Targeting range over the full weighing range Settling time approx. 3 s. Calibration class M III. RS-232 serial interface (bidirectional) Operating temperature -10 °C ... +40 °C). Power supply ~230 V 50 Hz 6 VA / = 12 V 1.2 A. Power supply protection class IP 54 Weight of roller track scales 33 kg * The minimum load is the load from which the calibration authority checks the accuracy. The roller track scales also show smaller weights, but they must not be used in the traffic requiring a calibration.

Weight range: 150 kg

Product type: Parcel scales

Readability: 50000 g

Display: Digital

Power supply (LOV): via USB
mains-powered

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 520 x 620 x 150 mm

Weight: 33000 g

Weight resolution: 50 g

Calibratable: Yes

Weighing plate: Stainless steel

Width: 620 mm

Height: 150 mm

Length: 520 mm

Type: PCE-SD 150CR

Features: Calibrated
Counting

Top plate (width): 620 mm

Top plate (length): 520 mm

Documents & Downloads

Datasheet

Datasheet 2452628 PCE Instruments PCE-SD 150CR Parcel scales PCE-SD 150CR Weight range 150 kg Readability 50000 g via USB, mains-powered

User & Safety Instructions

User & Safety Instructions 2452628 PCE Instruments PCE-SD 150CR Parcel scales PCE-SD 150CR Weight range 150 kg Readability 50000 g via USB, mains-powered

Description

Roller track scales up to 150 kg / bidirectional RS-232 interface / roller track width approx. 580 mm / optionally available: Analogue outputs 4 ... 20 mA, 0 ... 10 V, USB interface The PCE-SD CR series roller track scales are used in many production and shipping areas. This is related to the possible interfaces of the roller track scales. On the one hand, the roller track scales have a bidirectional RS-232 interface as standard. On the other hand, the PCE-SD CR series roller track scales can be equipped with interfaces that enable the control of production processes. Here, the roller track scales can be equipped with a 4-20 mA analogue interface, 0-10 V analogue interface or with three potential-free contacts. For this purpose, the roller track scale is calibrated and can therefore be used in goods that require a calibration. The roller track scales can be used between existing roller tracks and are an affordable retrofit option.
