1/5
PCE Instruments PCE-SD 3000F Platform scales PCE-SD 3000F Weight range 3000 kg Readability 1000 g via PSU, mains-powered
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
FLOOR SCALES PCE-SD 3000F
- Piece-counting function Percent % comparison weight Filter (reaction time) adjustable Animal weighing function A tare value can be stored Tolerance determination weight min / ok / max Several weights sum up Average weight determination Recipe mixing weighing Adjustable bidirectional RS-232 interface Statistics function Adjustable automatic shutdown Gross / Net button on the display Menu can be set freely Maintenance-free components Optional USB, LAN or 4-20 mA
Technical specifications
- Weighing range 3000 kg Resolution 1 kg Minimum load* 20 kg Platform size 1500 x 1500 mm Weight 210 kg. Calibration according to class M III. Tare range via the full weighing range Start-up time <4 s display LED with 20 mm digit height Cable length plug-connected 5 m Weighing units kg / pc / lb Interface Bidirectional RS-232 Optional USB, LAN, 4-20 mA, 0-10V, oC Weighing plate, corrugated steel (detachable) Operating temperature - 10 °C ... 40 °C Power supply ~230V 50Hz 8VA (safety plug) Protection class IP 67 cells / display IP54 *The minimum load is the load from which the calibration authority checks the accuracy. The calibrated floor-mounted scale also shows smaller weights, but these must not be used in load-bearing traffic.
- Weight range
3000 kg
- Product type
Platform scales
- Readability
1000 g
- Display
Digital
- Power supply (LOV)
via PSU
mains-powered
Manufacturer's standards (no certificate)
- Factory colour
Silver/stainless steel
- Dim
(L x W x H) 1500 x 1500 x 65 mm (Display unit)
- Weight
250000 g
- Weight resolution
1 kg
- Calibratable
Yes
- Weighing plate
Stainless steel
- Dim. (add. text)
Display unit
- Width
1500 mm
- Height
65 mm
- Length
1500 mm
- Type
PCE-SD 3000F
- Features
Calibrated
Counting
- Top plate (width)
1500 mm
- Top plate (length)
1500 mm
Documents & Downloads
Datasheet
Datasheet 2813644 PCE Instruments PCE-SD 3000F Platform scales PCE-SD 3000F Weight range 3000 kg Readability 1000 g via PSU, mains-powered
User & Safety Instructions
User & Safety Instructions 2813644 PCE Instruments PCE-SD 3000F Platform scales PCE-SD 3000F Weight range 3000 kg Readability 1000 g via PSU, mains-powered
Description

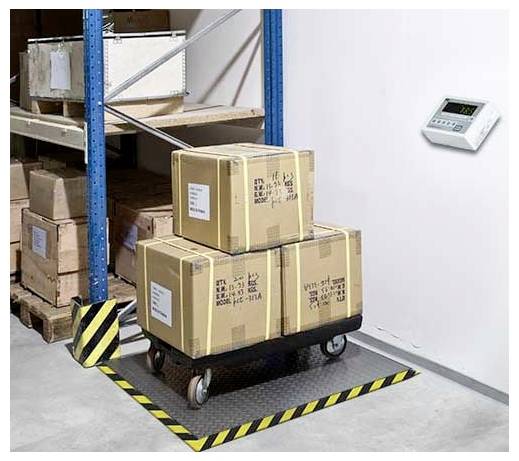

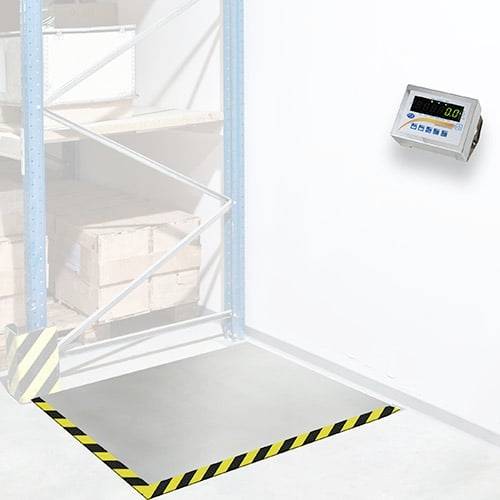

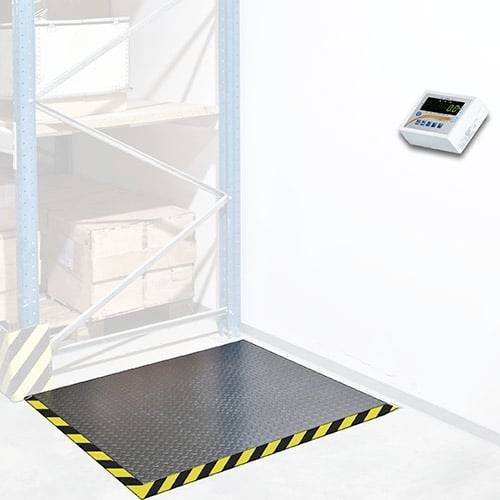

The calibrated floor-standing scale is intended for flat installation and can be supplied with a built-in frame as an option. The installation floor scales are calibrated according to calibration class III and are approved for two years for the accountable goods traffic. The display cable of the built-in level scale is 5 m long and provided with a plug connection WAS makes it possible to lay the cable without any problem, without having to re-calibrate the built-in level. The removable weighing plate enables the floor to be easily installed. The display of the floor scales is IP 54 protected and has a holder for a table or wall mounting. Optionally, you can also receive a stand matching the floor scale. Different dimensions of the in-built scales are available to you and the functions of the in-built floor scales make these a multi-talent. Also the serial bidirectional RS-232 interface of the scale is a multi-talent. As a result, a programmer can easily implement the floor scales into the existing IT system. The floor scales are also available as stainless steel versions. For special industrial applications, analogue interfaces 4-20 mA or 0-10 V and 3 potential-free switch contacts can be offered in addition to the calibrated base installation scale.
This text is machine translated.
This text is machine translated.
Features
- Calibrated floor scales up to 3,000 kgResolution 1 kgWeighing cells IP67Piece-counting functionSum functionRS-232 interfaceScales made of painted steelWeighing plate removableInstallation frame optional
Scope of delivery
- 1 x floor scales for installation 1 x display 4 x base fixing plates 1x user manual
