PCE Instruments PCE-SD 3000U SST Platform scales PCE-SD 3000U SST Weight range 3000 kg Readability 1000 g via PSU, mains
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Stainless steel floor scales PCE-SD 3000U SST
- Calibratable (supplied with Calibration) Made entirely of IP68 stainless steel IP65 Piece-counting function Sum function Max. / Min. Display Percentage weighing Recipe weighing Statistics function Animal weighing function Gross/Net display Tare storage LIMIT VALUE WEIGHING MIN / MAX / OK 3 optional potential-free contacts Analogue outputs optional (4-20 mA / 0-10V)
Technical specifications
- MODEL PCE-SD 3000U SSTMeasurement range 3,000 kgReadability 1 kgCalibration value 1 kgMinimum load* 20 kg * The minimum load, is the load from which the calibration authority checks the accuracy. The stainless steel U-shape pallet scales also show smaller weights, but these must not be used in the approved traffic. Calibration class M III (delivered calibrated) Piece counting function by reference piece counting Tare function via the full measurement range Interface optional RS-232 / LAN / USB (please observe the IP protection class) Display LED with 20 mm digit height Power supply ~230V, 50Hz, 8VA Protection class cells IP68 / display IP65 Operating temperature - 10 °C ... 40 °C Weight approx. 70 kg
- Weight range
3000 kg
- Product type
Platform scales
- Readability
1000 g
- Display
Digital
- Power supply (LOV)
via PSU
mains-powered
Manufacturer's standards (no certificate)
- Factory colour
Silver/stainless steel
- Dim
(L x W x H) 190 x 140 x 65 mm
- Weight
70000 g
- Weight resolution
1 kg
- Calibratable
Yes
- Weighing plate
Stainless steel
- Width
140 mm
- Height
65 mm
- Length
190 mm
- Type
PCE-SD 3000U SST
- Features
Calibrated
Counting

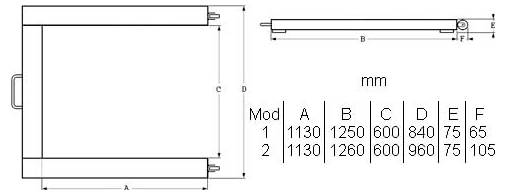

- Top plate (width)
1260 mm
- Top plate (length)
960 mm
- Weighing plate dimensions
1260
Documents & Downloads
Datasheet
Datasheet 2813647 PCE Instruments PCE-SD 3000U SST Platform scales PCE-SD 3000U SST Weight range 3000 kg Readability 1000 g via PSU, mains
User & Safety Instructions
User & Safety Instructions 2813647 PCE Instruments PCE-SD 3000U SST Platform scales PCE-SD 3000U SST Weight range 3000 kg Readability 1000 g via PSU, mains
Description
Calibrated stainless steel U-shape floor scalesincl. super smash bros. Transport rollersIP68 - IP65Piece-counting function Sum function Analog outputs 4 ... 20 mA - 0 ... 10 V optional The stainless steel U-shaped floor scales are calibrated scales which are supplied in a calibrated form. The dimensions of the stainless steel U-shape floor scales are designed exactly for an EU palette. The U-shape of the stainless steel floor scales allows for easy and fast loading by moving the pallet truck between the two beams and placing the pallet on them. The four cells of the stainless steel U-shape floor scales are IP68 protected and hide on the edges of the frame. The weighing frame is made of solid corrosion and acid-resistant stainless steel. The display of the stainless steel U-shaped weighing scale is IP65 protected and can be mounted on the table or on the wall. It is possible to use the stainless steel U-shape floor scales with optional interfaces, such as RS-232, USB, LAN, 4-20 mA etc. to be provided but this would have a significant effect on the protection class. To carry the stainless steel U-shape floor scales are mounted on the spar transport rollers. Functions of the stainless steel U-shape floor scales include autotara, batch counting function, tare storage, gross/net weighing, percentage weighing, limit weighing etc.
This text is machine translated.
This text is machine translated.
Features
- Calibrated pallet scales up to 3000 kgResolution 1 kgMobile thanks to transport wheelsBidirectional RS-232 interfaceAnalogue outputs optional
Scope of delivery
- 1 x stainless steel U-shape floor scales included Calibration 1x user manual
