PCE Instruments PCE-SD 300B Platform scales PCE-SD 300B Weight range 300 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
FLOOR SCALES PCE-SD 300B
- Calibrated to M III. Several weights sum up Percent % comparison weight Filter (reaction time) adjustable Animal weighing function Piece-counting function A tare value can be stored Length of cable to display: 3 m. Cable length between the weighing beams 4 m Recipe mixing weighing Tolerance determination weight min / ok / max Adjustable automatic shutdown Gross / Net button on the display Menu can be set freely Maintenance-free components Optional USB, LAN, 4-20 mA, 0-10 V
Technical specifications
- MODEL PCE-SD 300BWeighing range 300 kgResolution 0.1 kgCalibration value 0.1 kgMinimum load* 2 kgDimensions Mod. 1Weight 140 kg. * The minimum load, is the load from which the calibration authority checks the accuracy. The calibrated weighing beams also show smaller weights, but these must not be used in the course of trade requiring calibration. Calibration according to class M III (delivered calibrated) Multiple tare range over the entire weighing range Start-up time <3 s. Display LED with 20 mm digit height Weight units kg / pce. / lb Interface bidirectional RS-232 optional USB or LAN interface Operating temperature -10 ... +40 °C). Protection Class IP 54 . Power supply ~230V, 50Hz, 8VA If other dimensions, cable lengths or threaded holes are required, we can implement these with our calibrated weighing beams. Talk to us.
- Weight range
300 kg
- Product type
Platform scales
- Display
Digital
Manufacturer's standards (no certificate)
- Weight
40 kg
- Weight resolution
0.1 kg
- Calibratable
Yes
- Weighing plate
Steel (coated)
- Type
PCE-SD 300B
- Features
Counting
- Top plate (width)
120 mm
- Top plate (length)
1260 mm
Documents & Downloads
Datasheet
Datasheet 2813648 PCE Instruments PCE-SD 300B Platform scales PCE-SD 300B Weight range 300 kg
User & Safety Instructions
User & Safety Instructions 2813648 PCE Instruments PCE-SD 300B Platform scales PCE-SD 300B Weight range 300 kg
Description

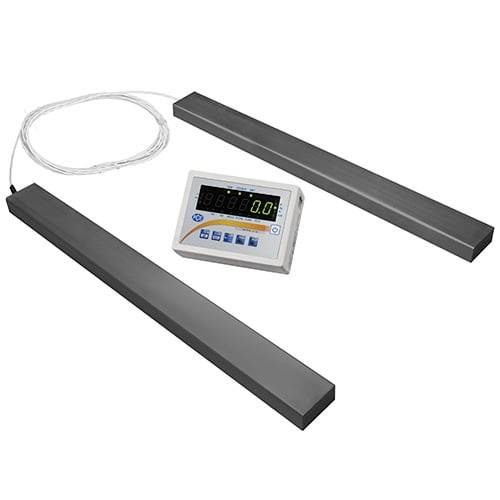

The calibrated weighing beams are calibrated and designed for mobile use. As a result of the flexibly movable weighing beam, cable length between the two weighing beams is 4 m, the industrial scales are well suited for weighing large or long objects. Likewise, "exotic" pallet sizes can be weighed quickly and comfortably. These calibrated weighing beams are made of painted steel. The weighing data can be very well read on the external display (at 3.0 m cable). The display device for the calibrated weighing beams can be placed on a table or mounted on a wall. Other features of the calibrated weighing beams are, piece counting function, summing function, min. /max. Display, filter function, tare function, % comparison weighing, tolerance determination, Gross / Net button on display and much more. The integrated RS-232 interface allows data to be transferred to a PC (software package for the calibrated weighing beams is available optionally).
This text is machine translated.
This text is machine translated.
Features
- Calibration-enabled weighing beams up to 6,000 kgRelease from 0.1 kgRobust industrial designSum function Counting function Weighing function RS-232 interface Optional 4-20 mA analog output or LAN interface
Scope of delivery
- 1 x calibrated floor scales PCE-SD 300B 1 x display (on 3.0 m cable) 1x user manual
