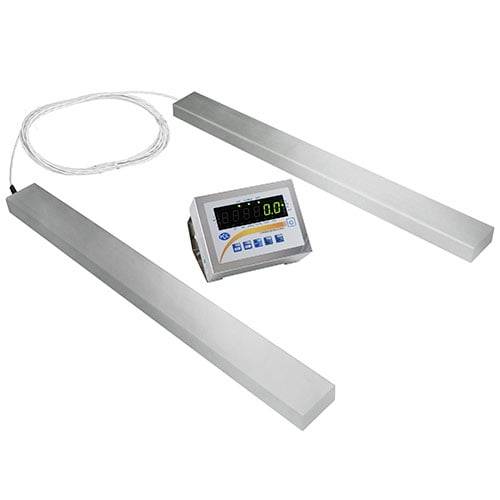

PCE Instruments PCE-SD 300B SST Platform scales PCE-SD 300B SST Weight range 300 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
FLOOR SCALES PCE-SD 300B SST
- Calibrated to M III. Several weights sum up Percent % comparison weight Filter (reaction time) adjustable Animal weighing function Piece-counting function A tare value can be stored Recipe mixing weighing Tolerance determination weight min / ok / max Adjustable automatic turn off Gross / Net button on the display Menu can be set freely Statistics function Optional: RS-232, USB, LAN, 4-20mA and many more.
Technical specifications
- MODEL PCE-SD 300B SSTWeighing range 300 kgResolution 0.1 kgCalibration value 0.1 kgMinimum load* 2 kgDimensions Mod. 1Weight 40 kg. * The minimum load, is the load from which the calibration authority checks the accuracy. The stainless steel weighing beams also indicate smaller weights, but these must not be used in the trade subject to calibration. Calibration according to class M III (delivered calibrated) Multiple tare range over the entire weighing range Start-up time <3 s display LED with 20 mm digit height Weight units kg / pce. / lb Interface Optional bidirectional RS-232, USB, LAN Interface description As well as analogue output 4-20 mA, 0-10 V, OC Operating temperature -10 ... +40 °C). Protection class cells IP68 / IP65 Power supply ~230V, 50Hz, 8VA If other dimensions, cable lengths or threaded holes are required, we can implement these with our calibrated weighing beams. Talk to us.
- Weight range
300 kg
- Product type
Platform scales
- Display
Digital
Manufacturer's standards (no certificate)
- Weight
40 kg
- Weight resolution
0.1 kg
- Calibratable
Yes
- Weighing plate
Stainless steel
- Type
PCE-SD 300B SST
- Features
Counting
- Top plate (width)
120 mm
- Top plate (length)
1260 mm
- Weighing plate dimensions
120
Documents & Downloads
Datasheet
Datasheet 2813756 PCE Instruments PCE-SD 300B SST Platform scales PCE-SD 300B SST Weight range 300 kg
User & Safety Instructions
User & Safety Instructions 2813756 PCE Instruments PCE-SD 300B SST Platform scales PCE-SD 300B SST Weight range 300 kg
Description
The stainless steel weighing beams are manufactured completely from high quality stainless steel and delivered in calibrated form. For special industrial applications, we can tailor stainless steel weighing beams individually to meet customer requirements. This refers not only to the dimensions of the stainless steel weighing beams but also to special functions and other customer requirements. The dimensions of the stainless steel weighing beams are actually tailored to an EU pallet. However, these are used for a wide range of applications since the two stainless steel weighing beams can be set up at a distance of up to 3 m and Ideal is therefore suitable for weighing machines and other non-standard objects. The IP68 protected cells and the IP65 protected stainless steel display are also suitable for harsh industrial use. Owing to the high protection class the standard stainless steel - weighing beams do not have any interfaces. Depending on requirements, we can, for example, build bi-directional RS-232, USB, LAN, analog interface 4-20 mA or 0-10 V as well as a switching output with up to three switch contacts in the stainless steel weighing beam. These help to monitor and control production processes.
This text is machine translated.
This text is machine translated.
Features
- Calibrated stainless steel - weighing beams up to 6 tonsRelease from 0.1 kg can be used flexibly Large functional scope IP 68 - 65 protected Optional with control interfaces
Scope of delivery
- 1 x Stainless steel - weighing beam 1 x display (on 3.0 m cable) 1x user manual
