Buy PCE Instruments PCE-SD 300C Platform scales PCE-SD 300C Weight range 300 kg Readability 100 g via USB, via PSU

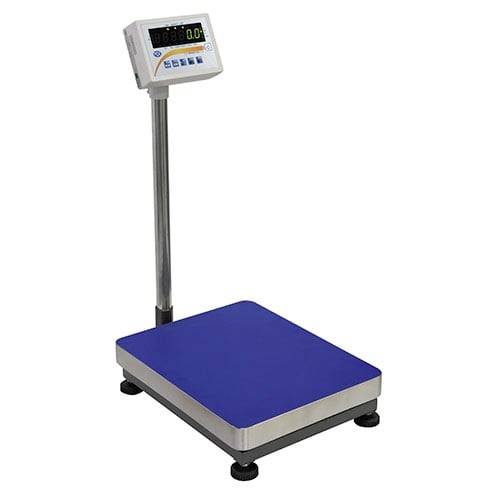

Digital platform scale with blue weighing platform and upright display on a white background.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

INDUSTRIAL SCALES PCE-SD 300C

Calibratable (delivery incl. calibration)
Bidirectional RS-232 interface
Piece-counting function
Totalizing function
Max. / Min. Display
Percentage weighing
Recipe weighing
Statistics function
Weighing function
Gross/net display
Tara storage
Limit value weighing Min/Max/OK
3 potential-free contacts optional
Optional analogue outputs ( 4-20 mA/0-10V)

Technical specifications

Weighing range 300 kg Readability 100 g Minimum load* 2 kg Calibration value 100 g. Platform size 400 x 500 mm Weight approx. 12 kg Calibration can be calibrated according to class M III. Taring range Multi-factara over the full weighing range Piece counting function by reference piece counting Display LED with 20 mm digit height Interface Bidirectional RS-232 LAN and USB optional see Accessories Weighing plate, fluted painted steel (can be removed) Operating temperature - 10 °C ... 40 °C Power supply 12 V / 1.4 A power supply including protection class IP54 Overall dimensions 400 x 620 x 850 - 870 mm *The minimum load is the load from which the calibration authority checks the accuracy. The calibrated floor-mounted scale also shows smaller weights, however these may not be used in the traffic requiring calibration.

Weight range: 300 kg

Product type: Platform scales

Readability: 100 g

Display: Digital

Power supply (LOV): via USB
via PSU

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 400 x 620 x 870 mm (Station)

Weight: 12000 g

Weight resolution: 100 g

Calibratable: Yes

Dim. (add. text): Station

Width: 620 mm

Height: 870 mm

Length: 400 mm

Type: PCE-SD 300C

Features: Counting
Calibrated

Top plate (width): 620 mm

Top plate (length): 400 mm

Documents & Downloads

Datasheet

Datasheet 2452630 PCE Instruments PCE-SD 300C Platform scales PCE-SD 300C Weight range 300 kg Readability 100 g via USB, via PSU

User & Safety Instructions

User & Safety Instructions 2452630 PCE Instruments PCE-SD 300C Platform scales PCE-SD 300C Weight range 300 kg Readability 100 g via USB, via PSU

Description

Calibrated industrial scales / platform 400 x 500 mm / bidirectional RS-232 interface / piece counting function / summing function / analogueue outputs 4-20 mA or 0-10 V optionally with the calibratable industrial scales it is a low-cost and robust, calibratable platform scales. The calibration of the industrial scale is carried out in the calibration office according to the commercial class M III. The stable substructure of the calibrated industrial scale consists of painted steel and a plastic coated steel platform. The calibrated industrial scale has height-adjustable feet which ensure a very good standing. The operating display of the calibrated industrial scale is located on a stand which is mounted at a comfortable working height and is firmly mounted on the industrial scale. In order to ensure optimum readability of the display, it can be adjusted in the angle of inclination. Functions of the calibrateable industrial scales are auto-cara, piece counting function, tara memory, gross / net weighing, percentage weighing, limit weighing etc. Other strengths of this calibrable industrial scale are the multitude of options, such as analogue output 4 .. 20 mA or 0 ... 10 V, LAN interface, potential-free contact, USB data storage, scanner connection, etc. We also have this calibrated industrial scale in the design without stand.

This text is machine translated.
