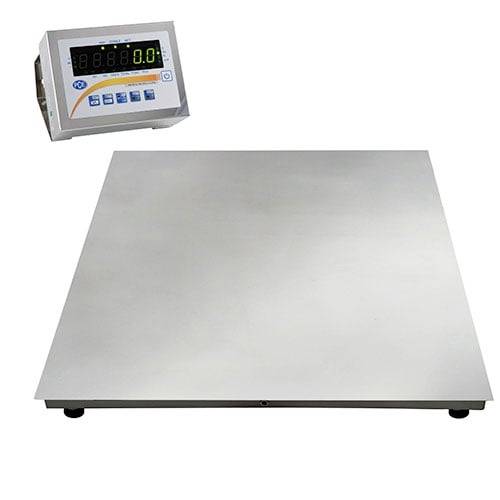

PCE Instruments PCE-SD 300E Platform scales PCE-SD 300E Weight range 300 kg Readability 100 g via PSU, mains-powered Sil
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
WEIGHING BRIDGE PCE-SD 300E
- Tolerance determination weight min / ok / maxAverage weight determination Several weights sum upPercent % comparison weightFilter (reaction time) adjustableAnimal weighing function Piece-counting function A tare value can be stored Recipe mixing weighing Adjustable bidirectional RS-232 interface Printer languages line mode and EPL2 Adjustable automatic shutdown Gross / Net button on the display Menu can be set freely Maintenance-free components Optional USB, LAN or 4-20 mA
Technical specifications
- MODEL PCE-SD 300E Weighing range 300 kgResolution 0.1 kgMin.* 2 kgDimensions 1250 x 1250 x 85 mmWeight 140 kg. * The minimum load, is the load from which the calibration authority checks the accuracy. The calibrated floor scales also show smaller weights, but these must not be used in the approved traffic. Calibration according to class M III (calibrated) Tare range via the full measurement range Start-up time <4 s. Display LED with 20 mm digit height (on the 3 m cable) Weighing units kg / pc / lb Bi-directional RS-232 interface optional USB, LAN, 4-20 mA, 0-10V, OC ramp optional see accessories Operating temperature -10 °C ... +40 °C). Power supply ~230V 50Hz 8VA (safety plug) Protection class IP 67 cells / display IP54
- Weight range
300 kg
- Product type
Platform scales
- Readability
100 g
- Display
Digital
- Power supply (LOV)
via PSU
mains-powered
Manufacturer's standards (no certificate)
- Factory colour
Silver/stainless steel
- Dim
(L x W x H) 1250 x 1250 x 85 mm (Display unit)
- Weight
170000 g
- Weight resolution
0.1 kg
- Calibratable
Yes
- Weighing plate
Stainless steel
- Dim. (add. text)
Display unit
- Width
1250 mm
- Height
85 mm
- Length
1250 mm
- Type
PCE-SD 300E
- Features
Calibrated
Counting
- Top plate (width)
1250 mm
- Top plate (length)
1250 mm
Documents & Downloads
Datasheet
Datasheet 2813649 PCE Instruments PCE-SD 300E Platform scales PCE-SD 300E Weight range 300 kg Readability 100 g via PSU, mains-powered Sil
User & Safety Instructions
User & Safety Instructions 2813649 PCE Instruments PCE-SD 300E Platform scales PCE-SD 300E Weight range 300 kg Readability 100 g via PSU, mains-powered Sil
Description

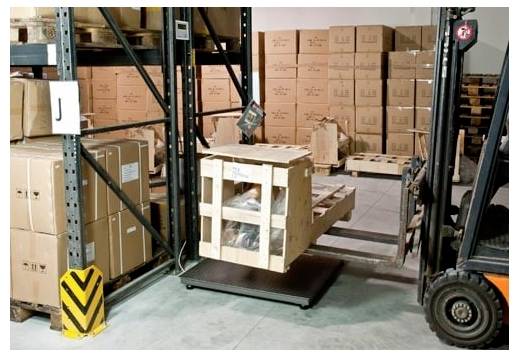

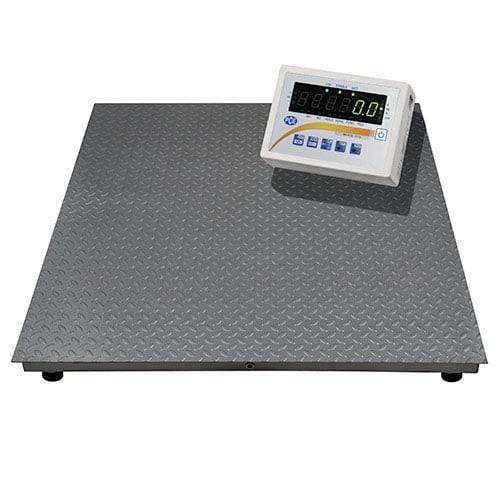

The calibrated floor scale is delivered and its solid construction makes it suitable for stationary use. Due to its robust construction and the large platform, this calibrated / calibrated weighing scale is particularly well suited for weighing large objects. The calibrated/calibrated scale is made of painted steel and available in different platform sizes depending on the weighing capacity. There are optional ramp-up ramps available for the calibrated / calibrated floor scales which enable driving or passing through. The display unit can be set up on a table or mounted on the wall, optionally a stainless steel stand can also be ordered. The integrated RS-232 interface allows a bidirectional data transfer from the calibrated / calibrated floor scales to the PC and allows programmers to achieve a versatile system integration. With an optional adapter, the weighing data can also be stored on a USB stick. Another system integration enables the optionally available 4-20 mA analogue output or the limiting value function with OC switch contacts. A direct printer connection is also possible via the RS-232 interface. Functions such as autotara, batch counting function, storing a fixed tare weight make a great job easy.
This text is machine translated.
This text is machine translated.
Features
- Calibratable - calibrated floor scales up to 6,000 kgRelease from 0.1 kgBidirectional RS-232 interfaceTare weight can be storedPiece-counting functionOptional: Analogue output 4-20 mA, 0-10 V, OC switch contacts etc.
Scope of delivery
- 1 x calibrated floor scales 1 x display with wall/table bracket 1x user manual
