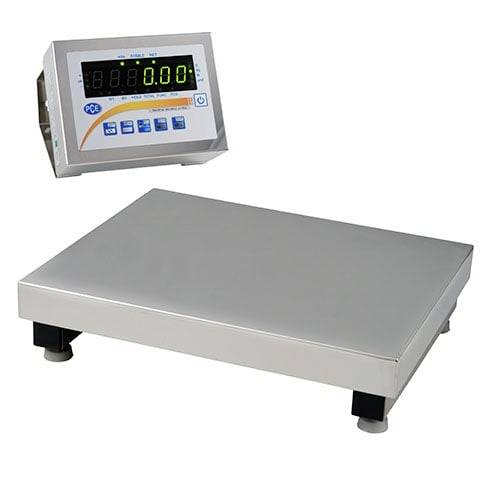

PCE Instruments PCE-SD 300SST C Platform scales PCE-SD 300SST C Weight range 30 kg Readability 100 g via USB
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BOTTLING SCALES PCE-SD 300SST C
- Calibrated according to calibration class MIII completely made of IP67 stainless steel IP65 Piece-counting function Sum function Max. / Min. Display Percentage weighing Recipe weighing Statistics function Animal weighing function Gross/Net displayTare storageLIMIT VALUE WEIGHING MIN / MAX / OK 3 optional potential-free contacts Analogue output optional 4-20 mA / 0-10V
Technical specifications
- Model PCE-SD 300 SST 60x50 CWeighing range 300 kgResolution 100 gCalibration value 100 gMin 2 kg Platform size 600 x 500 mm * The minimum load, is the load from which the calibration authority checks the accuracy. The waterproof stainless steel scale also shows smaller weights, but these must not be used in the approved traffic. Calibration class M III (delivered calibrated) Piece counting function by reference piece counting Tare function via the full measurement range Optional bi-directional RS-232 interface, USB, LAN as well as analogue output 4-20 mA, 0-10, OC Display LED with 20 mm digit height Cable length from the platform to the display approx. 1 m. Power supply ~230V, 50Hz, 8VA (safety plug) Protection class cell IP67 / display IP65 Operating temperature - 10 °C ... 40 °C Platform weight 400 x 500 x 120 mm / 17 kg Platform 600 x 500 x 135 mm / 25 kg
- Weight range
30 kg
- Product type
Platform scales
- Readability
100 g
- Display
Digital
- Power supply (LOV)
via USB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 600 x 500 x 135 mm
- Weight
25000 g
- Weight resolution
100 g
- Calibratable
Yes
- Weighing plate
Stainless steel
- Width
500 mm
- Height
135 mm
- Length
600 mm
- Type
PCE-SD 300SST C
- Features
Counting
Calibrated
- Top plate (width)
500 mm
- Top plate (length)
600 mm
- Weighing plate dimensions
500
Documents & Downloads
Datasheet
Datasheet 2813651 PCE Instruments PCE-SD 300SST C Platform scales PCE-SD 300SST C Weight range 30 kg Readability 100 g via USB
User & Safety Instructions
User & Safety Instructions 2813651 PCE Instruments PCE-SD 300SST C Platform scales PCE-SD 300SST C Weight range 30 kg Readability 100 g via USB
Description
The waterproof filling scale made of stainless steel with separate display ICH capable of calibrating according to MIII and is delivered in a calibrated form. The cells of the filling balance are IP67 protected and the display unit in the IP65 stainless steel housing. This is why the filling balance Ideal is suitable for damp areas or for areas with high hygienic requirements. With a special optional function, the filling scale can also be used on ships on the sea. Standard functions of the filling balance are: Summing function, counting function, statistics function, recipe mixing function, percentage weighing function, Animal weighing function, alarm limit function and much more. Due to the high IP protection class, the filling scale has no interfaces installed. However, we offer optional interfaces, such as RS-232, USB, LAN, OC switch contacts, analogue interfaces 4-20 mA or 0-10 V for the filling balance.
This text is machine translated.
This text is machine translated.
Features
- Calibrated waterproof filling scales up to 300 kgMade entirely of stainless steelProtection class IP67 - IP65Sum functionLimit value functionStatistics functionInterfaces RS-232, USB, LAN, analogue 4-20 mA, 0-10V, OC optional
Scope of delivery
- 1 x fill balance PCE-SD 300SST C 1 x display device 1x user manual
