PCE Instruments PCE-SD 30SST C Platform scales PCE-SD 30SST C Weight range 60 kg Readability 10 g via USB
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

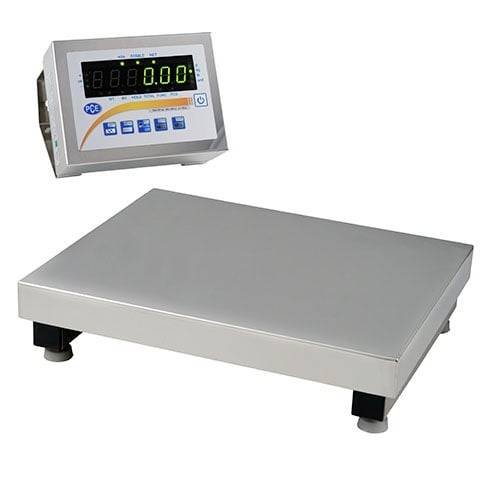

PLATFORM SCALES PCE-SD 30SST C
- Calibrated to calibration class MIII Completely made of IP67 stainless steel IP65 Piece-counting function Sum function Max. / Min. Display Percentage weighing Recipe weighing Statistics function Animal weighing function Gross/Net display Tare storage LIMIT VALUE WEIGHING MIN / MAX / OK 3 optional potential-free contacts Analogue output optional 4-20 mA / 0-10V
Technical specifications
- Weighing range 30 kg Resolution 10 g Minimum load* 200 g Calibration value 10 g Platform size 400 x 500 mm Weight approx. 17 kg Calibration according to class M III. Tare range via the full weighing range Piece counting function by reference piece counting Display LED with 20 mm digit height Optional bi-directional RS-232 interface, USB, LAN as well as analogue output 4-20 mA, 0-10, OC Cable length from platform to display approx. 1 m Weighing plate, corrugated steel (detachable) Operating temperature - 10 °C ... 40 °C Power supply ~230V, 50Hz, 8VA (safety plug) Protection class cell IP67 / display IP65 Overall dimensions 600 x 500 x 135 mm *The minimum load is the load from which the calibration authority checks the accuracy. The calibrated floor-mounted scale also shows smaller weights, but these must not be used in load-bearing traffic.
- Weight range
60 kg
- Product type
Platform scales
- Readability
10 g
- Display
Digital
- Power supply (LOV)
via USB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 600 x 500 x 135 mm
- Weight
17000 g
- Weight resolution
10 g
- Calibratable
Yes
- Weighing plate
Stainless steel
- Width
500 mm
- Height
135 mm
- Length
600 mm
- Type
PCE-SD 30SST C
- Features
Counting
Calibrated
- Top plate (width)
400 mm
- Top plate (length)
500 mm
Documents & Downloads
Datasheet
Datasheet 2813652 PCE Instruments PCE-SD 30SST C Platform scales PCE-SD 30SST C Weight range 60 kg Readability 10 g via USB
User & Safety Instructions
User & Safety Instructions 2813652 PCE Instruments PCE-SD 30SST C Platform scales PCE-SD 30SST C Weight range 60 kg Readability 10 g via USB
Description
The waterproof stainless steel scales with separate ICH display, adjustable according to MIII and are delivered in calibrated form. The cells of the waterproof stainless steel scales are IP67 protected and the display unit in the IP65 stainless steel housing. This is why the waterproof stainless steel scales Ideal are suitable for damp areas or for areas with high hygienic requirements. With a special optional feature, the waterproof stainless steel scales can also be used on ships on the sea. Standard functions of the waterproof stainless steel scales are: Totalising function, counter, statistics function, recipe mix function, percentage weighing function, Animal weighing function, alarm limit function and much more. Due to the high IP protection class, the waterproof stainless steel scales have no interfaces installed. However, we offer optional interfaces, such as RS-232, USB, LAN, OC Switch contacts, 4-20 mA or 0-10 V analogue interfaces for waterproof stainless steel scales.
This text is machine translated.
This text is machine translated.
Features
- Calibrated waterproof stainless steel scales up to 30 kg Made entirely of stainless steel Protection class IP67 - IP65 Sum function Limit value function Statistics function Interfaces RS-232, USB, LAN, analogue 4-20 mA, 0-10V, OC optional
Scope of delivery
- 1 x Waterproof stainless steel scales1 x display unit and operating instructions
