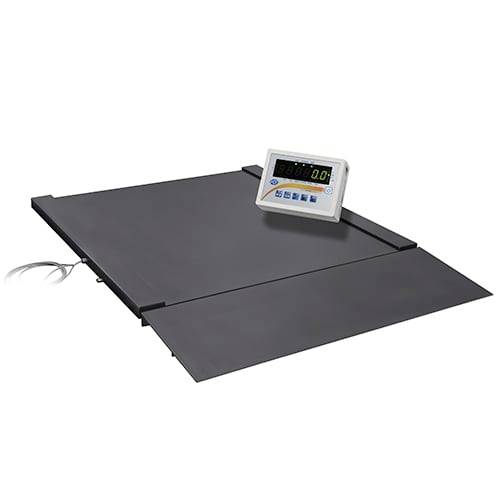

PCE Instruments PCE-SD 600 Drive-through scales PCE-SD 600 Weight range 600 kg Readability 2000 g mains-powered Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Passage balance PCE-SD 600
- Piece-counting function Percent % comparison weight Filter (reaction time) adjustable Animal weighing function A tare value can be stored Tolerance determination weight min / ok / max Several weights sum up Average weight determination Recipe mixing weighing Adjustable bidirectional RS-232 interface Printer languages line mode and EPL2 Adjustable automatic shutdown Gross / Net button on the display Menu can be set freely Maintenance-free components Optional USB, LAN or 4-20 mA
Technical specifications
- Model PCE-SD 600 Weighing range 600 kg Resolution 0.2 kgMin * 4 kgWeight 160 kg.Usable area 860 x 1000 mm *The minimum load is the load from which the calibration authority checks the accuracy. The calibrated drive-through scale also shows smaller weights, but these must not be used in traffic that is subject to calibration. Calibration according to class M III (calibrated) Tare area over the full weighing range Start-up time <4 s. Display LED with 20 mm digit height Interface RS-232 bi-directional Optional: USB / LAN / 4-20 mA / 0-10 V / OC External calibration (not for calibrated drive-through scales) AB193Operating temperature -10°C ... +40°C Power supply ~230V 50Hz 8VA (safety plug) Protection class of display IP 54 / cells IP 67
- Weight range
600 kg
- Product type
Drive-through scales
- Readability
2000 g
- Display
Digital
- Power supply (LOV)
mains-powered
Manufacturer's standards (no certificate)
- Factory colour
Black

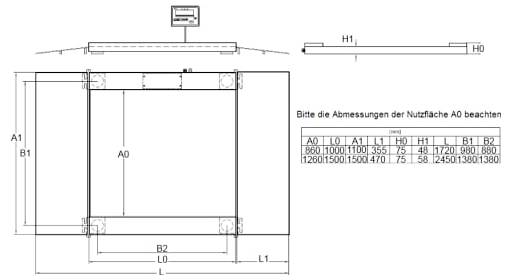

- Dim
(L x W x H) 1000 mm x 860 mm x 5 cm (approx.)
- Weight
160000 g
- Weight resolution
0.2 kg
- Calibratable
Yes
- Dim. (add. text)
approx.
- Width
860 mm
- Height
5 cm
- Length
1000 mm
- Type
PCE-SD 600
- Features
Calibrated
Counting
- Top plate (width)
860 mm
- Top plate (length)
1000 mm
Documents & Downloads
Datasheet
Datasheet 2813653 PCE Instruments PCE-SD 600 Drive-through scales PCE-SD 600 Weight range 600 kg Readability 2000 g mains-powered Black
User & Safety Instructions
User & Safety Instructions 2813653 PCE Instruments PCE-SD 600 Drive-through scales PCE-SD 600 Weight range 600 kg Readability 2000 g mains-powered Black
Description
The calibrated drive-through scale is Ideal if you do not wish to bring a scale into the ground. Simply set up the drive balance in the hall, fix the drive balance and the drive ramp with the fixing plates included in the delivery, connect the operating terminal to the socket and you can start weighing. We carry out an initial inspection of the transit scale before dispatch, so that even in goods that are subject to a charge for calibration, the drive-through scale can be used immediately. The drive through balance has a low height of only about 5 cm and enables an easy drive even with heavy goods. A ramp is included in the delivery of the drive balance, the second ramp can be ordered as an option. The display of the drive balance has a holder that allows mounting on the wall or on the table, optionally a tripod for the drive balance is also available. The functions of the drive-through scale are: Piece counting function, a max. min. Weighing, formula weighing, percent weighing, average weight determination, summing function, Tara weight storage and adjustable RS-232 interface.
This text is machine translated.
This text is machine translated.
Features
- Calibrated passage scales up to 600kg Resolution 0.2 kglow-height;Incl. a rampBidirectional RS-232 interfaceSum function Piece-counting functionTolerance weighing Optional 4-20 mA, 0-10 V or OC switching outputs
Scope of delivery
- 1 x passing scales PCE-SD 600 1 x display 1 x ramp 4 x base fixing plates 1x user manual
