PCE Instruments PCE-SD 6000B SST Platform scales PCE-SD 6000B SST Weight range 6000 kg
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BAR SCALE PCE-SD 6000B SST
- Calibrated to M III. Several weightsPercent % comparison weight Filter (reaction time) adjustable Animal weighing function Piece-counting function A tare value can be stored Recipe mixing weighing Tolerance determination weight min / ok / max Adjustable automatic turn off Gross / Net button on the display Menu can be set freely Statistics function Optional: RS-232, USB, LAN, 4-20mA and many more.
Technical specifications
- MODEL PCE-SD 6000B SSTWeighing range 6,000 kgResolution 2 kgCalibration value 2 kgMinimum load* 40 kg Dimensions Mod. 2Weight 70 kg. * The minimum load, is the load from which the calibration authority checks the accuracy. The stainless steel weighing beams also indicate smaller weights, but these must not be used in the trade subject to calibration. Calibration according to class M III (delivered calibrated) Targeting area multiple tare over the entire Weighing range Start-up time <3 s. Display LED with 20 mm digit height Weight units kg / pce. / lb Optional bi-directional RS-232 interface, USB, LAN as well as analogue output 4-20 mA, 0-10 V, OC Operating temperature -10 ... +40 °C). Protection class cells IP68 / display IP65 Power supply ~230V, 50Hz, 8VA If other dimensions, cable lengths or threaded holes are required, we can implement these with our calibrated weighing beams. Talk to us.
- Weight range
6000 kg
- Product type
Platform scales
- Display
Digital
Manufacturer's standards (no certificate)
- Weight
70 kg
- Weight resolution
2 kg
- Calibratable
Yes
- Weighing plate
Stainless steel
- Type
PCE-SD 6000B SST
- Features
Counting
Calibrated
Calibratable
- Top plate (width)
232 mm
- Top plate (length)
1260 mm
- Weighing plate dimensions
232
Documents & Downloads
Datasheet
Datasheet 2813655 PCE Instruments PCE-SD 6000B SST Platform scales PCE-SD 6000B SST Weight range 6000 kg
User & Safety Instructions
User & Safety Instructions 2813655 PCE Instruments PCE-SD 6000B SST Platform scales PCE-SD 6000B SST Weight range 6000 kg
Description
The stainless steel weighing beams are manufactured completely from high quality stainless steel and delivered in calibrated form. For special industrial applications, we can tailor stainless steel weighing beams individually to meet customer requirements. This refers not only to the dimensions of the stainless steel weighing beams but also to special functions and other customer requirements. The dimensions of the stainless steel weighing beams are actually tailored to an EU pallet. However, these are used for a wide range of applications since the two stainless steel weighing beams can be set up at a distance of up to 3 m and Ideal is therefore suitable for weighing machines and other non-standard objects. The IP68 protected cells and the IP65 protected stainless steel display are also suitable for harsh industrial use. Owing to the high protection class the standard stainless steel - weighing beams do not have any interfaces. Depending on requirements, we can, for example, build bi-directional RS-232, USB, LAN, analog interface 4-20 mA or 0-10 V as well as a switching output with up to three switch contacts in the stainless steel weighing beam. These help to monitor and control production processes.
This text is machine translated.
This text is machine translated.
Features
- Calibrated stainless steel - weighing beams up to 6 tonsRelease from 0.1 kgFlexibly applicableLarge functional scopeIP68 - 65 protectedOptional with control interfaces
Scope of delivery

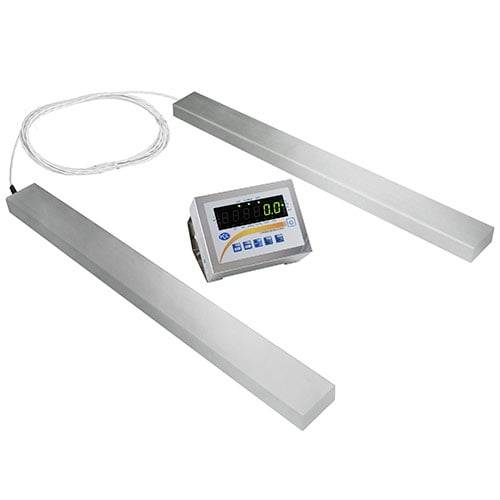

- 1 x Stainless steel - weighing beam 1 x display (on 3.0 m cable) 1x user manual
