PCE Instruments PCE-SD 6000B Weigh bars PCE-SD 6000B Weight range 6000 kg Readability 2000 g
EAN:
Part number:
Item no:
Highlights & Details

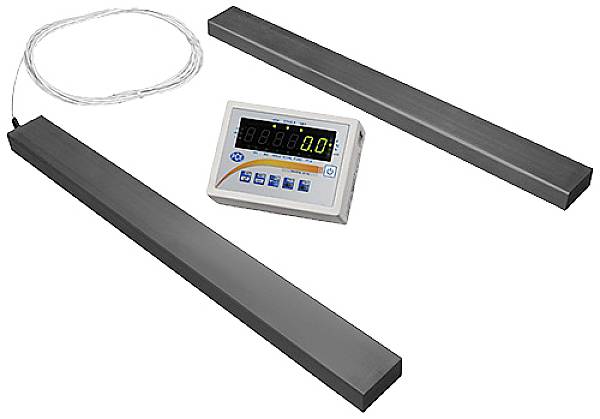

BAR SCALES PCE-SD 6000B
- Calibrated according to M III.
- Sum multiple weighing operations
- Percent % Comparison Weighing
- Adjustable filter (response time)
- Animal weighing function
- Piece-counting function
- A tara value can be stored
- Length of cable to display: 3 m.
Technical specifications
- Model Weighing range Resolution Calibration value Minimum load* Dimensions Weight PCE SD 6000B 6,000 kg : 2 kg : 2 kg 40 kg. Mod. 3 70 kg * The minimum load is the load from which the calibration authority checks the accuracy. The calibrated weighing bars also show smaller weights, but they must not be used in the traffic requiring a calibration. Calibration can be calibrated according to class M III (supplied calibrated) Multi-factara taring range over the entire weighing range Settling time < 3 s. Display LED with 20 mm digit height Weighing units kg/pcs. / lbs. Interface Bidirectional RS-232 optional USB or LAN interface Operating temperature -10 ... +40 °C protection class IP 54 Power supply ~230V, 50Hz, 8VA If other dimensions, cable lengths or threaded holes are required, we can also realize these with our calibrated weighing bars. Contact us.
- Weight range
6000 kg
- Product type
Weigh bars
- Readability
2000 g
- Display
Digital
Manufacturer's standards (no certificate)
- Weight resolution
2 kg kg
2 kg
- Calibratable
Yes
- Type
PCE-SD 6000B
- Features
Counting
Calibratable
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2452635 PCE Instruments PCE-SD 6000B Weigh bars PCE-SD 6000B Weight range 6000 kg Readability 2000 g
Description
Calibratable weighing scale up to 6,000 kg / resolution starting from 0.1 kg / robust industrial design / summing function / counting function / control weighing function / RS-232 interface / optional 4-20 mA analogueue output or LAN interface The calibrated weighing counters are calibratable and designed for mobile use. Due to the flexible movable weighing bar, cable length between the two weighing scales is 4 m, the industrial scales are well suited for weighing large or long objects. Similarly, "exotic" pallet sizes can be weighed quickly and conveniently. These calibrated weighing boats are made of painted steel. The weighing data can be read very well on the external display (at 3.0 m cable). The display unit of the calibrated weighing scale can be set up on a table or mounted on the wall. Other functions of the calibrated weighing bar are, piece counting function, summing function, min. / max. display, filter function, tare function, % comparison weighing, tolerance determination, Gross/net key on the display and much more. The integrated RS-232 interface allows data to be transferred to a PC (software package for calibrated weighing bars is available as an option).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x calibrated weighing bar 1 x display (at 3.0 m cable)
- 1x user manual
