PCE Instruments PCE-SD 6000F Platform scales PCE-SD 6000F Weight range 6000 kg Readability 2000 g via PSU, mains-powered

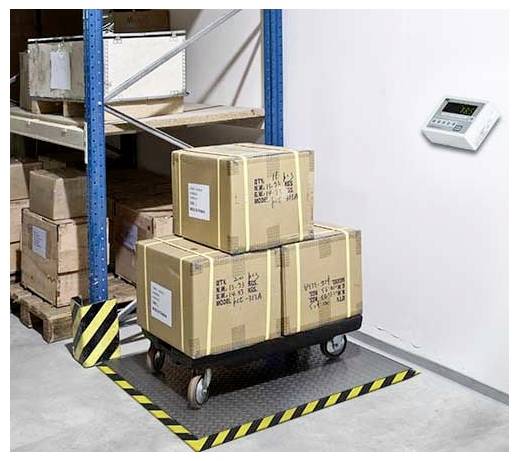

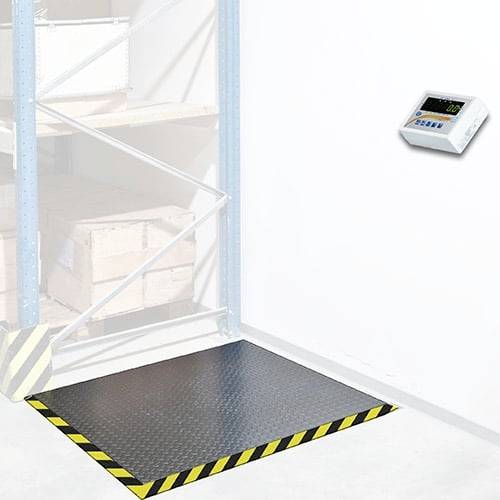

The calibrated floor-standing scale is intended for flat installation and can be supplied with a built-in frame as an option. The installation floor scales are calibrated according to calibration class III and are approved for two years for the accountable goods traffic. The display cable of the built-in level scale is 5 m long and provided with a plug connection WAS makes it possible to lay the cable without any problem, without having to re-calibrate the built-in level. The removable weighing plate enables the floor to be easily installed. The display of the floor scales is IP 54 protected and has a holder for a table or wall mounting. Optionally, you can also receive a stand matching the floor scale. Different dimensions of the in-built scales are available to you and the functions of the in-built floor scales make these a multi-talent. Also the serial bidirectional RS-232 interface of the scale is a multi-talent. As a result, a programmer can easily implement the floor scales into the existing IT system. The floor scales are also available as stainless steel versions. For special industrial applications, analogue interfaces 4-20 mA or 0-10 V and 3 potential-free switch contacts can be offered in addition to the calibrated base installation scale.
