PCE Instruments PCE-SD 6000F SST Platform scales PCE-SD 6000F SST Weight range 6000 kg Readability 2000 g via PSU, mains
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MOUNTING SCALES PCE-SD 6000F SST
- Piece-counting function Percent % comparison weight Filter (reaction time) adjustable Animal weighing function A tare value can be stored Tolerance determination weight min / ok / max Several weightsRecipe mixing weighing Statistics function Adjustable automatic turn off Gross / Net button on the display Menu can be set freely Maintenance-free components Optional USB, LAN or 4-20 mA
Technical specifications
- MODEL PCE-SD 6000F SST Weighing range 6,000 kgResolution 2 kgMin.* 40 kgDimensions 1500 x 1500 mm Weight 210 kg. * The minimum load is the load from which the calibration authority checks the accuracy. The stainless steel built-in scale also shows a small weight, but these must not be used in the approved traffic. Calibration according to class M III (calibrated) Tare range via the full weighing range Start-up time <4 s display LED with 20 mm digit height Cable length plug-connected 5 m Weighing units kg / pc / lb Interface optional Bidirectional RS-232, USB, LAN interface description and 4-20 mA, 0-10V, OC switch contacts Weighing plate stainless steel smooth (can be unscrewed) Operating temperature -10 °C ... +40 °C). Power supply ~230V 50Hz 8VA (safety plug) Protection class IP 68 cells / display IP65 To install the stainless steel horizontal mountings you need the dimensions of the foundations and the frame, which are located behind the 'Sketch' buttons
- Weight range
6000 kg
- Product type
Platform scales
- Readability
2000 g
- Display
Digital
- Power supply (LOV)
via PSU
mains-powered
Manufacturer's standards (no certificate)
- Factory colour
Silver/stainless steel
- Dim
(L x W x H) 1500 x 1500 x 65 mm
- Weight
250000 g
- Weight resolution
2 kg
- Calibratable
Yes
- Weighing plate
Stainless steel
- Width
1500 mm
- Height
65 mm
- Length
1500 mm
- Type
PCE-SD 6000F SST
- Features
Calibrated
Counting
- Top plate (width)
1500 mm
- Top plate (length)
1500 mm
Documents & Downloads
Datasheet
Datasheet 2813659 PCE Instruments PCE-SD 6000F SST Platform scales PCE-SD 6000F SST Weight range 6000 kg Readability 2000 g via PSU, mains
User & Safety Instructions
User & Safety Instructions 2813659 PCE Instruments PCE-SD 6000F SST Platform scales PCE-SD 6000F SST Weight range 6000 kg Readability 2000 g via PSU, mains
Description

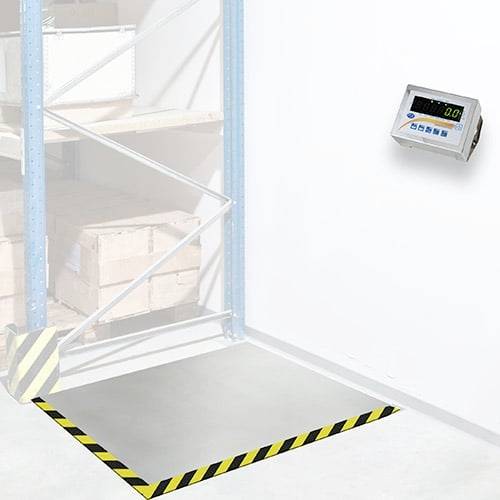

The stainless steel built-in scales are installed in the base to create a level surface. In this way, the stainless steel panel-mounted scales can be loaded with all possible means of transportation without any problem. The stainless steel - installation scale has a weighing surface screwed to the frame, which is when needed, e.g. Can be removed for installation or cleaning. Optionally, there is the possibility to provide a damper to the stainless steel scale, which facilitates the lifting of the weighing surface. The cells of the stainless steel built-in scales are IP68 protected and the display IP65. Because of its high protection class, the stainless steel scale does not have interfaces. These interfaces, for example RS-232, RS-485, USB, LAN, 4-20 MA, 0-10 V or potential-free contacts can be installed in our factory. Subsequent installation is not possible. This allows the stainless steel installation scale manufacturing processes to monitor or control.
This text is machine translated.
This text is machine translated.
Features
- Calibrated stainless steel - installation scales up to 6 t.Resolution 2 kg IP68 - IP65 Piece-counting functionSum function RS-232 interfaceWeighing plate removable
Scope of delivery
- 1 x stainless steel - installation scale 1 x display 4 x base fixing plates 1x user manual
