Buy PCE Instruments PCE-SD 60CR Parcel scales PCE-SD 60CR Weight range 60 kg Readability 20 g

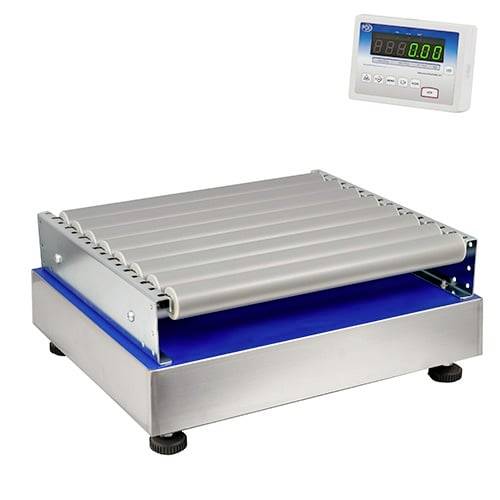

Digital counting conveyor scale with roller top and separate control display showing 0.00.<br>

A silver laboratory platform scale with a large weighing tray and four adjustable feet.

A small rectangular metal machine or platform on four rubber feet, with a silver top panel and gray base.

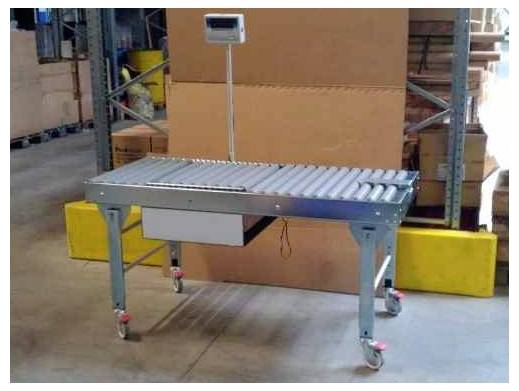

Roller conveyor table with a small digital display mounted above it in a warehouse or factory setting.

Close-up of a roller conveyor with parallel metal rollers in a brown industrial setting.<br>

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MULTI-FUNCTION SCALE PCE-SD 60CR

Calibratable including initial calibration
Display cable to platform 1.5 m.
Roller track scales up to 60 kg
Roller track dimensions 500 x 580 mm
Smooth-running plastic rollers
Bidirectional RS-232 interface
Piece-counting function
Tolerance determination weight min / ok / max.

Technical specifications

Weighing range 60 kg Resolution 20 g Calibration value 20 g. Minimum load* 400 g. Roller track dimensions 500 x 580 x 110 mm Roll length 500 mm Plastic roller material Roller track frame galvanized Scale dimensions 520 x 620 x 150 mm Weighing platform stainless steel with plastic protective film Display LCD display on a 1.5 m cable Targeting range over the full weighing range Settling time approx. 3 s. Calibration class M III. RS-232 serial interface (bidirectional) Operating temperature -10 °C ... +40 °C). Power supply ~230 V 50 Hz 6 VA / = 12 V 1.2 A. Power supply protection class IP 54 Weight of roller track scales 33 kg * The minimum load is the load from which the calibration authority checks the accuracy. The roller track scales also show smaller weights, but they must not be used in the traffic requiring a calibration.

Weight range: 60 kg

Product type: Parcel scales

Readability: 20 g

Display: Digital

: Manufacturer's standards (no certificate)

Weight: 33 kg

Weight resolution: 20 g

Calibratable: Yes

Weighing plate: Stainless steel

Height: 150 mm

Length: 520 mm

Type: PCE-SD 60CR

Features: Counting

Top plate (width): 580 mm

Top plate (length): 500 mm

Documents & Downloads

Datasheet

Datasheet 2452637 PCE Instruments PCE-SD 60CR Parcel scales PCE-SD 60CR Weight range 60 kg Readability 20 g

User & Safety Instructions

User & Safety Instructions 2452637 PCE Instruments PCE-SD 60CR Parcel scales PCE-SD 60CR Weight range 60 kg Readability 20 g

Description

Roller track scales up to 60 kg / bidirectional RS-232 interface / roller track width approx. 580 mm / optionally available: Analogue outputs 4 ... 20 mA, 0 ... 10 V, USB interface The PCE-SD CR series roller track scales are used in many production and shipping areas. This is related to the possible interfaces of the roller track scales. On the one hand, the roller track scales have a bidirectional RS-232 interface as standard. On the other hand, the PCE-SD CR series roller track scales can be equipped with interfaces that enable the control of production processes. Here, the roller track scales can be equipped with a 4-20 mA analogue interface, 0-10 V analogue interface or with three potential-free contacts. For this purpose, the roller track scale is calibrated and can therefore be used in goods that require a calibration. The roller track scales can be used between existing roller tracks and are an affordable retrofit option.

This text is machine translated.
