PCE Instruments PCE-SD 60SST C Platform scales PCE-SD 60SST C Weight range 150 kg Readability 20 g via USB
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PLATFORM SCALES PCE-SD 60SST C
- Calibrated to calibration class MIII Completely made of IP67 stainless steel IP65Piece-counting function Sum function Max. / Min. Display Percentage weighing Recipe weighing Statistic function Animal weighing function Gross/Net display Tare storage LIMIT VALUE WEIGHING MIN / MAX / OK 3 optional potential-free contactsAnalogue output optional 4-20 mA / 0-10V
Technical specifications
- Model PCE-SD 60 SST 40x50 C Weighing range 60 kgResolution 20 gCalibration value 20 gMin 400 gPlatform size 400 x 500 mm * The minimum load, is the load from which the calibration authority checks the accuracy. The waterproof stainless steel scale also shows smaller weights, but these must not be used in the approved traffic. Calibration class M III (delivered calibrated) Piece counting function by reference piece counting Tare function via the full measurement range Interface optional bi-directional RS-232, USB, LAN as well as analogue output 4-20 mA, 0-10, OC display LED with 20 mm digit height Cable length from the platform to the display approx. 1 m. Power supply ~230V, 50Hz, 8VA (safety plug) Protection class cell IP67 / display IP65 Operating temperature - 10 °C ... 40 °C Platform weight 400 x 500 x 120 mm / 17 kg platform 600 x 500 x 135 mm / 25 kg
- Weight range
150 kg
- Product type
Platform scales
- Readability
20 g
- Display
Digital
- Power supply (LOV)
via USB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 500 x 400 x 120 mm (Display unit)
- Weight
17000 g
- Weight resolution
20 g
- Calibratable
Yes
- Weighing plate
Stainless steel
- Dim. (add. text)
Display unit
- Width
400 mm
- Height
120 mm
- Length
500 mm
- Type
PCE-SD 60SST C
- Features
Counting
Calibrated
- Top plate (width)
400 mm
- Top plate (length)
500 mm
Documents & Downloads
Datasheet
Datasheet 2813664 PCE Instruments PCE-SD 60SST C Platform scales PCE-SD 60SST C Weight range 150 kg Readability 20 g via USB
User & Safety Instructions
User & Safety Instructions 2813664 PCE Instruments PCE-SD 60SST C Platform scales PCE-SD 60SST C Weight range 150 kg Readability 20 g via USB
Description

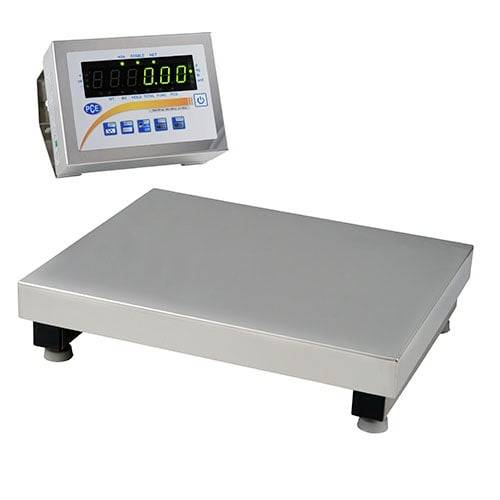

The waterproof stainless steel scales with separate ICH display, adjustable according to MIII and are delivered in calibrated form. The cells of the waterproof stainless steel scales are IP67 protected and the display unit in the IP65 stainless steel housing. This is why the waterproof stainless steel scales Ideal are suitable for damp areas or for areas with high hygienic requirements. With a special optional feature, the waterproof stainless steel scales can also be used on ships on the sea. Standard functions of the waterproof stainless steel scales are: Totalising function, counter, statistics function, recipe mix function, percentage weighing function, Animal weighing function, alarm limit function and much more. Due to the high IP protection class, the waterproof stainless steel scales have no interfaces installed. However, we offer optional interfaces, such as RS-232, USB, LAN, OC Switch contacts, 4-20 mA or 0-10 V analogue interfaces for waterproof stainless steel scales.
This text is machine translated.
This text is machine translated.
Features
- Calibrated waterproof stainless steel scales up to 300 kgMade entirely of stainless steelProtection class IP67 - IP65Sum functionLimit value functionStatistics functionInterfaces RS-232, USB, LAN, analogue 4-20 mA, 0-10V, OC optional
Scope of delivery
- Included in the delivery 1 x Waterproof stainless steel scales1 x display unit and operating instructions
