PCE Instruments PCE-SDF 150 Silo scales PCE-SDF 150 Weight range 150 kg Readability 5 g mains-powered

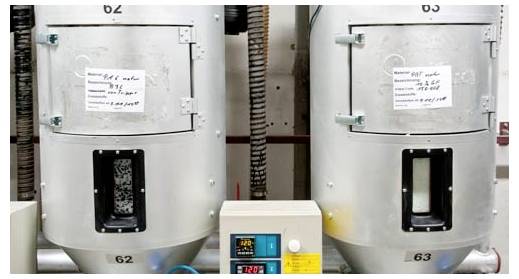

The silobalance for container - level - extraction - monitoring offers the possibility to ensure the supply of a production plant effectively and reliably. The silo balance for container monitoring can not only monitor the current level of the container but also the continuous weight loss. With the monitoring of the current level, the silo balance for container - level - removal - monitoring can prompt the machine operator to refill the tank in good time. The silo balance for container – monitoring via three passive switching contacts (potential-free contact / optocoupler outputs / OC) is provided for this purpose. A switch contact of the monitoring silo balance can be used for a green traffic light, for example. This switch contact is active when the actual state of the container is OK. If the container reaches a minimum limit / minimum load, a yellow or red light can be switched by a second switch contact, which is to require the user to refill. The traffic lights are not included in delivery but can be ordered as an option to the silo balance for container monitoring. The second monitoring option of the silo balance is the continuous weight loss. This function can monitor the filling processes of the machines and report defects in the material removal. A weight loss per unit of time can be stored in the silo balance for container - level - removal - monitoring. Example g / min, kg / min, g / h, kg / h. In the event of deviations from the material removal, the silobalance for vessel monitoring will switch back a switch contact that can be used, for example, to trigger a siren/traffic light or to shut down the machine. The aim of this monitoring is to avoid the idle running of production machines due to e.g. blocked removal screw and thus to significantly reduce downtimes and rework times. An external switching contact enables the monitoring function of the silo balance for containers - to interrupt monitoring in order to be able to control the state of affairs of the container at rest. In addition to the various interfaces, accessories for the silo balance for container monitoring are, for example, also a display which can be installed in a control cabinet. In addition, we offer the warning lights as well as a GSM modem, which can inform the operator via SMS about the condition of the container.
