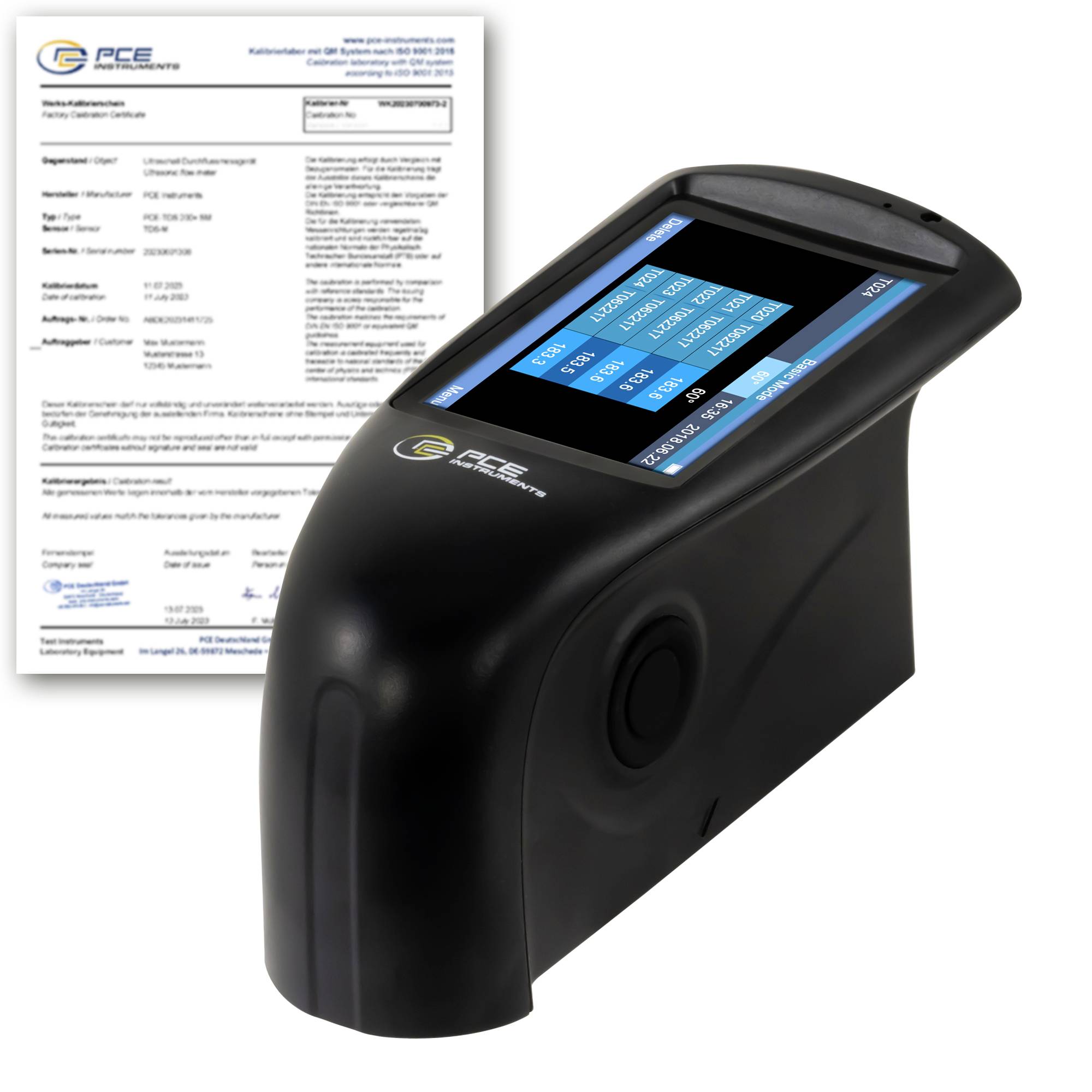

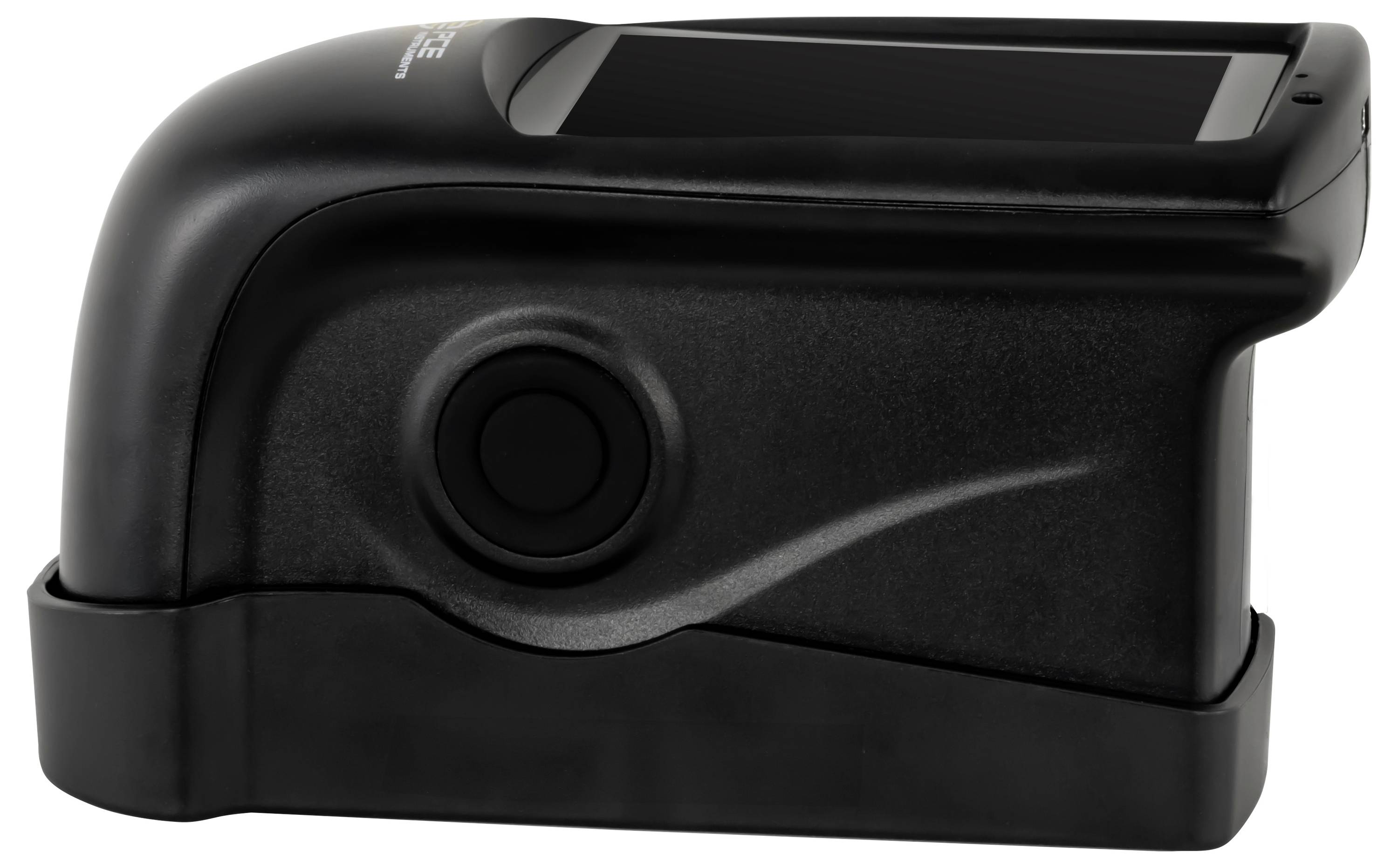

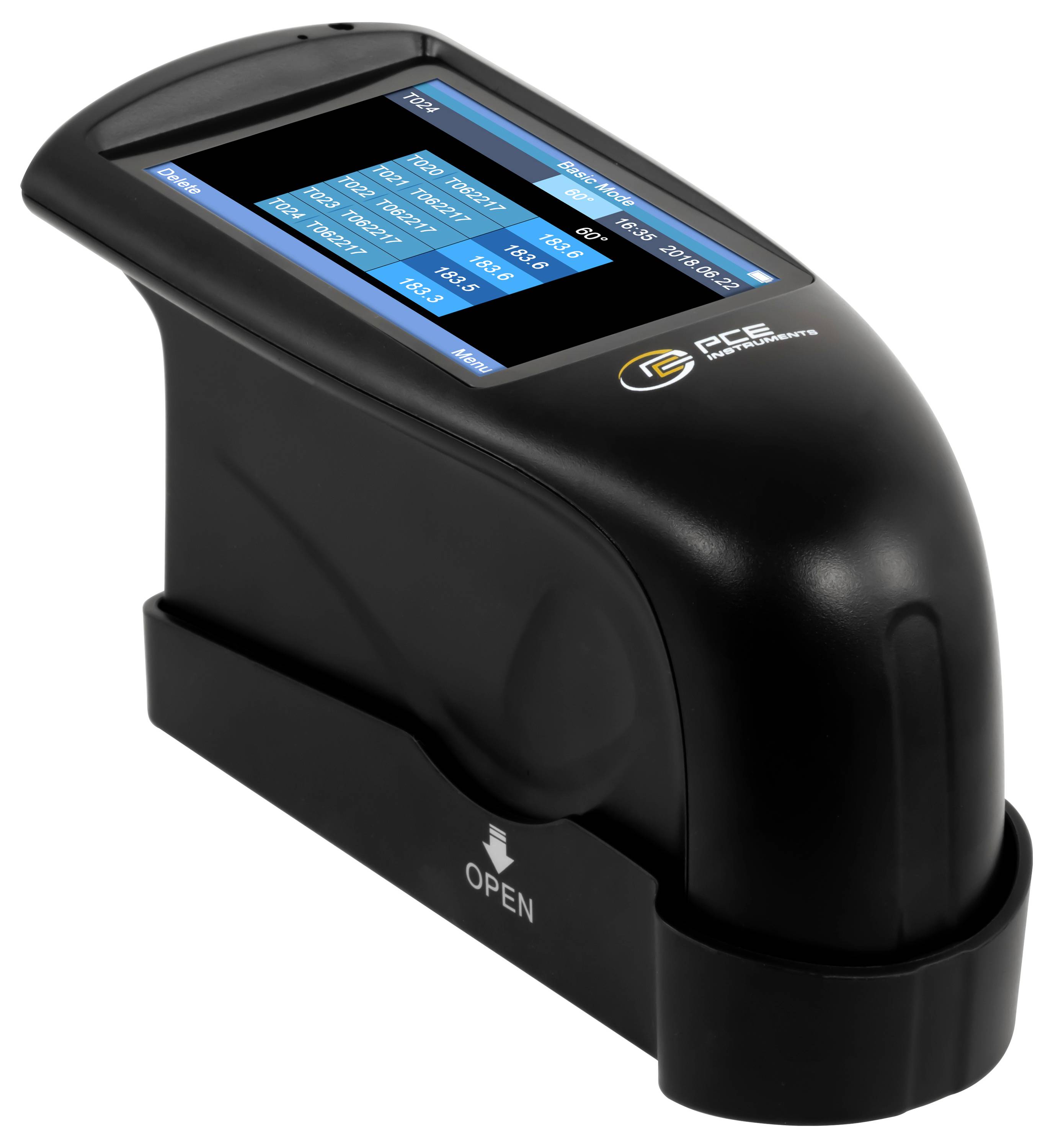

PCE Instruments PCE-SGM 60-ICA PCE-SGM 60-ICA Gloss meter Calibrated to (ISO standards)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments Glanyard meter PCE-SGM 60-ICA
- Measuring geometry 60 °
- Measurement up to 1000 bright points
- Internal measured value memory up to 1000 measured values
- Small measuring area
- Small measurement time
- With analysis software
- Incl. ISO calibration certificate
Technical specifications
- Shine
- Measuring range 0 ... 1000 GU
- Resolution: 0.1 Gu
- Accuracy +/-1.5 / +/-1.5 %
- General Technical Data
- Display type TFT touch-screen
- Display size 3.5 inches
- Storage medium Internal memory
- Memory capacity: 5000 values
- Storage capacity (additional information) Basic measurement: 1000, Statistical mode: 5000, continuous measurement: 5000
- Interface Mini-USB, RS232
- Standard(s) ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
- Measuring surface additional information 1.5 x 2 mm
- Repeatability Measuring range 0 ... 10 GU: +/-0.1 GU, measuring range 10 ... 100 GU: +/-0.2 GU, measuring range 100 ... 1000 GU: +/-0.2 GU (%)
- Measurement time 0.5 s.
- REPRODUCIBILITY +/-0.2 GU / +/-0.5 GU / +/-0.5 GU (%)
- Measuring geometry 60°
- Colour grade corresponds to CIE 1931(2 °) under a CIE C light source
- Readability 0.1 GU
- Menu language English (US), Chinese, English (GB)
- Protection class (device) IP20
- Voltage supply: 5 V DC
- Connector type for device Euro plug
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity 3200 mAh
- Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
- Storage conditions -20 ... 50 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 160 x 75 x 90 mm
- Weight 350 g
- Product type
Gloss meter
ISO standards
- Dim
(L x W x H) 160 x 75 x 90 mm
- Display
Touchscreen
- Weight
350 g
- Calibration service
Incl. ISO calibration certificate
- Features
Data logger
- Width
75 mm
- Height
90 mm
- Length
160 mm
- Interfaces
Mini USB
RS232
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812724 PCE Instruments PCE-SGM 60-ICA PCE-SGM 60-ICA Gloss meter Calibrated to (ISO standards)
User & Safety Instructions
User & Safety Instructions 3812724 PCE Instruments PCE-SGM 60-ICA PCE-SGM 60-ICA Gloss meter Calibrated to (ISO standards)
Description
This gloss measuring instrument with a small measuring range is used to make surface measurements. The gloss measuring instrument uses the reflection principle. The gloss measuring device sends light from a light source onto a surface to be tested and calculates the gloss of the surface according to the Reflexion of light particles. After light hits the surface, some light particles are reflected from the surface and others are absorbed. The gloss level is then output by the gloss measuring device after the difference is formed on the display.
The measurement geometry of the gloss gauge is 60° and is not adjustable, as with various other instruments similar to the gloss gauge. An analysis software is included in the delivery of the gloss measuring device which allows you to read and analyze the measurement data on a computer after use of the gloss measuring device. The device itself is equipped with a memory value memory which, depending on the setting, can take up to 5000 measured values.
This text is machine translated.
The measurement geometry of the gloss gauge is 60° and is not adjustable, as with various other instruments similar to the gloss gauge. An analysis software is included in the delivery of the gloss measuring device which allows you to read and analyze the measurement data on a computer after use of the gloss measuring device. The device itself is equipped with a memory value memory which, depending on the setting, can take up to 5000 measured values.
This text is machine translated.

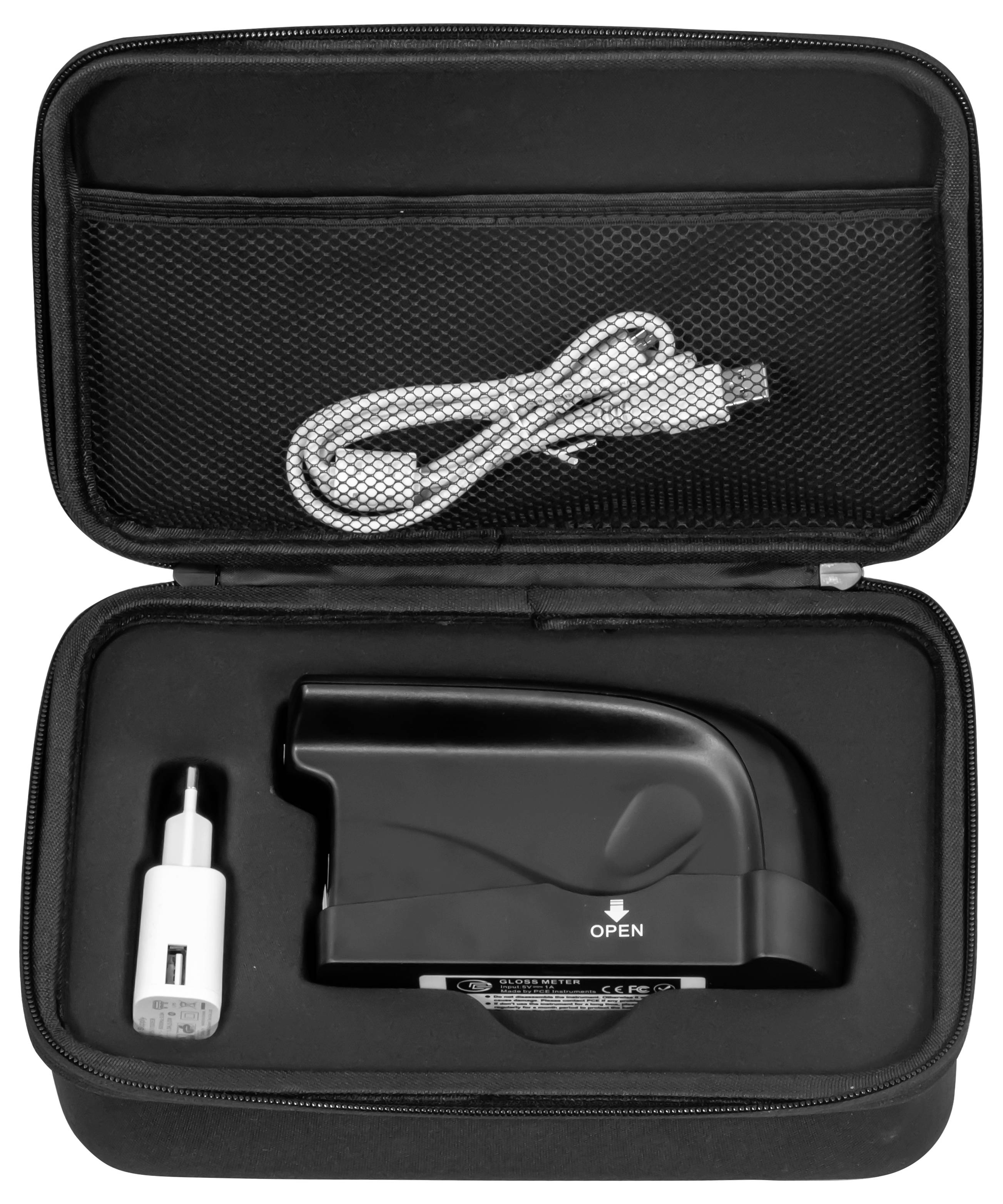

Scope of delivery
- 1 x gloss measuring device PCE-SGM 60-ICA
- 1 x charger adaptor
- 1x USB cable
- 1 x evaluation software (on CD-ROM)

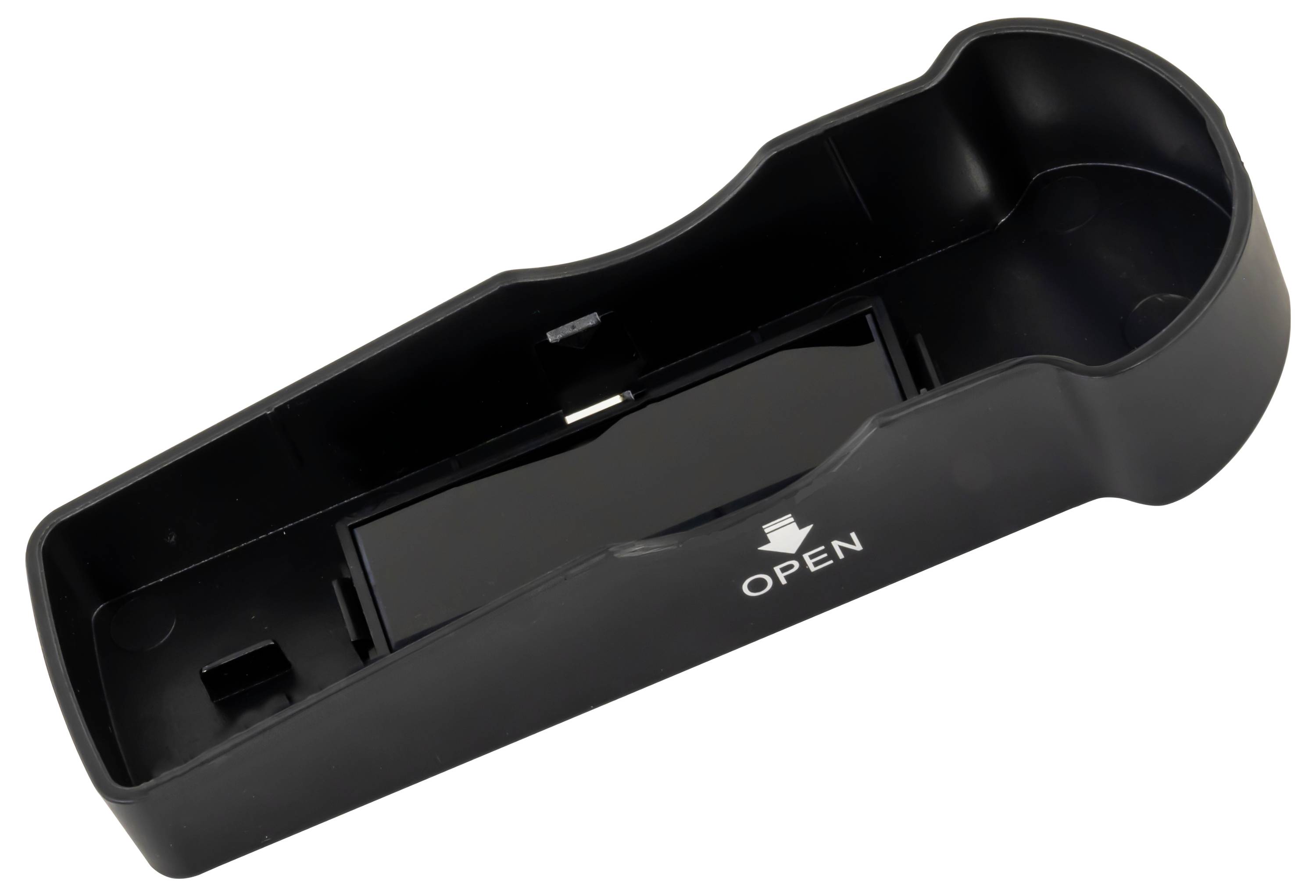

- 1 x calibration plate
- 1x user manual
- 1 x ISO calibration certificate
