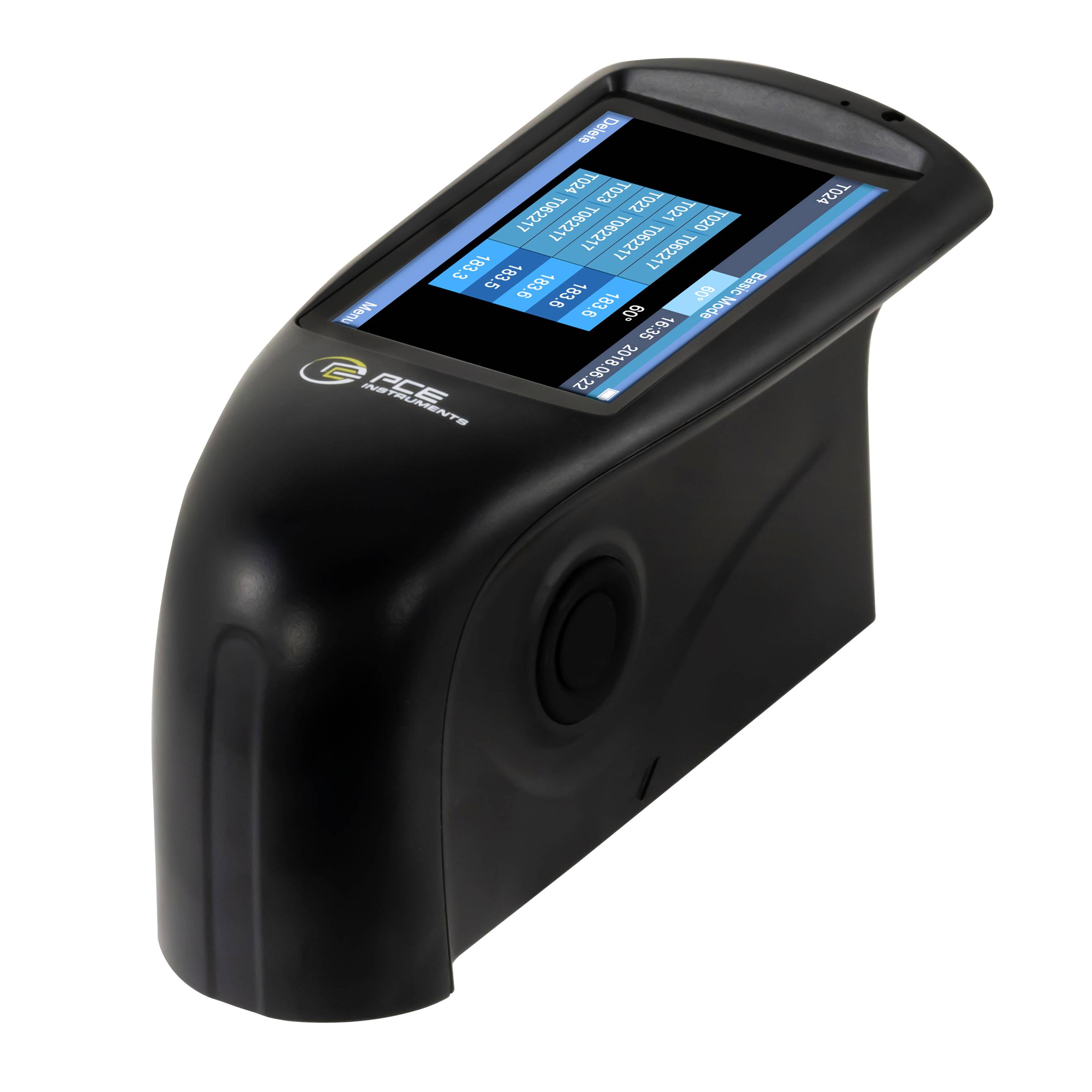

Black handheld optical device with angled touchscreen displaying measurement data, likely a spectrophotometer or color reader.

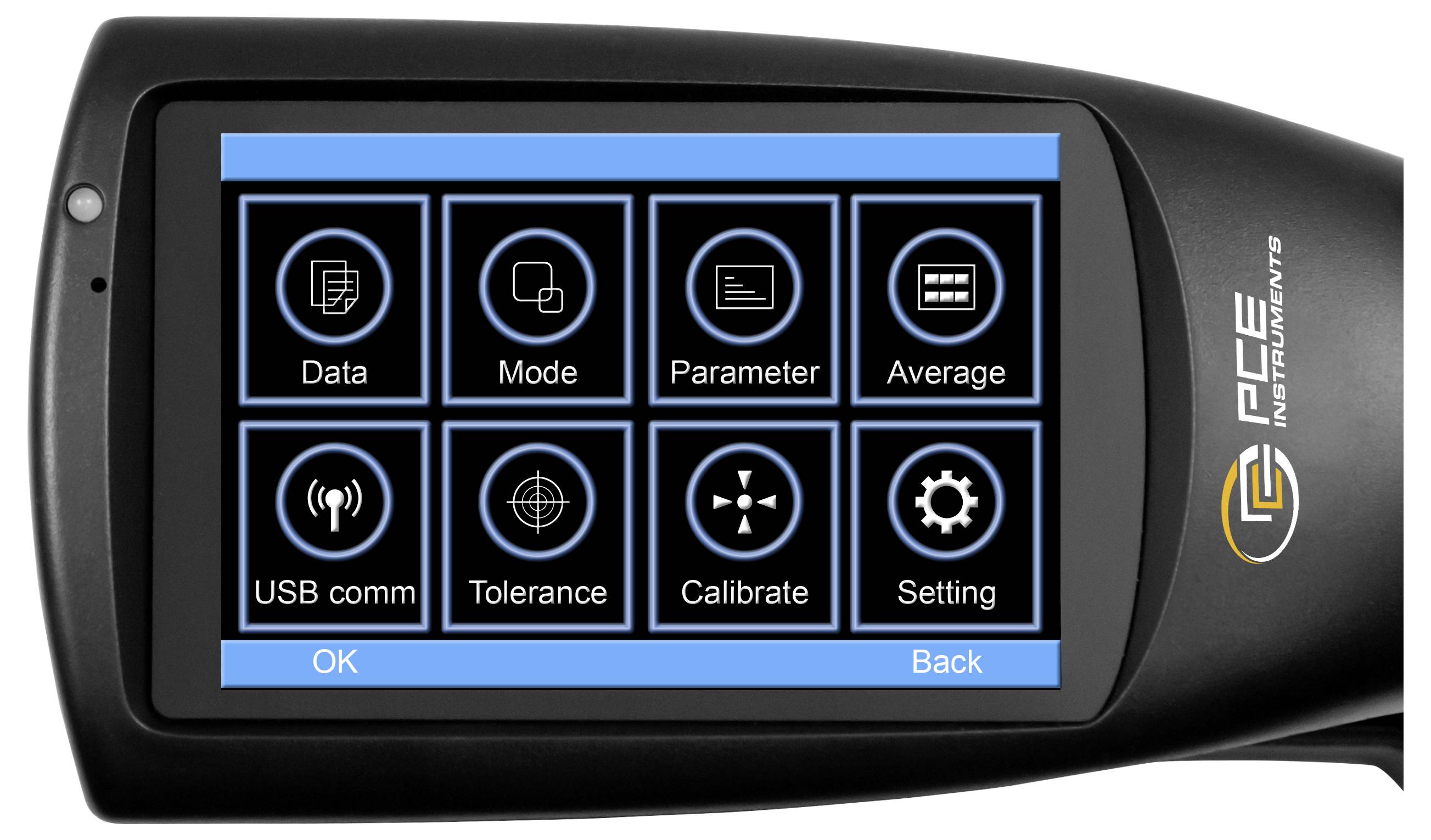

Handheld device touchscreen menu showing eight options: Data, Mode, Parameter, Average, USB comm, Tolerance, Calibrate, and Setting, with OK and Back buttons.

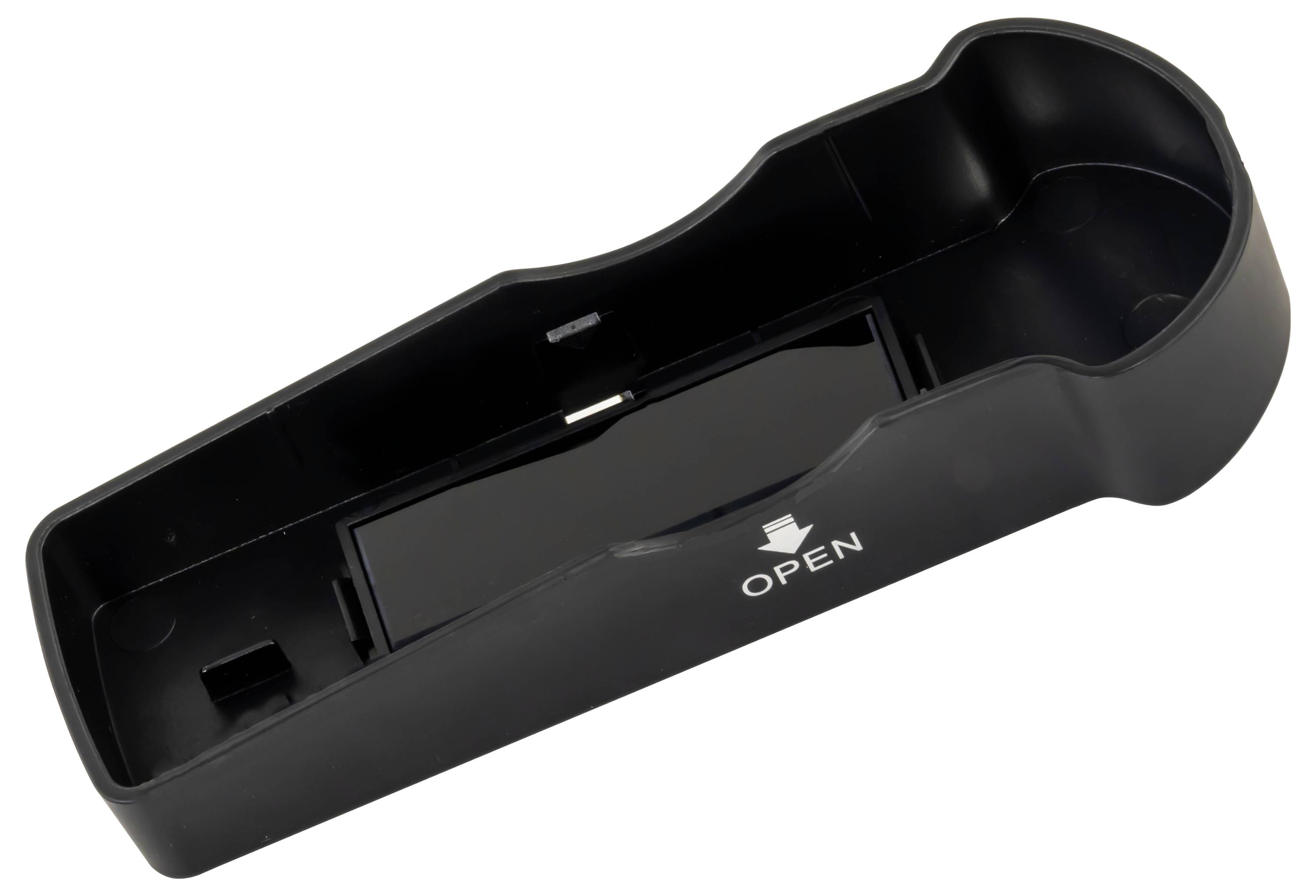

Black plastic battery compartment tray with an 'OPEN' latch mechanism, shown empty on a white background.

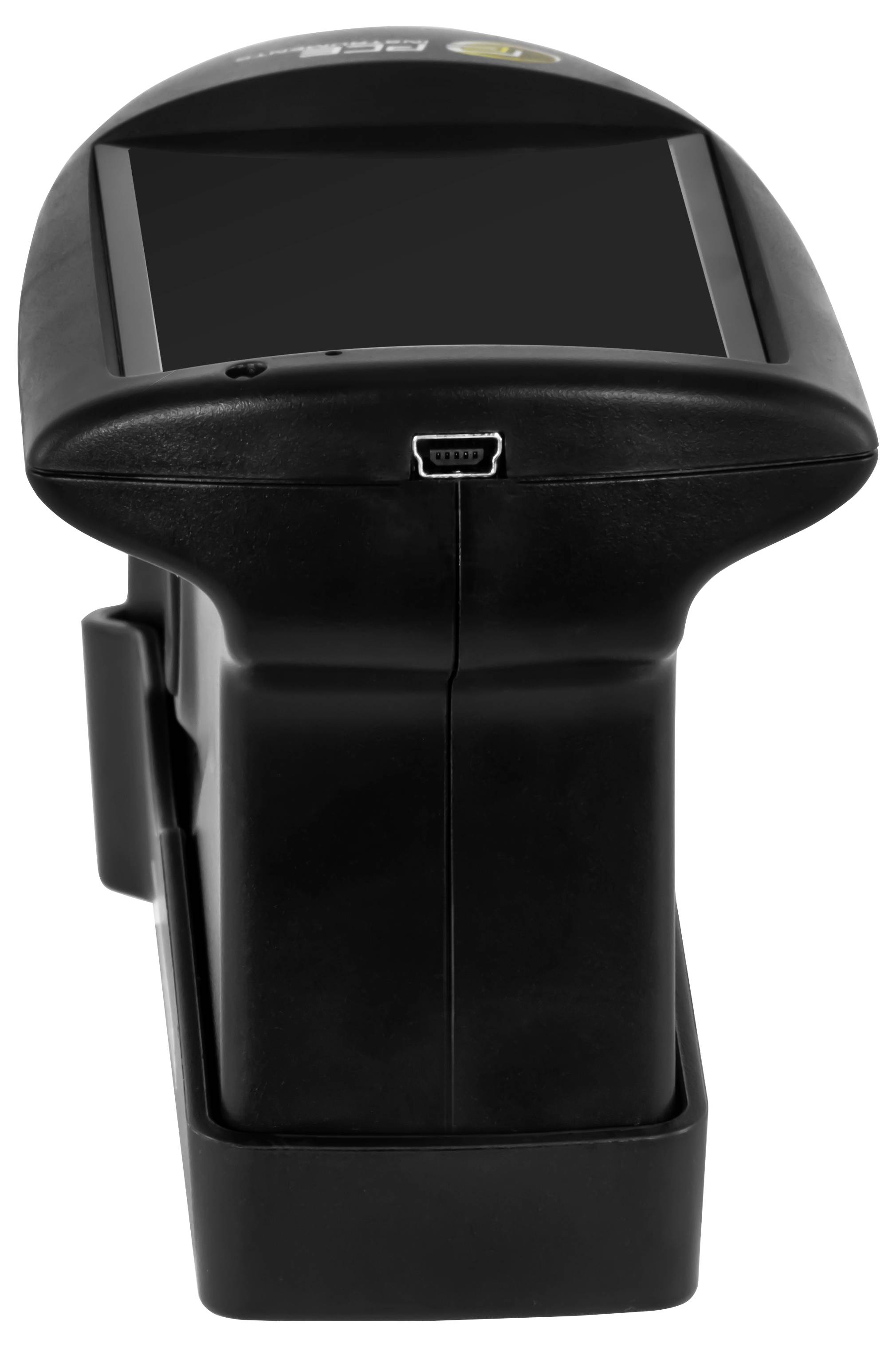

Black handheld device with a screen and USB port, shown front view against a white background.

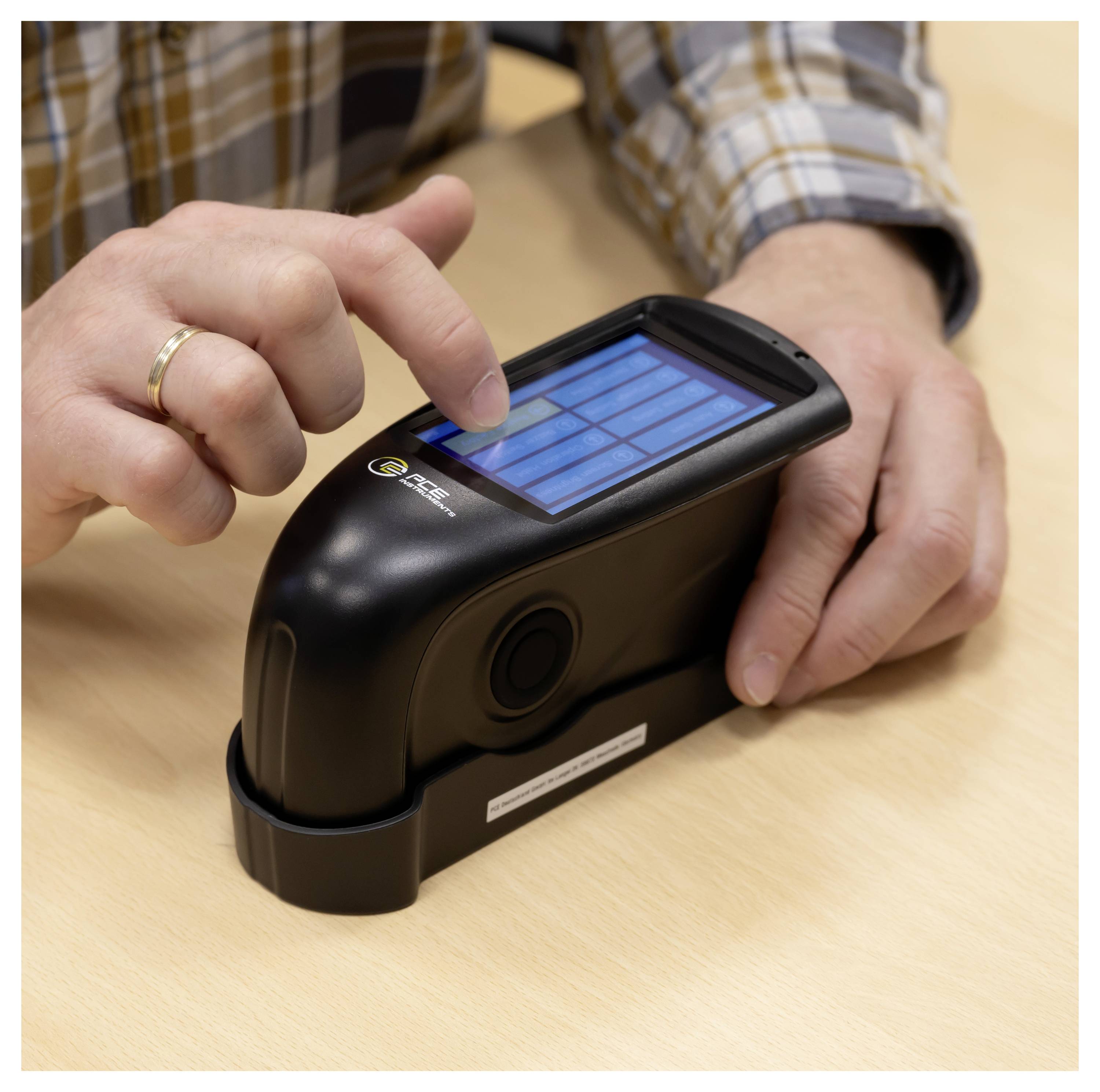

Person using a handheld electronic device with a blue touchscreen on a desk, pressing the screen with one finger.<br>

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Gloss meter PCE-SGM 60

Measuring geometry 60 °
Measurement up to 1000 highlights
Internal measured value memory up to 1000 measured values
Small measuring area
Low measurement time
With evaluation software

Technical specifications

Measuring geometry 60 ° Display 3.5 " TFT touch display STANDARDS ISO 2813 GB/T 9754 ASTM D 523 ASTM D 2457 Measuring range 1.5x2 mm Measurement range 0 ... 1000 GU Readability 0.1 GU Repeatability measuring range 0 ... 10 GU: ±0.1 GU Measurement range 10 ... 100 GU: ±0.2 GU Measuring range 100 ... 1000 GU: ±0.2 GU (%) Reproducibility measuring range 0 ... 10 GU: ±0.2 GU Measurement range 10 ... 100 GU: ±0.5 GU Measurement range 10 ... 1000 GU: ±0.5 GU (%) Farbart corresponds to CIE 1931(2 °) under a CIE C. Light source Measurement accuracy ±1.5 / ±1.5 % Measurement time 0.5 seconds Dimensions 160 x 75 x 90 mm Weight 350 g Menu language English, Chinese Power supply 3200 mAh Li-ion battery Interface USB / RS-232 Memory base measurement: 1000 Statistical mode: 5000 Continuous measurement 5000 Software included in delivery Ambient temperature 0 ... +40 °C Storage temperature -20 ... +50 °C relative humidity< 85 % rel. humidity (non-condensing)

Product type: Gloss meter

: Manufacturer's standards (no certificate)

Display: Digital

Display type: Digital

Documents & Downloads

Datasheet

Datasheet 2452644 PCE Instruments PCE-SGM 60 PCE-SGM 60 Gloss meter

User & Safety Instructions

User & Safety Instructions 2452644 PCE Instruments PCE-SGM 60 PCE-SGM 60 Gloss meter

Description

Gloss measuring device for use in quality and incoming goods inspection / 60 ° measuring geometry / 3.5" TFT display / low measuring time / small measuring area / measurement up to 1000 highlights of this gloss measuring device with a small measuring area is used for surface measurements. The gloss measuring device uses the reflection principle. The gloss meter transmits light from a light source to a surface to be tested and calculates the gloss level of the surface after the reflection of light particles. After the light has hit the surface, some light particles are reflected from the surface and others are absorbed. The gloss level is then output by the gloss measuring device after the difference has been formed on the display. The measuring geometry of the PPCE-SGM 60 gloss meter is 60 ° and is not adjustable, as with various other measuring instruments similar to the gloss meter. An evaluation software is included in the delivery of the gloss measuring device, which enables you to read out and analyze the measured data on a computer after using the gloss measuring device. A measured value memory is installed on the device itself, which can record up to 5000 measured values depending on the setting.
