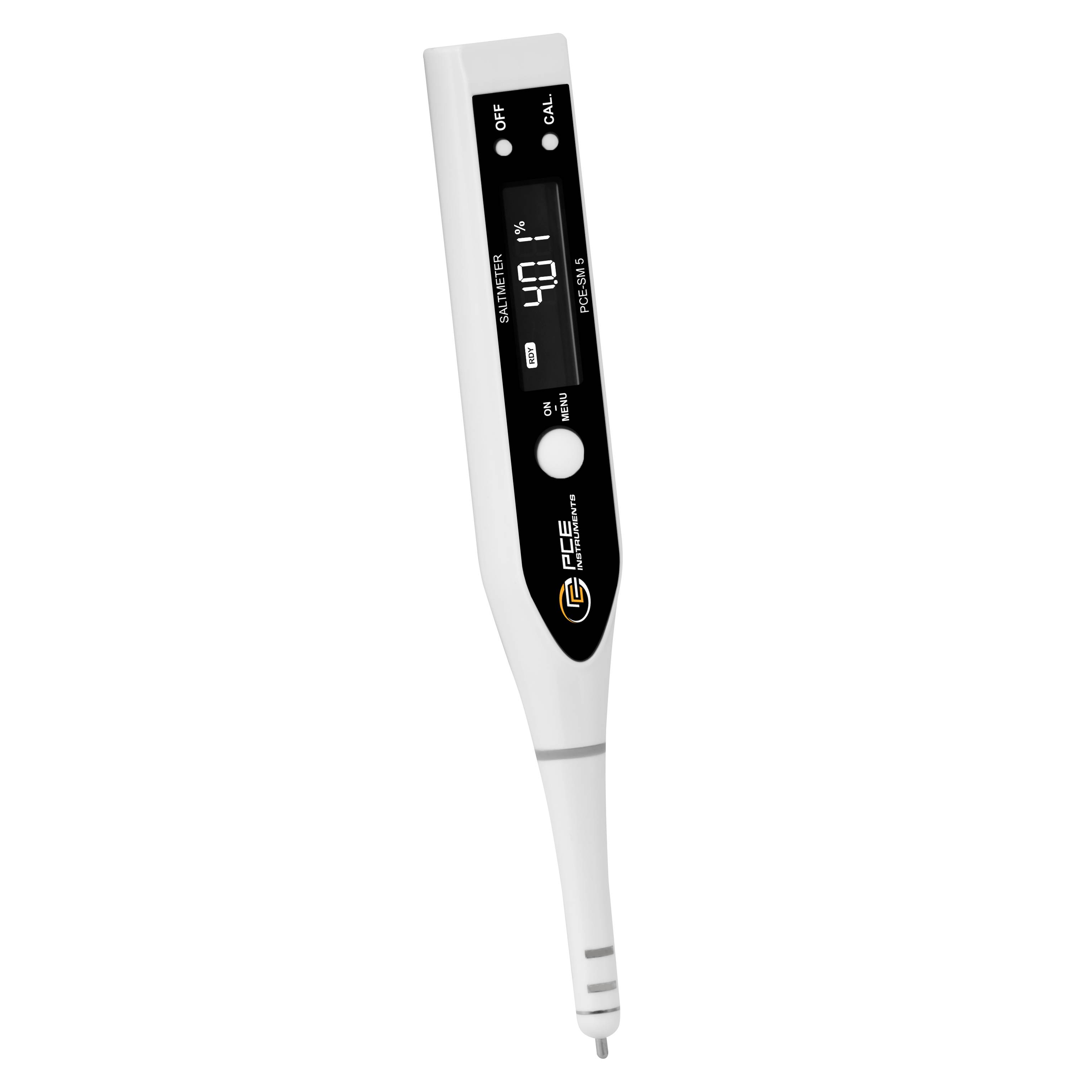

PCE Instruments PCE-SM 5 Conductivity tester Salt, Temperature
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
14-day return policy included
Highlights & Details
PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE SM 5
- Measurement range up to 5%
- Automatic temperature compensation.
- Small and handy
- Watertight
- Auto switch-off
Technical specifications
- Salt content
- Measuring range 0.01 ... 5%
- Resolution 0.01 %.
- Accuracy ±0.05 % FS (<2 %), ±0.1 % FS (2 % ... 5 %
- Temperature
- Measuring range 1 ... 99 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- General Technical Data
- Temperature compensation automatically from 5 ... 60 °C
- Display type LCD with lighting
- Display size 1.6 inches
- Automatic shut-off of 60 s.
- Menu language English (US), English (GB)
- IP67 protection (device)

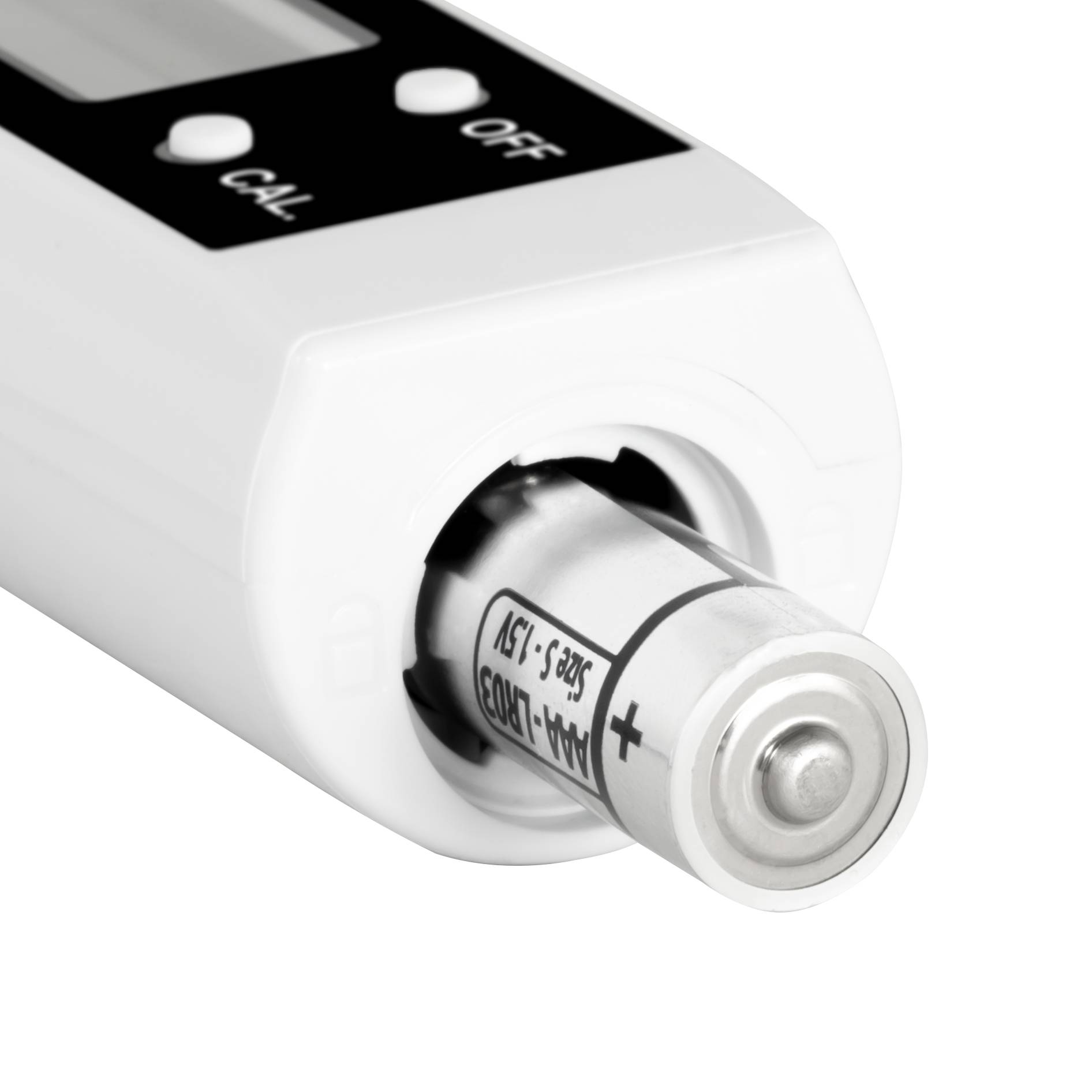

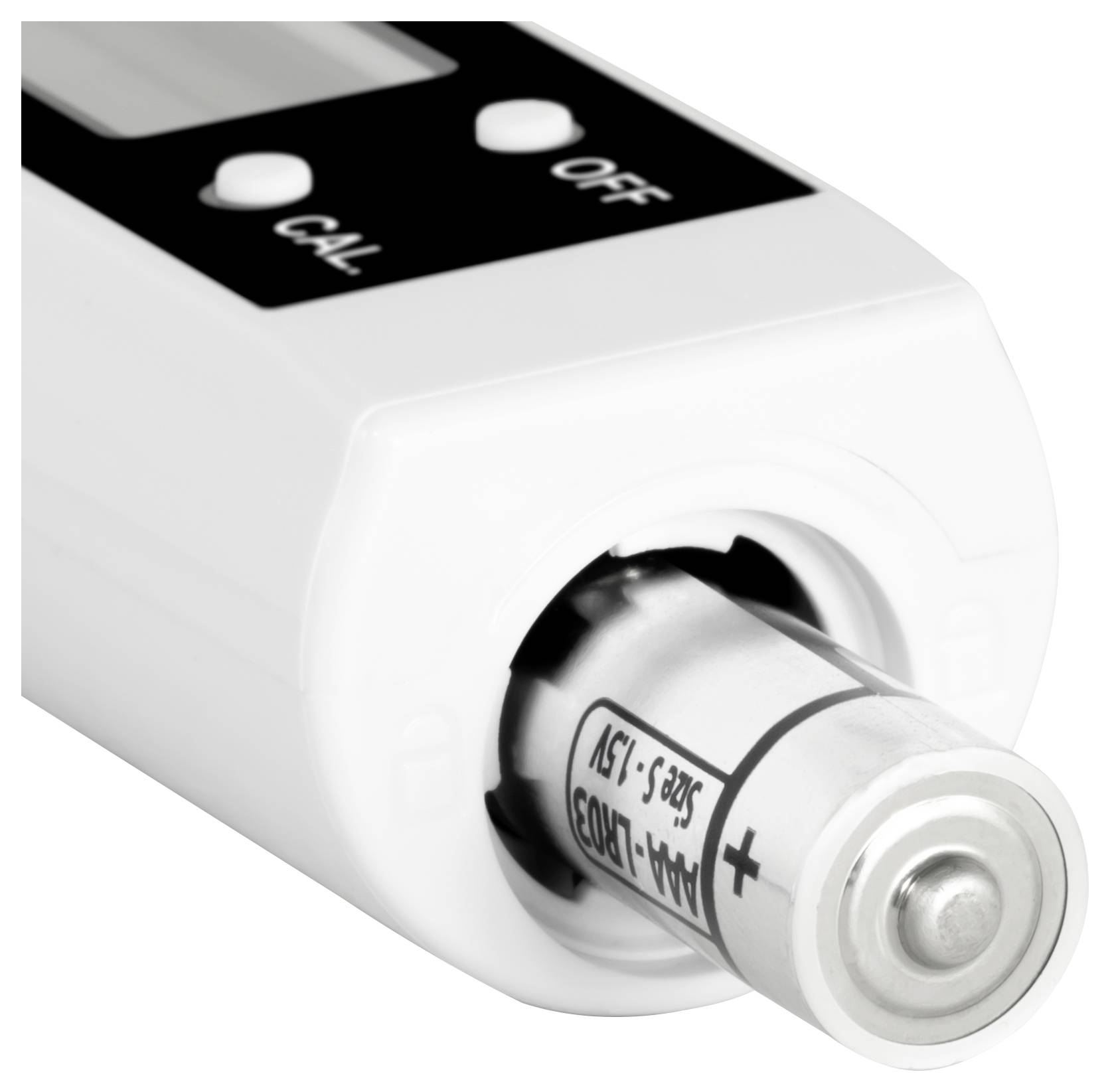

- Battery 2 x 1.5 V AAA battery , alkaline-manganese
- Capacity 1200 mAh
- Operating conditions 5 ... 60 °C , 0 ... 95 % r.F.
- Storage conditions 0 ... 60 °C , 0 ... 95 % r.F.
- Dimensions ( L x W x H ) 188 x 25 x 22 mm
- Weight 39 g.
- Product type
Conductivity tester
- Reading type
Salt
Temperature
- Accuracy
0.1 °C
- Display
LCD
Manufacturer's standards (no certificate)
- Automatic temperature compensation
Yes
- Operating temperature
60 °C
- Resolution
0.1 %
- Power supply (details)
1.5 V
- Dim
(L x W) 188 mm x 25 mm
- Weight
39 g
- Temperature reading range
1 up to 99 °C
- Temperature reading range (max.)
99 °C
- Temperature reading range (min.)
1 °C
- Width
25 mm
- Length
188 mm
Documents & Downloads
Datasheet
Datasheet 3369107 PCE Instruments PCE-SM 5 Conductivity tester Salt, Temperature
User & Safety Instructions
User & Safety Instructions 3369107 PCE Instruments PCE-SM 5 Conductivity tester Salt, Temperature
Description
The conductivity meter is a precise and user-friendly instrument for determining the salt content in solutions, which measures mg and %. This makes the conductivity meter extremely versatile and Ideal for applications in food processing, aquariums or in laboratories. The conductivity meter offers a measurement range from 0.01 to 5% at a resolution of 0.01%. The compact, handy device features automatic temperature compensation (ATC) for temperatures from 5 °C to 60 °C, which ensures precise measurements even in case of temperature fluctuations.
The 1.6 inch illuminated LCD screen provides clear indication of the results. Other features of the conductivity meter include automatic shut-off after 60 seconds and a temperature sensor for fast and accurate measurements. The conductivity meter is temperature resistant and offers simple one-button operation and the option of continuous measurement without power off, WAS makes it for home use as well as professional use in the laboratory Ideal.
This text is machine translated.
The 1.6 inch illuminated LCD screen provides clear indication of the results. Other features of the conductivity meter include automatic shut-off after 60 seconds and a temperature sensor for fast and accurate measurements. The conductivity meter is temperature resistant and offers simple one-button operation and the option of continuous measurement without power off, WAS makes it for home use as well as professional use in the laboratory Ideal.
This text is machine translated.

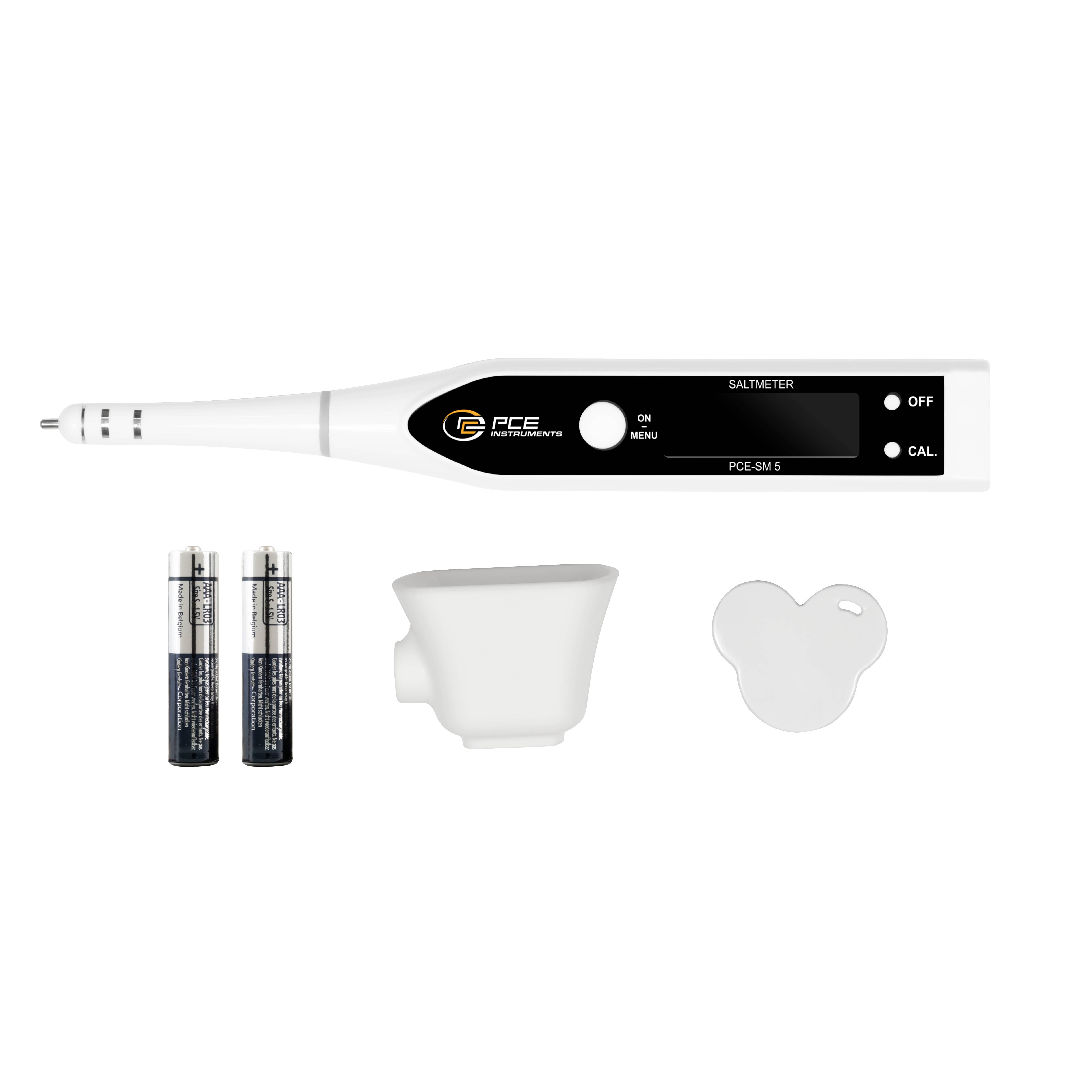

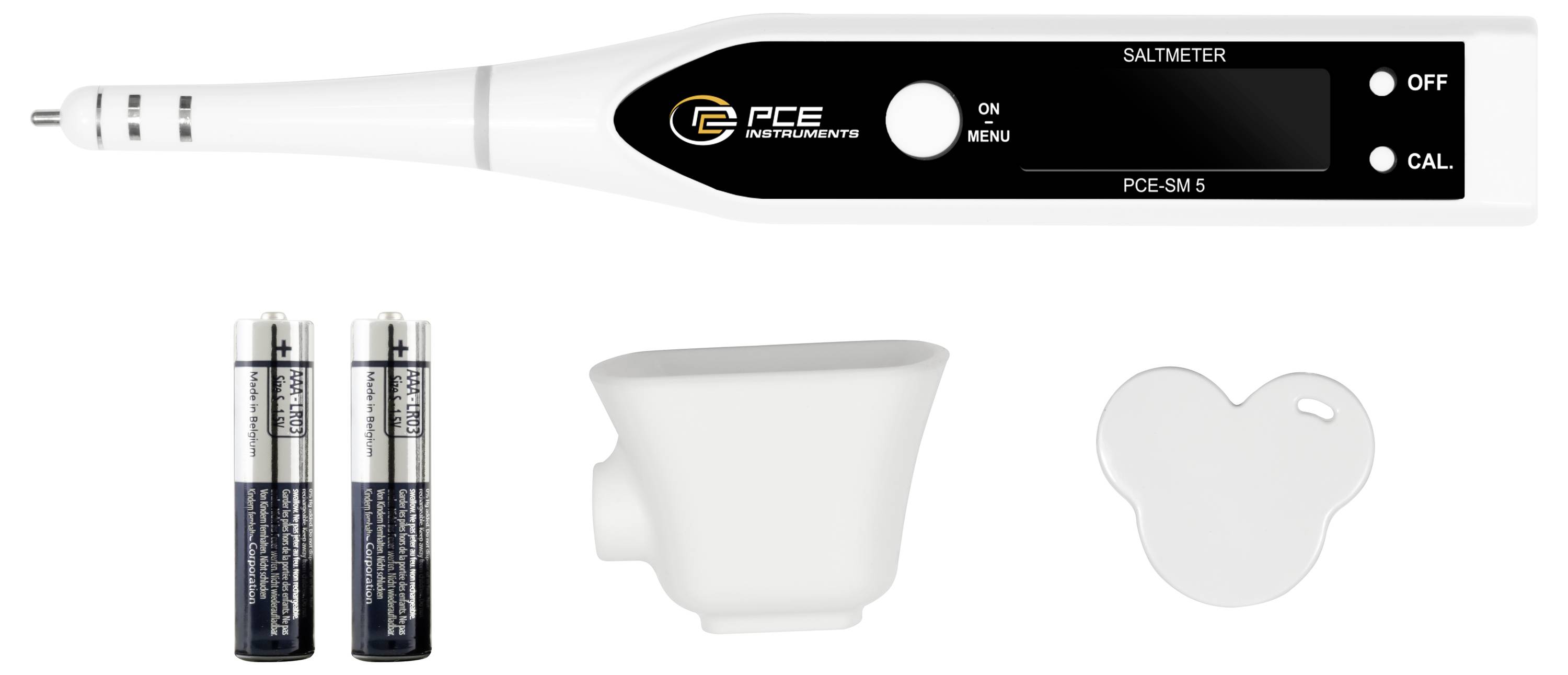

Scope of delivery
- 1 x Conductivity tester PCE-SM 5
- 1 x Measuring beaker
- 2 x Batteries AAA 1.5 V
- 1 x keys for battery compartment
- 1x user manual
