Buy PCE Instruments PCE-ST 2 Temperature sensor 0 - 200 °C incl. immersion probe, within seconds

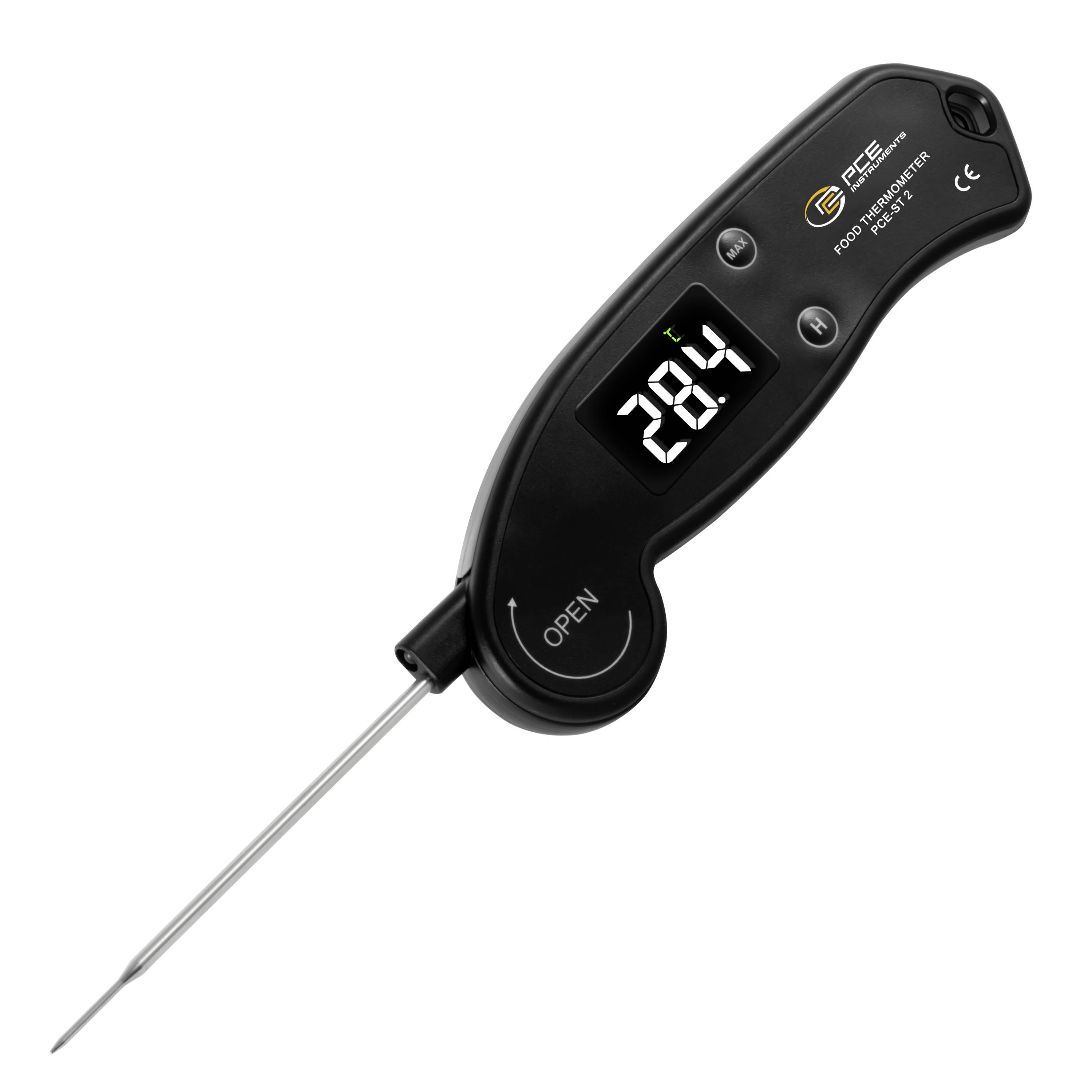

Black digital food thermometer with metal probe displaying 28.4, used to measure food temperature.<br>

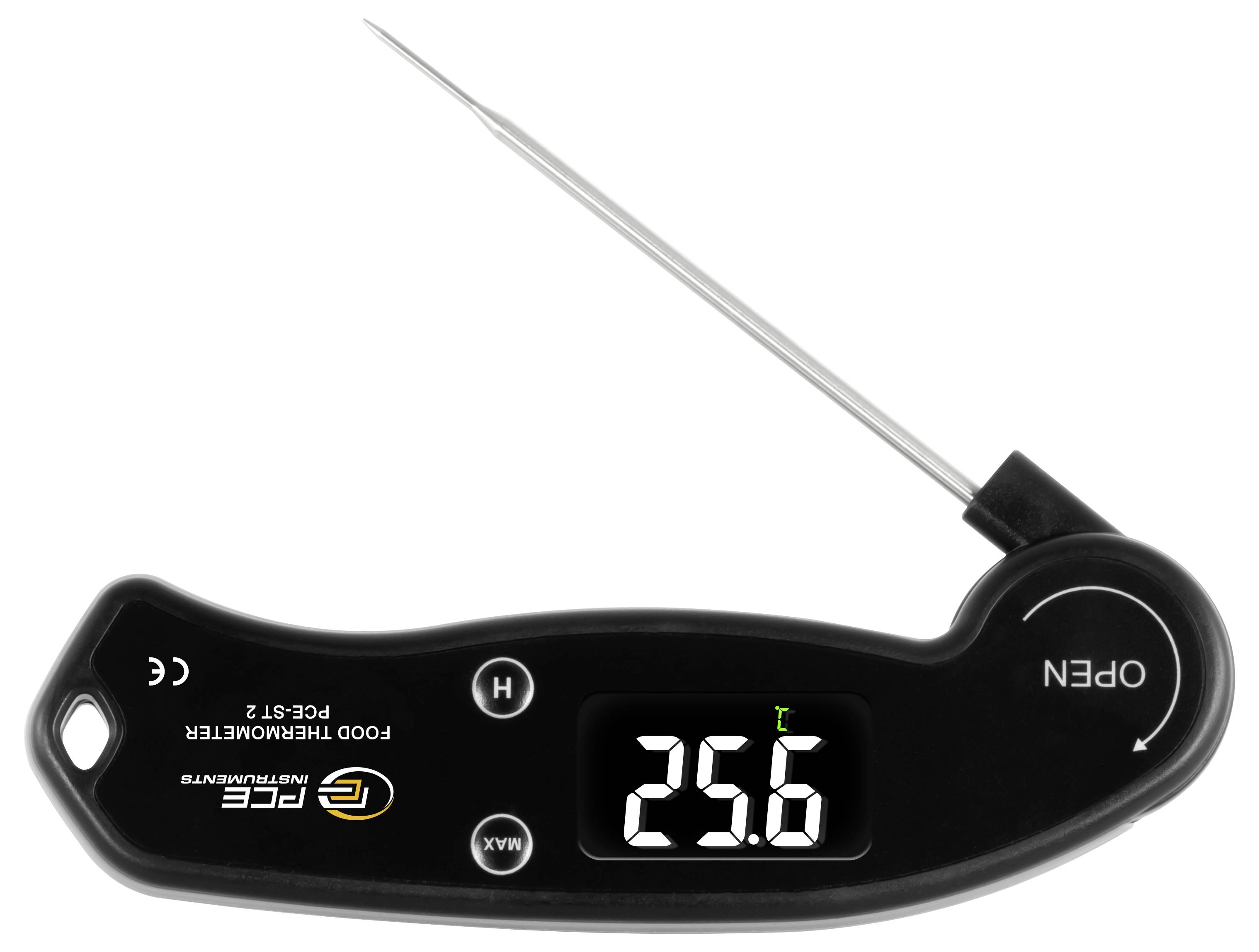

Digital food thermometer showing 25.6 on the display, with a long metal probe attached to a black handle.

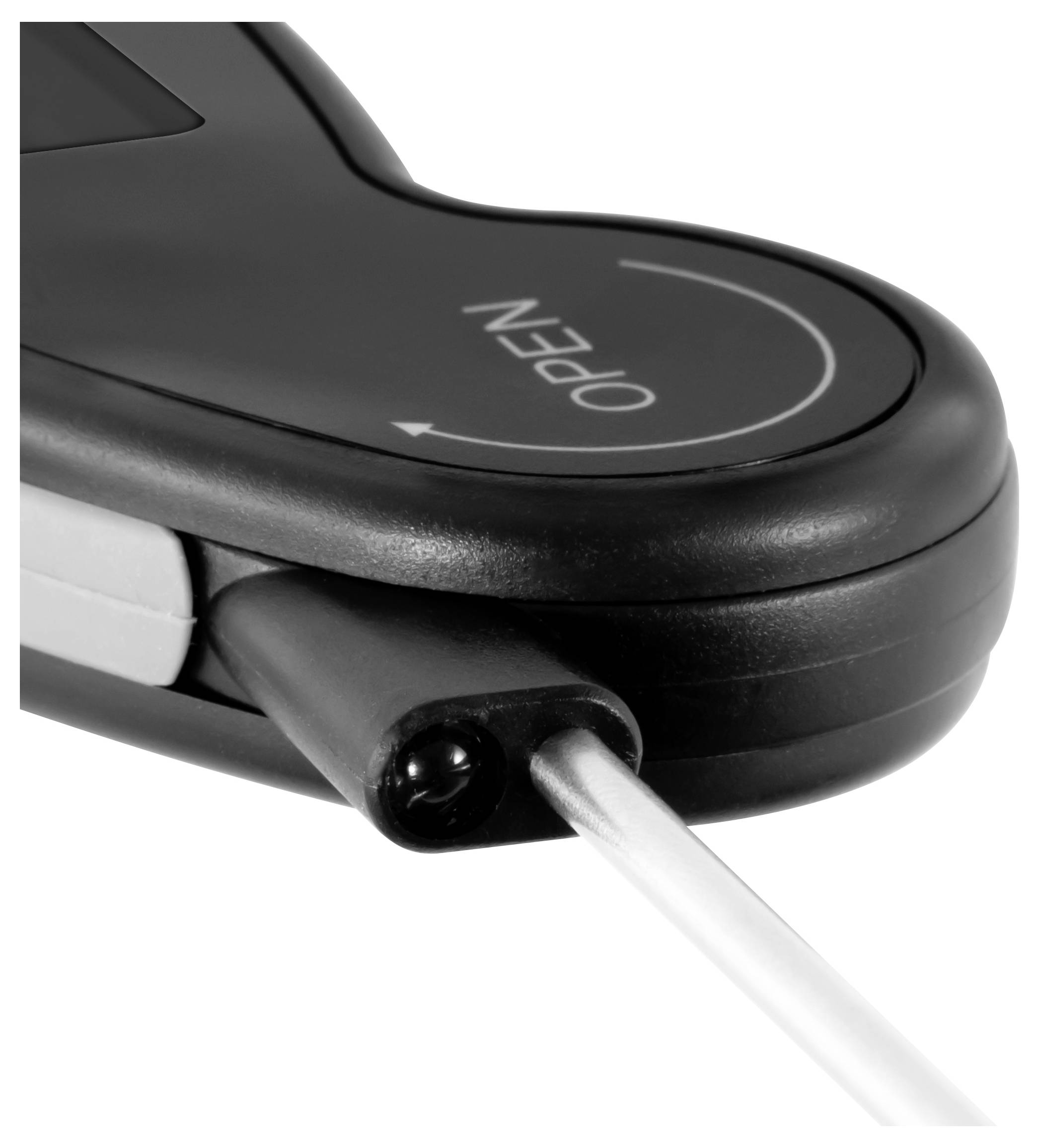

Close-up of a black device with an 'OPEN' label and a white cable plugged into its end.

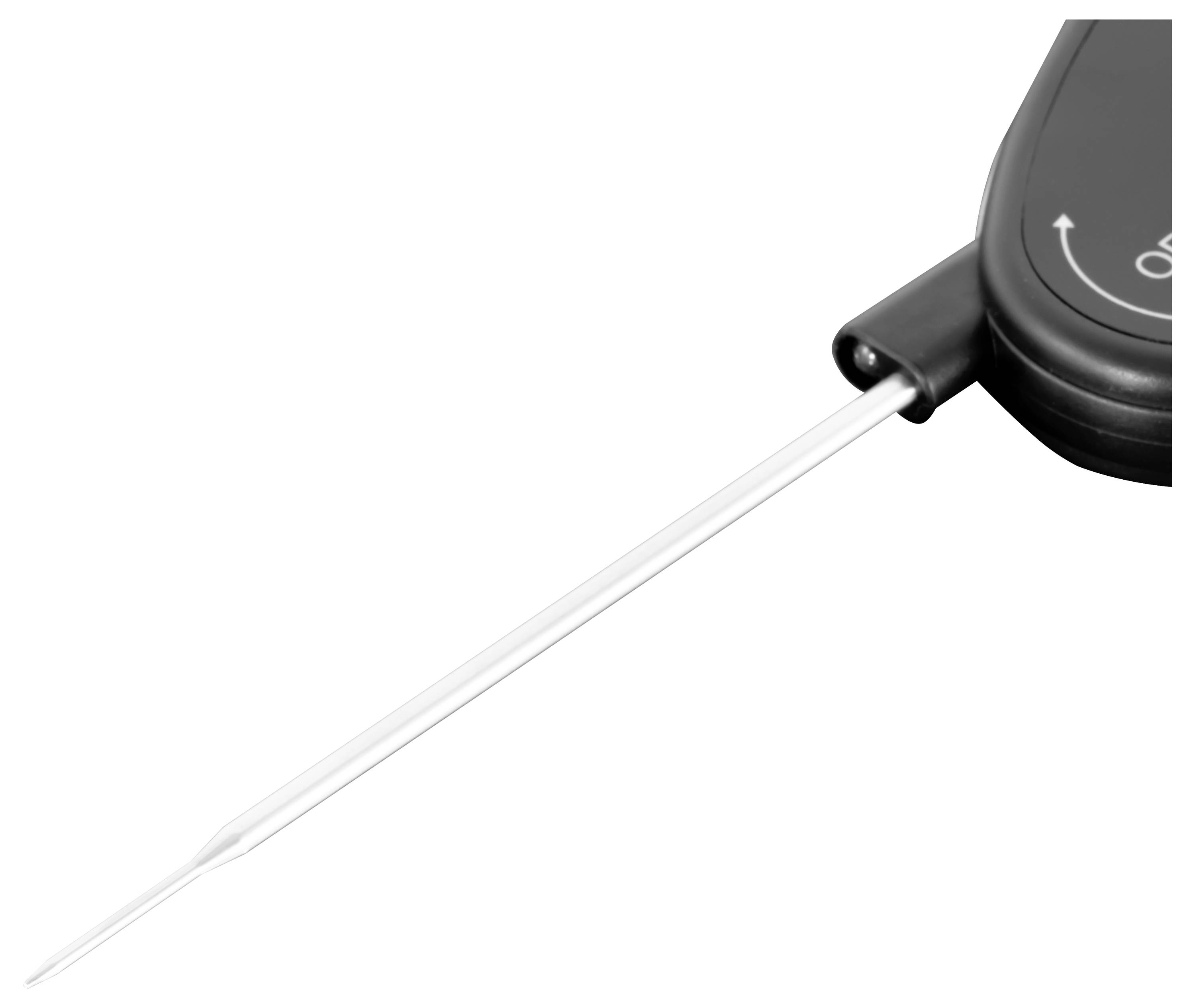

Black digital probe thermometer with a long transparent stem on a white background, angled diagonally.<br>

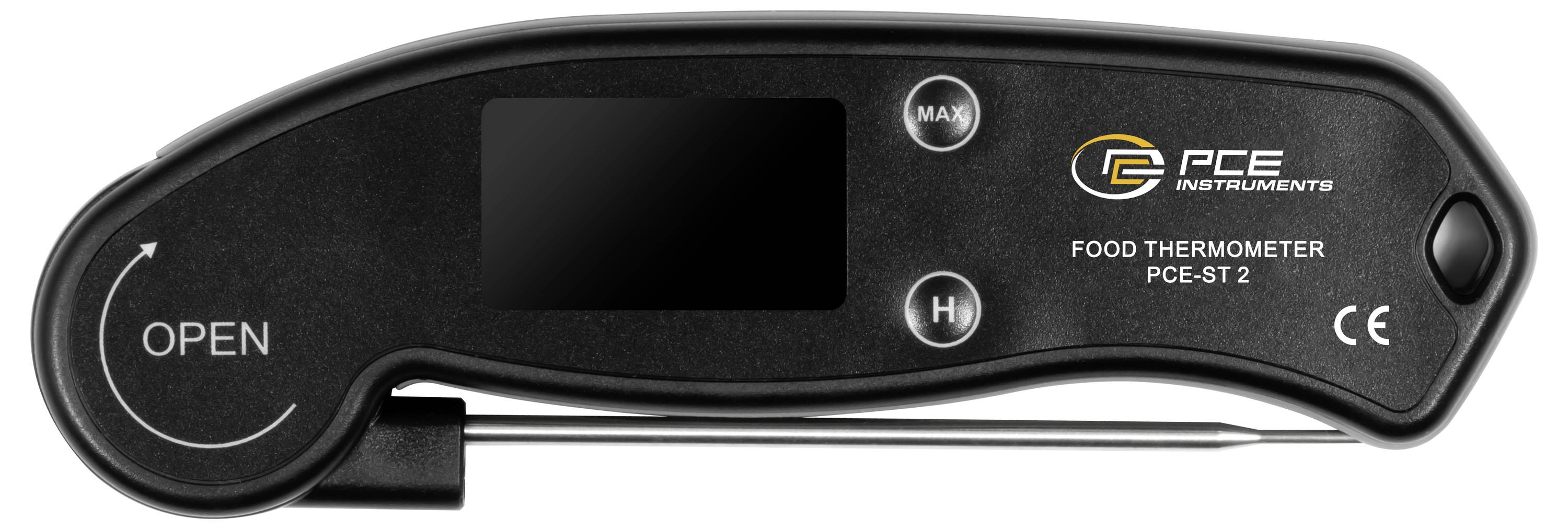

Black PCE Instruments food thermometer with digital display, open button, and CE mark, shown in side view.

1/5

Datasheet (PDF)

Unavailable

23 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-PLUG 2

Measuring range -40 ... 300 °C
Stainless steel temperature sensor
Folding sensor
Max/min/hold function
Magnetic holder
LED light
Automatic display orientation
ABS housing
IP54

Technical specifications

Temperature
Measurement range -40 °C ... 0 °C
Resolution 0.1 °C
Accuracy ± 1.5 % of MW. Or ± 2.0 °C
Temperature
Measurement range 0 °C ... 200 °C
Resolution 0.1 °C
Accuracy ± 1% of MW. Or ± 1.0 °C
Temperature
Measurement range 200 °C ... 300 °C
Resolution 0.1 °C
Accuracy ± 1.5 % of MW. Or ± 2.0 °C
Temperature
Measuring range -40 °F ... 32 TO +32 °F
Resolution 0.1 °F
Accuracy ± 1.5 % of MW. Or ± 3.6 °F
Temperature
Measuring range 32 °F ... 392 °F
Resolution 0.1 °F
Accuracy ± 1 % of MW. Or ± 1.8 °F
Temperature
Measuring range 392 °F ... 572 °F
Resolution 0.1 °F
Accuracy ± 1.5 % of MW. Or ± 3.6 °F
General Technical Data
MEASUREMENT FUNCTIONS MAX., MIN, HOLD
Display type LCD
Display size 1.75 inches
Display update rate 1 x per second
Response time 2 s
Automatic shut-off of 90 s.
ABS casing
Sensor length 120 mm
Menu language English
Protection class (device) IP54
Power supply 1x 1.5V AAA battery
Weight 84.5 g
Dimensions (L x W x H) 166 x 55 x 16 mm
Other dimensions Length with extended sensor: 285 mm Dimensions of sensor: 120 mm Ø 3.5 mm, at the tip Ø 1.7 mm
Operating conditions 0 ... 50 °C , 10 ... 95 % r.F.
Storage conditions -20 ... 60 °C , 0 ... 80 % r.F.

Product type: Temperature sensor

Max. temperature: 200 °C

Basic accuracy: 1 %

Accuracy ± °C: 1 °C

: Manufacturer's standards (no certificate)

Sensor version: fitted

Dim: (L x W x H) 166 x 55 x 16 mm

Response time: 2 s

Resolution (temperature): 0.1 °C

Features: incl. immersion probe
within seconds

Probe length: 120 mm

Weight: 84.5 g

Width: 55 mm

Height: 16 mm

Length: 166 mm

Power supply: AA battery (1x)

Min. temperature: 0 °C

Type: PCE-ST 2

Documents & Downloads

Datasheet

Datasheet 3192944 PCE Instruments PCE-ST 2 Temperature sensor 0 - 200 °C incl. immersion probe, within seconds

User & Safety Instructions

User & Safety Instructions 3192944 PCE Instruments PCE-ST 2 Temperature sensor 0 - 200 °C incl. immersion probe, within seconds

Description

The stick thermometer enables a quick check of the temperature and in addition the rod thermometer is light and ergonomically designed to make measuring as comfortable as possible.
The temperature sensor of the stick thermometer is made of stainless steel and is best suited for food. There is an LED parallel to the sensor, which enables you to measure with the stick thermometer even under dark ambient conditions.

If the sensor is folded out, the device switches on automatically. The measuring electronics of the rod thermometer are well protected in an ABS casing, the protection class of the rod thermometer is IP54.
The display of the thermometer rotates according to the orientation of the device so you can easily read the measurement values of the stick thermometer, depending on the orientation. If the thermometer is not in use, it turns off after 90 seconds.
