PCE Instruments PCE-T 1220-ICA PCE-T 1220-ICA Temperature data logger Calibrated to (ISO standards) Unit of measurement

With the 12-channel data-logger thermometer the measured values of several temperature sensors can be recorded, displayed and archived at the same time. It supports eight different types of thermocouples (K, J, E, T, N, S, R, B), which can be connected to the 12 measuring channels. The large measuring range of -200 ... +1800 °C makes the 12-channel data logger Ideal for a wide range of applications - from cryogenic temperatures to high-temperature processes. The high measuring accuracy, especially for K-type thermocouples with ±(0.04% w/MW, is particularly worth mentioning. + 0.3 K).

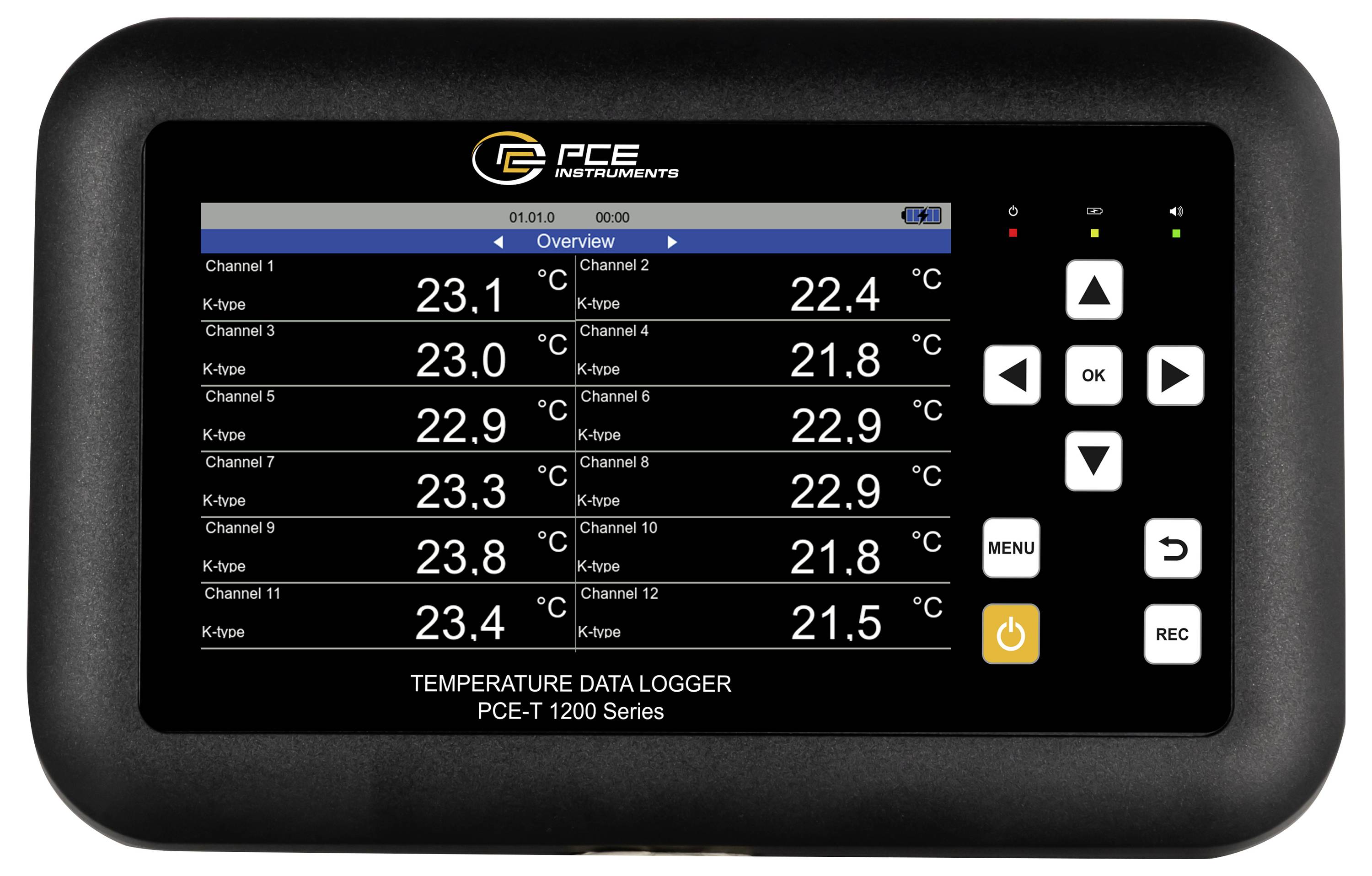

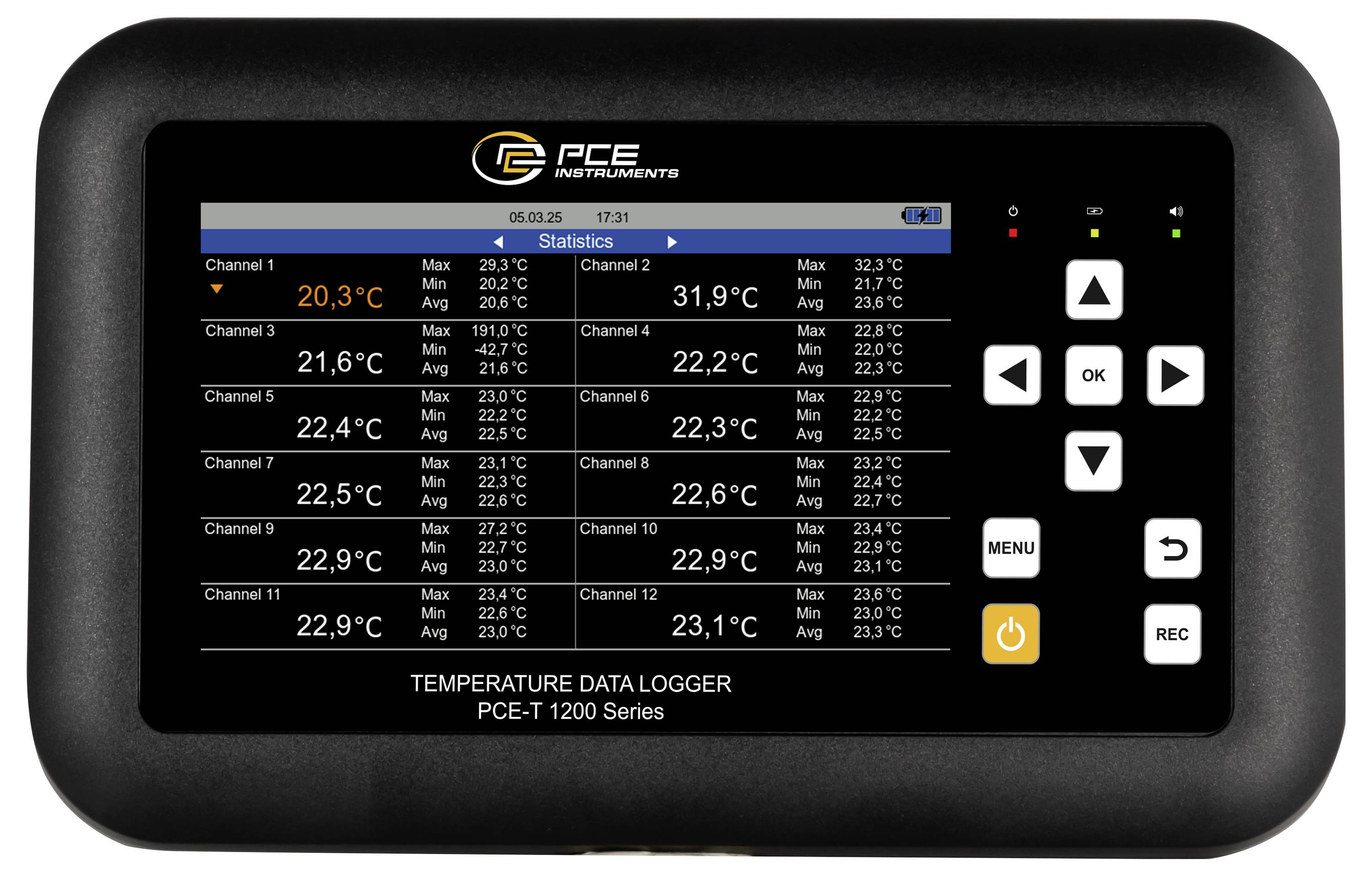

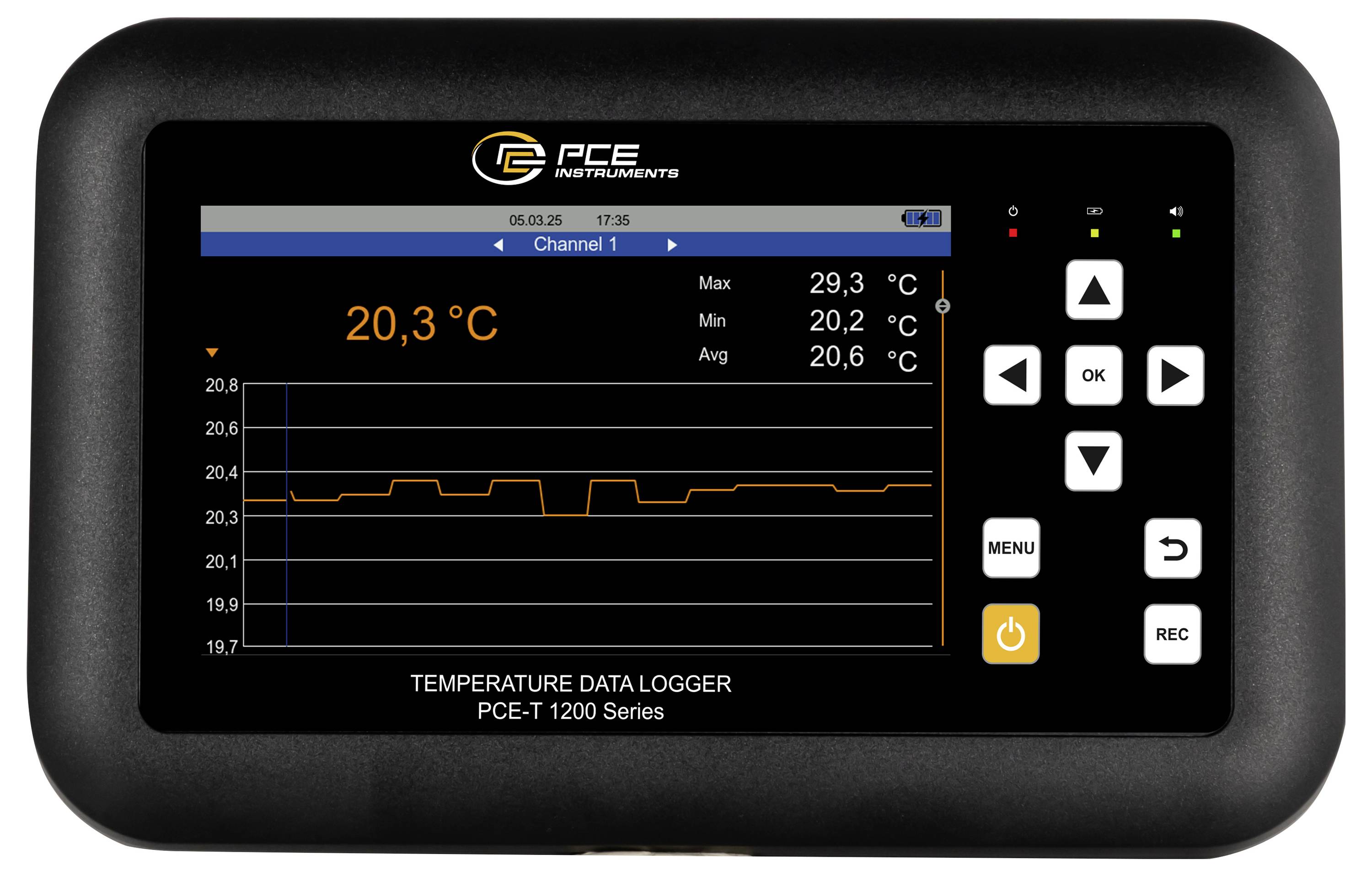

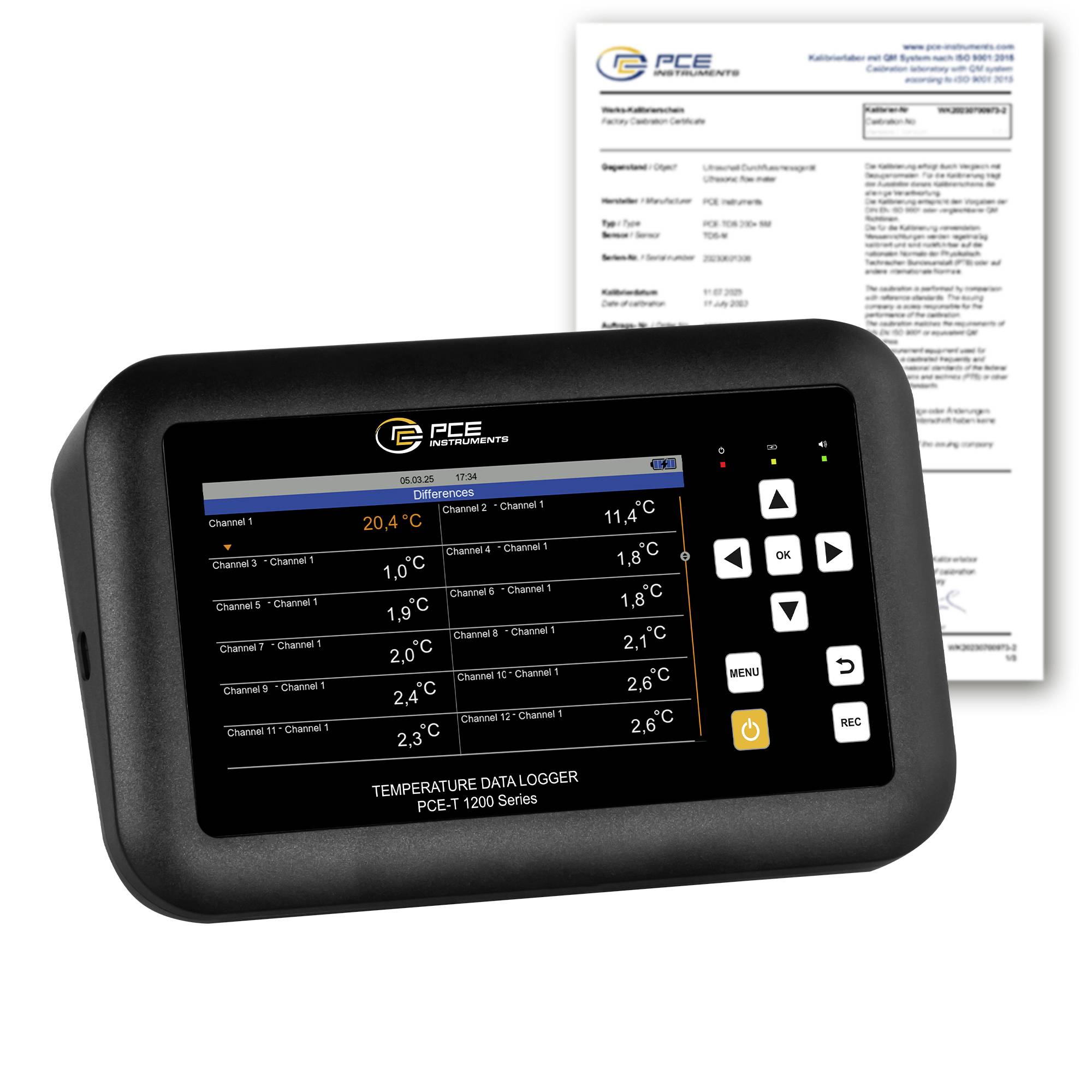

The measurement values are displayed with the 12-channel data logger thermometer on a large 7-inch display, which provides a clear and easy-to-read display of all 12 measured temperatures. In addition, the maximum, minimum and average values since measurement began can be displayed in a separate view. Each channel can be individually compared with the other channels, whereby the current measured value and the difference to a selected reference channel are displayed.

Another highlight of the 12-channel data logger is the long battery life: With a measurement interval of 10 minutes, the data logger can last for up to 24 days in battery mode. In addition, an integrated screen saver ensures efficient use by automatically switching off the display after a defined time without interrupting the measurements.

**Versatile in application area**
The 12-channel data logger thermometer is Ideal for a wide range of applications which require precise temperature monitoring:

**Research and development**
In the laboratory and in the development of new products the data logger enables the precise recording of temperature data at several measuring points simultaneously.
Industrial process monitoring: In production processes Helps continuous temperature monitoring to meet quality standards and ensure process stability.

**Food and pharmaceutical industry**
When storing and transporting temperature-sensitive products, the data logger ensures complete documentation to meet regulatory requirements.

**Energy monitoring**
By recording temperature trends, inefficient processes can be identified and energy-saving potentials can be exploited.

**Environmental monitoring**
In climate research or in environmental studies the data logger enables the simultaneous recording of temperatures in different places.

**Oven monitoring and material testing**
Ideal for temperature control in high-temperature processes, e.g. in industrial ovens or for testing temperature-sensitive components.

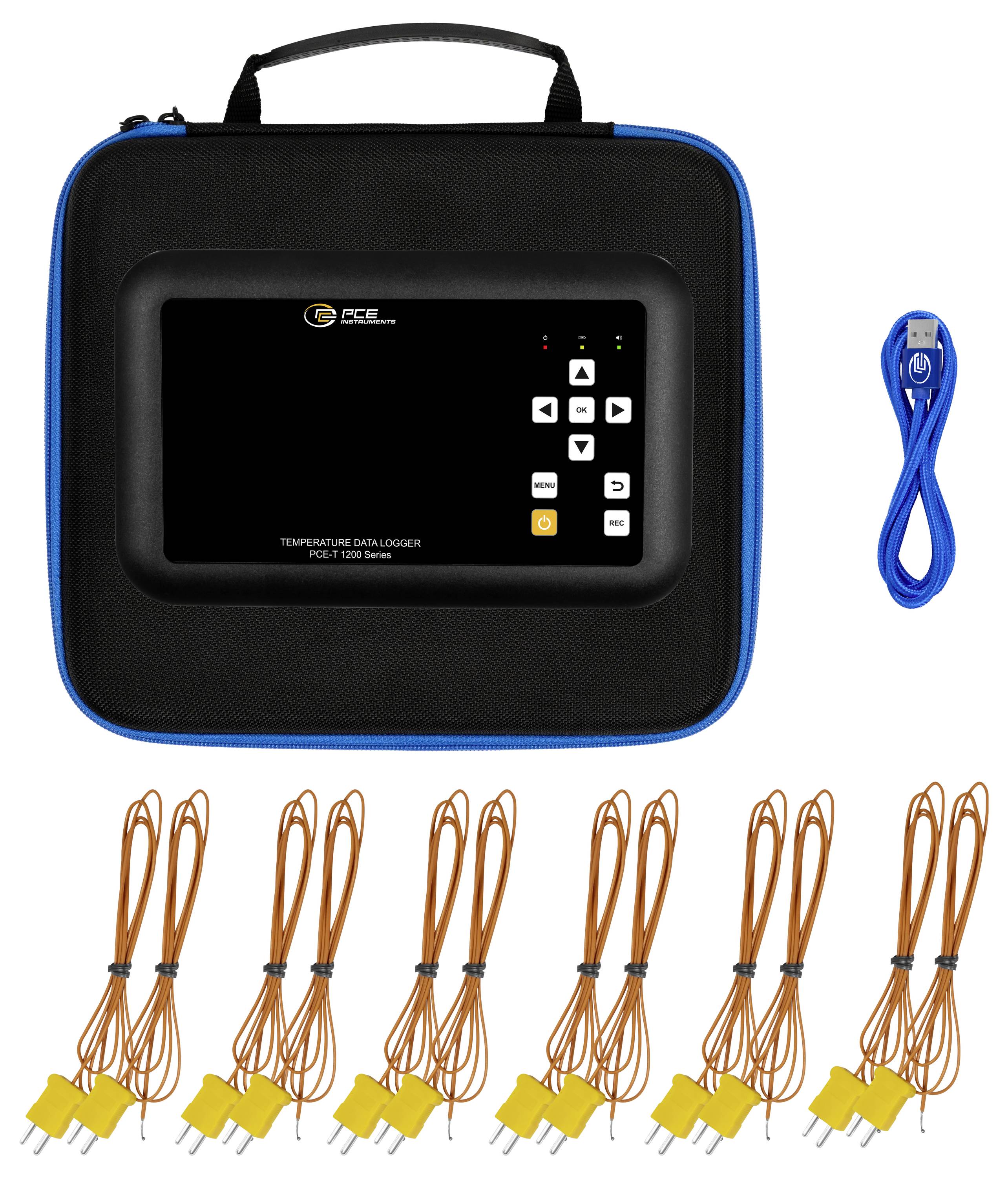

You will find a wide selection of suitable thermocouple probes in the range of accessories in order to optimally adapt the temperature data logger to your individual requirements.

This text is machine translated.
