Buy PCE Instruments PCE-T 220 Handheld tachometer Optical 99999 U/min (max)

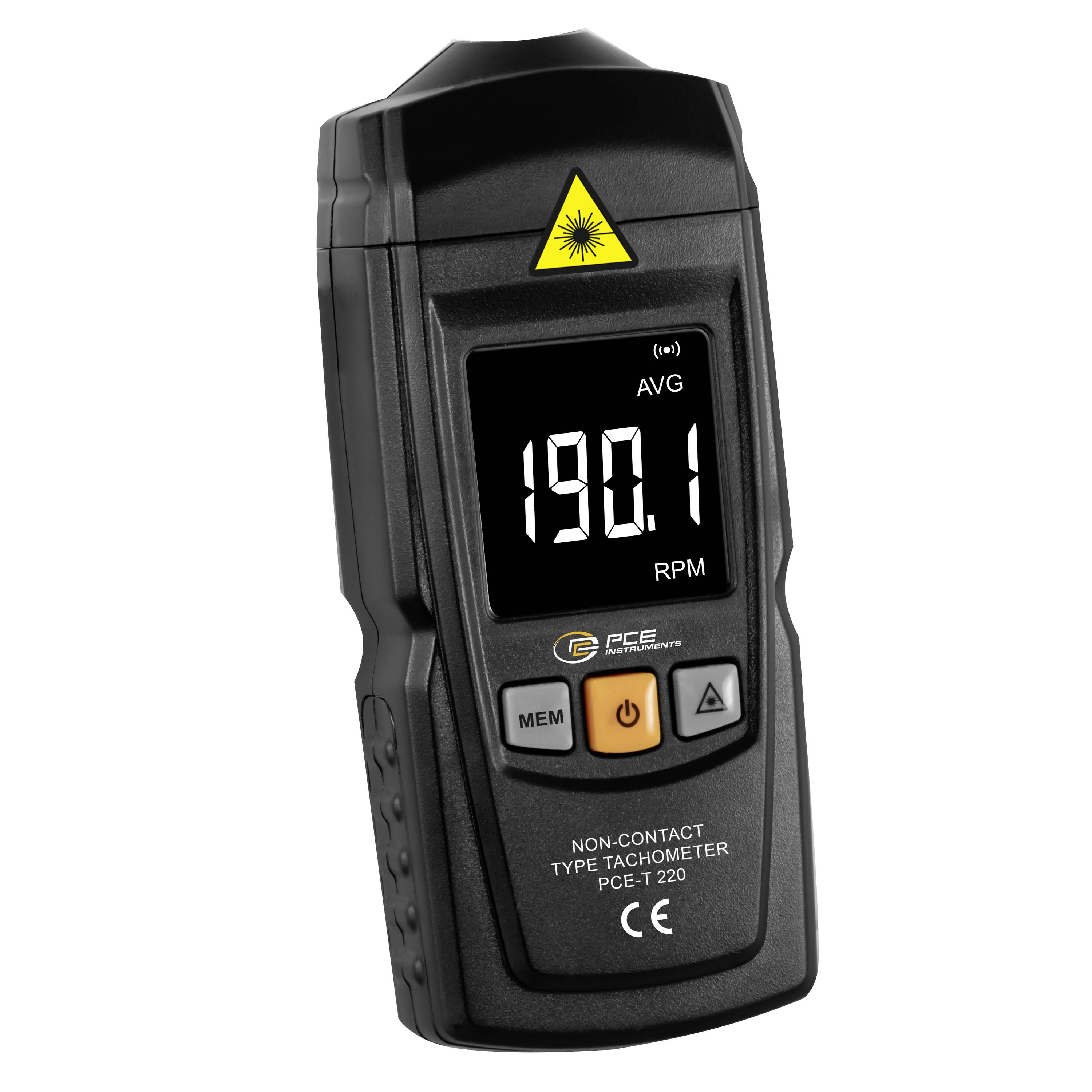

Handheld non-contact laser tachometer showing average speed 190.1 RPM on its display.

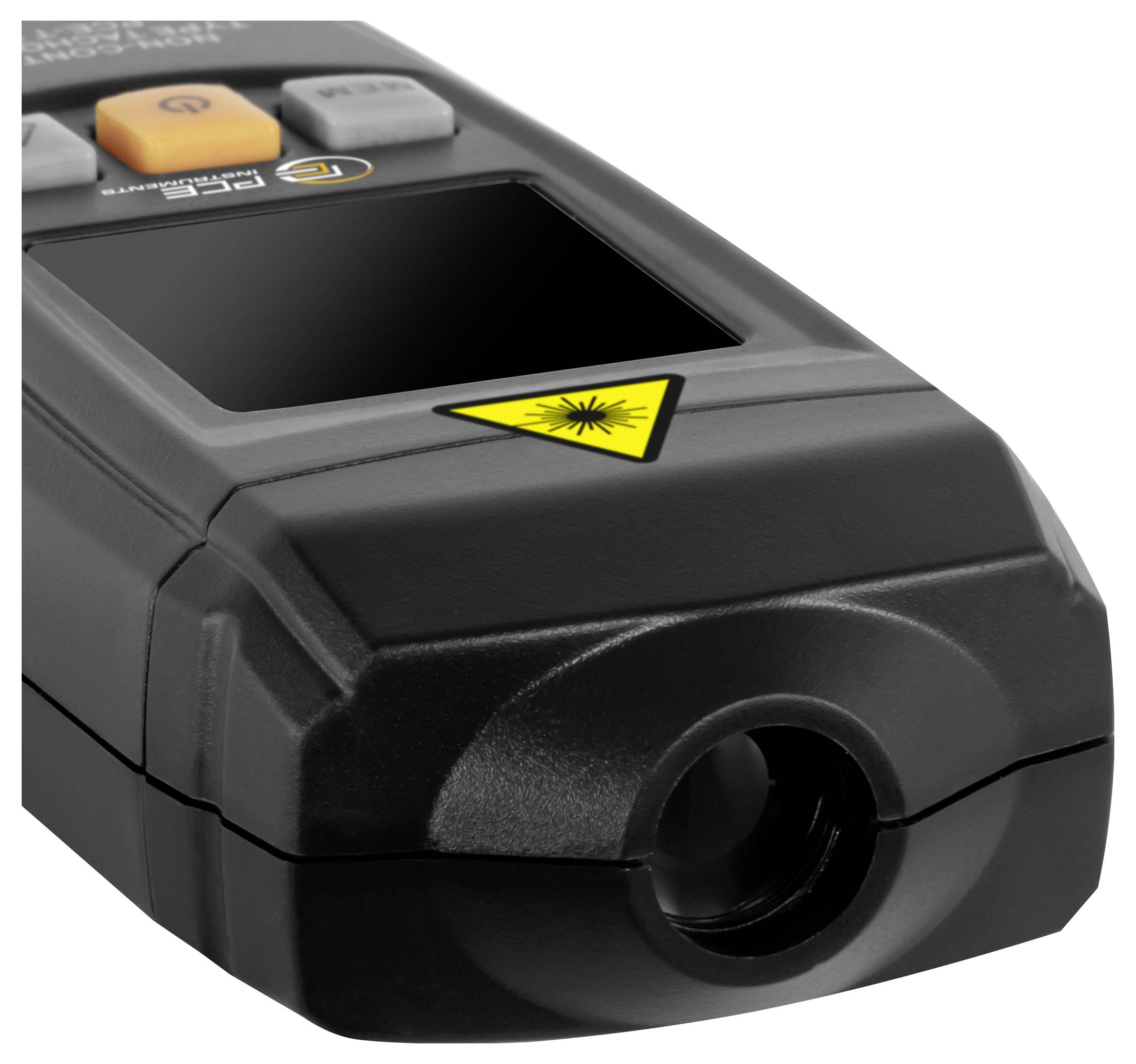

Black handheld laser measurement device with yellow laser warning symbol and control buttons on top.

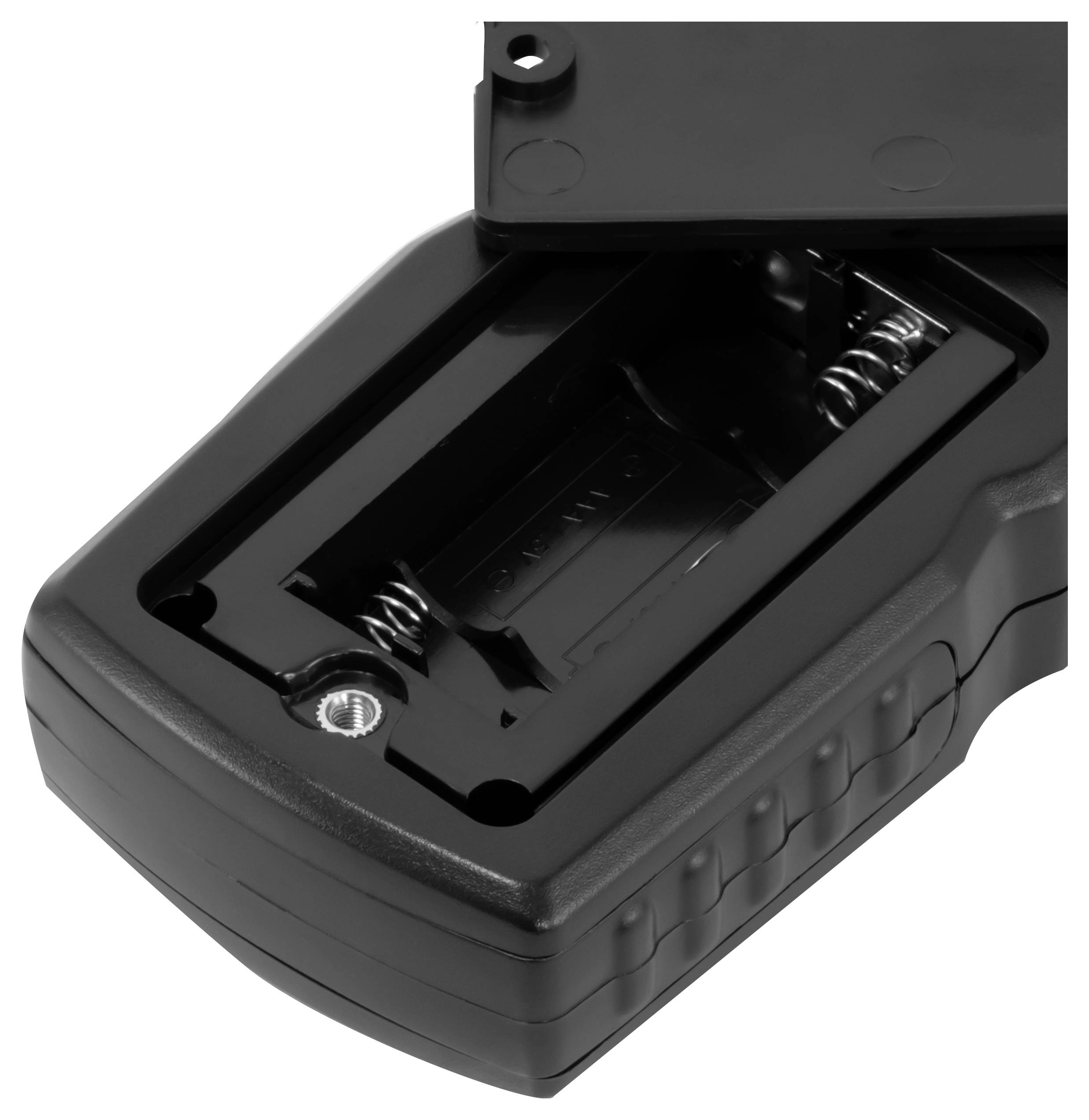

Open battery compartment of a black electronic device with spring contacts visible and the cover hinged open.<br>

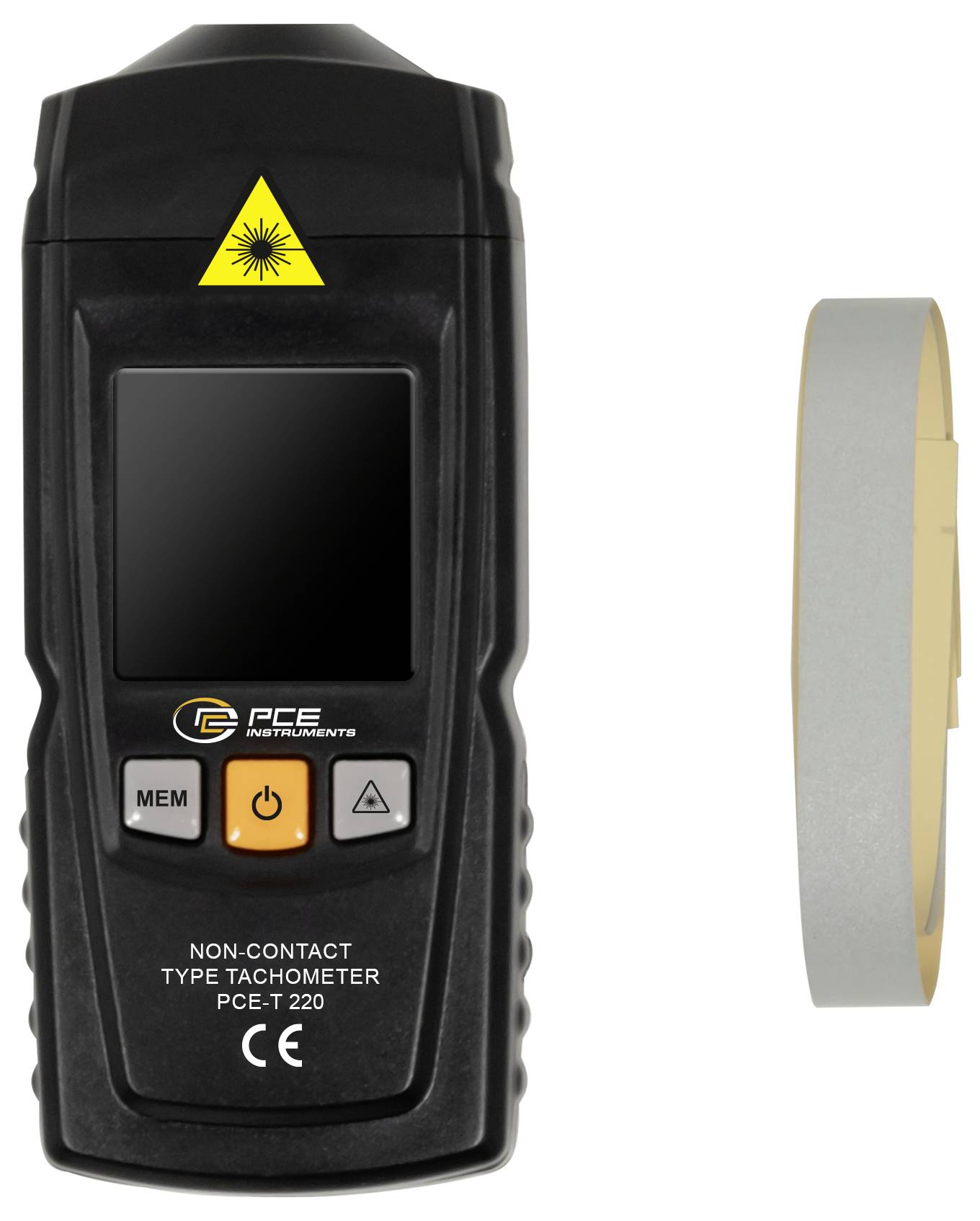

Non-contact type tachometer meter with laser warning symbol, shown front view beside a reflective tape roll.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 55.45 / piece)

€ 55.45

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-T 220

Measuring functions: MIN, MAX, LAST, AVG
Auto switch-off after 60 seconds
Class 3A laser 2-5 mW
Measuring distance: 50 ... 500 mm
Measurement rate 1 x per second
1.8 inch LCD

Technical specifications

Rotational speed, optical
Measuring range 2.5 ... 999.9 rpm
Resolution: 0.1 rpm
Accuracy ± (0.1 % from MW. + 5 digits)
Rotational speed, optical
Measuring range 1000 ... 99999 rpm
Resolution: 1 rpm
Accuracy ± (1 % from MW. + 5 digits)
General Technical Data
Measurement functions MIN, MAX, LAST, AVG
Display type LCD
Display size 1.8 inches
Measurement rate 1 x per second
Automatic shut-off of 60 s.
Class 3A laser 2-5 mW
Measuring distance 50 ... 500 mm
Menu language English (US), English (GB)
Protection class (device) IP20
Weight 100 g.
Operating conditions 0 ... 50 °C , 10 ... 90 % r.F.
Storage conditions -10 ... 80 °C , 10 ... 75 % r.F.
Battery 2 x 1.5 V AAA battery , carbon zinc
Capacity 400 mAh
Dimensions ( L x W x H ) 127 x 55 x 30 mm

RPM accuracy: 0.1

Speed resolution: 0.1 U/min

Reading distance: 50 .. 500 mm

Operating voltage: 3 V

Dim: (L x W x H) 127 x 55 x 127 mm

Weight: 100 g

Height: 127 mm

Length: 127 mm

Width: 55 mm

Rotational speed (optical): 99999 U/min (max)

: Manufacturer's standards (no certificate)

Display: LCD

Measuring type: Optical

Type: PCE-T 220

Rotational speed, optical (max.): 99999 U/min

Product type: Handheld tachometer

Documents & Downloads

Datasheet

Datasheet 3369109 PCE Instruments PCE-T 220 Handheld tachometer Optical 99999 U/min (max)

User & Safety Instructions

User & Safety Instructions 3369109 PCE Instruments PCE-T 220 Handheld tachometer Optical 99999 U/min (max)

Description

Our non-contact handheld tachometer is a digital, battery-powered optical measuring device that can be used up to a distance of 50 cm from the measurement point thanks to its optical sensor. It covers a measurement range from 2.5 to 99999 rpm (rpm) and offers a resolution of 0.1 rpm to provide reliable results.

Equipped with the minimum, maximum, last and average functions of the non-contact manual tachometer makes it possible to record current and extreme measurement values over the measured period. The 1.8" LCD screen provides a clear display in all conditions. The compact design with dimensions of 127 x 55 x 30 mm makes the device handy and easy to use. The laser allows precise measurements at a distance of 50 to 500 mm. The release button must be held down for measuring. The values are updated every second to our non-contact manual tachometer.

Our non-contact manual tachometer switches off automatically after 60 seconds of inactivity, in order to avoid an unwanted discharging of the 2 AAA batteries. Ideal for use in various industries such as mechanical engineering, automotive industry and maintenance, it offers precision and reliability for a variety of applications.

This text is machine translated.
