Buy PCE Instruments PCE-T 230 Handheld tachometer 9999 U/min (max)

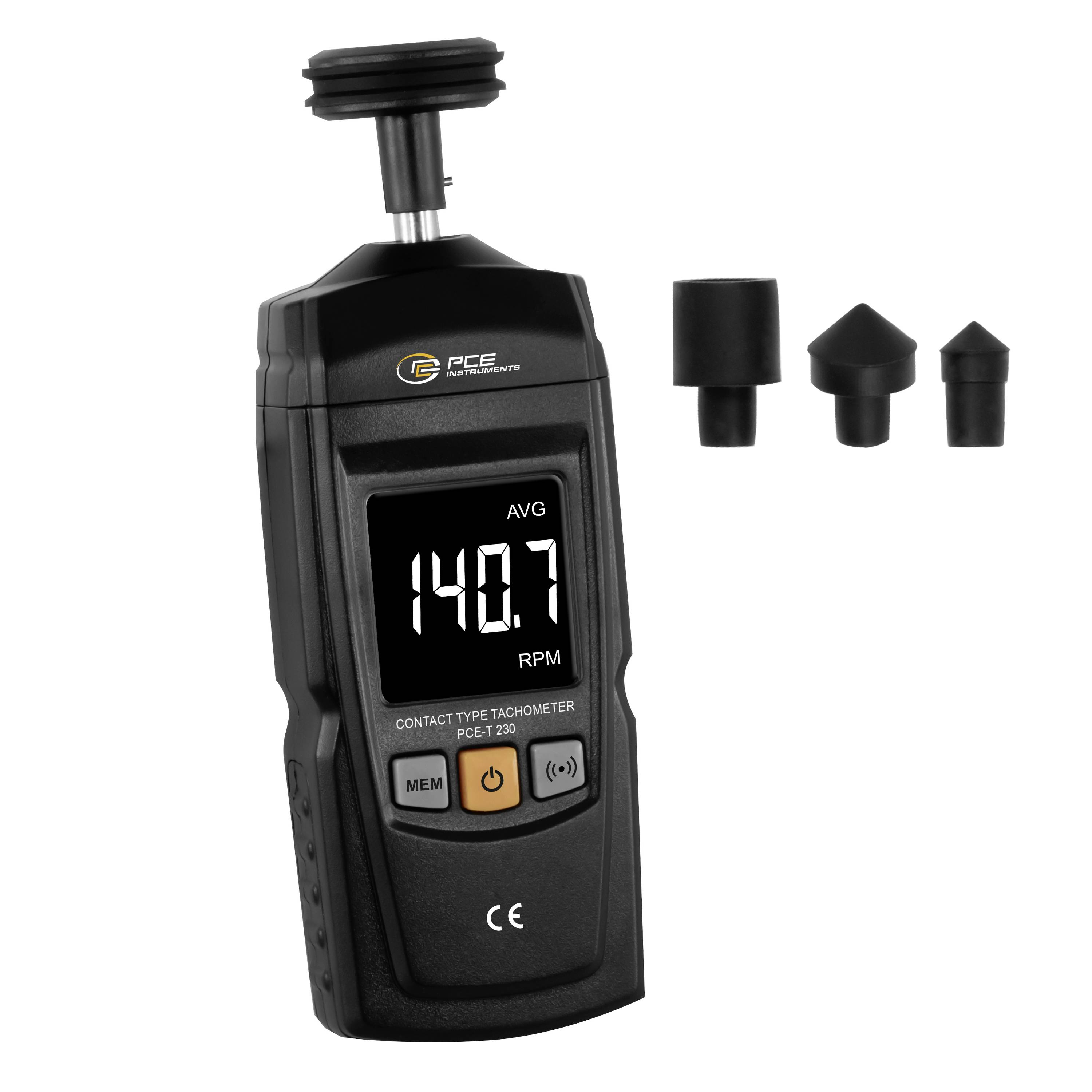

Handheld contact tachometer showing 1407 RPM, with interchangeable rubber tips displayed beside the device.<br>

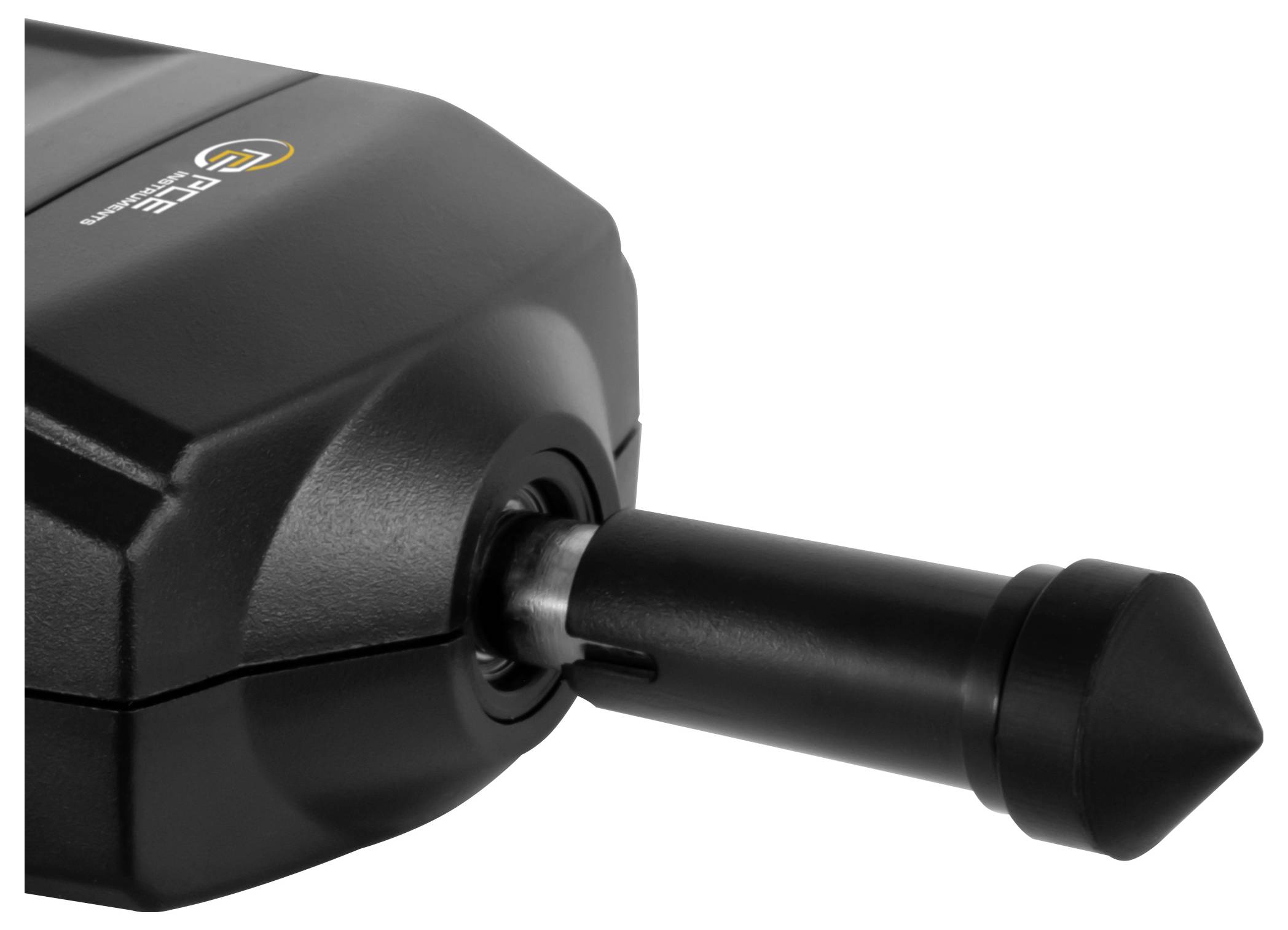

Close-up of a black device housing with a protruding cylindrical shaft ending in a conical tip on a white background.

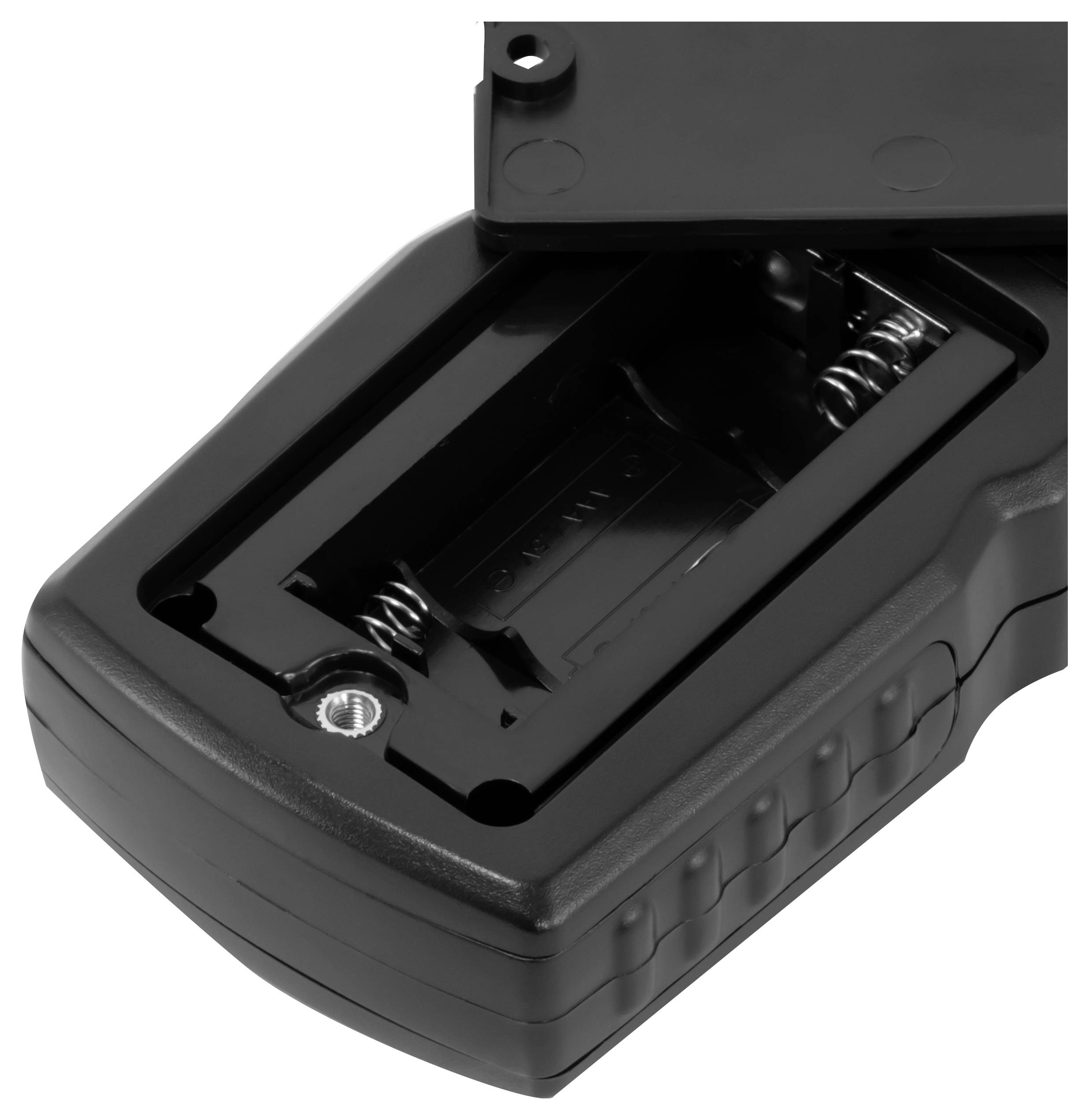

Open black plastic battery compartment with spring contacts and a hinged cover<br>

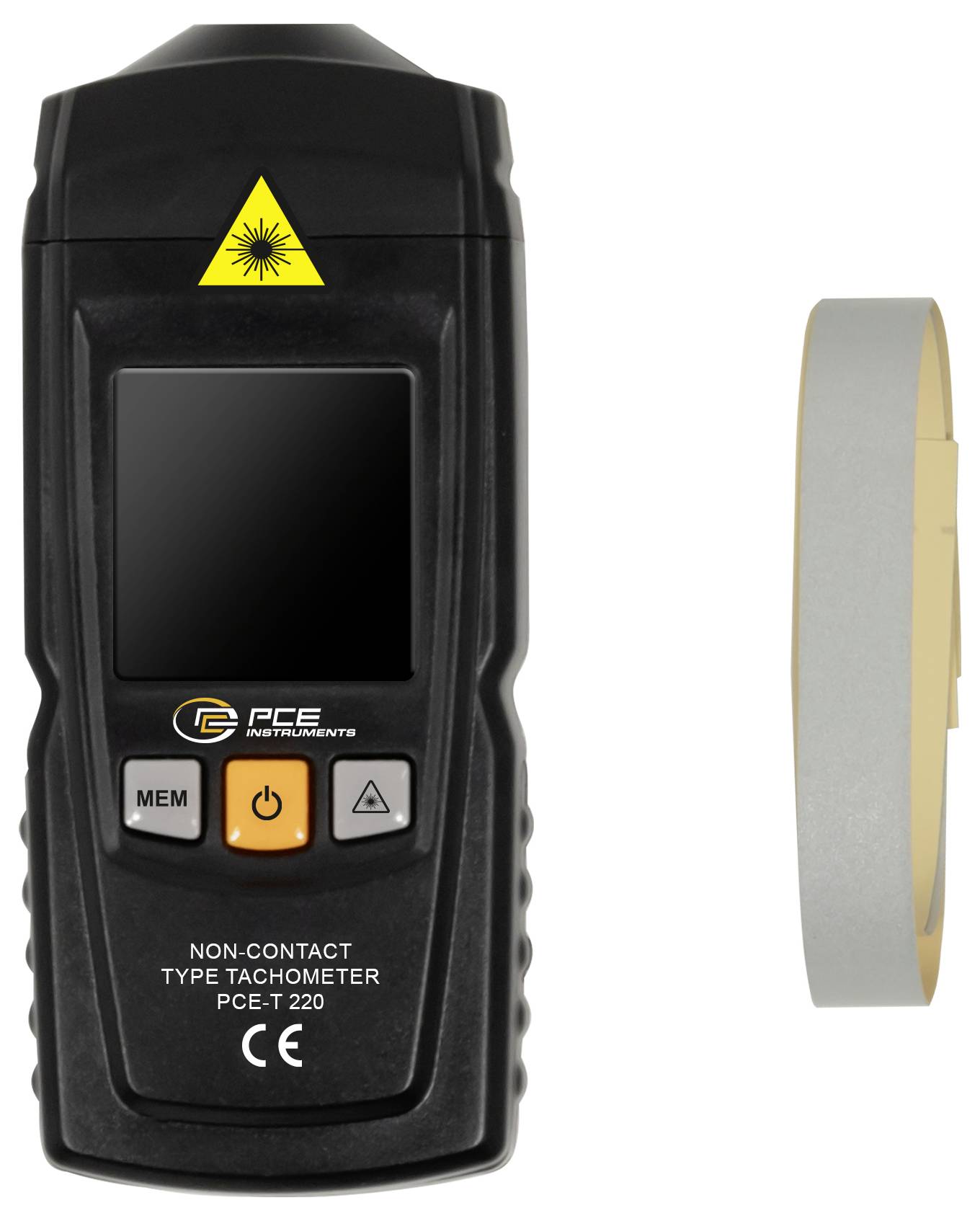

Non-contact tachometer with laser warning symbol and side view of a reflective tape strip.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 65.54 / piece)

€ 65.54

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-T 230

Measuring functions MAX, MIN, LAST, AVG
Units: Rpm, m/min, ft/min.
Measurement interval 0.8 s.
Auto switch-off after 60 seconds
1.8 inch LCD

Technical specifications

Rotational speed, mechanical
Measuring range 0.5 ... 9.999 rpm
Resolution: 0.1 rpm
Accuracy 0.05% from MW. ± 1 digit
Rotational speed, mechanical
Measuring range 1 ... 19.999 rpm
Resolution: 1 rpm
Accuracy 0.05% from MW. ± 1 digit
General Technical Data
Measurement functions MIN, MAX, LAST, AVG
Units ft/min, m/min, RPM
Display type LCD
Display size 1.8 inches
Measurement rate 0.8 s.
Automatic shut-off of 60 s.
Menu language English (US), English (GB)
Protection class (device) IP20
Weight 110 g.
Operating conditions 0 ... 50 °C , 10 ... 90 % r.F.
Storage conditions -10 ... 80 °C , 10 ... 75 % r.F.
Battery 2 x 1.5 V AAA battery , carbon zinc
Capacity 400 mAh
Dimensions ( L x W x H ) 144 x 51 x 30 mm

RPM accuracy: 0.1

Speed resolution: 0.1 U/min

Operating voltage: 3 V

Dim: (L x W x H) 144 x 51 x 30 mm

Weight: 110 g

Height: 30 mm

Length: 144 mm

Width: 51 mm

Rotational speed (optical): 9999 U/min (max)

: Manufacturer's standards (no certificate)

Display: LCD

Type: PCE-T 230

Rotational speed, optical (max.): 9999 U/min

Product type: Handheld tachometer

Documents & Downloads

Datasheet

Datasheet 3369110 PCE Instruments PCE-T 230 Handheld tachometer 9999 U/min (max)

User & Safety Instructions

User & Safety Instructions 3369110 PCE Instruments PCE-T 230 Handheld tachometer 9999 U/min (max)

Description

Our manual tachometer with a measurement range of 0.5 ... 19999 rpm and a resolution of 0.1 rpm allows accurate and reliable measurements in many applications. With a measurement rate of 0.8 seconds, the manual tachometer delivers fast results. It offers several measurement functions for selection, including MAX, MIN, LAST and AVG, in order to capture different aspects of speed measurement. The units can be flexibly selected between rpm, m/min and ft/min.

The manual tachometer has a low battery indicator and is powered by two AAA batteries. An automatic switch-off after 60 seconds contributes to energy saving. The hand-held tachometer fits compact in the hand and can be operated via just three buttons. The large 1.8 inch LC-display provides for a clear and easy readability of the measured values.

In addition to the manual tachometer, the delivery package includes an adapter and four additional rubber pads for different measurements. This accessory expands the application possibilities of the device and makes it a practical tool for users in different branches.

This text is machine translated.
