Buy PCE Instruments PCE-T 238 Tachometer 0.5 - 19999 U/min 5 - 99999 U/min

Digital tachometer meter showing RPM 6274 with a remote sensor unit and test/function/memory buttons on a white background

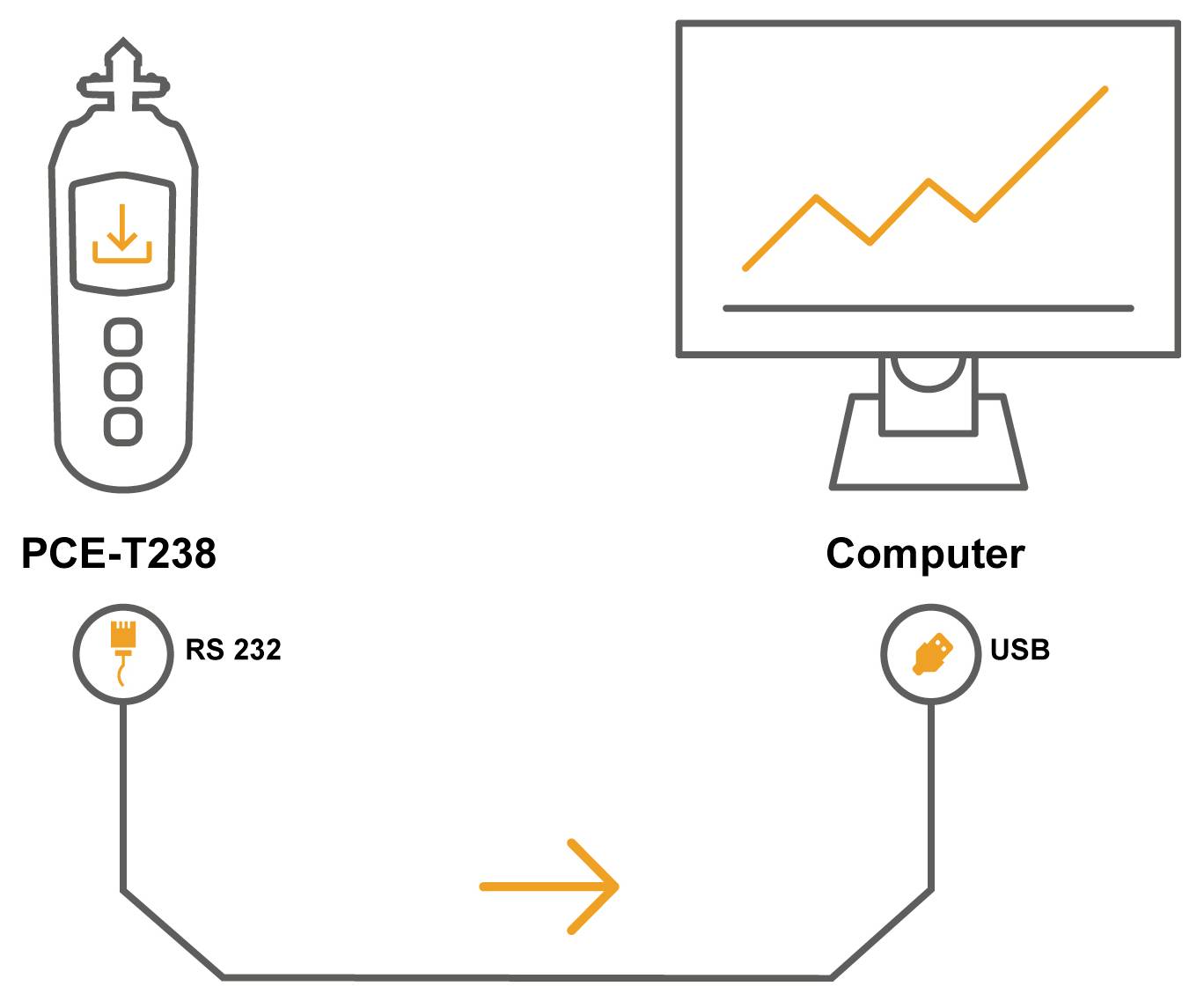

Diagram showing a PCE-T238 device connected to a computer via RS 232 on the device side and USB on the computer side, with a data transfer arrow between them.

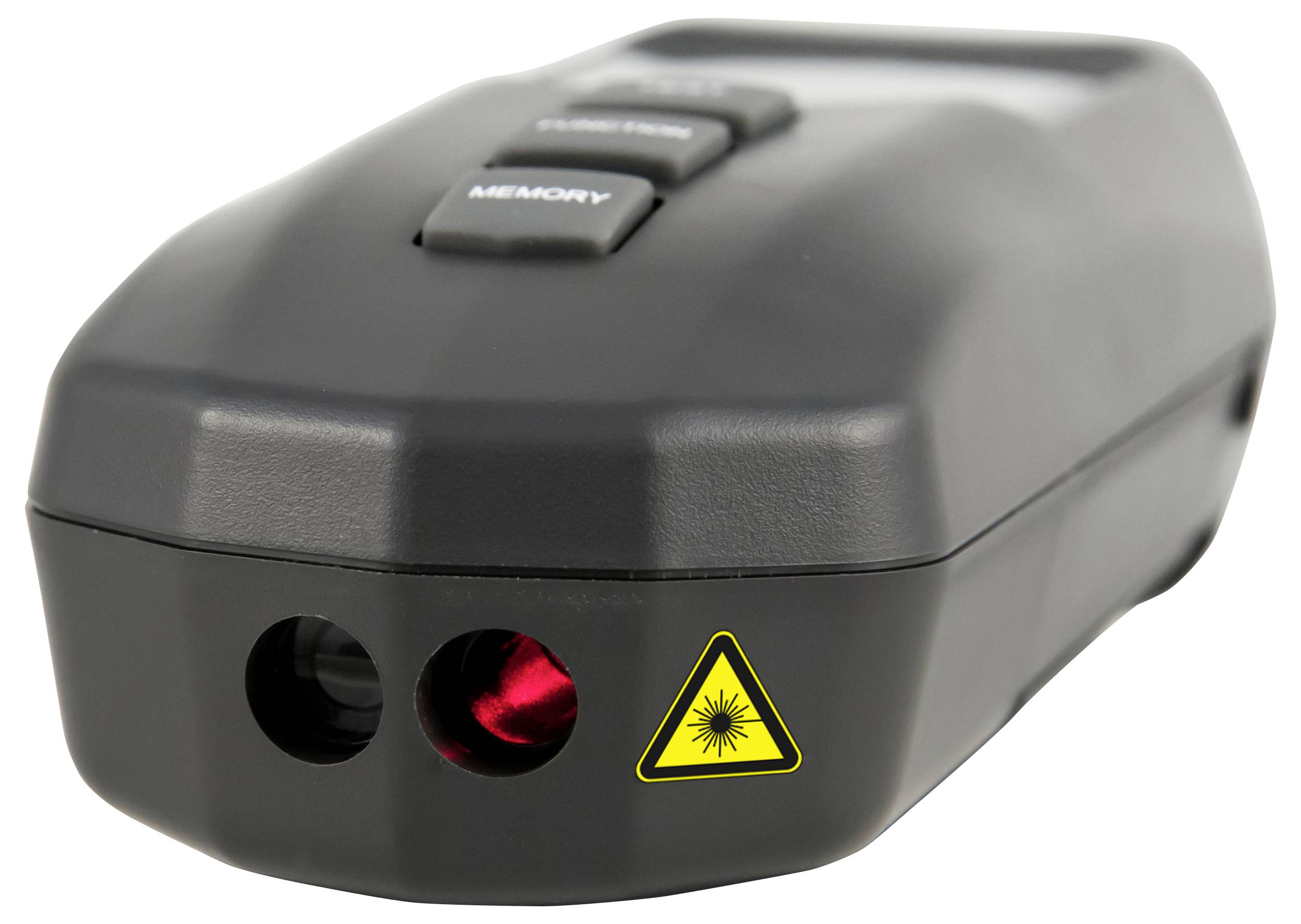

Black handheld laser device with 'MEMORY' buttons and a red light emission port, shown on a white background.<br>

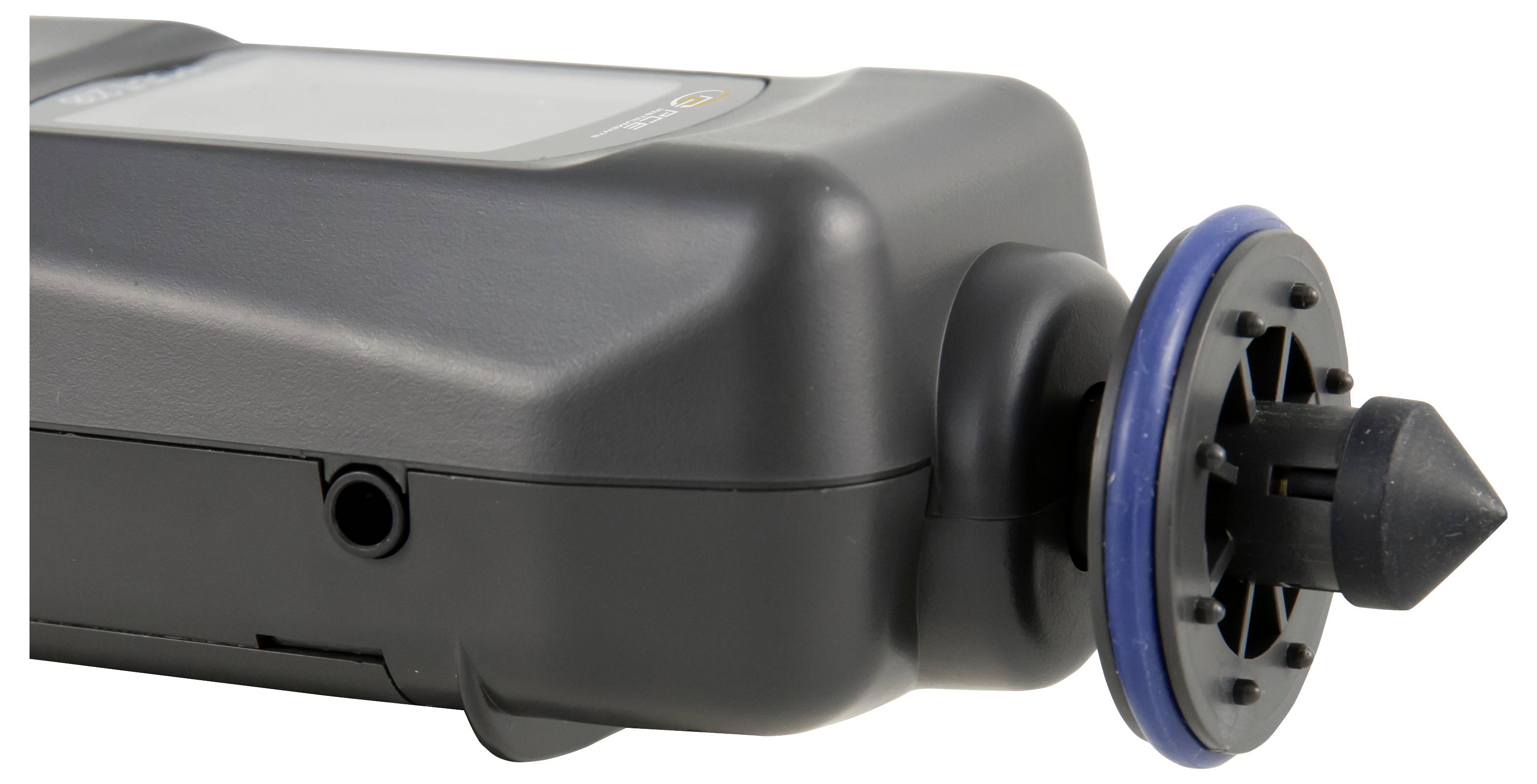

Close-up of a gray plastic device end with a black conical nozzle and blue ring, isolated on a white background.

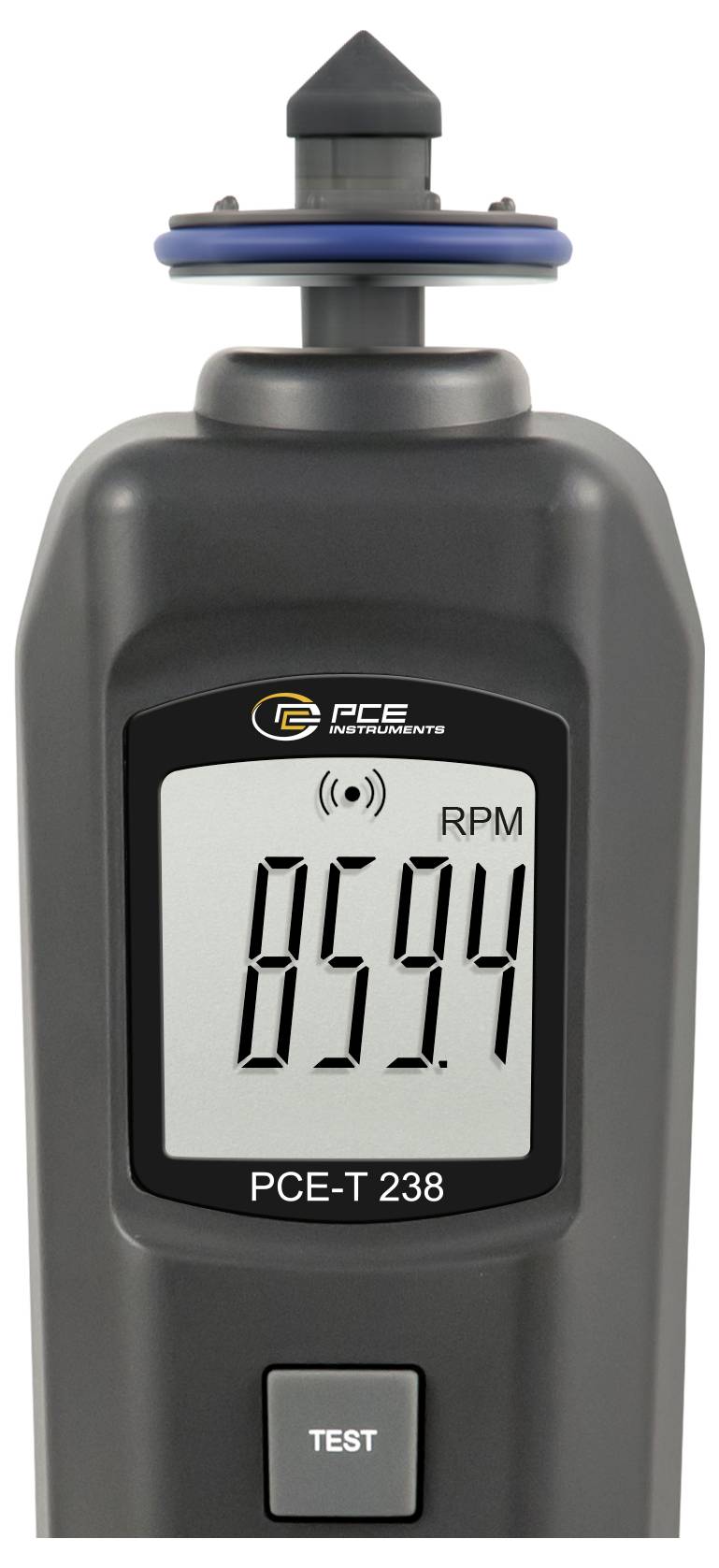

Handheld digital tachometer showing 859.4 RPM on its display, with a 'TEST' button below.

1/5

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 214.29 / piece)

€ 214.29

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Speed measuring device PCE-T 238

The contact-free measurement of the tachometer is done via a laser
Contact measurement of m/min via surface wheel
Robust ABS plastic housing
With different rubberized measuring tips (cone-shaped and funnel-shaped)
Checking the speed of hard-to-reach components is possible
Direction of rotation independant
Running speed

Technical specifications

Speed resolution: 1

Reading distance: 5 - 150 cm

Dim: (L x W x H) 50 x 3.3 x 16.5 mm

Weight: 182 g

Height: 16.5 mm

Length: 50 mm

Width: 3.3 mm

Rotational speed range (max.): 0.5 - 19999 U/min

Rotational speed (optical): 5 - 99999 U/min

: Manufacturer's standards (no certificate)

Display: LCD

Type: PCE-T 238

Rotational speed, mechanical (max.): 19999 U/min

Rotational speed, mechanical (min.): 0.5 U/min

Rotational speed, optical (max.): 99999 U/min

Rotational speed, optical (min.): 5 U/min

Product type: Tachometer

Documents & Downloads

Datasheet

Datasheet 2299565 PCE Instruments PCE-T 238 Tachometer 0.5 - 19999 U/min 5 - 99999 U/min

User & Safety Instructions

User & Safety Instructions 2299565 PCE Instruments PCE-T 238 Tachometer 0.5 - 19999 U/min 5 - 99999 U/min

Description

The PCE-T 238 tachometer is a battery-powered handheld meter that allows mobile use. The tachometer can perform a contacting measurement as well as a contact-less measurement. It is also possible to measure the surface speed. The tachometer allows a measurement of up to 99,999 revolutions per minute. This measuring range is possible for contactless measurements with the optical tachometer. The contacting measurement can measure values up to 19,999 revolutions per minute, and surface velocity measurement provides the ability to measure speeds up to 1999.9 meters per minute. Such measurements can be started directly with the tachometer and do not require much preparation. The user does not have to pay attention to the direction of rotation when using the tachometer, as this device works independantly of and can be used. It is therefore grade to be used in the maintenance and maintenance of machines. The contact-free measurement also allows the speed of hard-to-reach components to be checked.

This text is machine translated.
