PCE Instruments PCE-T 240 Handheld tachometer Optical, Mechanical 0.5 - 19999 U/min 5 - 99999 U/min
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

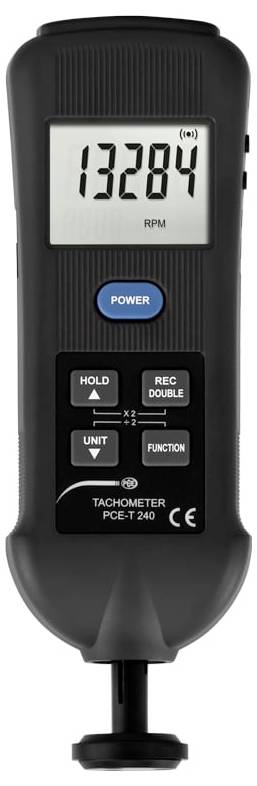

Hand tachometer / stroboscope PCE-T 240
- Battery and mains operation - Stroboscope for speed determination - contacting and optical measurement - measuring range 0.5 ... 99,999 RPM contacting - temperature measurement in °C and °F - different attachments
Technical specifications
- Optical measurement: Measurement range 5 … 99,999 RPM, resolution 0.5 RPM (< 1,000 RPM); 1 RPM (≥1,000 RPM), accuracy ±(0.05% of MW. + 1 digit), detection distance 50 … 150 mm, 2 ... 6 inch (typical); maximum 300 mm, 12 inch (depending on ambient lighting)Contacting measurement: Measurement range 0.5 … 19,999 RPM, resolution 0.5 RPM (<1,000 RPM); 1 RPM (≥1,000 RPM), accuracy ±(0.05% of MW. + 1 digit)Contact measurement: Measurement range 0.05 ... 1,999.9 m/min, resolution 0.05 m/min (<100 m/min); 0.1 m/min (≥100 m/min); accuracy ±(0.5 % of MW. + 1 digit) Contacting measurement: Measuring range 0.2 ... 6.561.4 ft/min, resolution 0.1 ft/min (<1,000 ft/min); 1 ft/min (≥1,000 ft/min), accuracy ±(0.5% of MW. + 1 digit)Contacting measurement: Measuring range 2.0 ... 78736.2 in/min, resolution 0.1 in/min (<1,000 in/min); 1 in/min (≥1,000 in/min), accuracy ±(0.5% of MW. + 1 digit)Stroboscope: Measurement range 100 … 99,990 RPM/FPM, resolution 0.1 RPM (<1,000 PRM); 1 RPM (1,000 … 30,000 RPM); 5 RPM (30,000 … 50,000 RPM); 10 RPM (50,000 … 99,999 RPM), accuracy ±(0.1% of MW. + 2 digits), LED three red LEDsTemperature (type K): Measurement range -50.0 … 1300.0 °C, resolution 0.1 °C, accuracy ±(0.4 % of MW. +0.5 °C), measuring range -100.0 … -50.1 °C, resolution 0.1 °C, accuracy ±(0.4 % of MW. +1 °C) Temperature (Type K): Measurement range -58.0 … 2372.0 °F, resolution 0.1 °F, accuracy ±(0.4 % of MW. +1 °F), Measuring range -148.0 … -58.1 … °F, Resolution 0.1 °F, Accuracy ±(0.4 % of MW. +1.8 °F)Temperature (PT1000): Measurement range -10.0 … 70.0 °C, 414.0 … 158.0 °F; resolution 0.1 °C, 0.1 °F, accuracy ±1.2 °C, ± 2.2 °FOther specifications Display LC-display, 43 x 33 mm, 5 digitsMemory largest and smallest measured valuePower supply (power supply) 9 V DC, 100 mAPower supply (battery) 4 x 1.5 V AA batteriesCurrent consumption Ø42 mAAuto power off after 10 minutes of inactivityInterface RS232Ambient conditions 0 … 50 °C, 32 … 122 °F, <80 5 r. F., (non-condensing); magnetic field <3 V/M, <30 MHzDimensions 207 x 67 x 39 mm, 8.15 x 2.63 x 15.3 inchWeight 230 g, 0.5 lb (without batteries)
- Product type
Handheld tachometer
- Measuring type
Optical
Mechanical
- RPM accuracy
0.05
- Speed resolution
0.05 U/min
- Reading distance
300 mm
- Operating voltage
9 V
- Dim
(L x W x H) 67 x 39 x 207 mm
Manufacturer's standards (no certificate)
- Weight
230 g
- Display
LCD
- Rotational speed, mechanical (max.)
19999 U/min
- Rotational speed, mechanical (min.)
0.5 U/min
- Rotational speed, optical (max.)
99999 U/min
- Rotational speed, optical (min.)
5 U/min
- Rotational speed range (max.)
0.5 - 19999 U/min
- Rotational speed (optical)
5 - 99999 U/min
- Width
39 mm
- Height
207 mm
- Length
67 mm
- Type
PCE-T 240
Documents & Downloads
Datasheet
Datasheet 2620679 PCE Instruments PCE-T 240 Handheld tachometer Optical, Mechanical 0.5 - 19999 U/min 5 - 99999 U/min
User & Safety Instructions
User & Safety Instructions 2620679 PCE Instruments PCE-T 240 Handheld tachometer Optical, Mechanical 0.5 - 19999 U/min 5 - 99999 U/min
Description

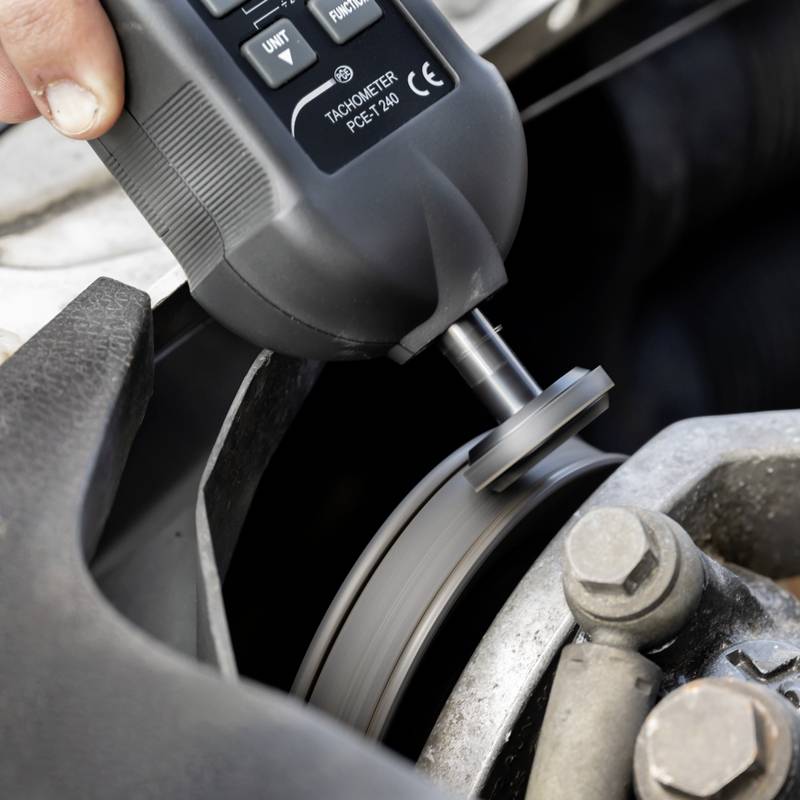

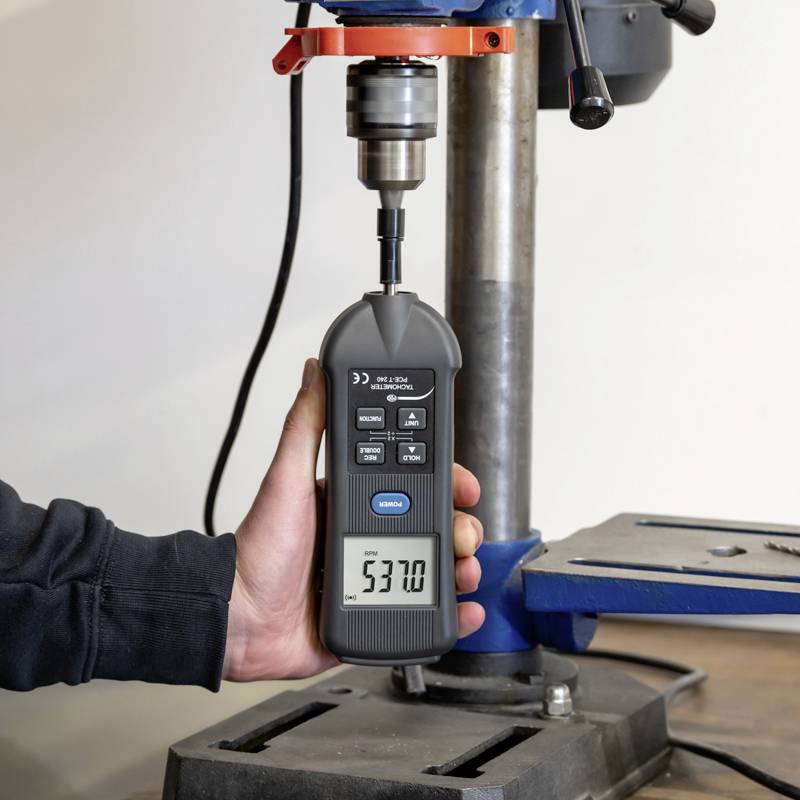

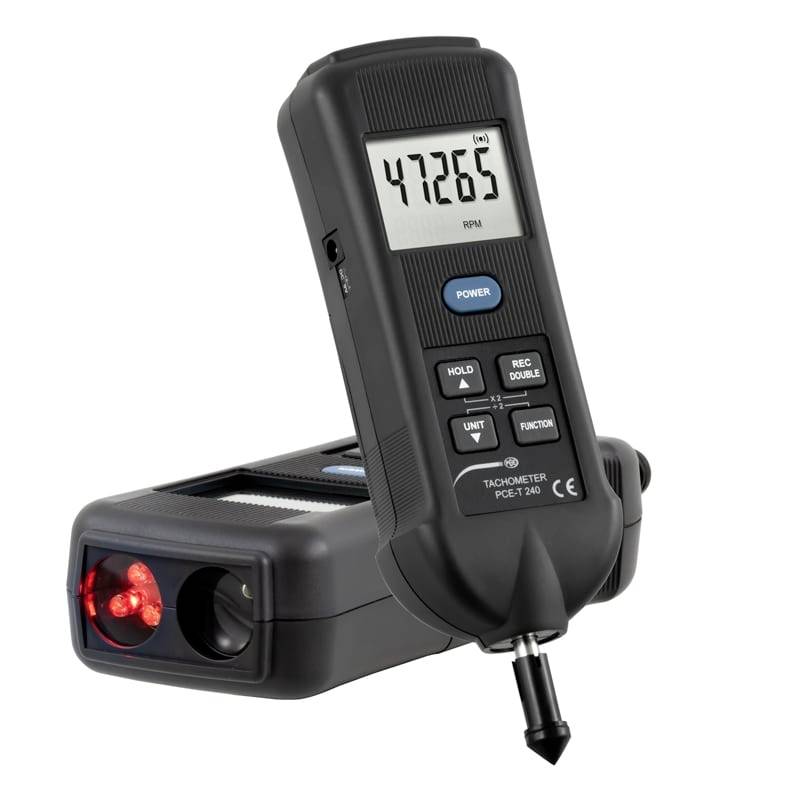

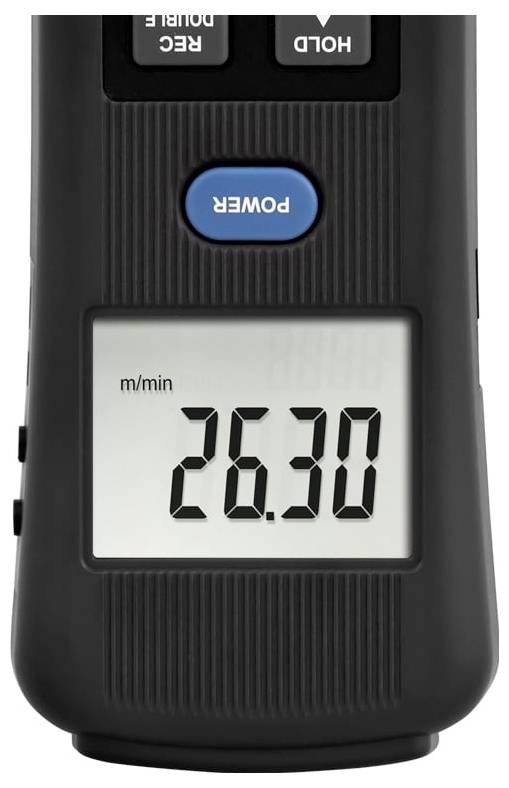

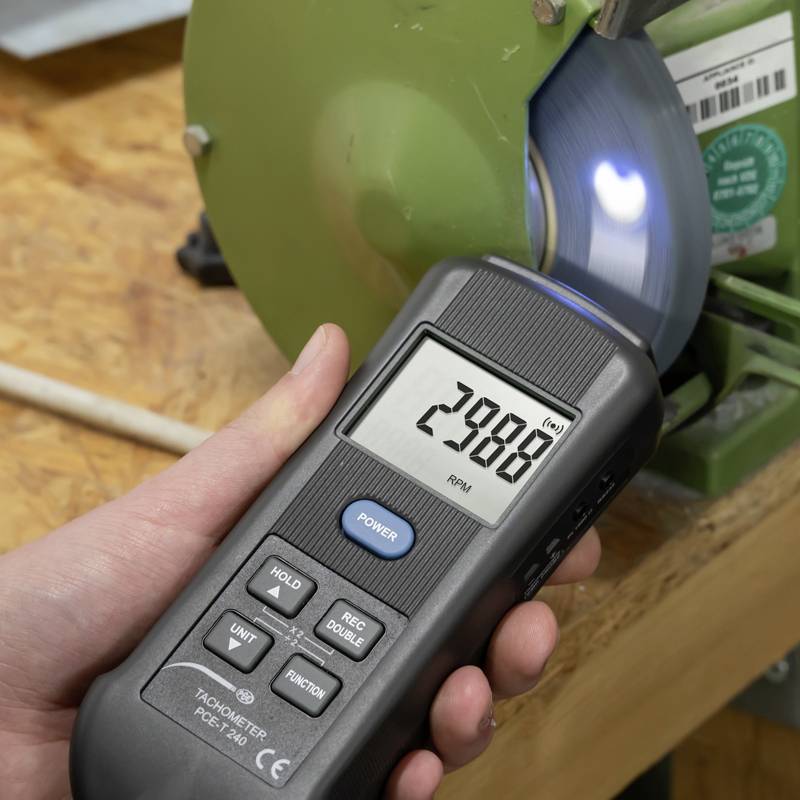

Tachometer with temperature measurement / contacting and optical speed measurement / RS232 interface / battery and mains operation / automatic shutdown / stroboscope measuring range 5 … 99.999 RPM / speed measurement / optional with ISO calibration certificate The tachometer has a contacting speed measurement. The measuring range of the contacting speed measurement for the speed measuring device is 0.5 … 99.999 RPM. In order to transfer the speed to the speed measuring device, the delivery includes two rubberized measuring tips, with an inner and an outer cone. In the contacting measurement with the speed measuring device, the speed in m/min can also be determined via the measuring wheel. In addition to the contacting measurement, the speed meter can also be used to measure the rotational speed visually. For this purpose, a 1 x 1 cm large piece of reflective tape is glued to the test specimen. The speed measuring device can determine the speed by reflection. In addition, the speed can be determined from the speed measuring device via the strobe function. With this function, many flashes of the speed measuring device follow one after the other. For the quick setting of the flash frequency with the speed measuring device, the flash frequency can be doubled or halved. The speed with the strobe function at the speed measuring device is then determined as soon as the test object is continuously and standing by the flash. In addition to speed and speed measurement, the speed measuring device can be used to determine the temperature. Any type K thermocouple can be connected for this purpose. If required, a PT1000 resistance temperature sensor can also be connected. Thanks to its many functions, the tachometer can be used in many areas. For example, the tachometer is used to determine the speed of conveyor belts and to determine the rotational speed of ventilation systems. Optionally, the tachometer can be equipped with an ISO calibration certificate.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Speed measuring device PCE-T 2401 x probe tip (outer cone) 1 x Measuring hollow tip (inner cone) 1 x measuring wheel 1 x reflective contact strips (approx. 600 mm) 1 x carrying case 4 x 1.5 V AA battery 1x user manual
