PCE Instruments PCE-T 260-ICA Strobe
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

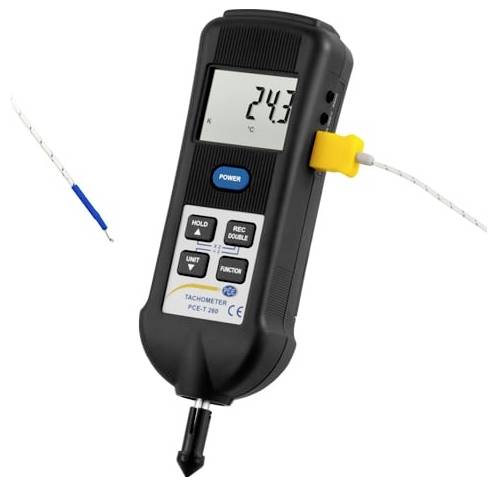

PCE instruments hand tachometer / stroboscope PCE-T 260-ICA
- easy to operate
- Powerful LED's
- Contact-free temperature measurement
- Temperature Measurement with sensor type K or PT 1000
- Robust ABS-plastic casing
- 5 digit, 10 mm LCD display
- Last measured value, Min/ Max memory

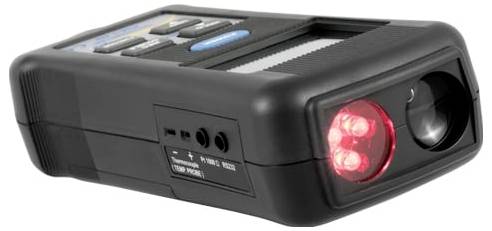

- Red stroboscope light

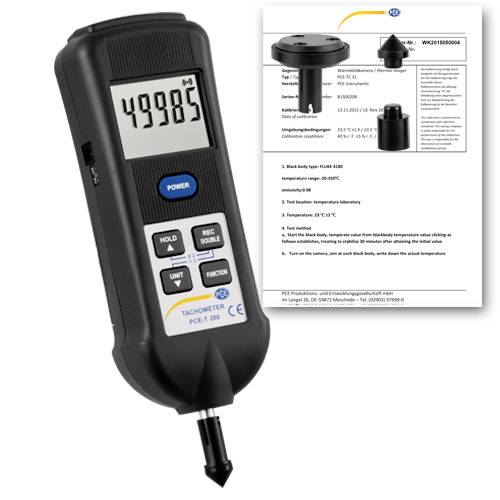

- Incl. ISO calibration certificate
Technical specifications
- Rotational speed, mechanical
- Measuring range 0.5 ... 999 R/min
- Resolution 0.5 Rev/min.
- Accuracy +/-(0.05 % +1 digit)
- Rotational speed, mechanical
- Measuring range 1000 ... 19999 R/min
- Resolution 1 Rev/min.
- Accuracy +/-(0.05 % +1 digit)
- Rotational speed, optical
- Measuring range 5 ... 999 R/min
- Resolution 0.5 Rev/min.
- Accuracy +/-(0.05 % +1 digit)
- Rotational speed, optical
- Measuring range 1000 ... 99999 R/min
- Resolution 1 Rev/min.
- Accuracy +/-(0.05 % +1 digit)
- Temperature Pt
- Measuring range -10 ... +70 °C
- Resolution 0.1 °C
- Accuracy +/-1.2 °C
- Temperature type K
- Measuring range -100 ... -50 °C
- Resolution 0.1 °C
- Accuracy +/-(0.4% +1 °C)
- Temperature type K
- Measuring range -50 ... +1300 °C
- Resolution 0.1 °C
- Accuracy +/-(0.4% +0.5 °C)
- Infrared temperature
- Measuring range -30 ... +305 °C
- Resolution 0.5 °C
- Accuracy +/-3% or +/-3 °C.
- Stroboscope
- Measuring range 100 ... 999 FPM
- Resolution 0.1 FPM
- Accuracy +/-(0.1 % +2 digits)
- Stroboscope
- Measuring range 1000 ... 30000 FPM
- Resolution 1 FPM
- Accuracy +/-(0.1 % +2 digits)
- Stroboscope
- Measuring range 30001 ... 50000 FPM
- 5 FPM resolution
- Accuracy +/-(0.1 % +2 digits)
- Stroboscope
- Measuring range 50001 ... 99990 FPM
- Resolution 1 FPM
- Accuracy +/-(0.1 % +2 digits)
- General Technical Data
- Display type LCD
- Storage medium Internal memory
- Storage information Saves last value and MIN, MAX.
- Interface RS232
- Operating time Additional information If the battery voltage is too low, a battery symbol appears on the display.
- Measuring spot 3:1

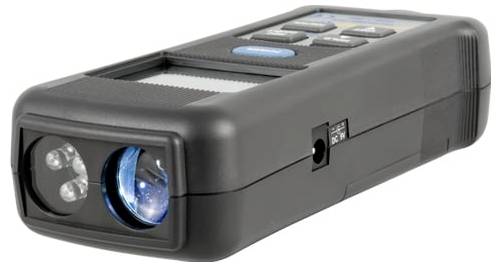

- Light source 3 x LED (red)
- Emissivity: 0.95
- Spectral range 6 ... 14 µm
- Measuring distance 50 ... 300 mm
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply network 9 V DC
- Battery 4 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Storage conditions 0 ... 50 °C , 0 ... 80 % r.F.
- Dimensions ( L x W x H ) 207 x 67 x 39 mm
- Weight 322 g.
- Operating voltage
9 V DC
- Product type
Strobe
- Dim
(L x W x H) 207 x 67 x 39 mm
- Weight
322 g
- Width
67 mm
- Height
39 mm
- Length
207 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812735 PCE Instruments PCE-T 260-ICA Strobe
User & Safety Instructions
User & Safety Instructions 3812735 PCE Instruments PCE-T 260-ICA Strobe
Description
The hand-held tachometer/stroboscope is a versatile measuring device for use in maintenance, maintenance and production. The manual tachometer / stroboscope combines the function of a stroboscope with an optical (contactless) as well as contactless speed measurement and integrated temperature measurement, making it Ideal suitable for checking speeds and temperatures in centrifuges, motors, fans and many other machines and systems in industry and research.
The optical speed measurement operates without contact in a measuring range of 5 ... 99,999 rpm with a resolution of 0.5 rpm at speeds below 1,000 rpm and 1 rpm at higher speeds, while the contacting speed measurement provides a measuring range of 0.5 ... 19,999 RPM cover; with this measuring mode the display is automatically rotated by 180° so that the values can be read easily. The manual tachometer/stroboscope also enables temperature measurement both contact-free via infrared and external temperature sensors of the type K or PT1000.
Thanks to the modern IC circuit and a bright red LED the device is characterized by a low power consumption and low-maintenance operation, while the use of buttons for coarse and fine adjustment is simple and precise. In addition, the manual tachometer/stroboscope has an RS-232 interface for transmitting the measured values to a PC where they can be displayed and stored with appropriate software.
This text is machine translated.
The optical speed measurement operates without contact in a measuring range of 5 ... 99,999 rpm with a resolution of 0.5 rpm at speeds below 1,000 rpm and 1 rpm at higher speeds, while the contacting speed measurement provides a measuring range of 0.5 ... 19,999 RPM cover; with this measuring mode the display is automatically rotated by 180° so that the values can be read easily. The manual tachometer/stroboscope also enables temperature measurement both contact-free via infrared and external temperature sensors of the type K or PT1000.
Thanks to the modern IC circuit and a bright red LED the device is characterized by a low power consumption and low-maintenance operation, while the use of buttons for coarse and fine adjustment is simple and precise. In addition, the manual tachometer/stroboscope has an RS-232 interface for transmitting the measured values to a PC where they can be displayed and stored with appropriate software.
This text is machine translated.
Scope of delivery
- 1 x manual tachometer / stroboscope PCE-T 260-ICA
- 1 x Measuring adapter
- 2 x Measuring tips (inner and outer cone)
- 1 x Measuring wheel
- 1 x Reflex tape (600 mm)
- 1 x carry case
- 1x user manual
- 1 x ISO calibration certificate
