PCE Instruments PCE-T 330 PCE-T 330 Temperature data logger Unit of measurement Temperature -200 up to +1370 °C
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

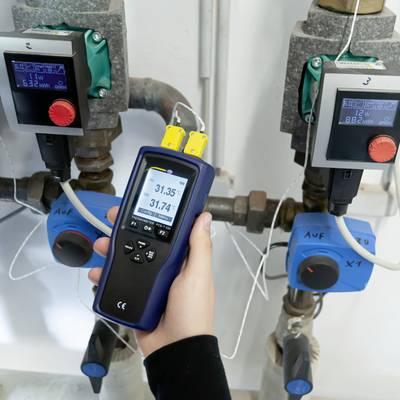

2-channel data logger thermometer PCE-T 330
- Two-channel digital thermometerFor K, T and J type thermocouples Long battery lifeData memory for 20,000 measuring pointsFile format TXT, CSV, XLS and DLGRubberized protective sleeve
Technical specifications
- Temperature Type KType T.Type J:Reading range-200 ... 1370 °C 200 ... 400 °C-200 ... 1200 °C Units °C / °F.Number of channels 2Measurement rate 2 HzData storage 15,328 kB for 20,000 data pointsFILE FORMATS TXT, CSV, XLS, DLGMemory interval 1 .... 86,399 sec.Micro USB interfaceSupply voltage3 x 1.2 V AAA batteries3 x 1.5 V AAA batteries Battery life approx. 190 hours (Without backlight, battery capacity 1200 mAh, ambient temperature 25 °C)Operating conditions: -10 ... 50 °CStorage conditions: -20 ... 60 °C (without batteries)Dimensions 173 x 71 x 38 mmWeighs about 226 g
- Product type
Temperature data logger
- Unit of measurement
Temperature
- Temperature resolution
0.01 °C
- Temperature reading range (min.)
-200 °C
- Temperature reading range (max.)
+1370 °C
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 173 x 71 x 38 mm
- Weight
226 g
- Channels
2
- Temperature reading range
-200 up to +1370 °C
- Width
71 mm
- Height
38 mm
- Length
173 mm
- Interfaces
Micro USB
- Type
PCE-T 330
Documents & Downloads
Datasheet
Datasheet 2620726 PCE Instruments PCE-T 330 PCE-T 330 Temperature data logger Unit of measurement Temperature -200 up to +1370 °C
User & Safety Instructions
User & Safety Instructions 2620726 PCE Instruments PCE-T 330 PCE-T 330 Temperature data logger Unit of measurement Temperature -200 up to +1370 °C
Description
Digital thermometer with two channels / battery life of approx. 190 hours / different file formats / no software required / memory for 20,000 data points The digital thermometer has two measuring inputs. Each measuring input of the digital thermometer can be connected to a thermocouple of the type K, T and J. With a measurement rate of 2 Hz, the digital thermometer displays rapid temperature fluctuations. With the high accuracy and a resolution of 0.01 °C, these fast temperature fluctuations can also be precisely displayed by the digital thermometer. With a data memory of 20,000 measuring points, the digital thermometer can be used to record over a long period of time. A data point in the digital thermometer contains one measured value per channel and date as well as the current time. When the digital thermometer is connected to a computer, it is recognized as a removable disk. This means that the digital thermometer can be connected to computers with different operating systems, since no further software is required for further analysis. The measurement data can be saved by the digital thermometer as TXT, CSV, XLS and DLG format.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x digital thermometer PCE-T 330 1 x Type K thermocouple 1 x Micro-USB cable 3 x 1.5 V AAA batteries 1x user manual
