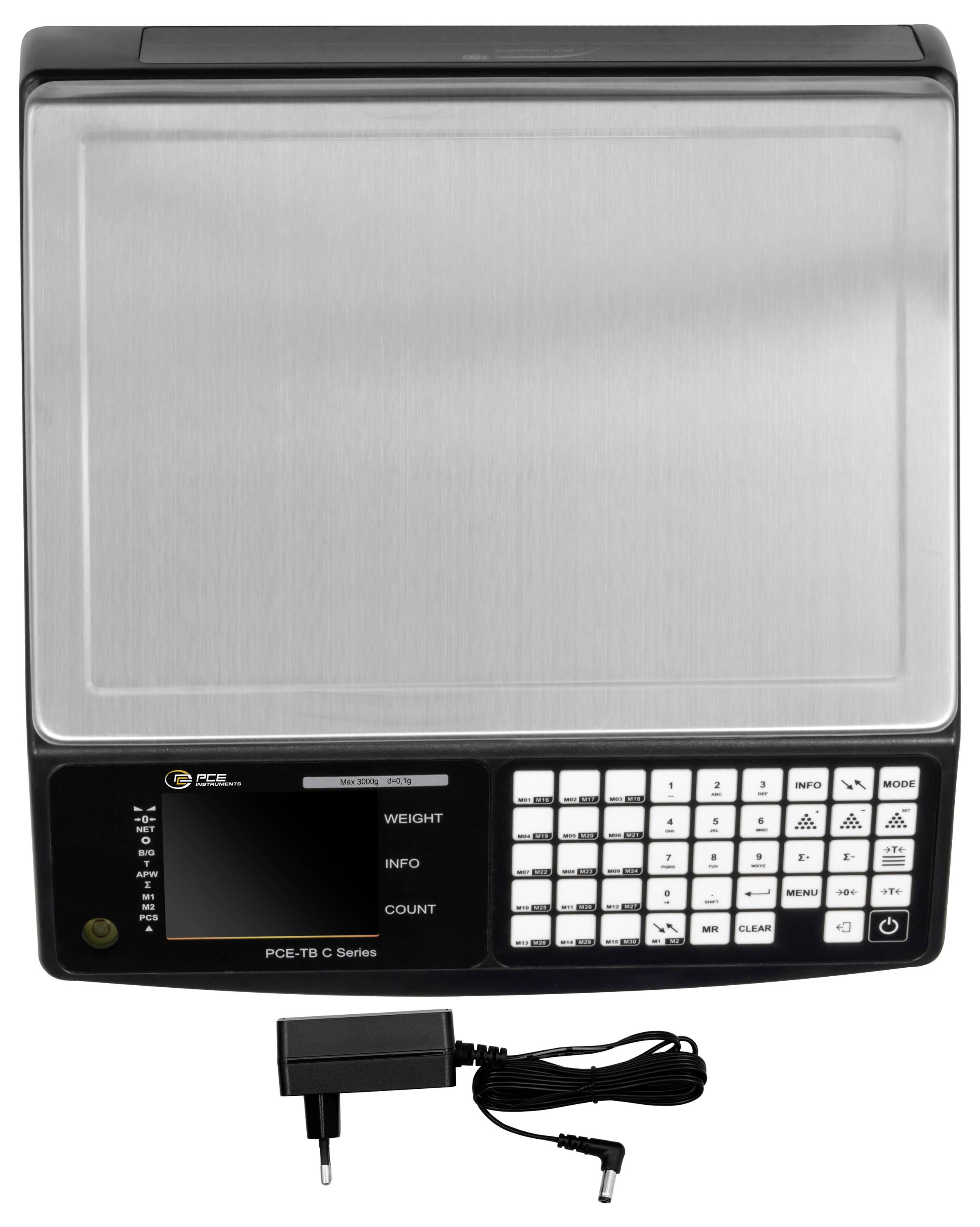

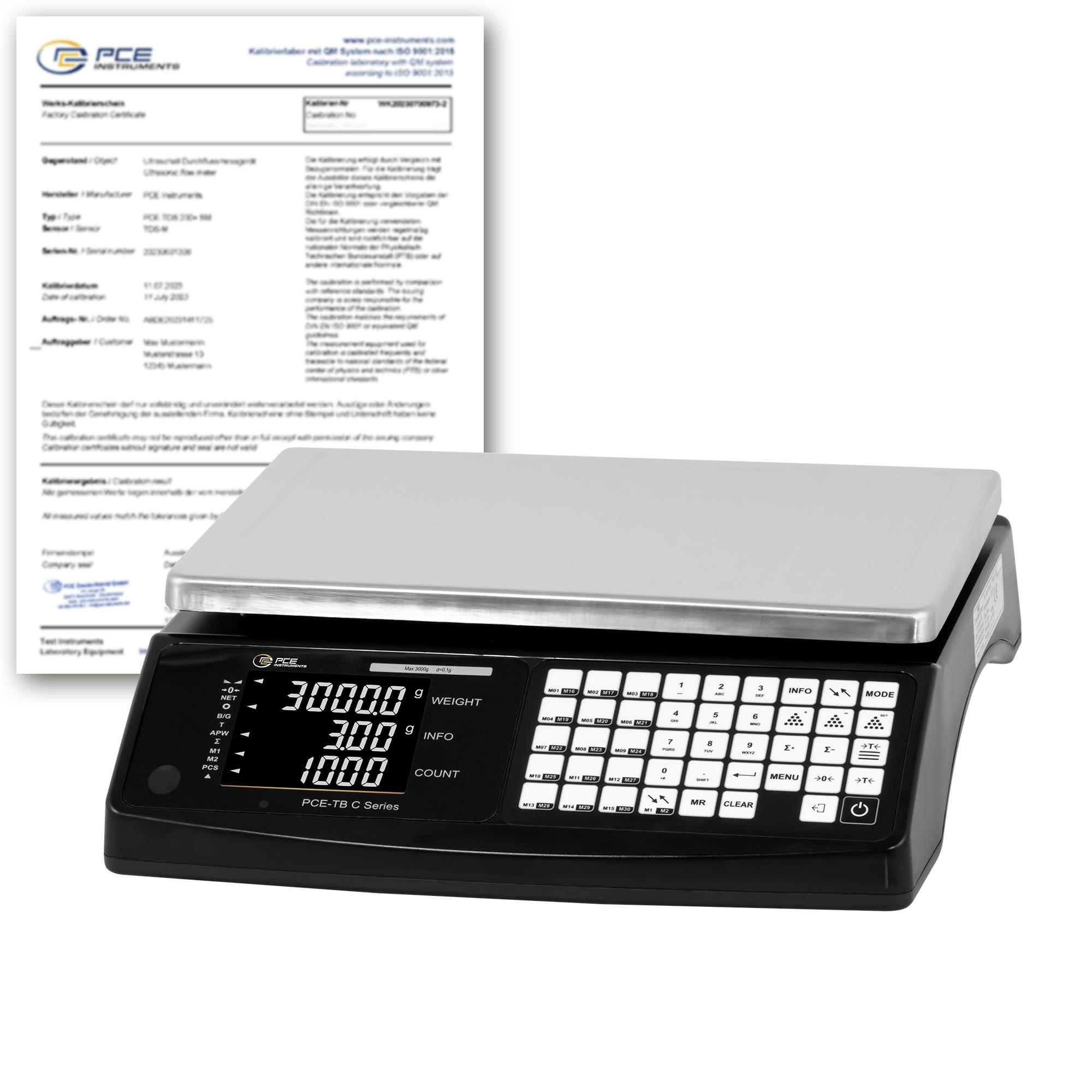

PCE Instruments PCE-TB 3C-ICA Counting scales PCE-TB 3C-ICA Calibrated to (ISO standards) Weight range 3000 g Readabilit

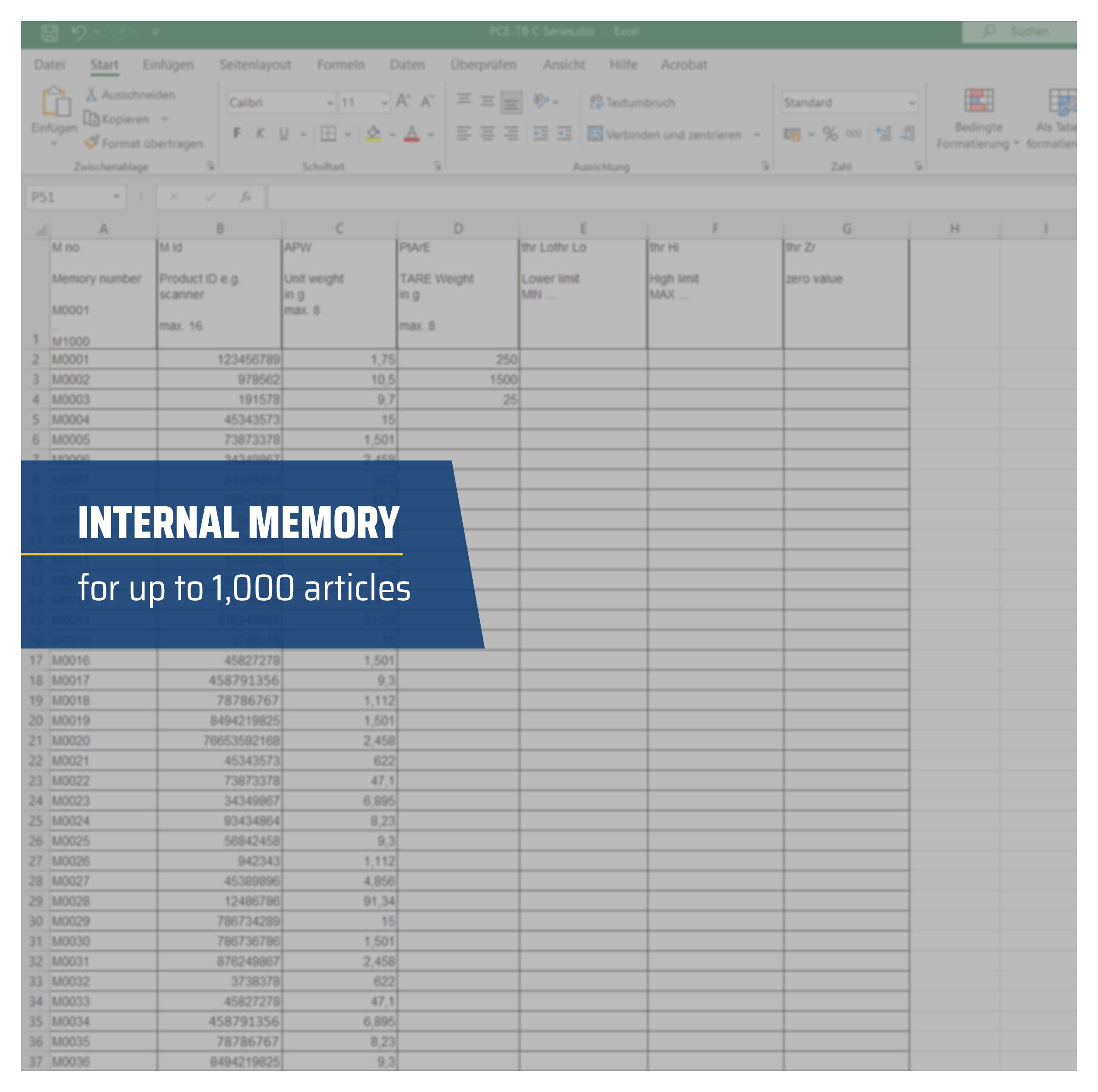

The scale has a weighing range of 0 ... 3 kg and is a true professional assistant for all counting tasks. The scale counter helps in making an internal data memory for up to 1,000 articles that can be easily retrieved, for example, with a scanner. The item data that can be saved in the counting scale are: Item designation, scanner code, unit weight, permissible weight deviations MIN / MAX and the weight of the packaging (TARE). Playing the scale counter with the possible information is very simple. The data is created in a spreadsheet-like software and transferred to the internal memory of the scale counter.

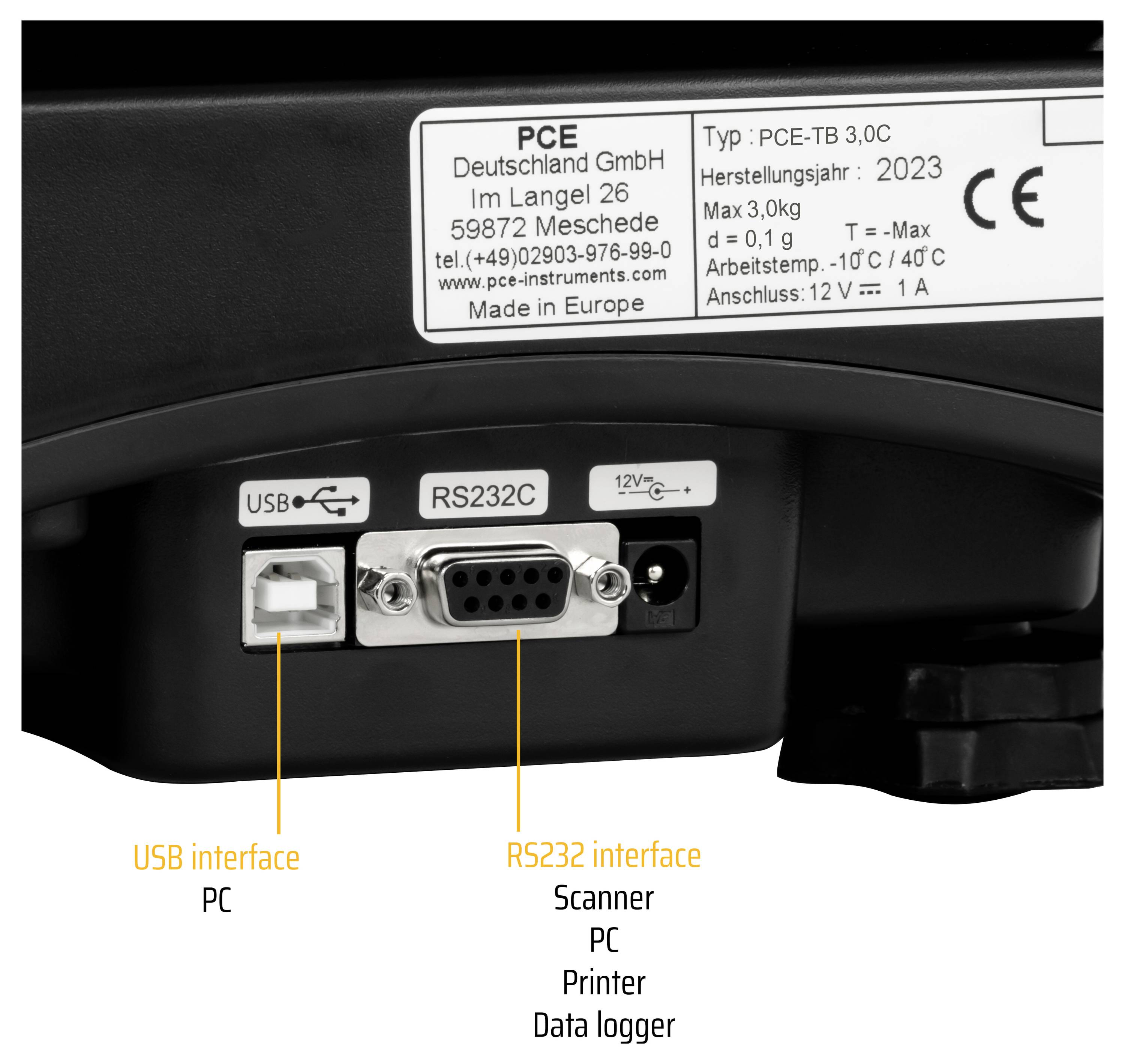

The counting scale can also transfer the counting results to a PC or optionally available USB memory stick. Even without the internal memory the counting scale is a professional helper. If, for example, a bar code is not available in the data memory, the user is informed about this and has the possibility to carry out further weights/counting under the barcode and to save it if necessary or to transfer it to the PC. The inventory/count carried out in this way saves a lot of processing time and excludes transfer errors.

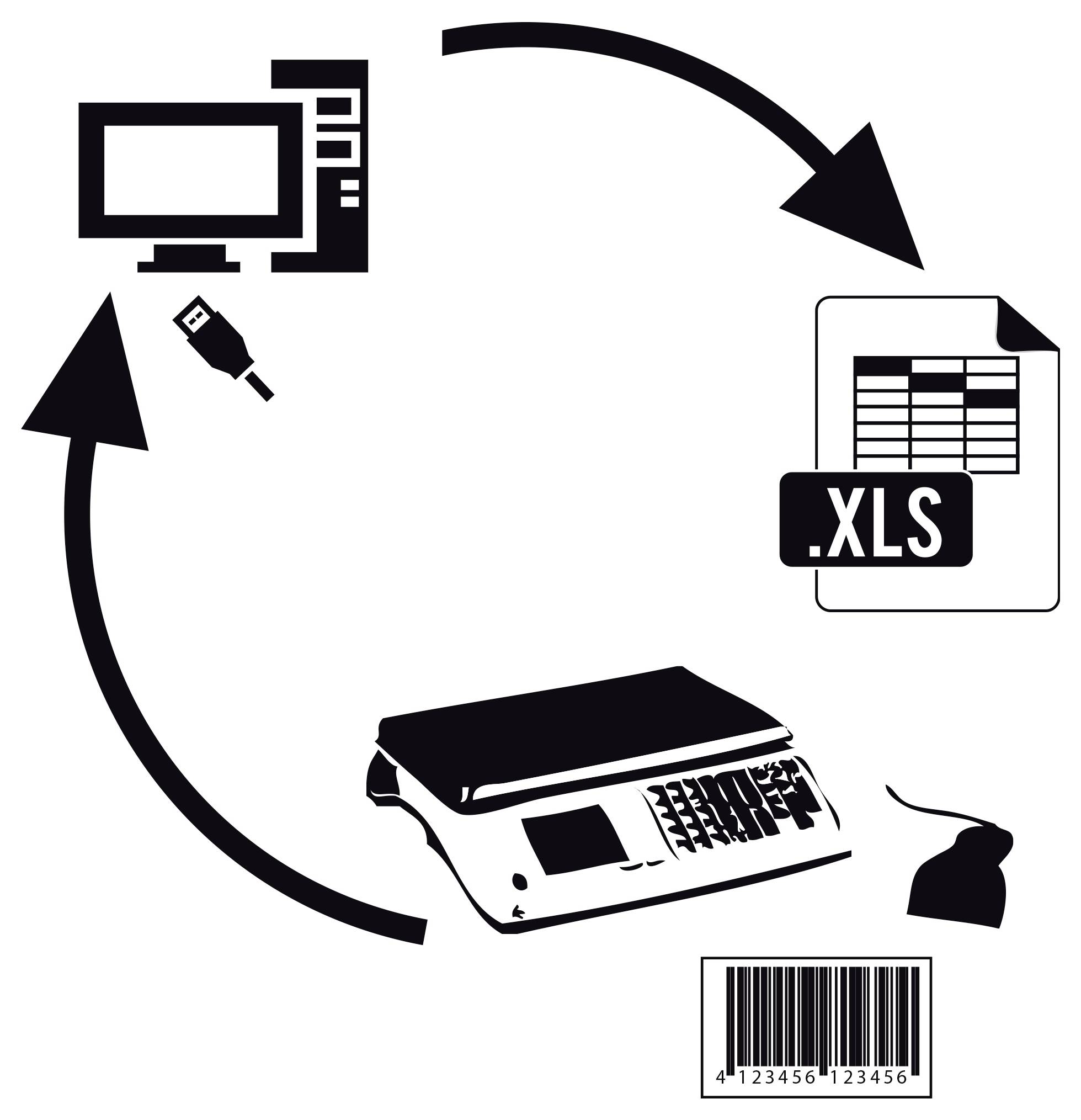

Despite the many keys, the data maintenance of the professional counting scale is very easy. This can be done on a PC in the form of a table. Create a table, for example, in EXCEL, where the data: Memory, item description, barcode, unit weight, target weight, Deviation tolerances (min. - Max.) And tare weight are stored, store these as CSV files. Maybe this can also be done from your company's ERP system. You can then simply hand it over to the professional counting scales with the free software. Once the data has been transferred successfully, the article can be accessed quickly and easily. This can be through the Direct selection buttons on the professional counting scale or with the help of an optionally available scanner. Depending on the configuration of the professional counting scale, the data can be stored automatically as TXT file directly in the PC or on a USB stick.

The data can be composed of for example of the user, article number, time, date and quantity. The data import of a TXT file into Excel is then very simple and enables an easy calculation of the counting carried out. In addition, products that have not been saved in the Professional Counting Scale can be counted and stored with the required information, and article database maintenance is not necessary for this. This enables professional scales to be used in most application areas.

This text is machine translated.
