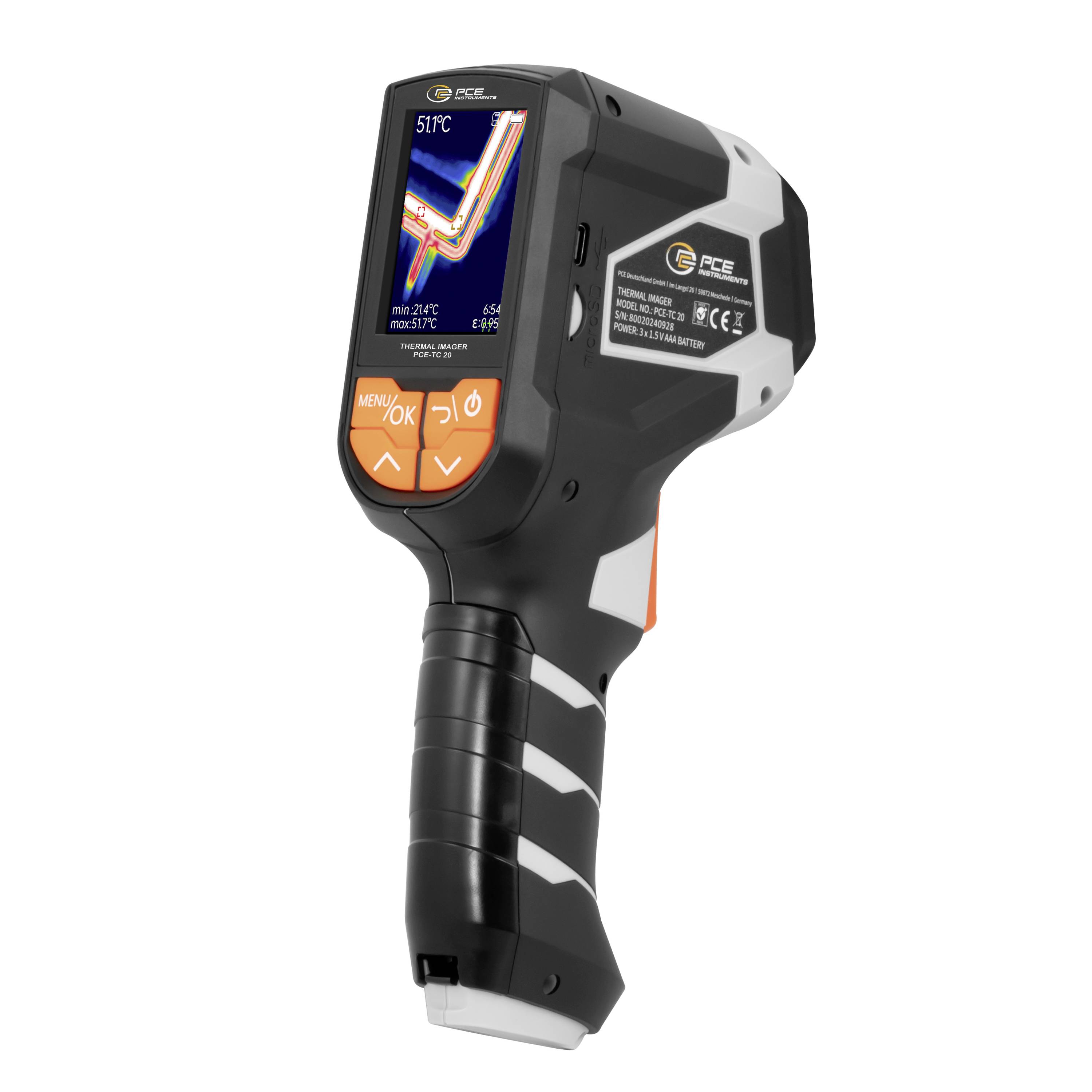

Handheld thermal imaging camera with display showing a heat map and orange control buttons on a black pistol grip.

Handheld thermal imaging camera with display showing a heat map and orange control buttons on a black pistol grip.

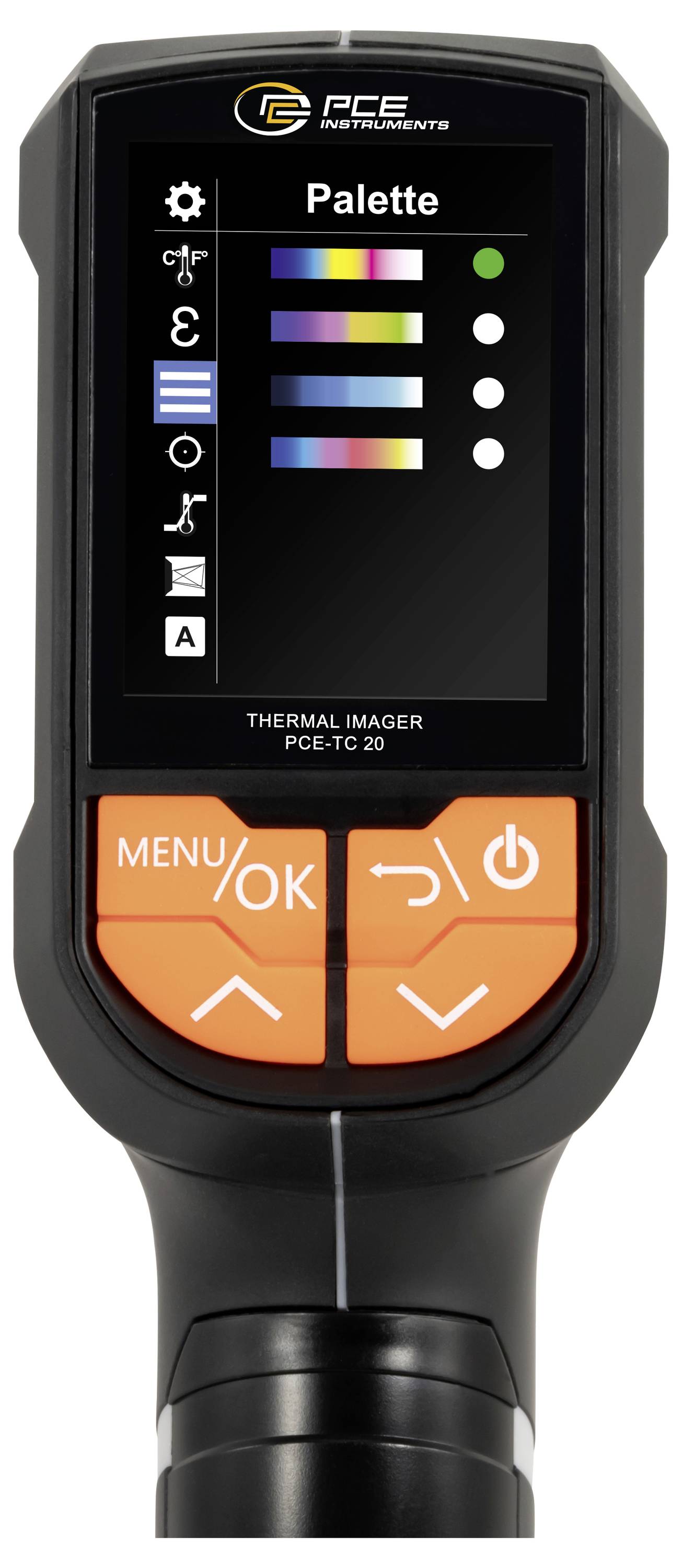

Handheld thermal imager display showing the 'Palette' color settings menu, with selectable color bars and orange control buttons below.

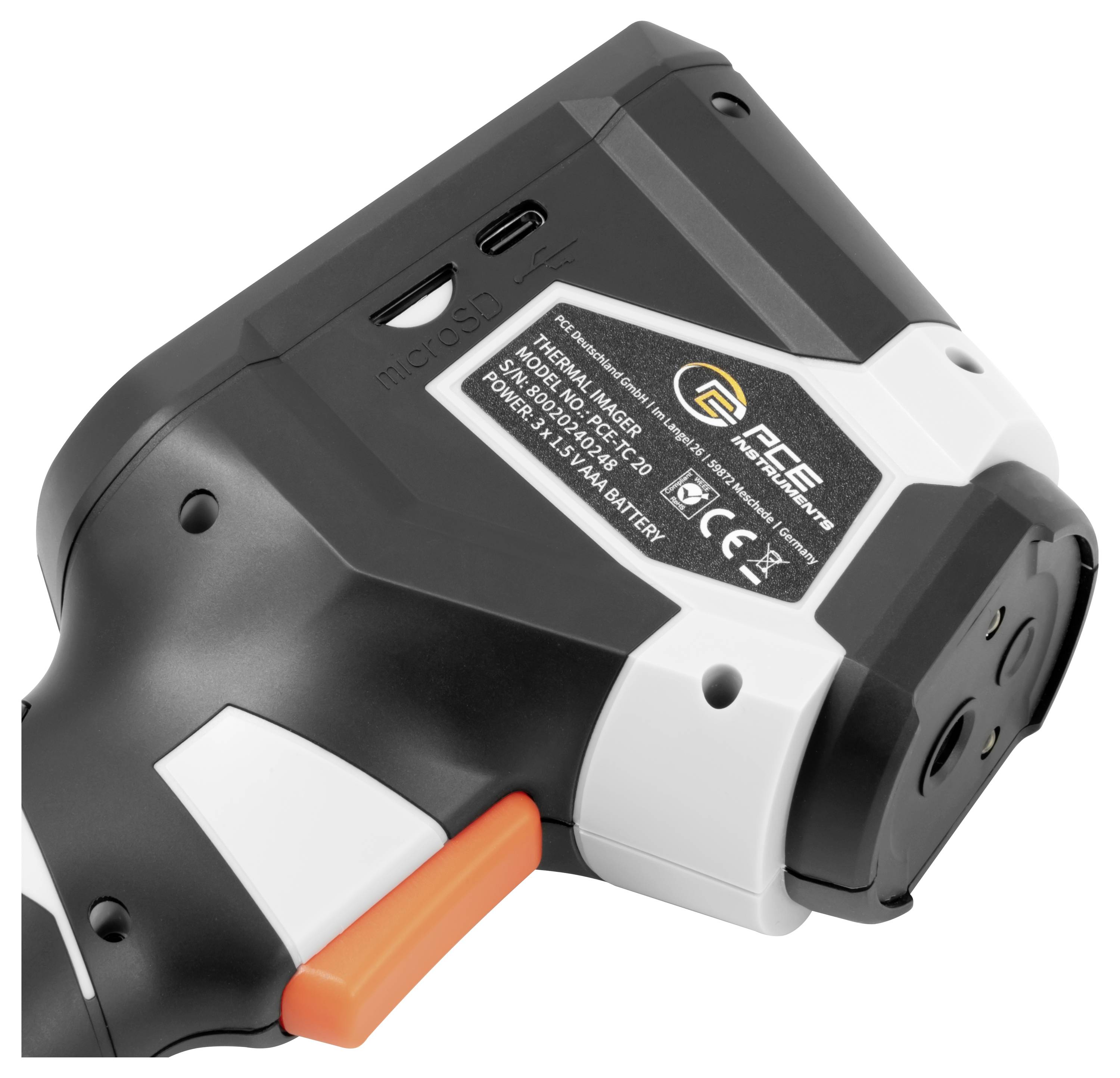

Black and white handheld thermal imager with orange trigger, shown in close-up on a white background.<br>

Close-up of an electric shaver head with the front cap removed, exposing the battery compartment inside the handle.

Hand holding a thermal camera aimed at a row of bookshelves, with the camera screen showing heat signatures and temperature readings.

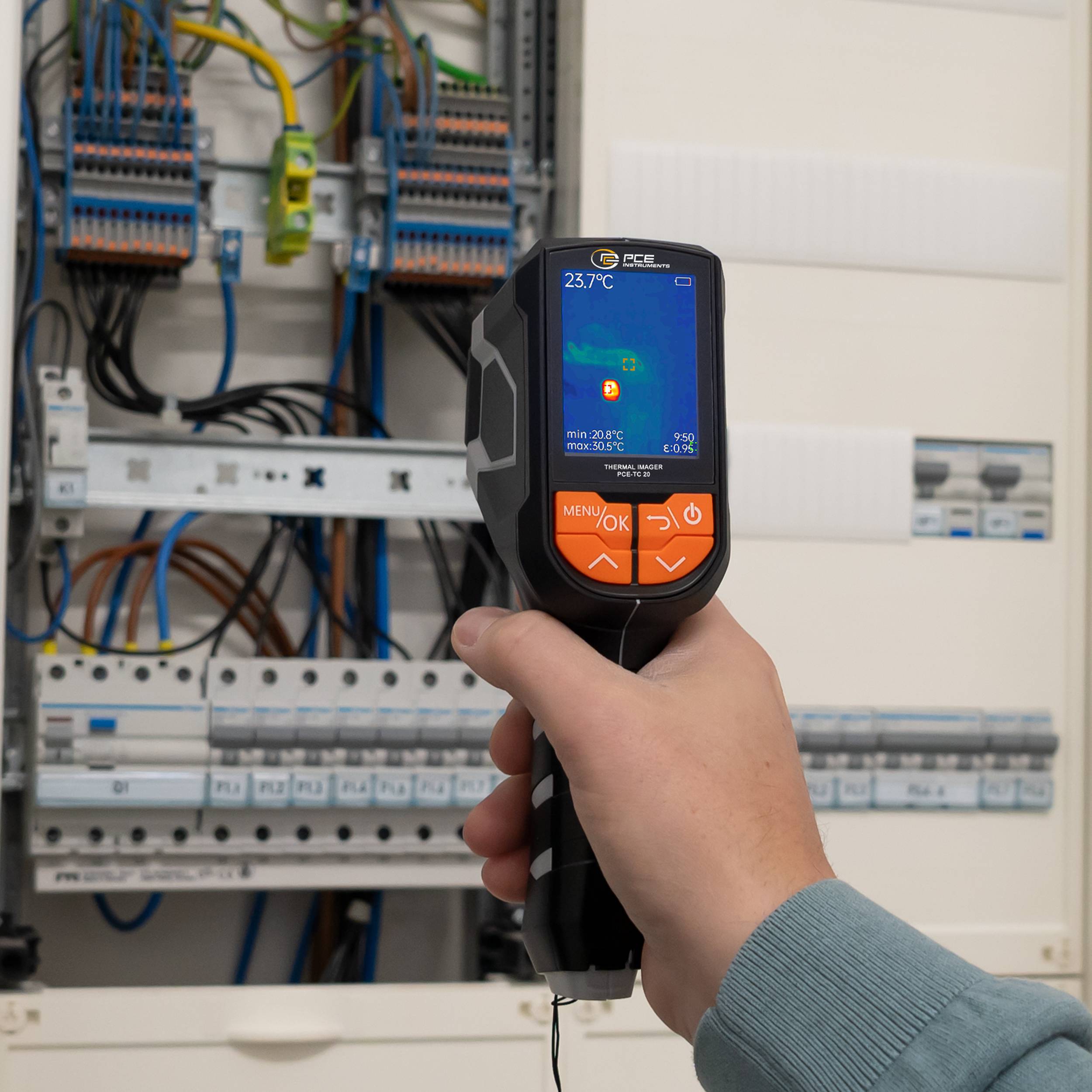

PCE Instruments PCE-TC 20 IR camera 0 up to 400 °C 120 x 90 Pixel USB-C, micro-SD-5

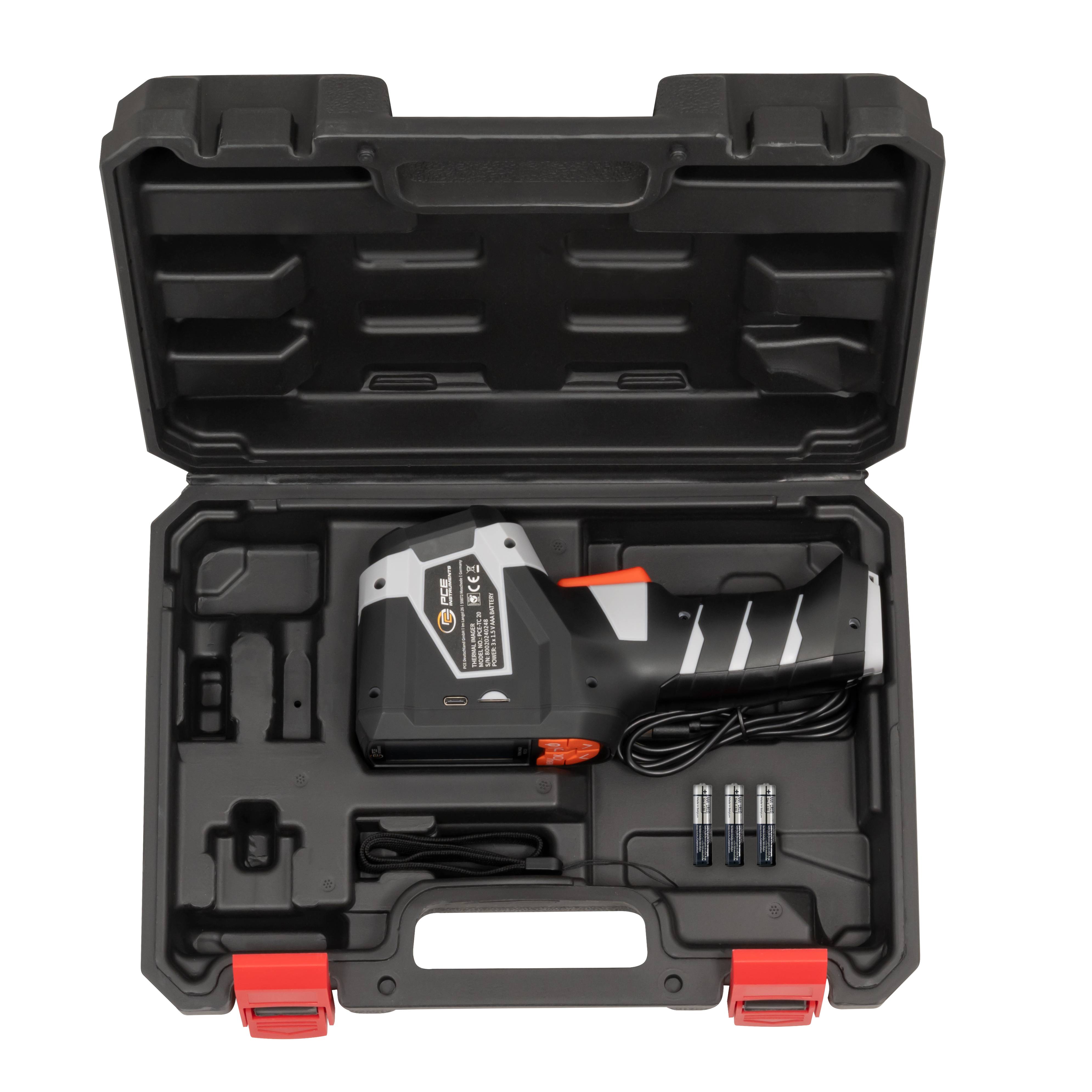

PCE Instruments PCE-TC 20 IR camera 0 up to 400 °C 120 x 90 Pixel USB-C, micro-SD-6

1/7

PCE Instruments

Datasheet (PDF)

Deutsch (Deutschland)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Thermal imaging camera
Temperature reading range 0 up to 400 °C
120 x 90 Pixel Bolometer matrix
Thermal sensitivity 60 mK

Technical specifications

Type: PCE-TC 20

Product type: IR camera

Bolometer array: 120 x 90 Pixel

Interfaces: USB C®
microSD

Temperature reading range (max.): 400 °C

Colour schemes: 4

Temperature reading range (min.): 0 °C

Display resolution: 240 x 320 Pixel

: IP20

Thermal sensitivity: 60 mK

Dim: (L x W x H) 210 x 60 x 100 mm

Memory units: 78

Temperature resolution: 0.1 °C

Emission level (max.): 0.95

Emission level (min.): 0.01

Focus: Key

Weight: 202 g

Basic accuracy: 5 %

Accuracy ± °C: 5 °C

Temperature reading range: 0 up to 400 °C

Min. focusing distance: 10 cm

Width: 60 mm

Height: 100 mm

Length: 210 mm

Connection: USB

Features: USB-C
micro-SD

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 3594505 PCE Instruments PCE-TC 20 IR camera 0 up to 400 °C 120 x 90 Pixel USB-C, micro-SD

User & Safety Instructions

User & Safety Instructions 3594505 PCE Instruments PCE-TC 20 IR camera 0 up to 400 °C 120 x 90 Pixel USB-C, micro-SD
