Handheld thermal imaging camera with a screen showing a heat map, black body with blue accents and grip handle.

Handheld thermal imager displaying a rainbow heat map of a ring-shaped object, with temperature readings around 23.9°C and 27.9°C on screen.

Close-up of a black handheld device tip with a blue stripe, brass threaded insert, and two front openings on a white background.

Close-up of a black handheld device with a camera lens, blue latch, USB-C port, and grip, likely a portable inspection or imaging tool.

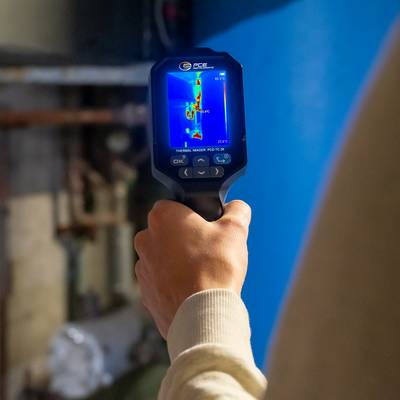

Hand holding a thermal imaging camera aimed at industrial pipes, showing a hot spot on the screen.<br>

PCE Instruments PCE-TC 26 IR camera -10 up to 400 °C 120 x 90 Pixel 25 Hz USB-C-5

PCE Instruments PCE-TC 26 IR camera -10 up to 400 °C 120 x 90 Pixel 25 Hz USB-C-6

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

25 Hz Thermal imaging camera
Temperature reading range -10 up to 400 °C
120 x 90 Pixel Bolometer matrix
Thermal sensitivity 0.06 °C

Technical specifications

Type: PCE-TC 26

Product type: IR camera

Bolometer array: 120 x 90 Pixel

Interfaces: USB C®

Temperature reading range (max.): 400 °C

Colour schemes: 8

Temperature reading range (min.): -10 °C

Frame rate: 25 Hz

Display resolution: 120 x 90 Pixel

: IP20

Thermal sensitivity: 0.06 °C

Dim: (L x W x H) 219 x 72 x 66 mm

Memory units: 10000

Temperature resolution: 0.1 °C

Emission level (max.): 0.99

Emission level (min.): 0.01

Focus: Automatic

Weight: 290 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -10 up to 400 °C

Width: 72 mm

Height: 66 mm

Length: 219 mm

Connection: USB

Features: USB-C

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 3594506 PCE Instruments PCE-TC 26 IR camera -10 up to 400 °C 120 x 90 Pixel 25 Hz USB-C

User & Safety Instructions

User & Safety Instructions 3594506 PCE Instruments PCE-TC 26 IR camera -10 up to 400 °C 120 x 90 Pixel 25 Hz USB-C
