PCE Instruments PCE-TC 28 IR camera -20 up to 600 °C 32 x 31 Pixel micro-SD
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

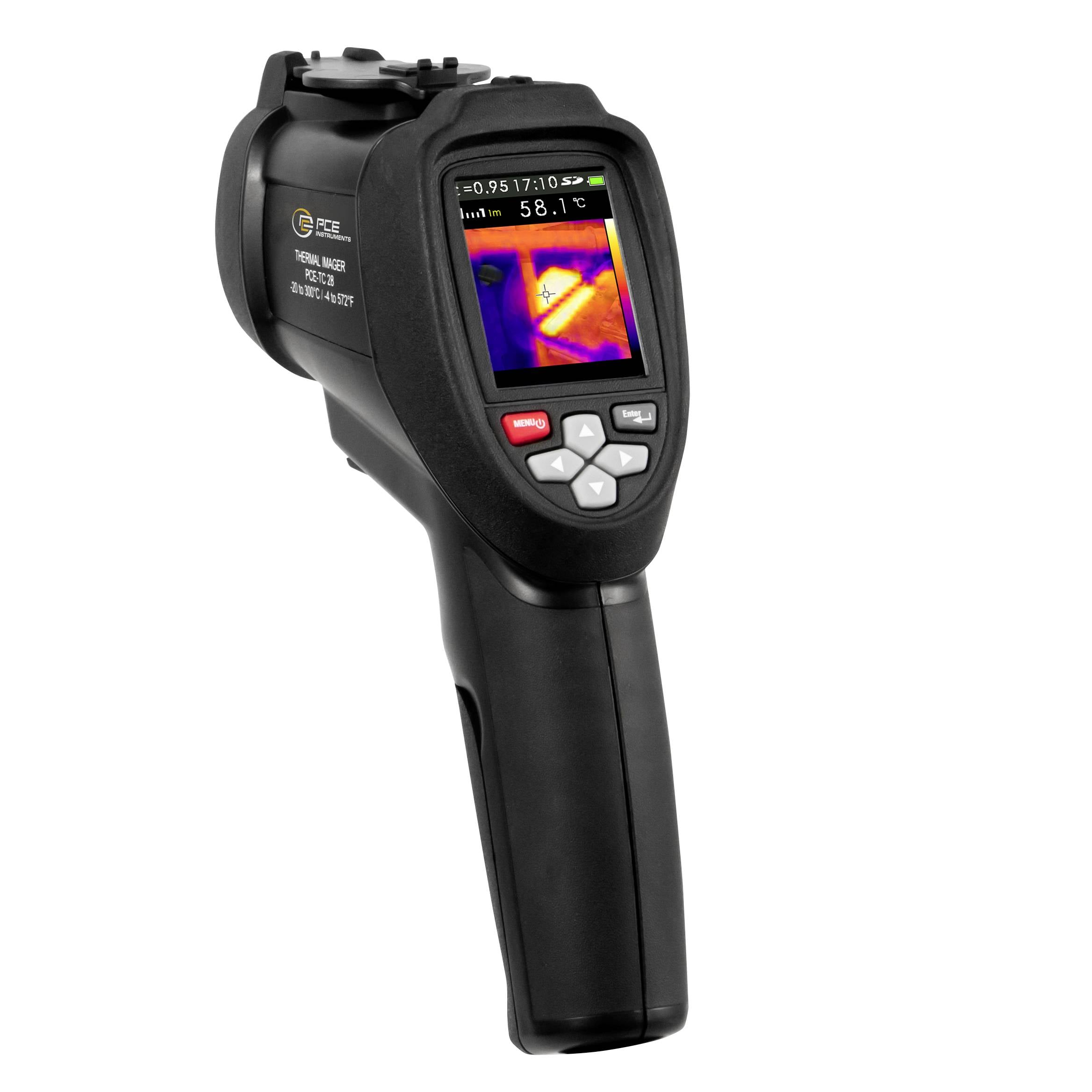

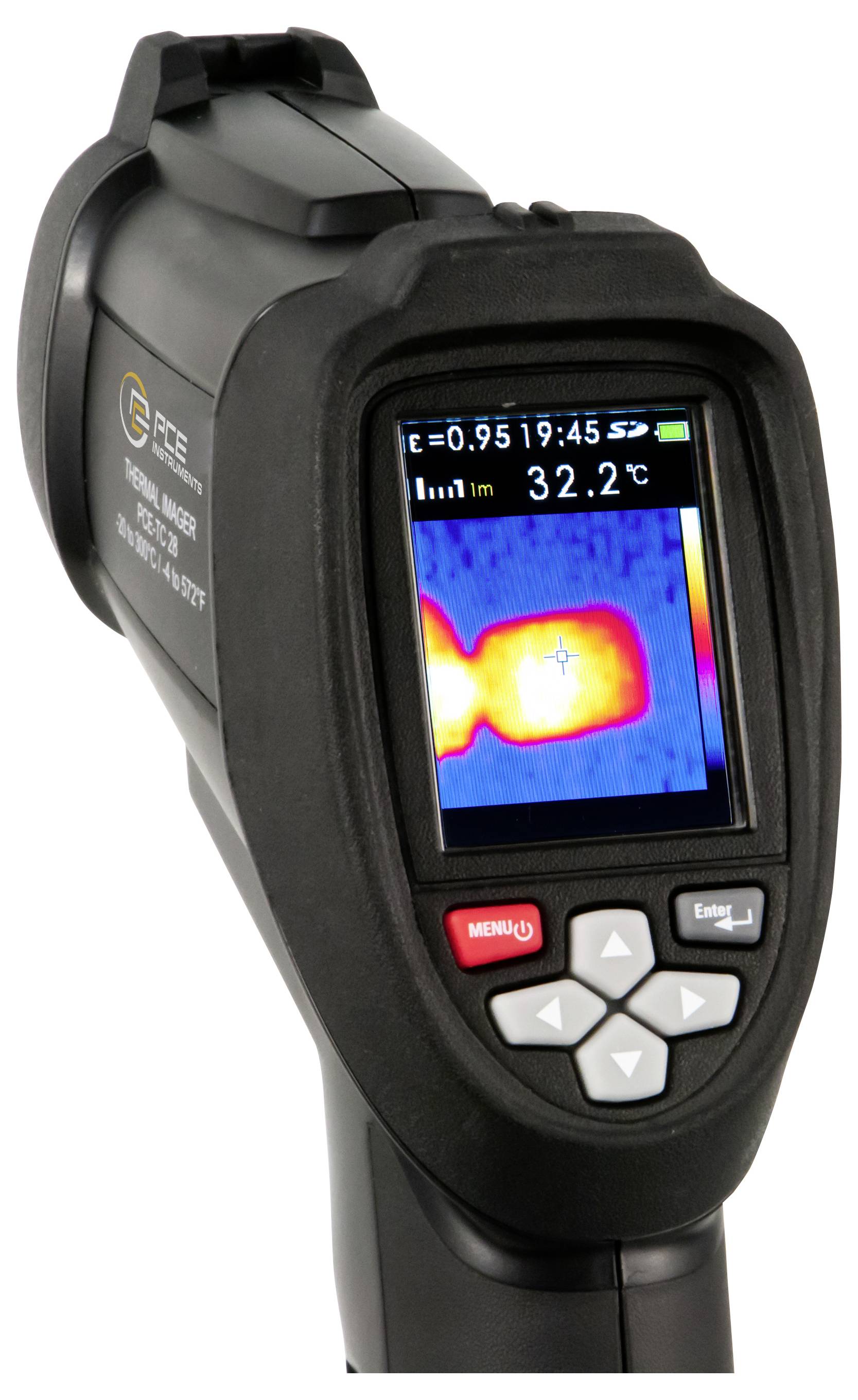

Thermal imaging camera PCE-TC 28
- Thermal imaging camera
- Temperature reading range -20 up to 600 °C
- 32 x 31 Pixel Bolometer matrix
Technical specifications
- Temperature Measurement range -20 ... +300 °C Accuracy ±2 %, ±2 °C. Emission correction on the Yes screen Setting the background temperature Yes Picture Frequency image recording 9 Hz Detector type Uncooled pyroelectric ceramic Thermal sensitivity ≤150 MK Infrared spectral band 6.5 ... 14 µm Camera 32 x 31 pixels Field of view 38 x 38 ° Focus fixed focus mechanism Parallax correction of visual and IR image 0.5 m, 1.0 m, 2.0 m, 3.0 m. Image in image Coverage of the visual and IR image 0 / 25 / 50 / 75 / 100 % Hot / cold point toring Yes Image capture and data storage Image acquisition The image can be reviewed before saving. Storage medium One MicroSD card can store 6000 images per GB File format .bmp Memory view Ability to scroll through all stored images Operating temperature 0 ... +50 °C Storage temperature -20 ... +60 °C Relative humidity 10 ... 90%, non-condensing Display 2.2 " diagonal, (320 x 240 TFT LCD) Emission levels Materials Thermal emissivity Materials Thermal emissivity Asphalt 0.90 ... 0.98 Fabric (black) 0.98 Concrete 0.94 Human skin 0.98 Cement 0.96 Foam 0.75 ... 0.80 Sand 0.90 Coal 0.96 Earth 0.92 ... 0.96 Paint 0.80 ... 0.95 Water 0.92 ... 0.96 Paint (matt) 0.97 Ice 0,96 ... 0.98 Rubber (black) 0.94 Snow 0.83 Plastic 0.85 ... 0.95 Glass 0,90 ... 0.95 Wood 0.90 Kerac 0.90 ... 0.94 Paper 0.70 ... 0.94 Marble 0.94 Chrome (oxidized) 0.81 Plaster 0.80 ... 0.90 Copper (oxidized) 0.78 Mortar 0.89 ... 0.91 Iron (oxidized) 0.78 ... 0.82 Brick 0.93 ... 0.96 Textiles 0.90
- Type
PCE-TC 28
- Product type
IR camera
- Bolometer array
32 x 31 Pixel
- Temperature reading range (max.)
600 °C
- Colour schemes
4
- Temperature reading range (min.)
-20 °C
- Display resolution
320 x 240 Pixel
- Emission level (max.)
1
- Emission level (min.)
0.7
- Basic accuracy
2 %
- Accuracy ± °C
2 °C
- Temperature reading range
-20 up to 600 °C
- Features
micro-SD
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452673 PCE Instruments PCE-TC 28 IR camera -20 up to 600 °C 32 x 31 Pixel micro-SD
User & Safety Instructions
User & Safety Instructions 2452673 PCE Instruments PCE-TC 28 IR camera -20 up to 600 °C 32 x 31 Pixel micro-SD
Description

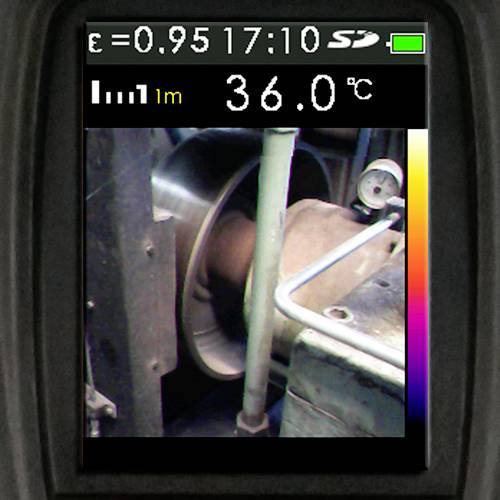

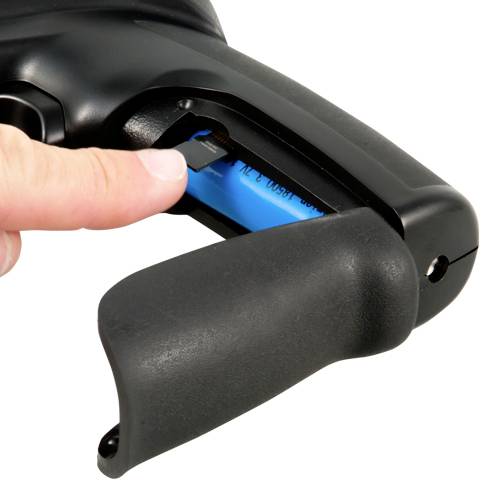

Thermal imaging camera PCE-TC 28 Thermal imaging camera for contact-less temperature measurement / integrated color camera / adjustable emission level / image storage possibility on MicroSD card / automatic switch-off / adjustable alarm limits The infrared camera is used for contact-free temperature recording. In order to obtain correct measurement results, the infrared camera has an adjustable emission level. The infrared camera offers the possibility of displaying infrared images, real images or mixed images. This is used for improved visualization for the user. The real and mixed images show him which measuring range he is closely monitoring. The infrared camera thus offers a comprehensive functional frame and is used in various areas. This includes the production as well as the monitoring of machines and various applications in hobby and leisure time. The infrared camera has a port for a MicroSD card in the vicinity of the battery, which can be used there. Depending on the microSD card, there is the option of storing different numbers of images. The infrared camera offers the option of storing about 6000 images per gigabyte of the MicroSD card.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x PCE-TC 28 infrared camera
- 1 x Li-Ion battery
- 1 x USB data cable

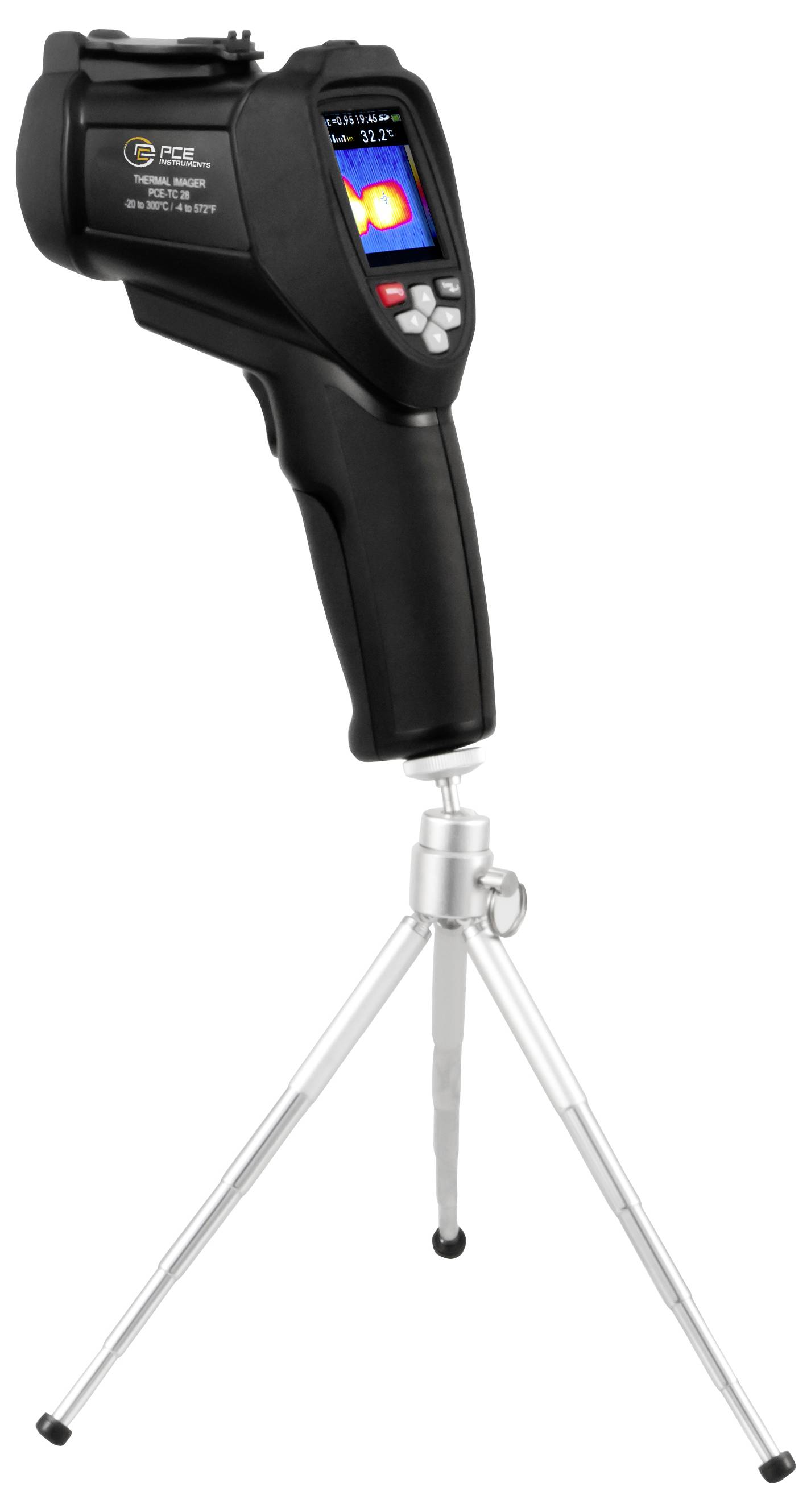

- 1 x mini tripod
- 1 x power supply
- 1 x carrying case
- 1x user manual
