Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-TC 32N

25 Hz Thermal imaging camera
Temperature reading range -20 up to 550 °C
256 x 192 Pixel Bolometer matrix
Thermal sensitivity 60 mK

Technical specifications

Measuring function
Measuring range -20 ... +550 °C / -4 ... +1022 °F
Resolution 0.1 °C / 0.1 °F
Accuracy ±2 °C / 3.6 °F at an ambient temperature
between 10 ... 35 °C and an object temperature of >0 °C.
Sensor properties
Field of view (FOV) 50° x 37°
Field of vision depth from 0.5 m.
Pixel density (IFOD) 7.6 mrad
Thermal sensitivity <0.06 °C at +30 °C / 60 mK
Frame rate: 25 Hz
Image sensor uncooled microbolometer
Spectral range 7.5 ... 14 µm
Infrared resolution 256 x 192 pixels
Measuring points Middle point, automatic detection of the hottest and coldest measuring point
Measurement correction Reflection of temperature, setting the emission value
Image sensor 2 megapixel
Field of view (FOV) 65°
Video recording
Memory 8 GB on micro SD card, 3.4 GB internal memory
Recording time >30 minutes
Standard format MPEG-4, 240 x 320 pixels, 30 Hz
Recording mode Infrared and/or real-image recording
Image capture
Storage format .JPEG or .hir with measurement data
Memory >6000 images
Interface
Cable connection USB-C with charging and for data transfer
Wireless Wi-Fi 802.11
Other specifications
POWER SUPPLY 5 V DC, 1 A
Power supply (rechargeable battery) 3.7 V DC, 2600 mAh, 9.62 W (18650)
Shutdown Automatic, 5, 10, 15, 30 minutes or permanently switched on
Connection thread 1/4" photo stand
Display 2.8 " LC Display
Display resolution: 240 x 240 pixels
Colour palette iron, rainbow, black white, black white (inverted),brown, blue red, hot-cold, Feather
Zoom 1 … 16x digital Zoom
Operating conditions -15 ... + 50 °C, -5 °F ... 60 TO +122°F
Storage conditions -40 ... + 70 °C, -40 ... +158 °F
Ambient humidity 10 ... 90 % RH, non-condensing
Dimensions 224 x 77 x 96 mm
Weighs 423 g.

Type: PCE-TC 32N

Product type: IR camera

Bolometer array: 256 x 192 Pixel

Interfaces: Micro USB

Temperature reading range (max.): 550 °C

Colour schemes: 8

Temperature reading range (min.): -20 °C

Optics: 50° x 37°

Frame rate: 25 Hz

Display resolution: 320 x 240 Pixel

: IP43
IP21
IP41
IP42
IP30
IP20/IP40 (when connected)
IP34
IP31
Casing: IP40 / connection: IP20
IP40/max: IP30
IP20 (back panel)
IP50 (from front)
IP23
IP33
IP20
IP24
IP25
IP32
IP10
IP41 (front)
IP30 (rear)
IP22
Show more

Thermal sensitivity: 60 mK

Dim: (L x W x H) 77 x 224 x 96 mm

Memory units: 6000

Temperature resolution: 0.1 °C

Digital zoom: 16 x

Display: 320 x 240 p

Emission level (max.): 1

Emission level (min.): 0.01

Geometric resolution (IFOV): 7.6 mrad

Weight: 423 g

Basic accuracy: 2 %

Accuracy ± °C: 0.06 °C

Temperature reading range: -20 up to 550 °C

Min. focusing distance: 0.5 m

Width: 224 mm

Height: 96 mm

Length: 77 mm

Connection: USB 2.0
USB host
USB

Power supply (details): 3.7 V DC

Features: Built-in digital camera
very robust
Withstands falls from heights of up to 2 m
incl. IR thermometer

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 3324705 PCE Instruments PCE-TC 32N IR camera -20 up to 550 °C 256 x 192 Pixel 25 Hz Built-in digital camera, very robust, Withst

User & Safety Instructions

User & Safety Instructions 3324705 PCE Instruments PCE-TC 32N IR camera -20 up to 550 °C 256 x 192 Pixel 25 Hz Built-in digital camera, very robust, Withst

Description

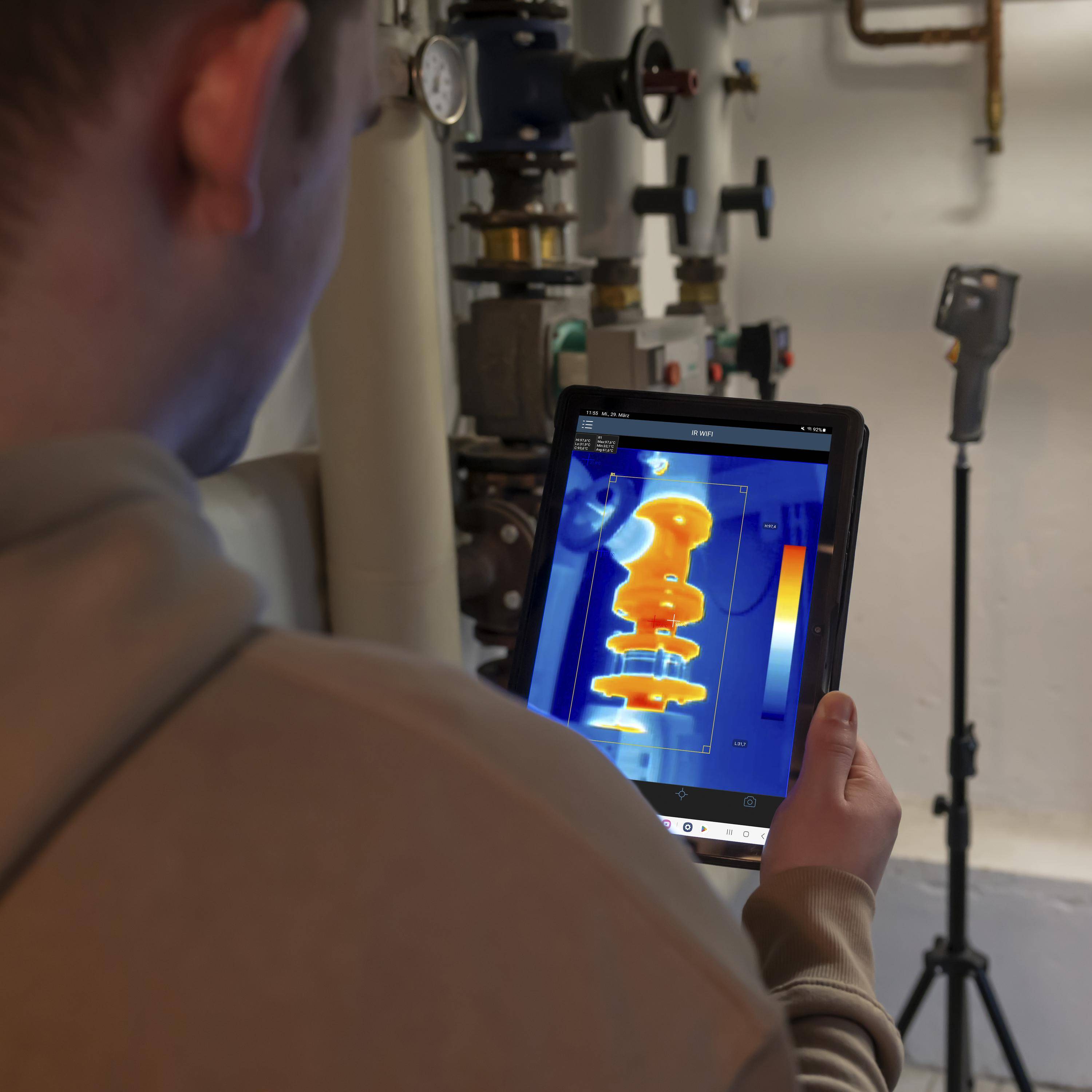

The thermal imager has a measurement range of -20 to +550 °C. Thus, the infrared camera already covers a large temperature range of measurement tasks. With an image frequency of 25 Hz, problems with the infrared camera can be localized quickly. Via the picture-in-picture function the real picture with the infrared image can be displayed at the same time. The APP enables a clear display and operation of the infrared camera.

When connecting the thermal imager to a PC, there are two different functions that can be previously performed in the settings. The "PC Connection" setting detects the thermal imager as a mass data storage device. This allows you to copy all image, video and measurement data directly from the thermal imager. With the "PC Camera" function, the thermal imager is recognized by the PC as a webcam. This has the advantage that the current image of the thermal imager can be displayed on a PC for example during online meetings or also during training sessions. In both connection cases, the thermal imager is independent of the operating system.
