PCE Instruments PCE-TC 38 IR camera -20 up to 550 °C Wi-Fi, incl. IR thermometer

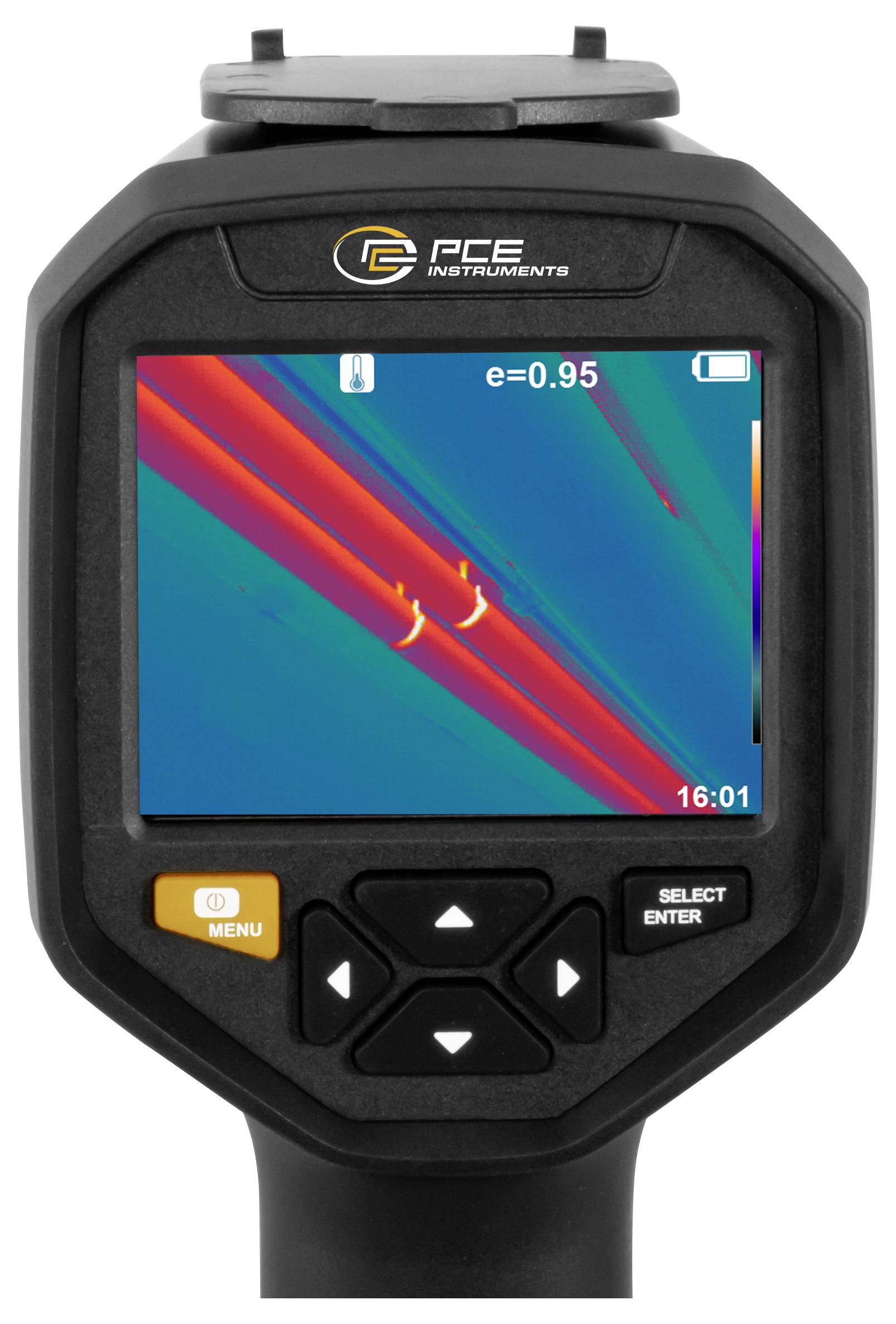

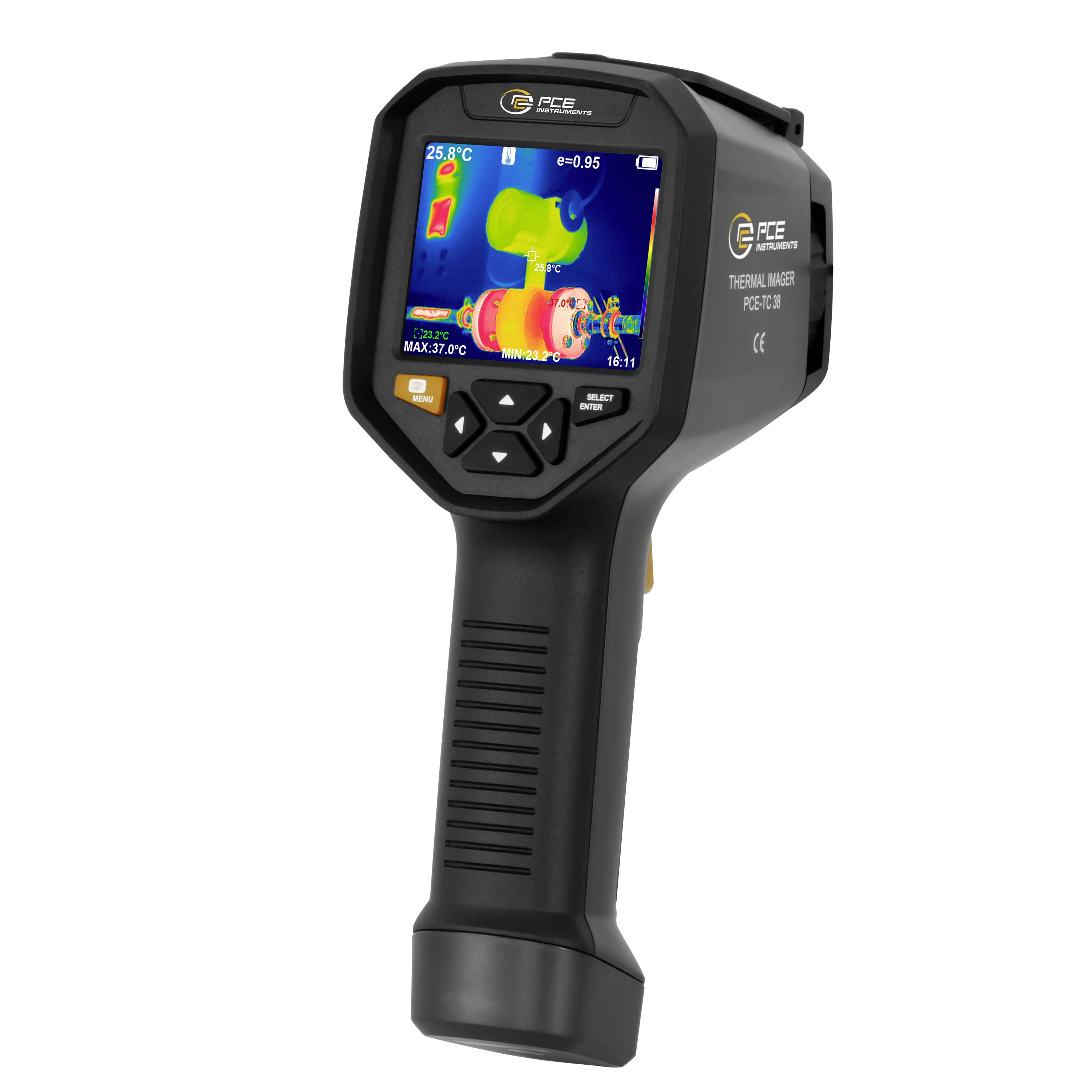

Our thermal imaging camera offers reliable temperature measurement in the range of -20 °C to 550 °C (-4 °F to 1022 °F). The infrared images are displayed on the 3.5" color display with a resolution of 384 x 288 pixels. The compact and user-friendly design of the infrared camera has an ergonomic handle and an intuitive key operating system directly below the screen, which enables an easy operation.

The camera offers several color palettes, including rainbow and iron oxide red, as well as various viewing options for precise thermal data capture. With a thermal sensitivity of 0.06 °C and an adjustable emission level of 0.01 to 1.0 even fine temperature differences can be detected. It stores more than 40000 images in JPG format on the internal 6 GB memory. With a frame rate of 25 Hz, a wavelength range of 8 ... 14 μm and selectable automatic switch-off times, this thermal camera is a versatile tool for professional and private users.

The uniqueness of this thermal imager consists in the possibility of a remote connection over a WiFi network, e.g. to a smartphone, from which one can set the thermal imager remotely or store the recorded thermal images directly in the terminal. Once a smartphone is connected to the thermal imager via Wi-Fi, you can remotely set the appropriate color palette, emission level, or maximum and minimum value display. Thanks to the thermal imager, not only heat losses, but also leaks in water and heating systems or malfunctioning mechanical components of various systems (motors, bearings, belts, heat pumps, etc.) can be easily detected.
