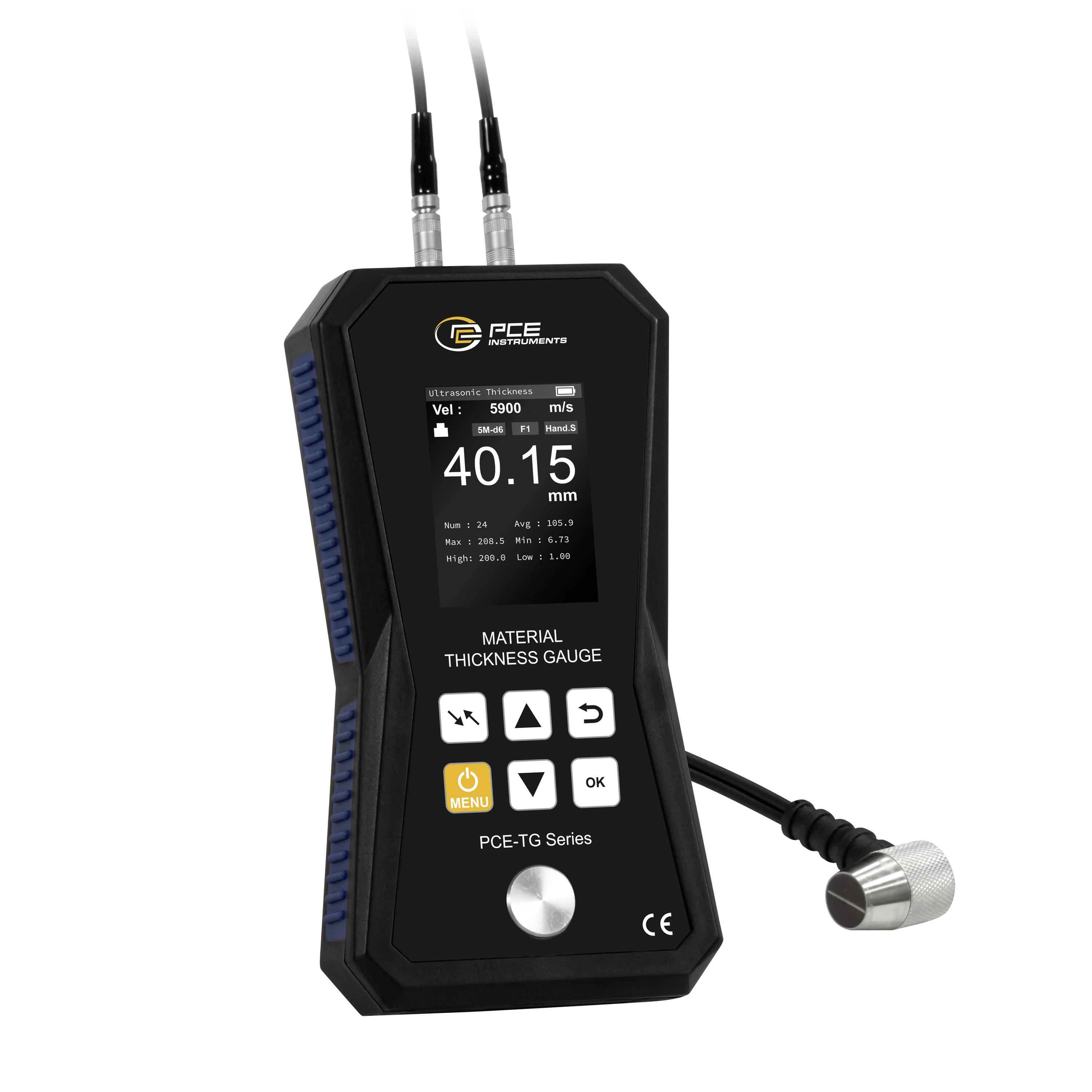

PCE Instruments PCE-TG 75A Thickness gauge 100 - 225 mm

The thickness meter can measure material thicknesses up to 225 mm. To measure the material thickness of a wide range of homogeneous materials, it is possible to store the corresponding sound velocity in the material thickness meter. For materials such as steel, aluminum, zinc, silver and gold, the appropriate sound speeds are already stored in the device library. As such, the material thickness meter can be used universally.

Individual maximum and minimum values can be stored with the limit value function in the material thickness meter. If the measured value of the test object is outside the limits, the thickness gauge signals this visually. If required, the signal can be generated by the material thickness meter as well as a visual representation. For this reason, the material thickness measuring device is used for quality assurance and incoming goods inspection, for example.

The thickness measuring device has a data memory on which the measured values can be recorded. After a measuring run the saved measured values can be analyzed directly on the material thickness measuring device. The saved data is displayed graphically by the thickness gauge. In addition, each individual measuring point can be approached and read from the material thickness measuring device in the graphic. For a simplified analysis of the measured values, the average, the largest and smallest measured value is displayed in the thickness meter. The material thickness measuring instrument can be equipped with an ISO calibration certificate as an option.
