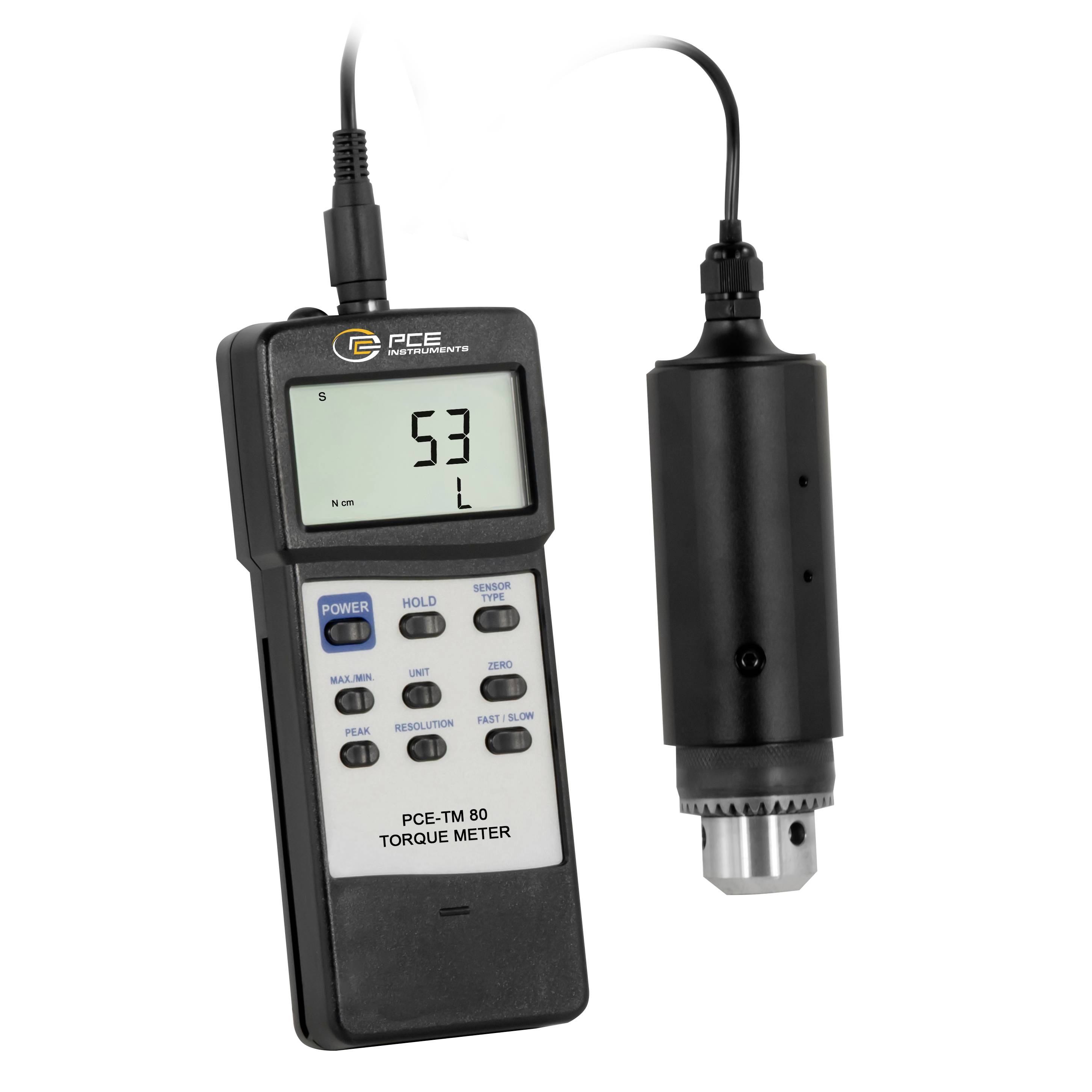

Handheld digital torque meter with a connected cylindrical sensor, showing a reading of 53 L on the display.

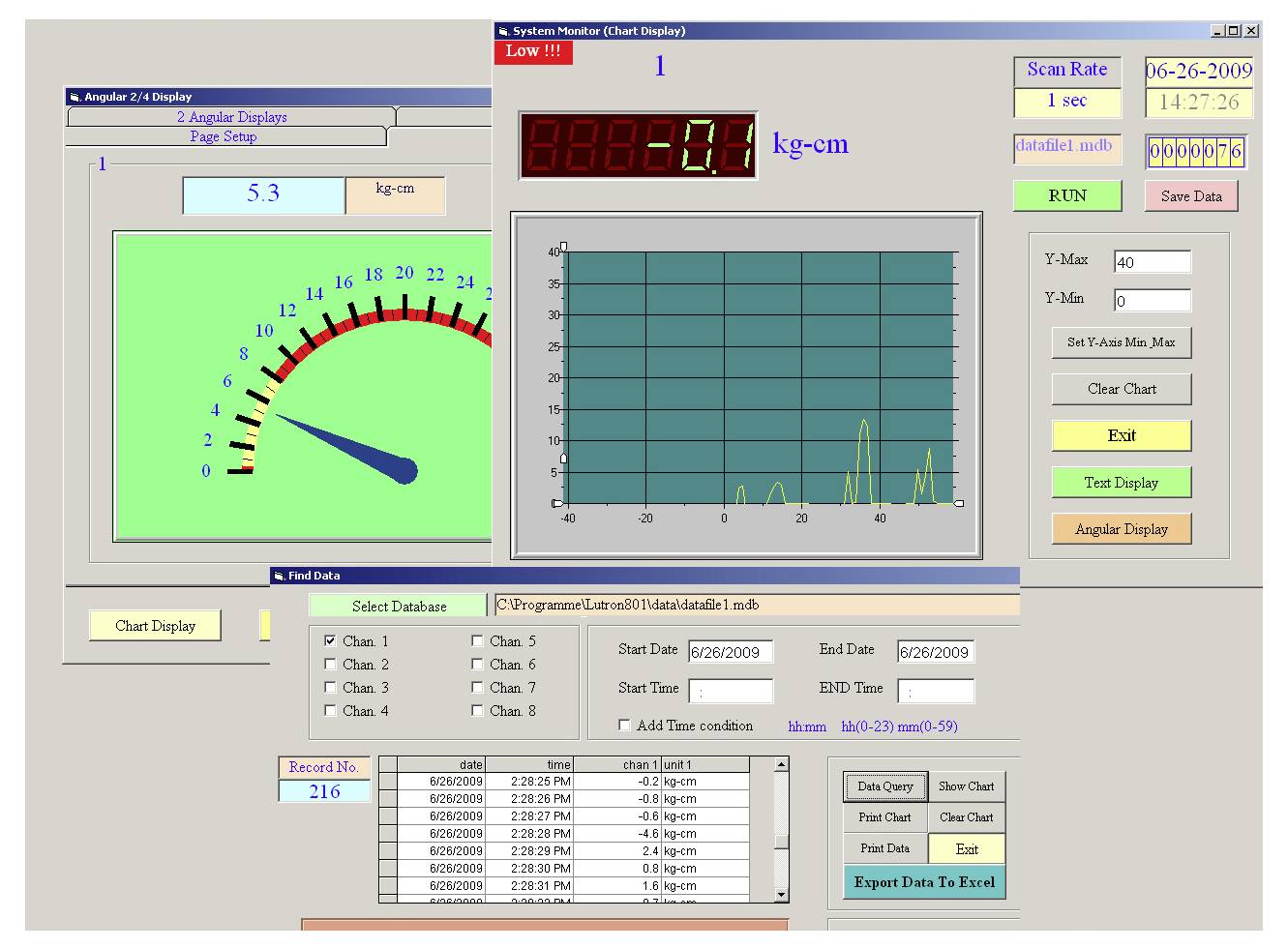

Computer dashboard for an angular display system showing a digital readout in kg-cm, an analog gauge, and a time-series chart with controls and data table.

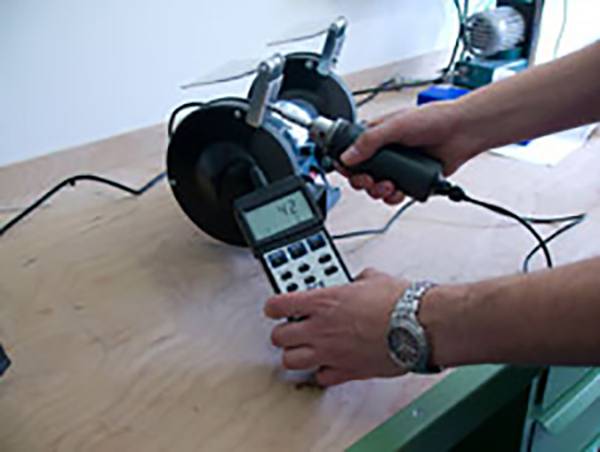

A person is measuring the engine's rotational speed with a digital tachometer on a wooden workbench.

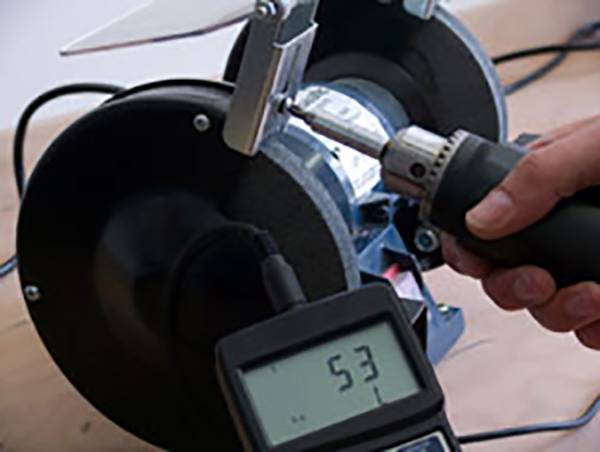

Grinding machine with clamping device and digital measuring instrument showing value '53'. Hand holding drill being machined.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-TM 80 Torque meter Manufacturer's standards (no certificate)

3 units can be selected (Ncm, kgfcm, lbfin)
Digital output RS-232
External torque recording
Software available as an option
Selectable resolution
Automatic switch-off
Peak hold
ISO calibration certificate available as an option

Technical specifications

Measurement range 147.1 Ncm / 13.02 lbfin / 15 kgfcm Resolution High resolution Low air solution 0.1 Ncm / 0.01 lbfin / 0.01 kgfcm 1 Ncm / 0.1 lbfin / 0.1 kgfcm Accuracy ±1.5 % +5 digits Peak value management (peak) yes Additional functions Data-Hold / Min-Max / Peak-Hold Display units Ncm, kgfcm, lbfin Overload protection max. 150% Output RS-232 Software available as an option Display LCD Operating temperature 0 ... +50 °C, less than 80 % r.h. Power supply 9 V block battery Weight Device Force transducer approx. 225 g approx. 665 g Dimensions Device Force transducer 180 x 72 x 32 mm Ø 48 x 160 mm

Product type: Torque meter

: Manufacturer's standards (no certificate)

Documents & Downloads

Datasheet

Datasheet 2452686 PCE Instruments PCE-TM 80 Torque meter Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 2452686 PCE Instruments PCE-TM 80 Torque meter Manufacturer's standards (no certificate)

Description

Torque measuring device for measurement of suit and release torques up to 147 Ncm / PC interface and software (optional) / peak hold / external torque sensor / different units selectable / selectable resolution Torque measuring device with separate force transducer for measuring the torque of screws, components, switches, Drive shafts, etc. The torque meter is a favorable solution for a simple torque measurement. The electronic torque meter can be operated with right and left rotation and is particularly suitable for measuring the tightening and release torques. Depending on the application, this torque tester offers you the option of increasing the resolution by one decimal point. You can display both the peak value (peak) or the min/max value on the torque measuring device. You can also use the optional software to continuously transfer the data to a laptop or PC. The electronic torque meter has a robust design that ensures durability and reliability.
