Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-TUM 150BLK

Easy cleaning and maintenance
Quick and easy installation
Interface: Modbus RS485
Continuous measurement
**Protection class IP65**
**Suitable for salt water**

Technical specifications

Turbidity
Measuring range 0.001 ... 40 NTU
Resolution 0.001 NTU
Accuracy ±2 % from MW.
Turbidity
Measuring range 40 ... 100 NTU
Resolution 0.1 NTU
Accuracy ±5 % from MW.
General Technical Data
Repeat accuracy 2 %

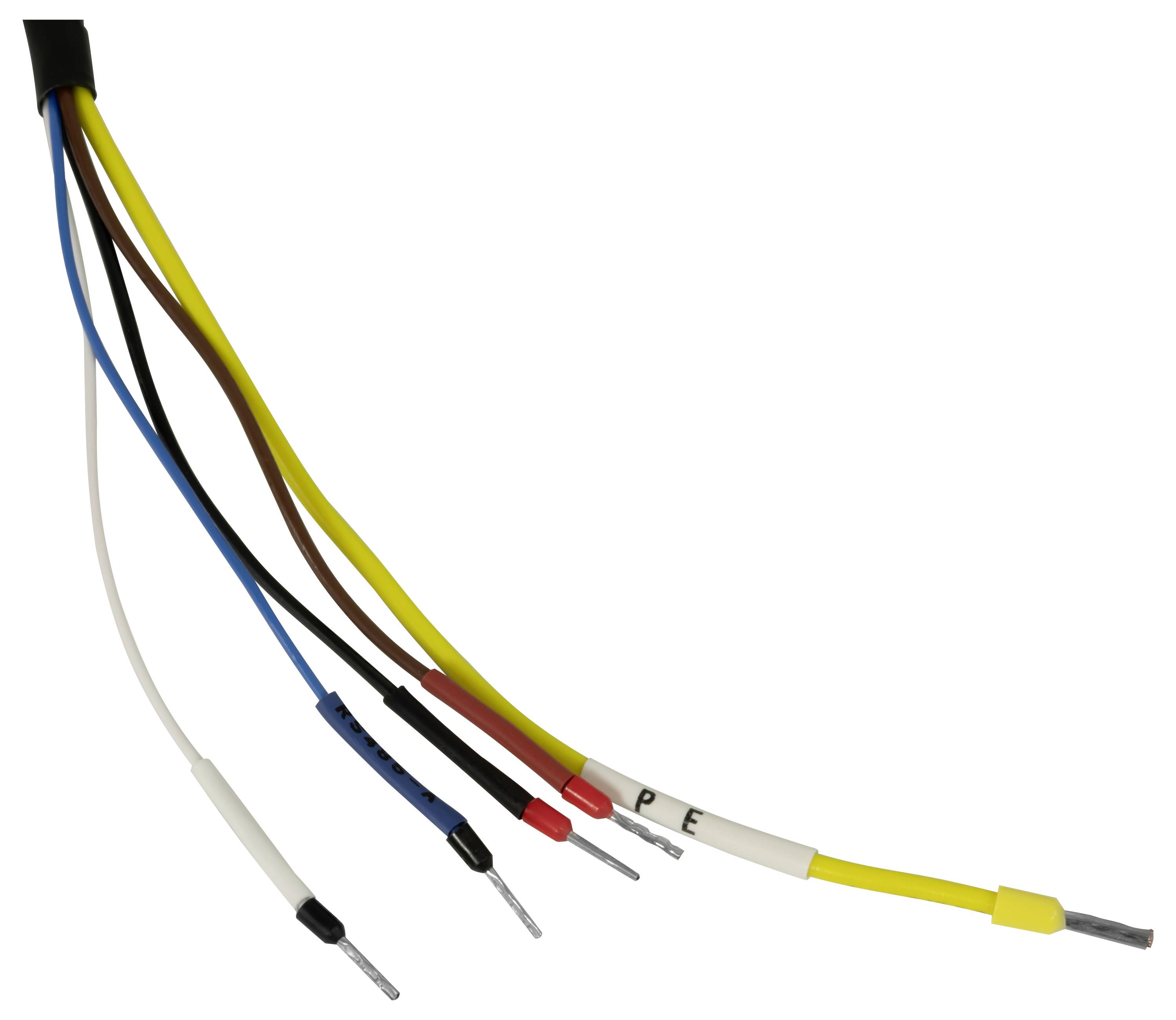

Cable length 3 m

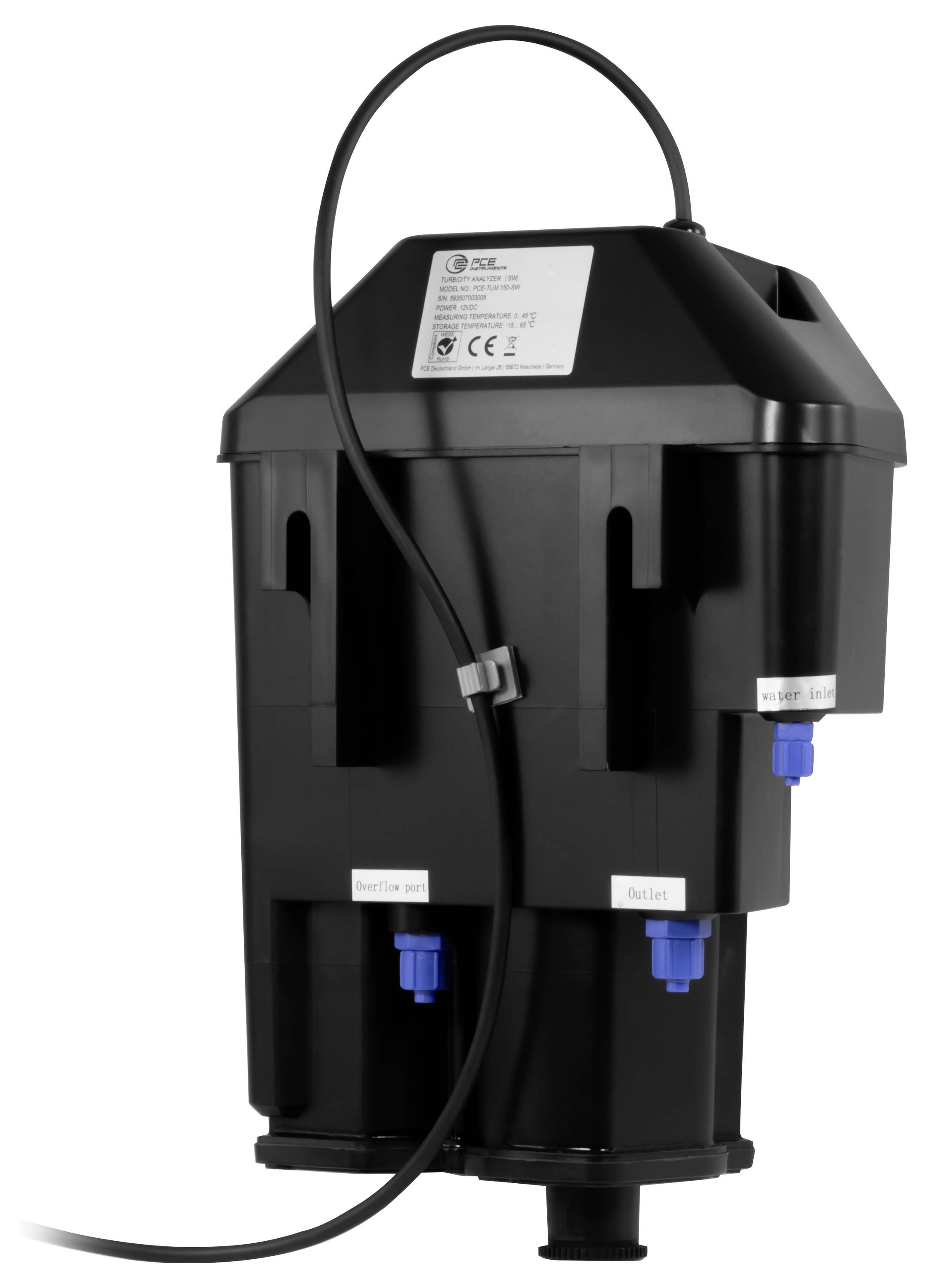

Connections 1/2 NPT (outlet), 1/4 NPT (inlet), 1/4 NPT (overflow)
Interface: RS485
Sensor silicon photo cell
Light source tungsten lamp
Flow rate 300 ... 700 ml/min
Protection class (device) IP65
Power supply 12 V/DC
Operating conditions 0 ... 45 °C , 5 ... 95 (non-condensing)% r.H.
Storage conditions -15 ... 60 °C , 5 ... 95 (non-condensing)% r.H.
Dimensions ( L x W x H ) 212 x 305 x 393 mm
Weighs 2533 g.

Product type: Turbidity meter

Reading type: Opacity

Accuracy: 2

: Manufacturer's standards (no certificate)

Power supply (details): 12 V DC

Dim: (L x W) 212 mm x 305 mm

Weight: 2533 g

Opacity reading range: 0.001 - 100 NTU

Opacity reading range (max.): 100 NTU

Chlorine readinge range (min.): 0.001 NTU

Width: 305 mm

Length: 212 mm

Interfaces: 1x RS485

Documents & Downloads

Datasheet

Datasheet 3812977 PCE Instruments PCE-TUM 150SW Turbidity meter Opacity

User & Safety Instructions

User & Safety Instructions 3812977 PCE Instruments PCE-TUM 150SW Turbidity meter Opacity

Description

The turbidity meter is used for continuous online monitoring of water cloudiness in drinking water systems, filtration systems and direct drinking water systems. In addition, the device is also suitable for use in sea water or media containing salt water (salt water). It is used for reliable control of water quality after treatment, filtration and disinfection processes in a wide range of applications.

The turbidity meter operates according to the nephelometric 90° scattered light method. A tungsten lamp emits light into the water sample, which is scattered by suspended matter. A silicon sensor captures the scattered light at a 90° angle and determines the turbidity in NTU. The turbidity meter has a measuring range of 0.001 ... 100 NTU and enables high-resolution detection of even very low turbidity values. The measurement takes place continuously in online mode and the measured values are transferred cyclically to an external evaluation system via the RS485 Modbus interface.

The calibration of the turbidity meter is carried out via the RS485/Modbus interface. First, the point is set with pure water (0 NTU) and then a standard solution is used for adaptation.

The turbidity meter is characterized by a repeatability of ±2 % and protection class IP65. It is designed for easy installation and low maintenance. The flow rate is 300 ... 700 ml/min The connections are designed as 1/2 inch NPT (outlet) and 1/4 inch NPT (inlet and overflow), the supply voltage is 12 VDC.

Thus, the device is suitable for the reliable and continuous monitoring of water quality in modern water treatment, environment and process systems - both in the fresh water as well as in the sea water / salt water area.
