PCE Instruments PCE-TUM 50 Colorimeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Colorimeter PCE-TUM 50
- Supports VESA standards up to
Technical specifications
- Measuring method ISO 7027 (90°) Measurement ranges: 0 ... 2000 NTU 0 ... 500 EBC 0 ... 9999 ASBC Resolution < 100 NTU: 0.01 < 999 NTU: 0.1 < 2000 NTU: 1 Accuracy < 500 NTU: ± 2% of MW. < 2000 NTU: ± 3% of MW. Calibration points< 0.02 NTU 10 NTU 200 NTU 500 NTU 1000 NTU 1500 NTU 2000 NTU Or user-specific Light source 850 nm IR LED Scattered light influence< 0.02 NTU Dimensions measuring cuvettes 60 x 25 mm Automatic switch-off 2 h after which the device was not used Memory 200 memory slots Interface USB Power supply 12 V power supply Power consumption 300 mA Operating temperature 0 ... 60 °C Dimensions 250 x 177 x 96 mm Weight approx. 1.2 kg
- Product type
Colorimeter
- Width
250 mm
- Height
96 mm
- Weight
1.2 kg
- Dim
(L x W x H) 177 x 250 x 96 mm
- Length
177 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452690 PCE Instruments PCE-TUM 50 Colorimeter
User & Safety Instructions
User & Safety Instructions 2452690 PCE Instruments PCE-TUM 50 Colorimeter
Description

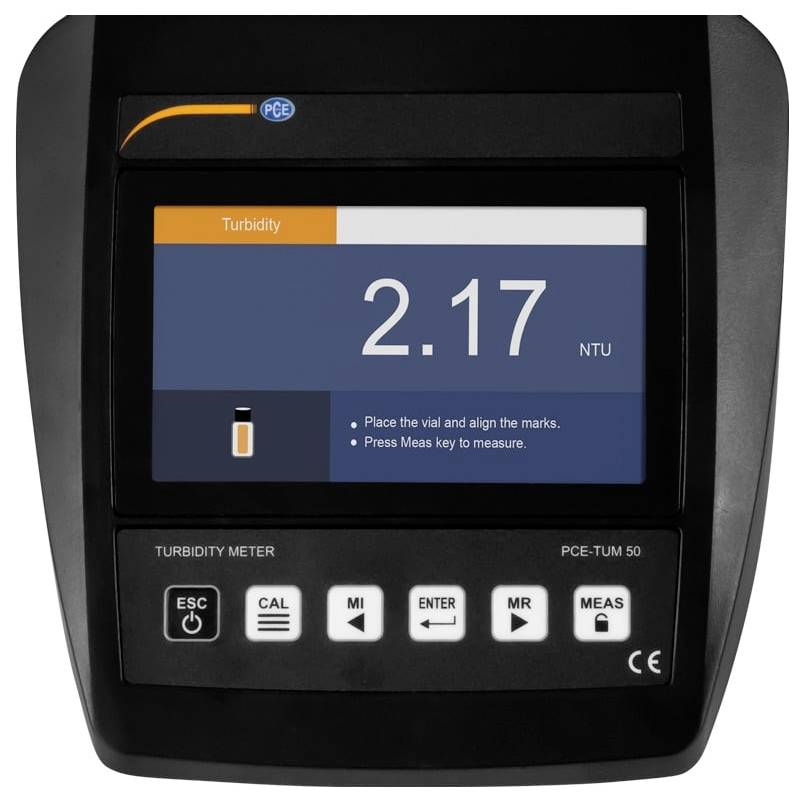

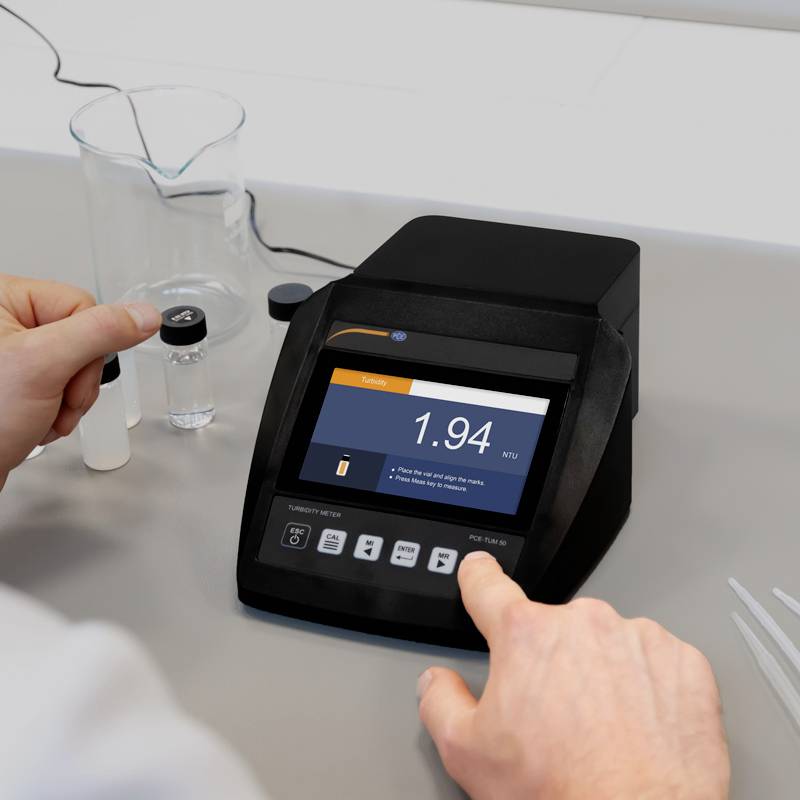

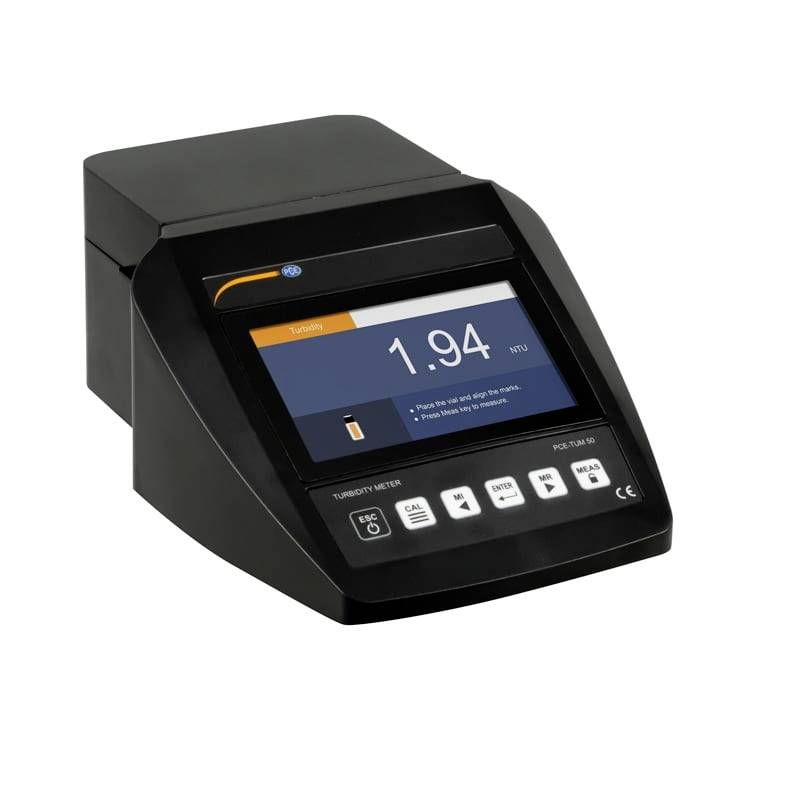

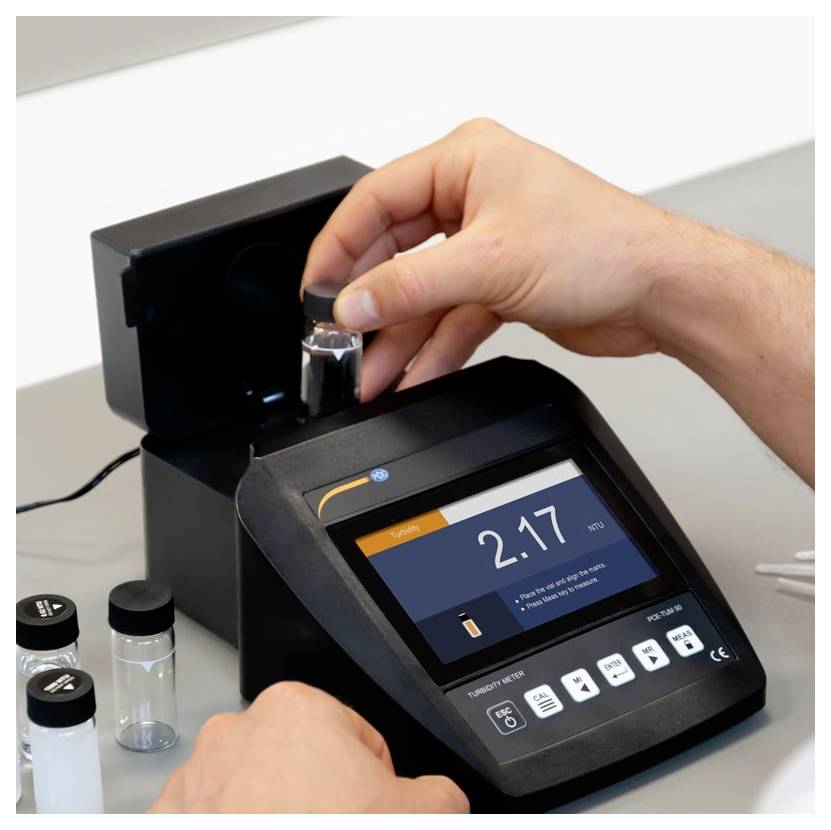

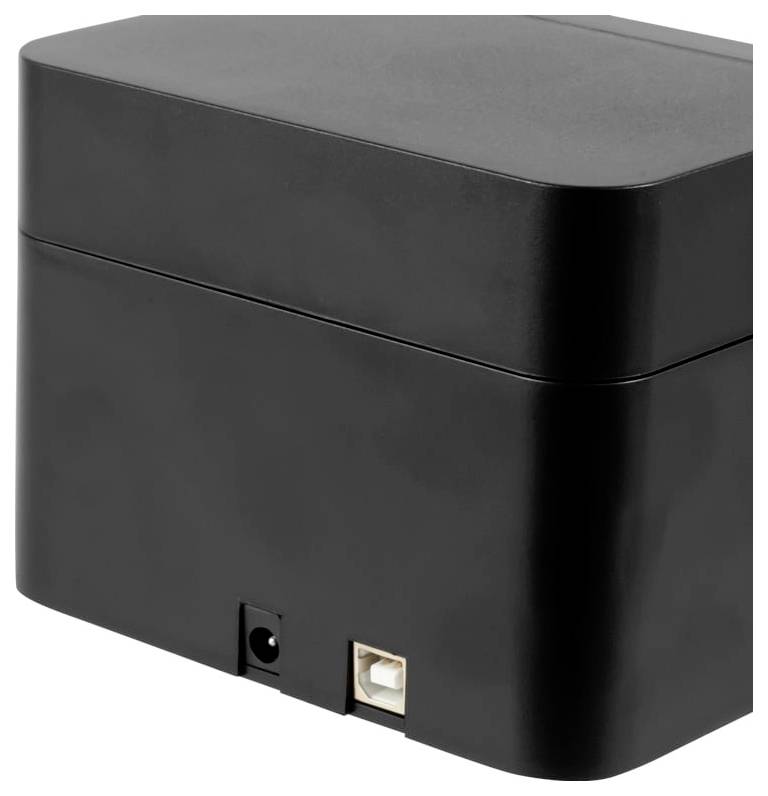

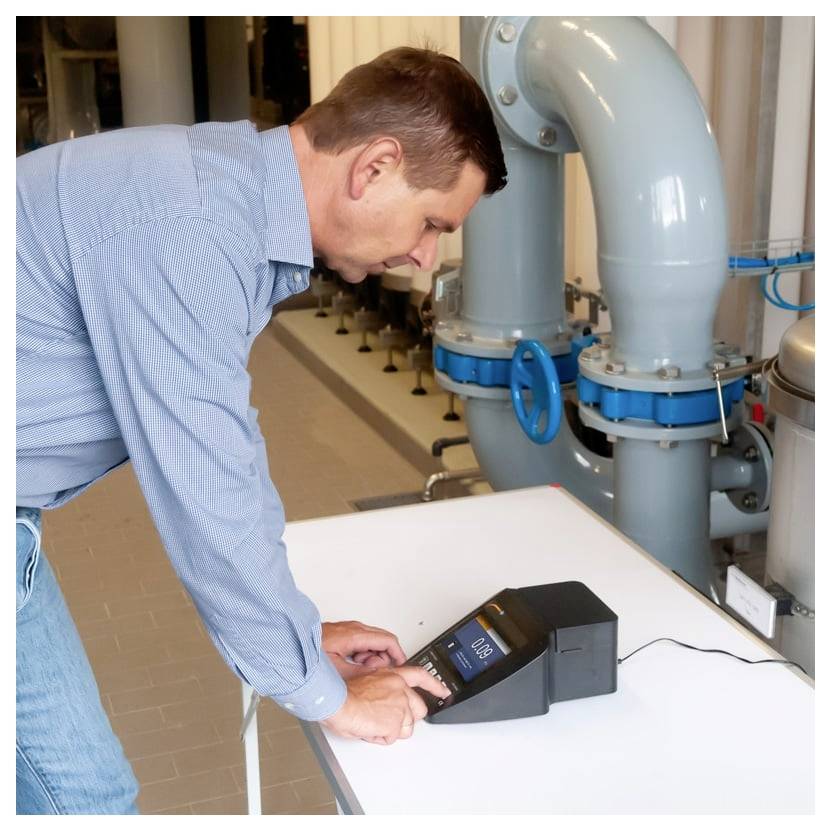

Colorimeter for waste water / color graphic display / measurement of NTU, EBC, ASBC / according to ISO 7027 (90°) / mains operation / USB interface The colorimeter is a portable device for measuring turbidity according to ISO 7027. This allows the user to quickly and easily determine important water parameters using the colorimeter and check the quality of drinking water and waste water. The calibration of the colorimeter is very simple due to the calibration standards included in the delivery. Calibration can be performed with 7 preset points. User-specific calibration points can also be set. The colorimeter is capable of measuring turbidity of liquids up to 2000 NTU. The unit of measurement can also be switched to EBC (European Brewery Convention) or ASBC (American Society of Brewing Chemistry). The measured values are displayed on the large color display. The colorimeter is mainly used in the laboratory and is therefore operated with a power supply unit. The colorimeter can be connected to a computer and the memory can be read via the rear USB interface.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Colorimeter PCE-TUM 50
- 1 x measuring cuvette with lid
- 4 x calibration cuvettes turbidity
- 1x power adapter
- 1 x Cleaning cloth
- 1x user manual
