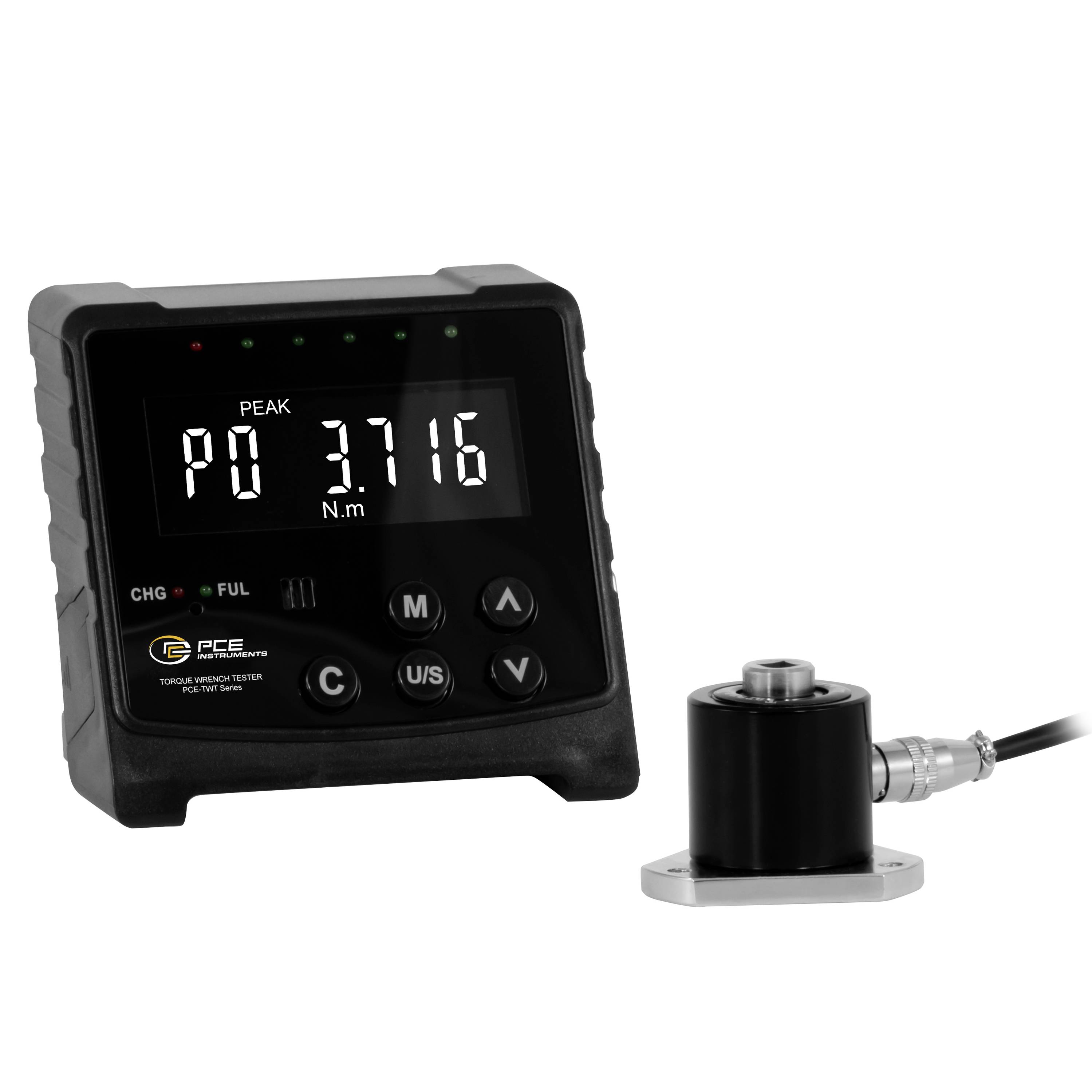

Digital torque meter showing peak 3.716 Nm, with a separate sensor attached by cable<br>

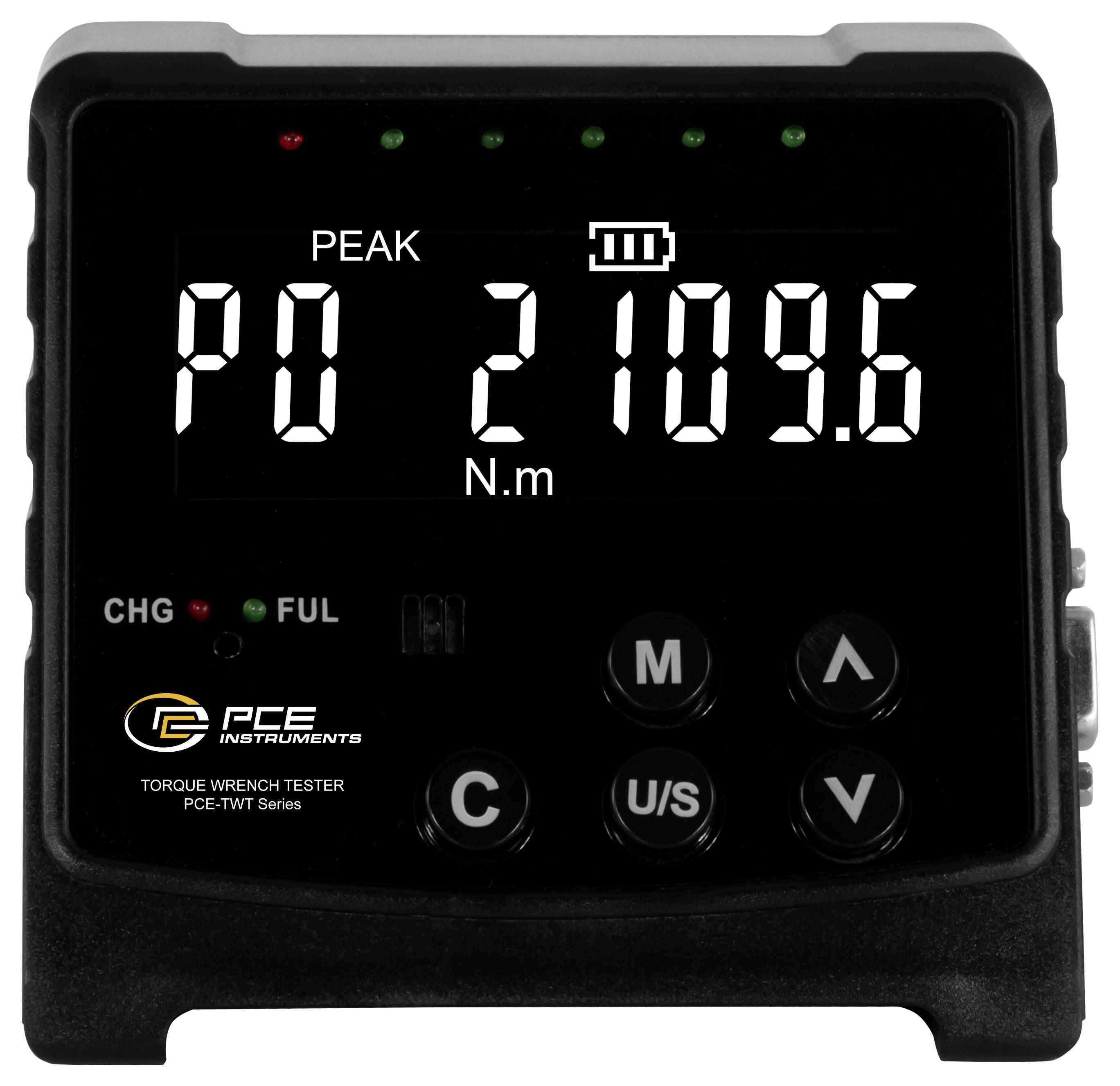

Digital torque wrench tester display reading peak 210.96 N.m, with battery and control buttons visible.

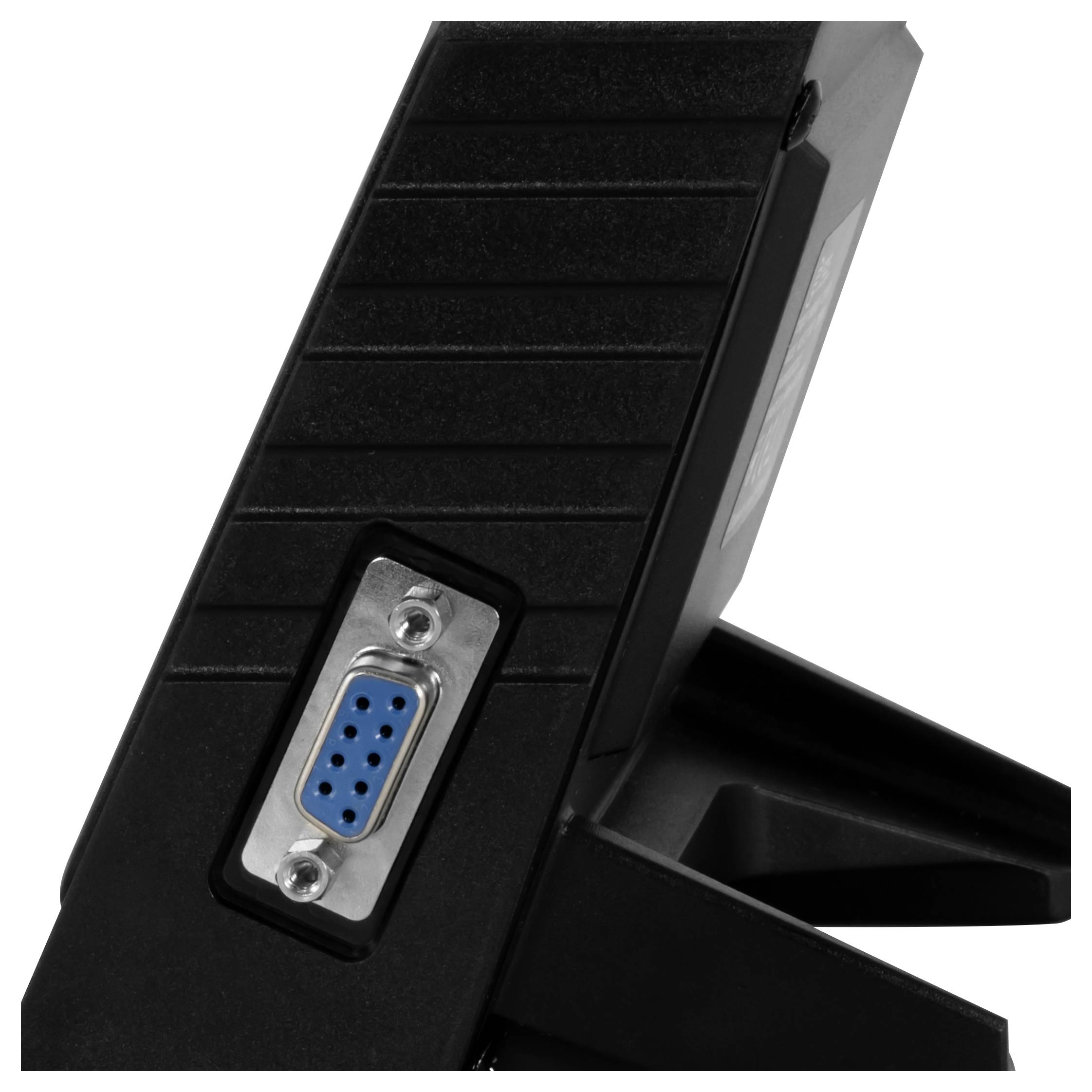

Rear view of a black monitor showing a blue 9-pin VGA port and angled stand on a white background.

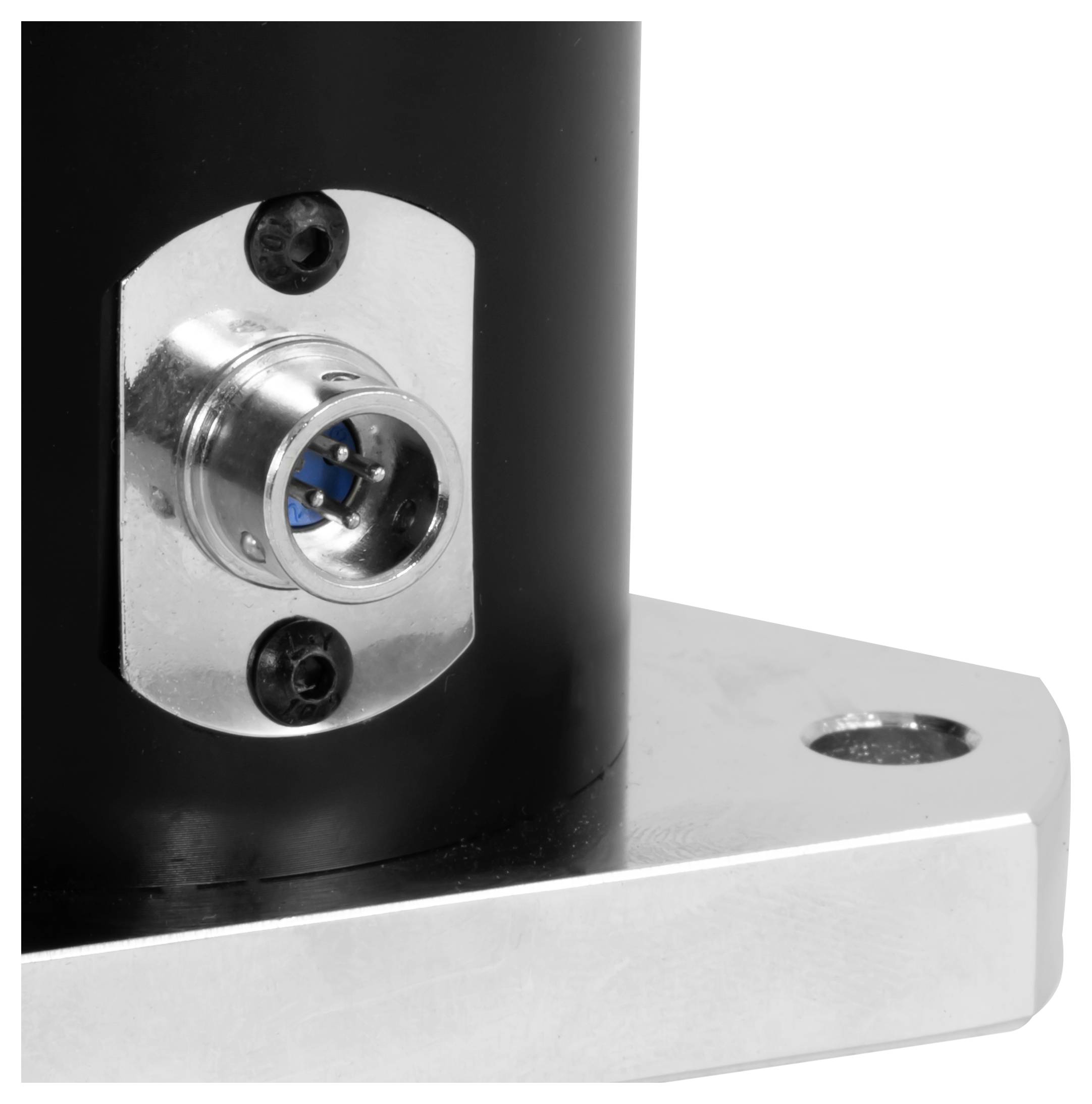

Close-up of a metal electrical connector mounted on a black cylindrical housing with a silver base plate and screw holes.<br>

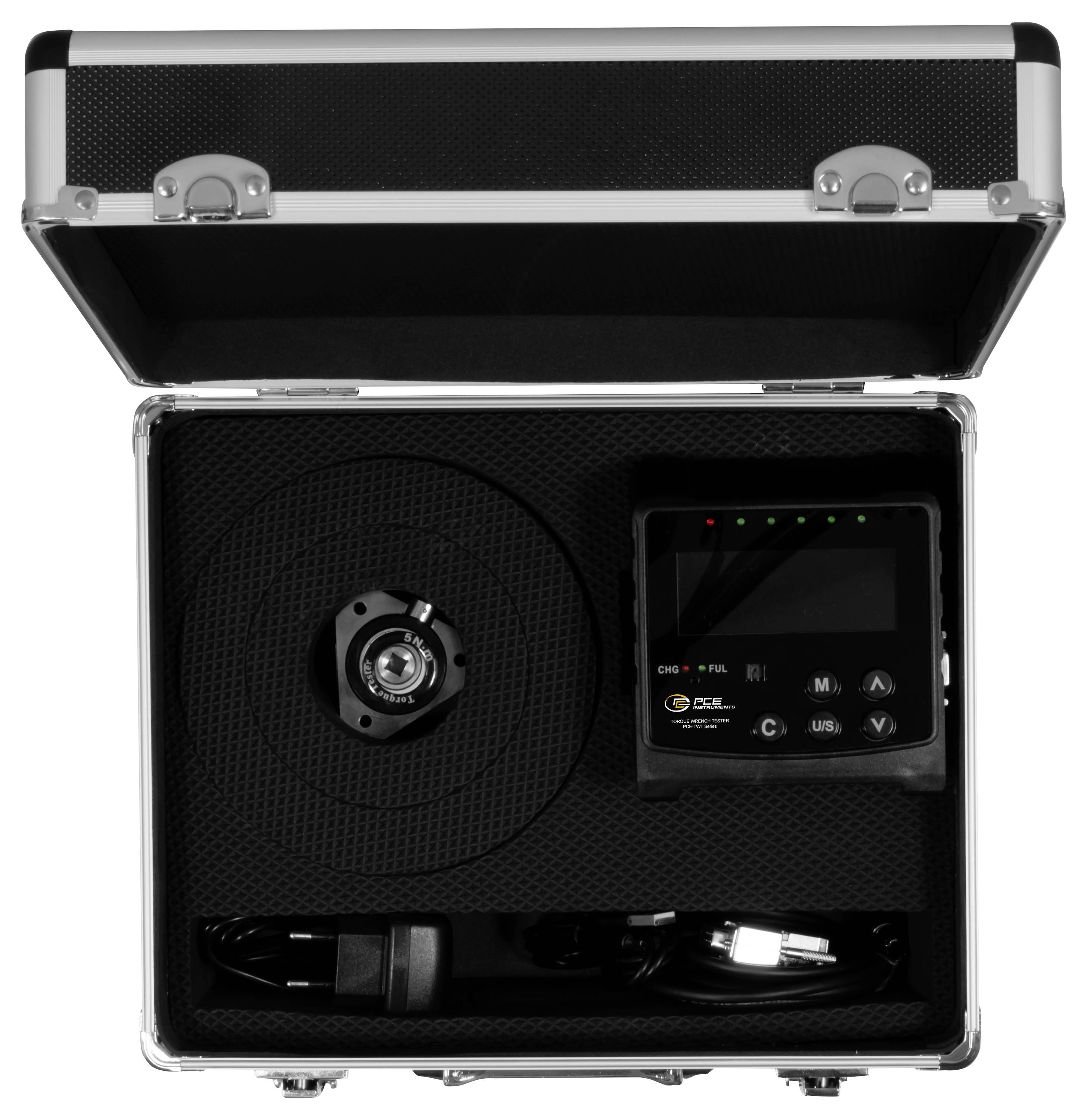

Open carrying case containing a cable reel, control panel with display, and power cords for a charging or testing device.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PCE Instruments PCE-TWT 5NM Torque meter Manufacturer's standards (no certificate)

External sensor with 1/4 inch mounting
Operating modes: Peak, max, real time
Units: N
m, kgf
cm, lbf.
inner
Memory for 2000 measurements
Incl. software for data export
Stores 2000 measurement groups
Data transfer USB-interface
Power supply 7.2 V NiMH rechargeable battery

Technical specifications

Torque
Measuring range 0.5 ... 5 Nm
Resolution 0.001 Nm
Accuracy ±1 % from MW.
Sensor
Cable length 150 cm
General Technical Data
Measuring functions peak, real time value, MAX
Unit(s) Nm, kgfcm, lbf in
Connections 1/4 inch
Display type LCD
Display size 3.3 inches
Storage medium Internal memory
Storage capacity of 2000 records
Storage Information Measured value is automatically saved only in peak mode
Interface Micro-USB
Acoustic, visual alarm
Menu language English (GB), English (US)
Protection class (device) IP20
Voltage supply: 12 V DC / 0.5 A
Battery/Battery 1 x 7.2 V internal , Nickel-metal hydride rechargeable battery
Capacity 7800 mAh
Operating conditions 5 ... 40 °C , 90 % r.F.
Storage conditions -20 ... 70 °C , 90 % r.F.
Dimensions ( L x W x H ) 118 x 90 x 103 mm
Weighs 397 g.

Product type: Torque meter

Display: LCD

: Manufacturer's standards (no certificate)

Factory colour: Black

Power supply (details): 12 V DC

Dim: (L x W x H) 118 x 90 x 103 mm

Weight: 397 g

Basic accuracy: 1 %

Width: 90 mm

Height: 103 mm

Length: 118 mm

Interfaces: Micro USB
VGA plug
VGA socket

Documents & Downloads

Datasheet

Datasheet 3812982 PCE Instruments PCE-TWT 5NM Torque meter Manufacturer's standards (no certificate)

User & Safety Instructions

User & Safety Instructions 3812982 PCE Instruments PCE-TWT 5NM Torque meter Manufacturer's standards (no certificate)

Description

The digital torque meter is a high-quality measuring device for calibration of torque sensors and for accurate detection of the tightening torque of screws and other fixing elements. It offers a high accuracy of ±1% in the range from 10% to 100% of the scale and can be operated either clockwise or counterclockwise.

The device supports several operating modes like peak hold, MAX and real-time measurement. In Peak Hold mode the maximum value is automatically stored, and the measured data can be transferred via USB to the software, which also enables a pass / fail analysis. Tolerance ranges can be set directly in the device so that the values can be checked quickly. An integrated LED traffic light display allows you to view the measured value at a glance.

The selection between the units Newton meters (N.·M), Kilogram-force centimeter (kgf·Cm) and pound force duty (lbf·IN) enables flexible applications in various industries. With a storage capacity of 2,000 measurement groups and the possibility of data transfer via USB, the measuring device Ideal is for use in the mechanical engineering industry as well as in scientific research institutes.

The device works reliably at ambient temperatures from 5 °C to 40 °C and is powered by a 7.2 V NiMH-battery, which is optimized for mobile use.
