PCE Instruments PCE-UCD 100 Hardness tester 1677700 µS

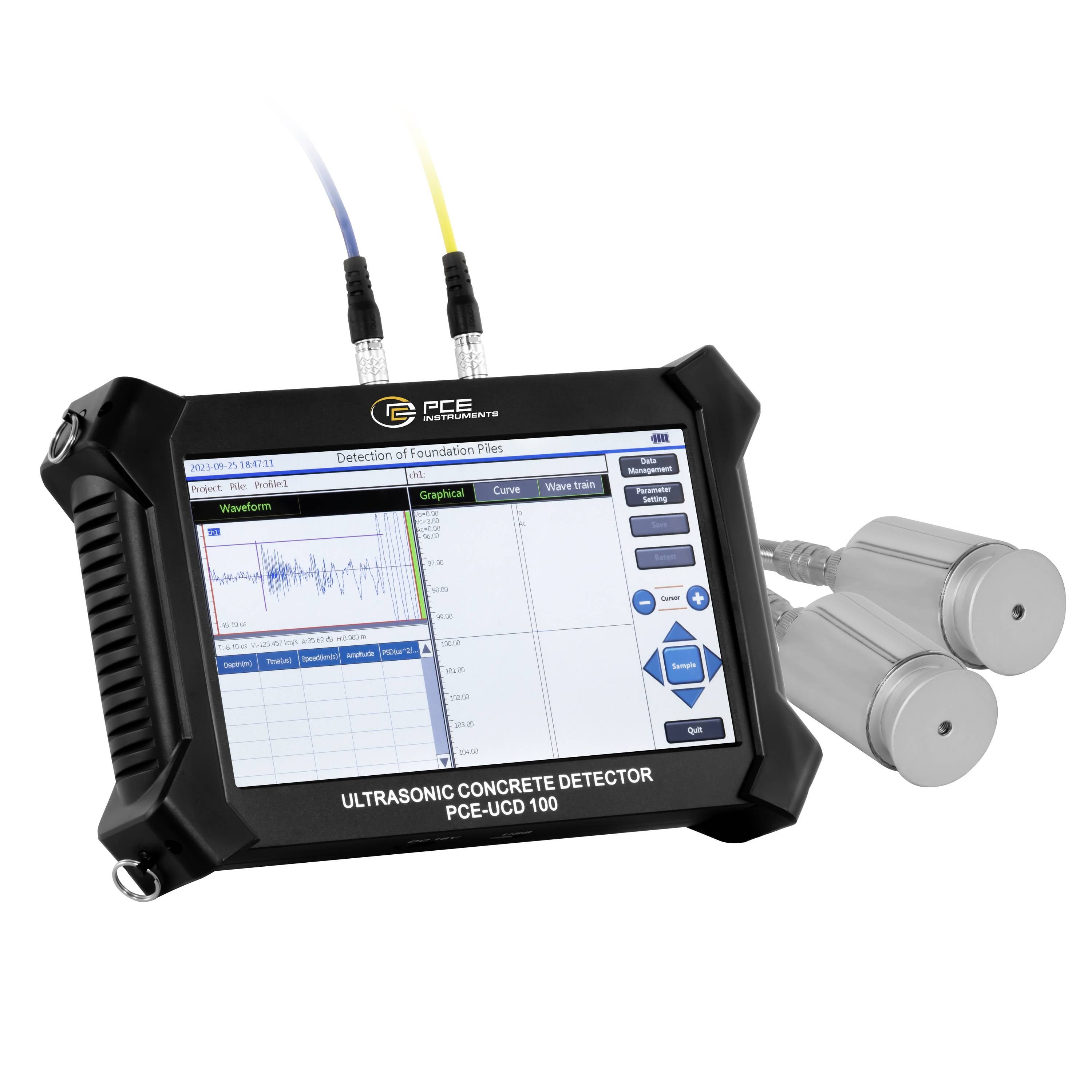

The concrete tester sets a new standard for the quality control of concrete structures. With a wide range of measurement parameters and state-of-the-art technology, this material tester enables an accurate inspection of concrete piles, concrete supports and other components. This innovative concrete tester offers not only reliable concrete strength measurements, but also detailed fault detection, including the size and depth of voids and cracks. The enclosed camera even enables the precise measurement of crack widths.

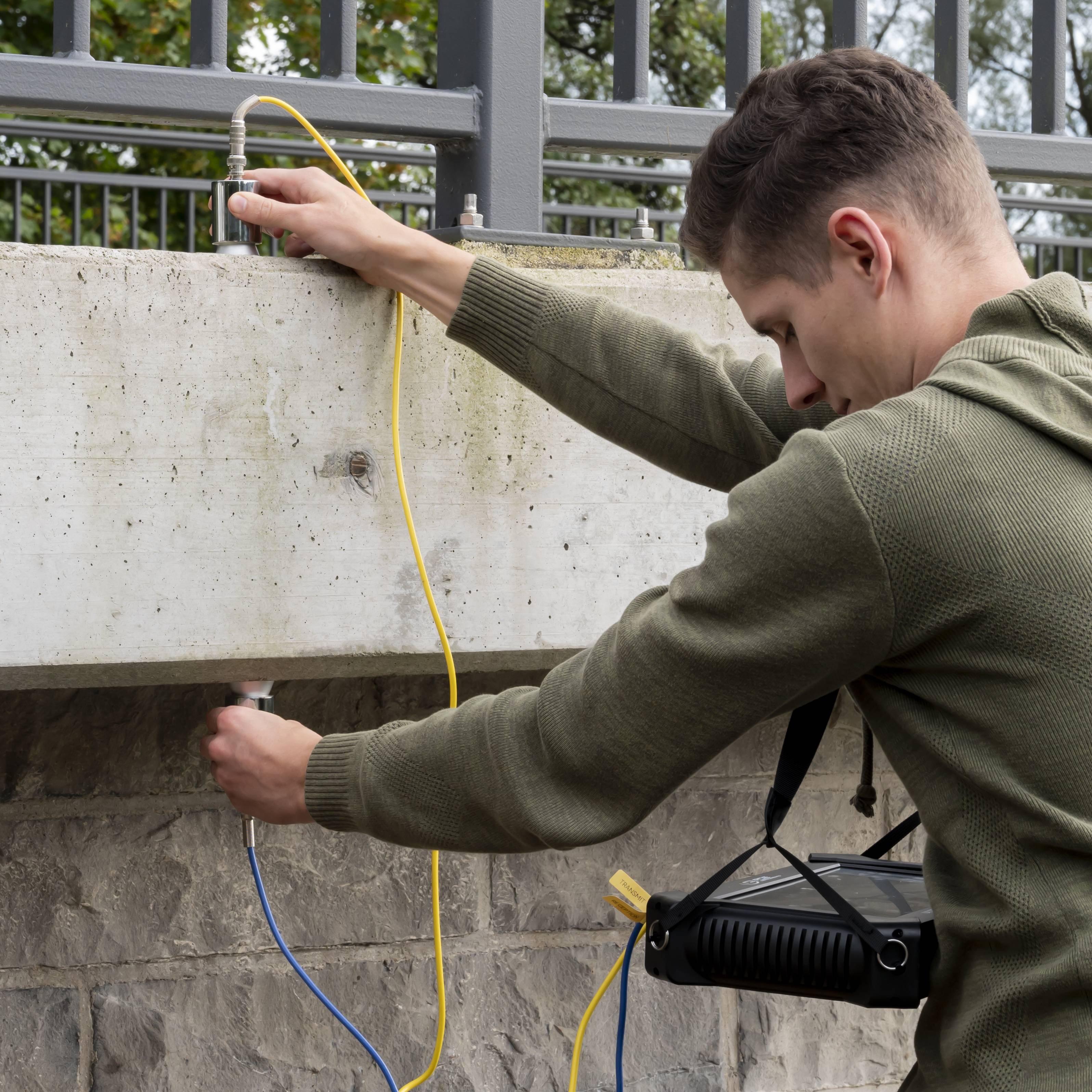

The concrete tester is specially designed to accurately measure concrete strength and detect faults such as voids and cracks. It allows measurements on concrete poles, concrete beams and other concrete structures.

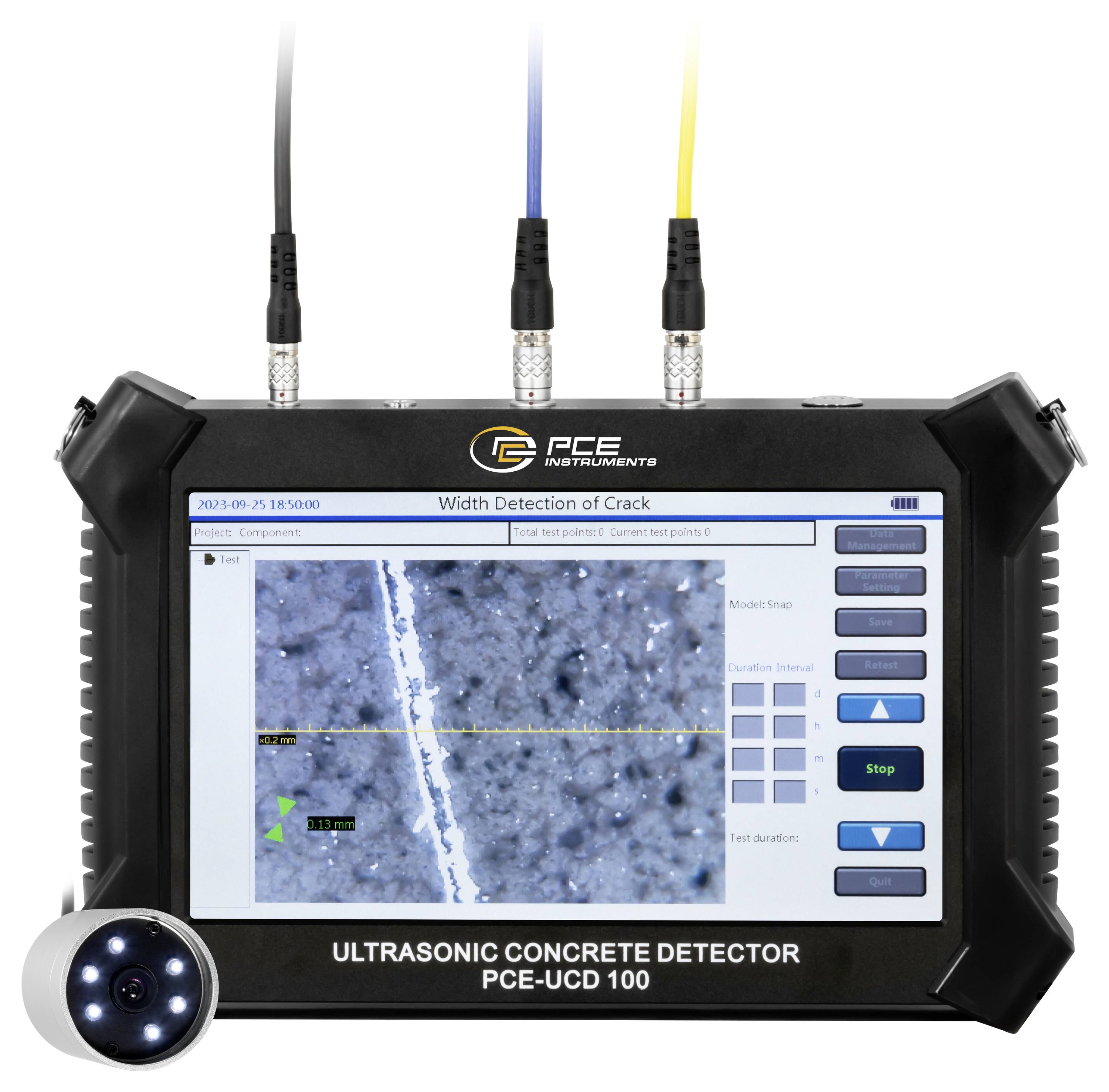

The camera enables high-resolution detection of cracks and allows precise measurement of the crack width directly on the concrete tester. With an impressive bandwidth of 1 to 500 kHz, the concrete tester covers a wide frequency spectrum, while WAS enables accurate and reliable measurement in different concrete structures. The concrete tester has a 10.1" TFT touch-screen display, which offers a clear and intuitive user interface.

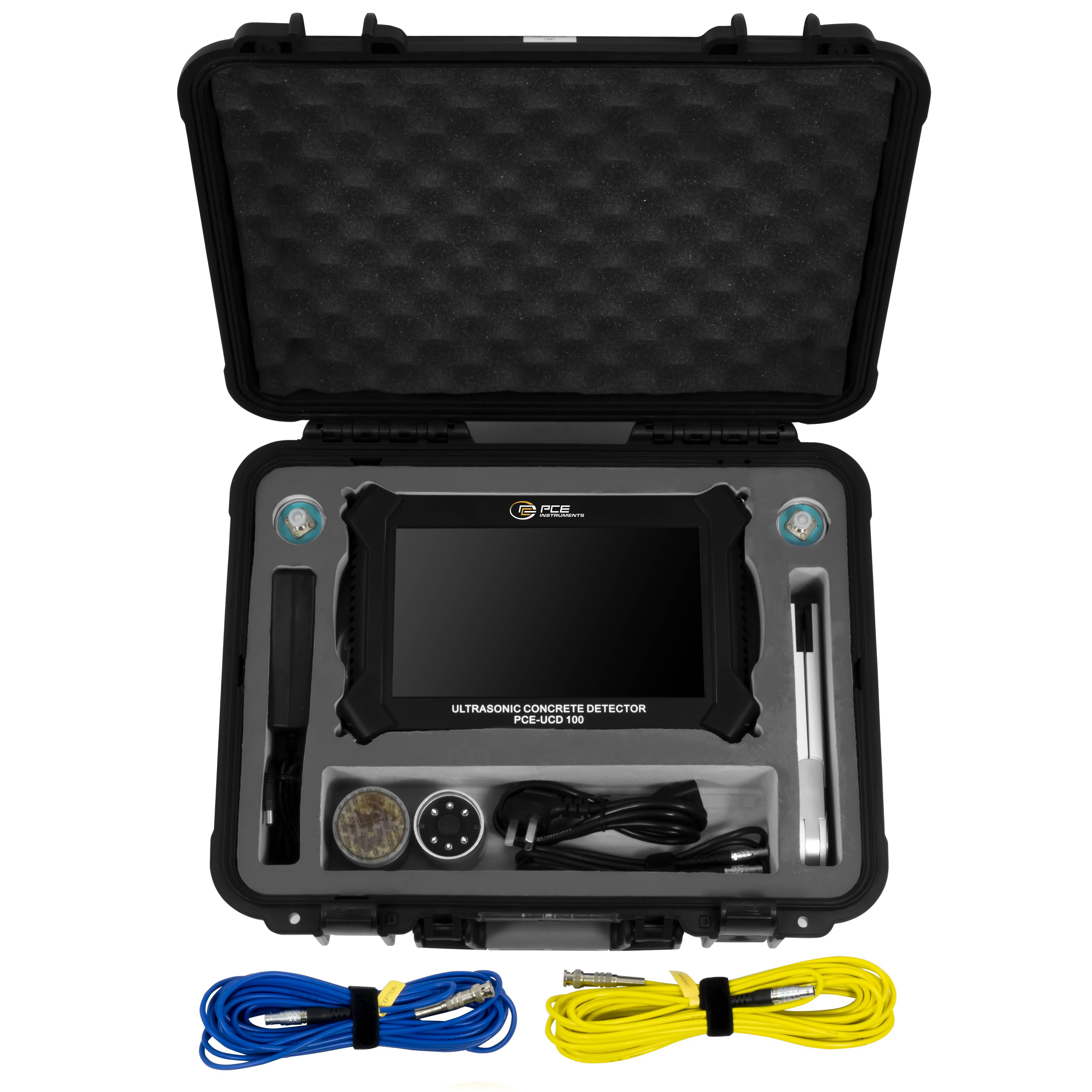

The concrete tester is supplied in a robust carrying case, which not only enables easy transport, but also protects the concrete tester from impacts and moisture. With an internal memory of 8 GB measurement data, images and other information can be stored without any problem and also transferred to the accompanying software.

This text is machine translated.
