PCE Instruments PCE-UFD 50 Hardness tester Ultrasound hardness tester

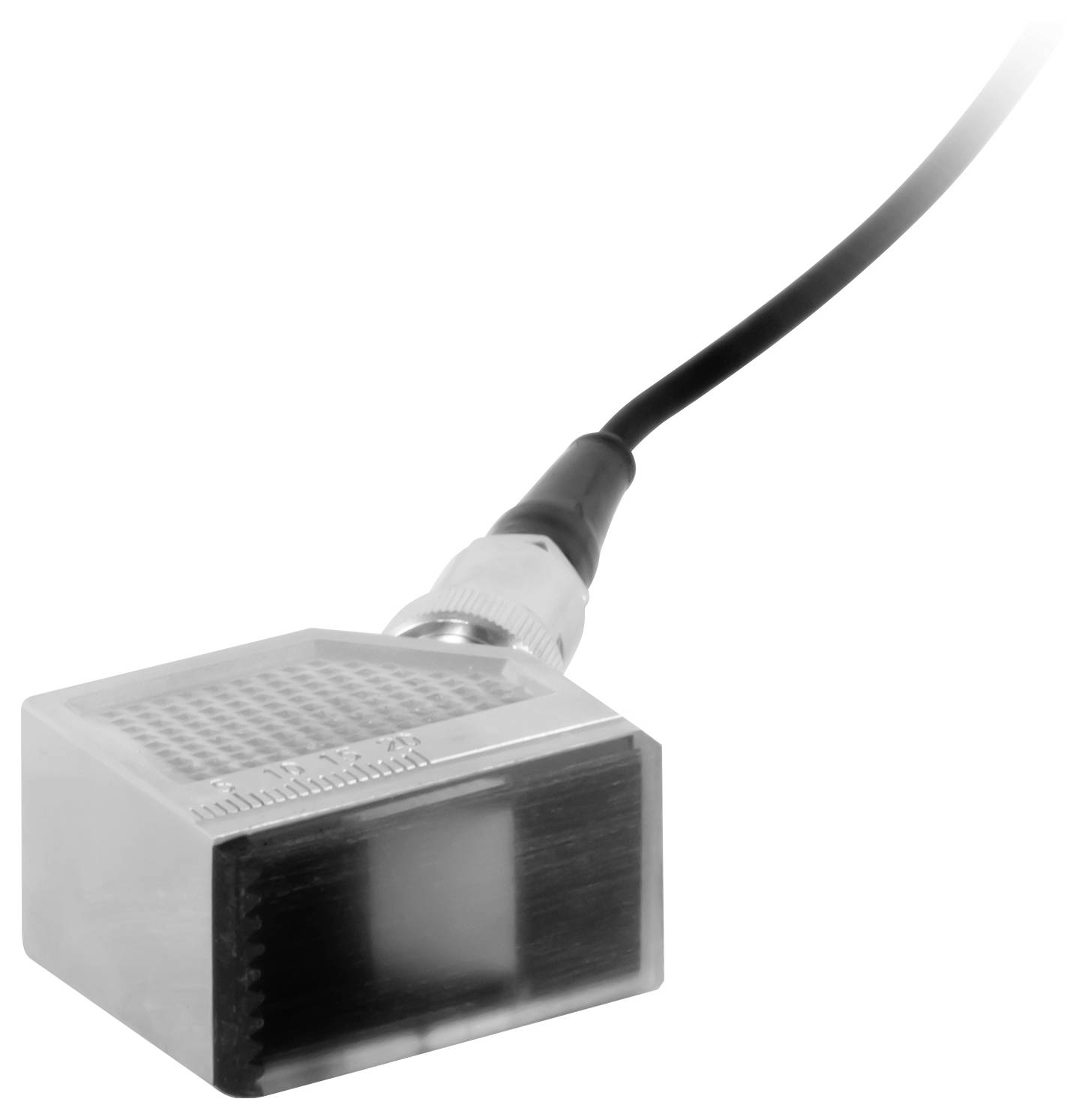

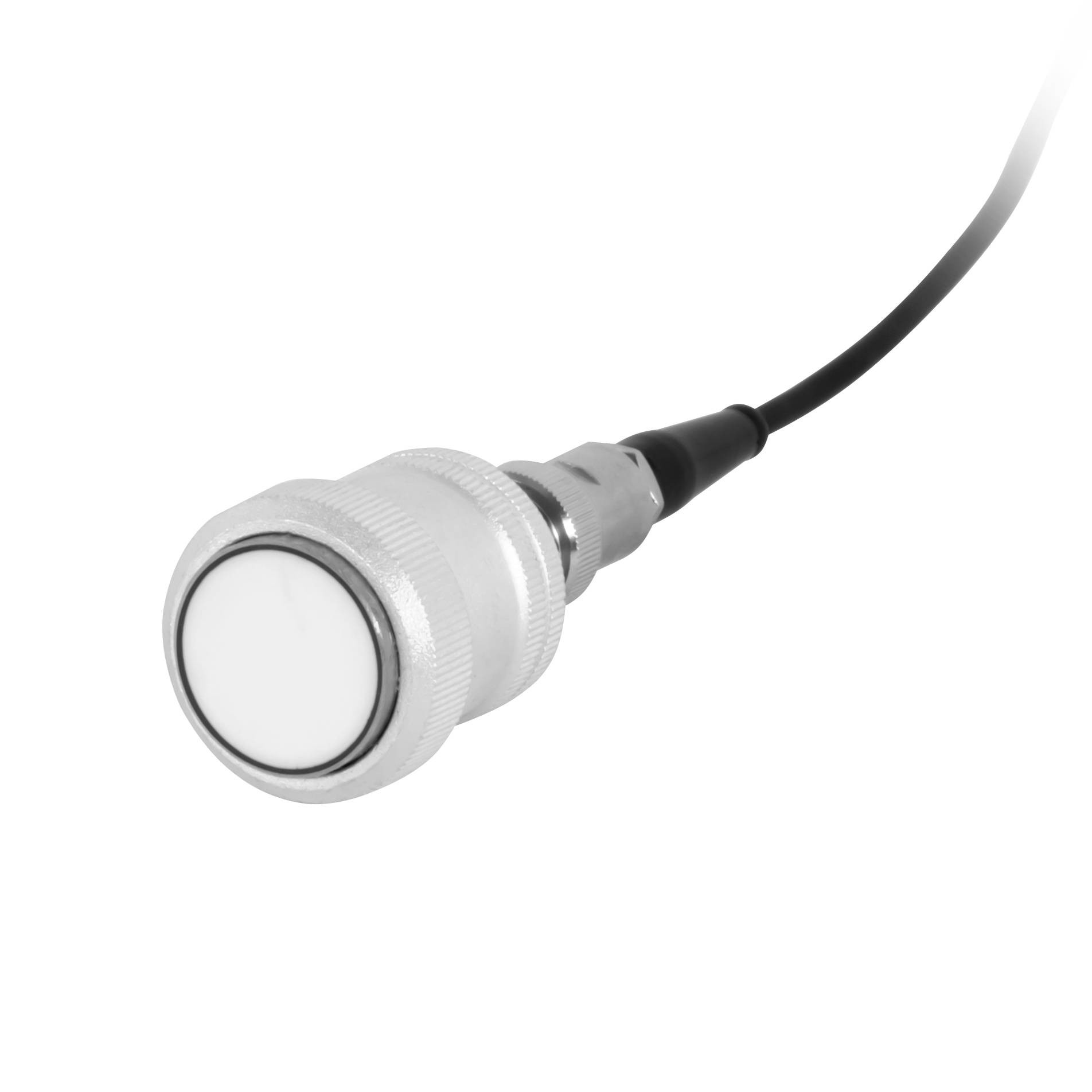

The ultrasonic crack testing device is used for non-destructive material testing. When testing with the ultrasonic crack tester, ultrasonic waves are sent through the test object using a test head. The ultrasonic is reflected and scattered at interfaces of different materials with unequal density and wave impedance. After determining the duration of the ultrasound, welding seams can be tested by the test object, wall thicknesses can be measured and component faults can be detected with the ultrasonic tester.

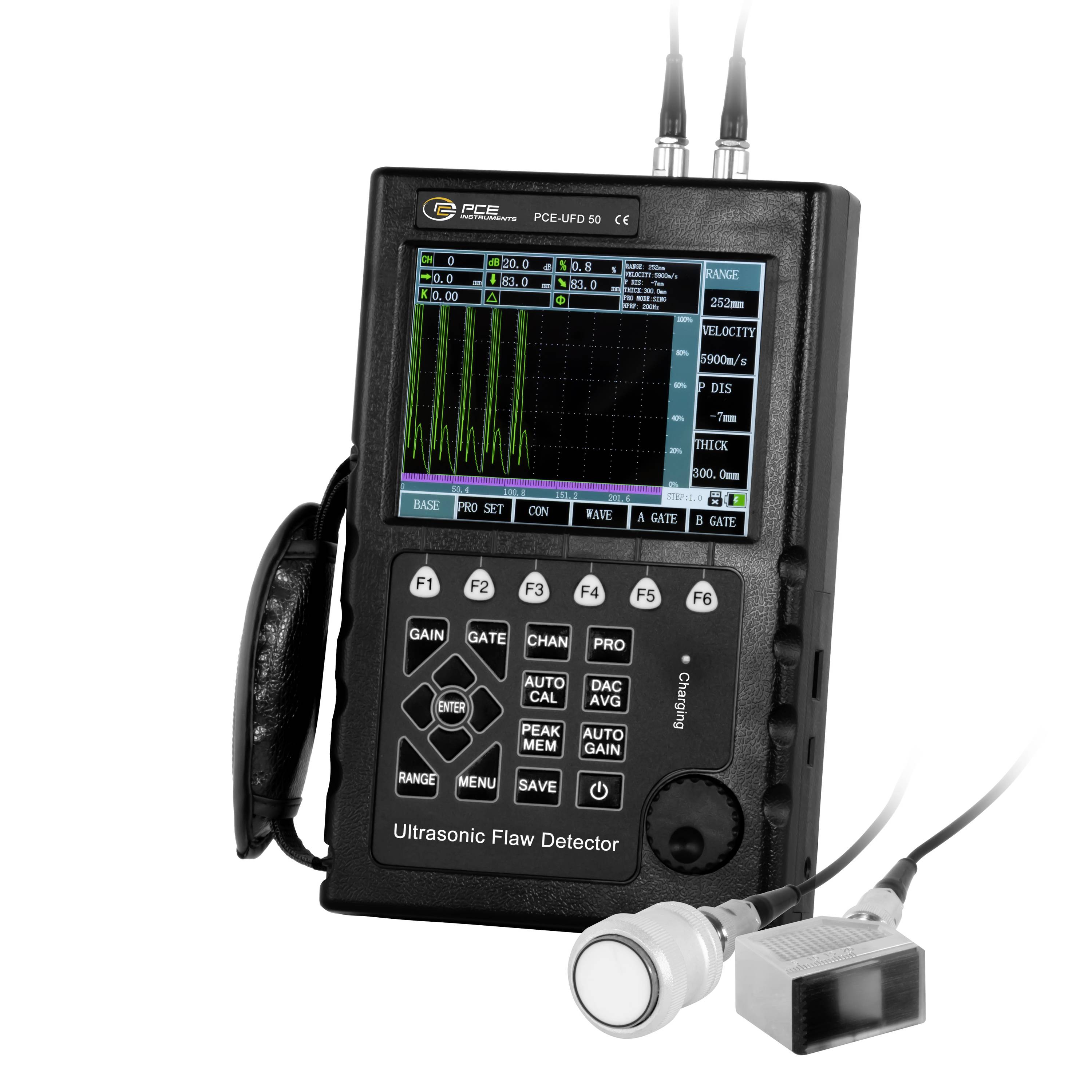

At adjustable frequencies between 0.5 … 20 MHz and sound speeds between 1000 … 15000 m/s, measurements in steel can be carried out in a range between 0 … 10000 mm. DAC and AVG evaluation methods, display and probes delay, damping and reinforcement functions, export and reporting functions as well as numerous other adjustment options facilitate the non-destructive material testing by the ultrasonic crack tester. The tester has a video recording of the screen. With the software, the data can then be called up and a report can be created. Via the rotary wheel you can change the setting parameters. The 5.7 inch color display offers a clear presentation of the test results.

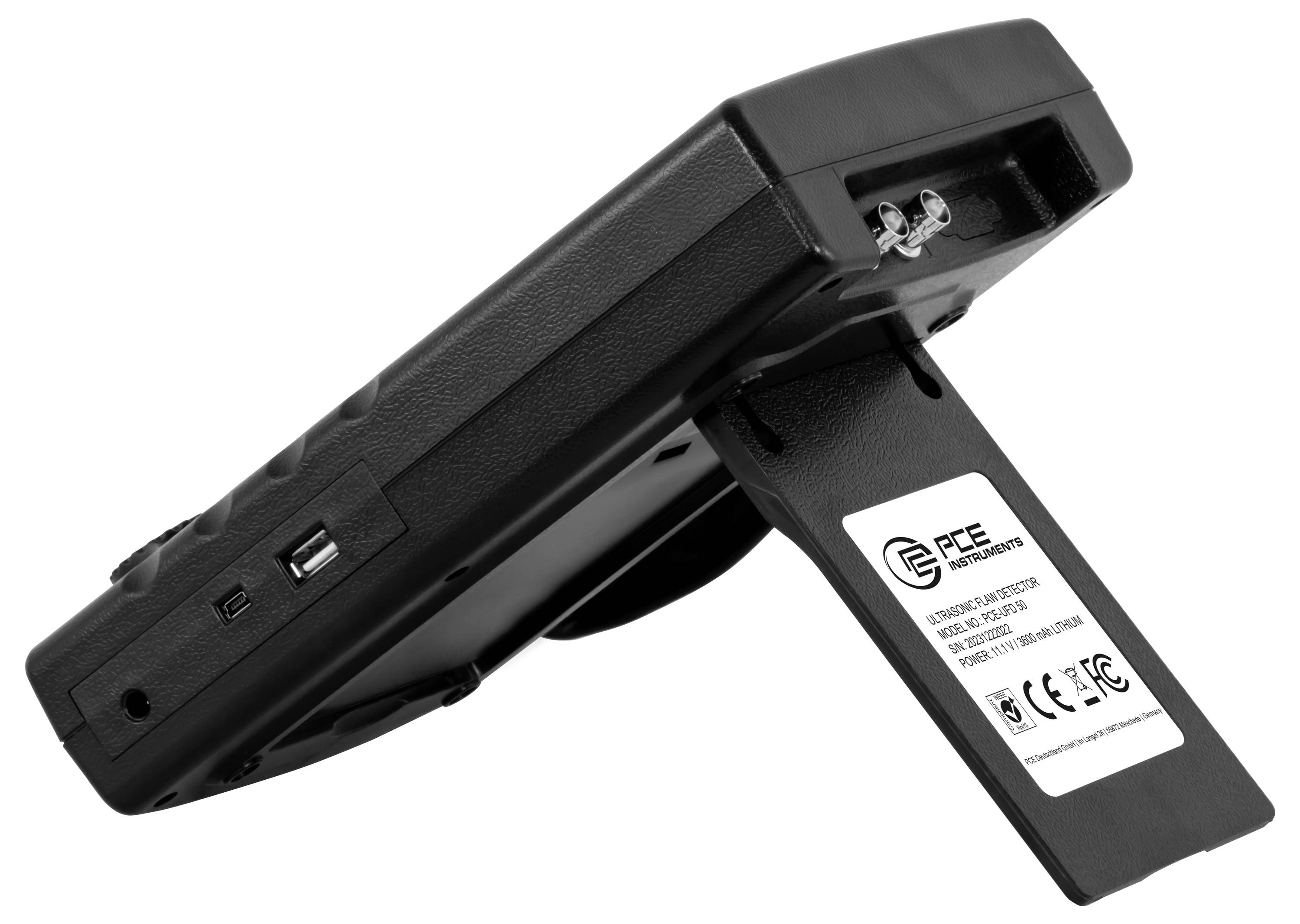

The ultrasonic testing device for cracks is a powerful measuring device which has been designed for appropriate tests. Robust and ergonomic design enables the use under industrial conditions. With only 1.1 kg, the ultrasound crack tester can be used as a desktop device but is also suitable for mobile use.
